Diffusion cycle-consistent generative adversarial networks for pelvic active bone marrow segmentation

doi:10.12122/j.issn.1673-4254.2026.01.24

Abstract

Abstract:

Objective To establish a pelvic active bone marrow (ABM) segmentation method based on diffusion cycle-consistent generative adversarial networks for improving individualized precision of conventional anatomical atlas-based methods. Methods We collected pelvic PET-CT data from 253 patients and constructed a 3-stage cascaded cross-modal learning framework for precise individualized ABM identification from CT images. The framework used cycle-consistent generative adversarial networks for bidirectional CT-PET mapping, conditional diffusion modules with 1000-step Markov chains for progressive denoising, and multi-scale progressive feature pyramid fusion networks for segmentation. The peak signal-to-noise ratio (PSNR), structural similarity index (SSIM), normalized mean square error (NMSE), Dice similarity coefficient (DSC), and average symmetric surface distance (ASSD) were used for evaluation of the model performance for ABM segmentation. Results The proposed method outperformed the existing methods with a PSNR of 26.42±0.63 dB, an SSIM of 0.894±0.011, and an NMSE of 0.0235±0.0026. For ABM segmentation, the average Dice coefficient of the model reached 0.777±0.023 with an ASSD of 3.52±0.41 mm. Conclusion Compared with the conventional methods, the propose method significantly improves individualized segmentation accuracy of the ABM and is thus suitable use in individualized bone marrow protection radiotherapy for rectal cancer.

Key words: rectal cancer, active bone marrow, diffusion models, generative adversarial networks, image segmentation

Li ZHUO, Min ZENG, Shunqian TAN, Tao LIANG, Weiwei XIAO, Xin ZHEN. Diffusion cycle-consistent generative adversarial networks for pelvic active bone marrow segmentation[J]. Journal of Southern Medical University, 2026, 46(1): 219-230.

Figures/Tables 12

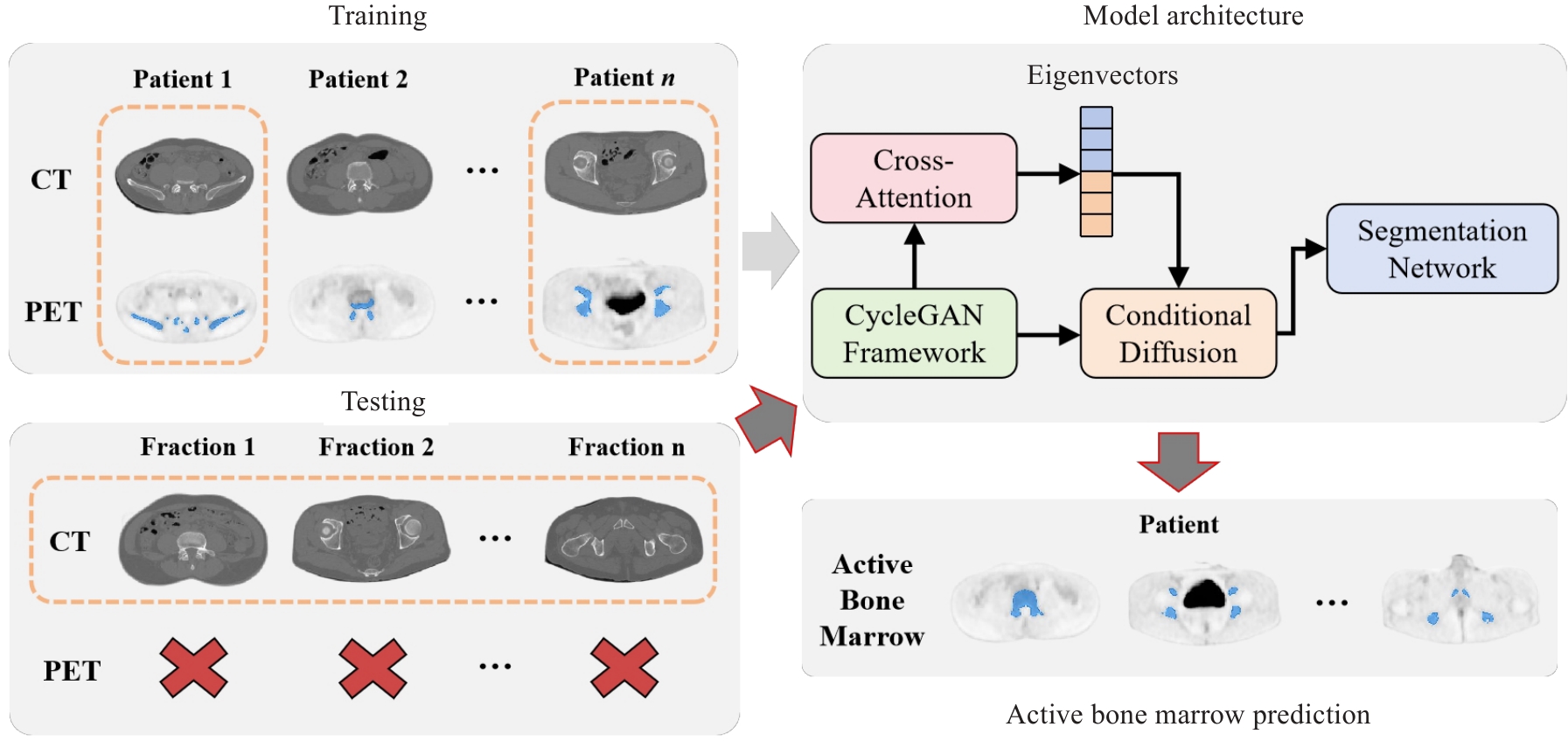

Fig.1 Overall architecture of the pelvic active bone marrow segmentation method based on diffusion cycle-consistent generative adversarial network.

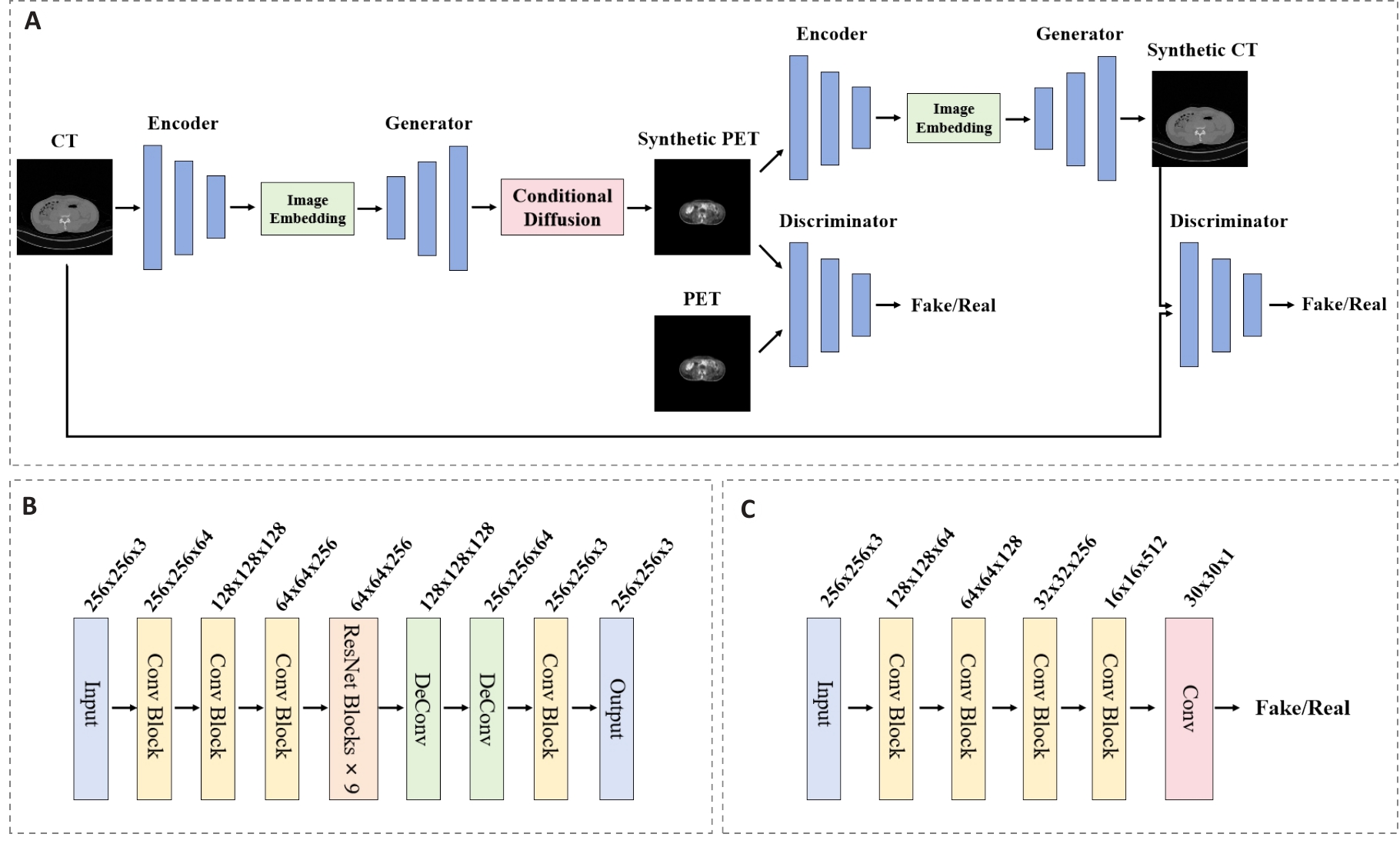

Fig.2 Architecture diagram of the cycle-consistent generative adversarial network module. A: Overall architecture of the CycleGAN establishing bidirectional mapping. B: Generator network architecture containing 9 residual blocks. C: Discriminator network architecture employing spectral normalization.

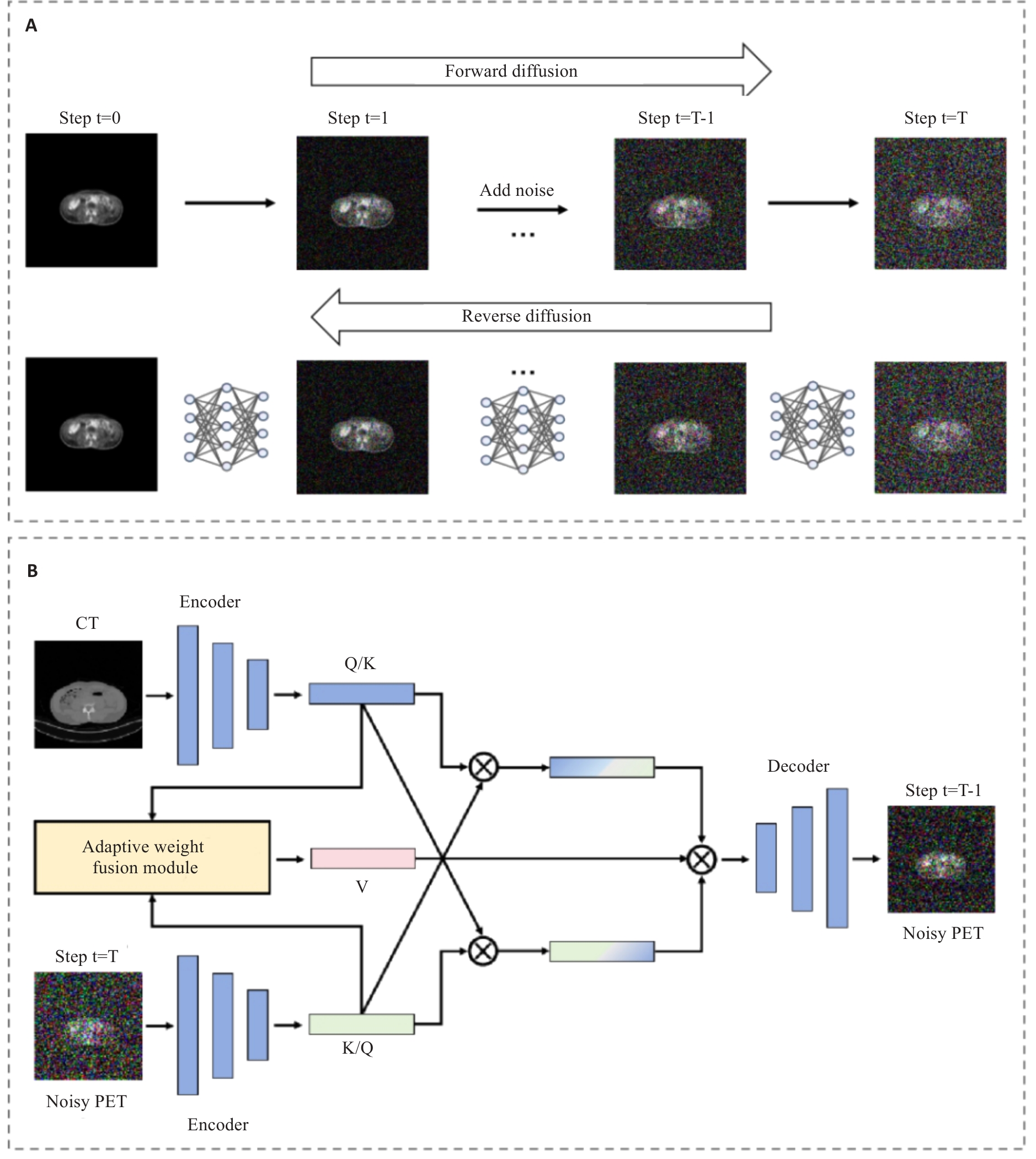

Fig.3 Cross-modal dynamic denoising method of the conditional diffusion module. A: Forward noise addition and reverse denoising reconstruction processes based on Markov chain. B: Structure of the cross-modal dynamic denoising network integrating Adaptive Weight Fusion Module and Bidirectional Cross-Attention

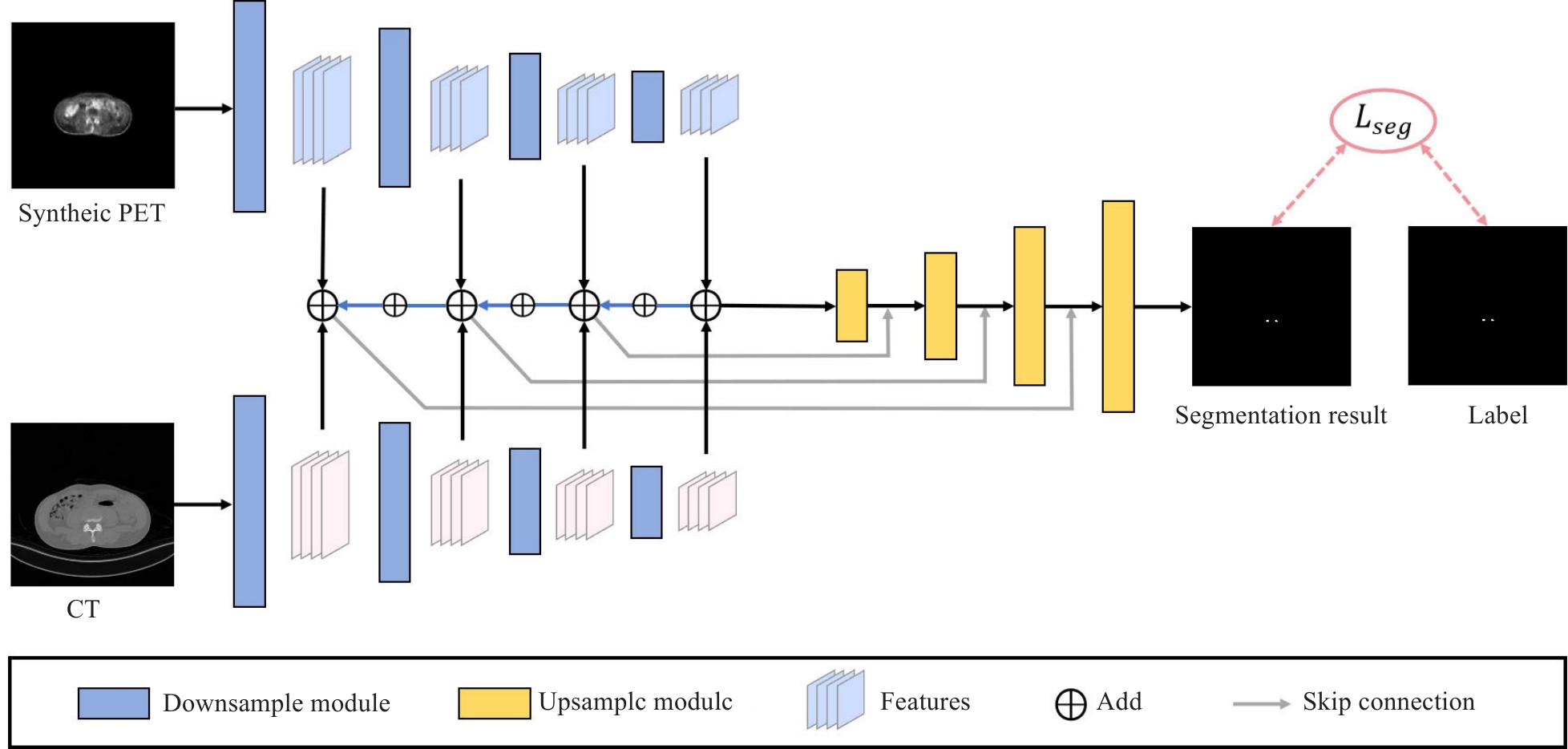

Fig.4 Architecture of multi-scale progressive feature pyramid fusion segmentation network.

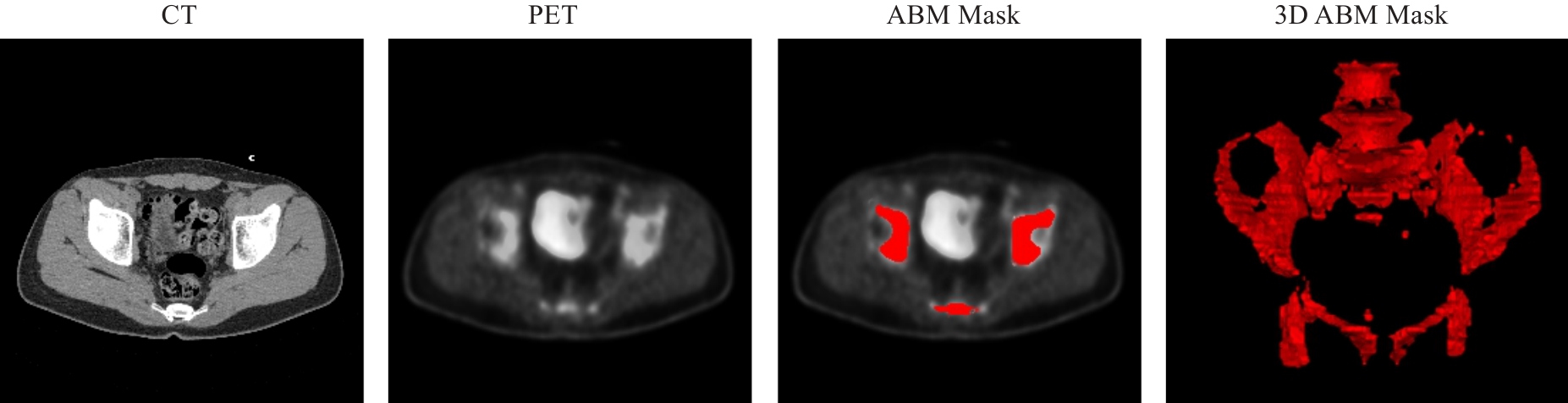

Fig.5 Typical PET-CT image data and ABM annotation examples.

Tab.1 Quantitative comparison of different methods for image synthesis quality

Methods	PSNR	SSIM	NMSE	Average time (Epoch/s)
U-net^[20]	21.27±1.31	0.787±0.031	0.0438±0.0062	57.1
Pix2pix^[16]	22.61±1.04	0.815±0.026	0.0359±0.0045	48.9
CycleGAN^[21]	24.33±0.91	0.861±0.022	0.0297±0.0041	53.4
WGAN^[22]	20.42±1.52	0.771±0.035	0.0481±0.0073	65.3
DCGAN^[23]	19.08±1.89	0.738±0.044	0.0541±0.0095	44.8
DDPM^[18]	23.71±0.97	0.849±0.024	0.0324±0.0042	197.2
Ours	26.42±0.63	0.894±0.011	0.0235±0.0026	239.8

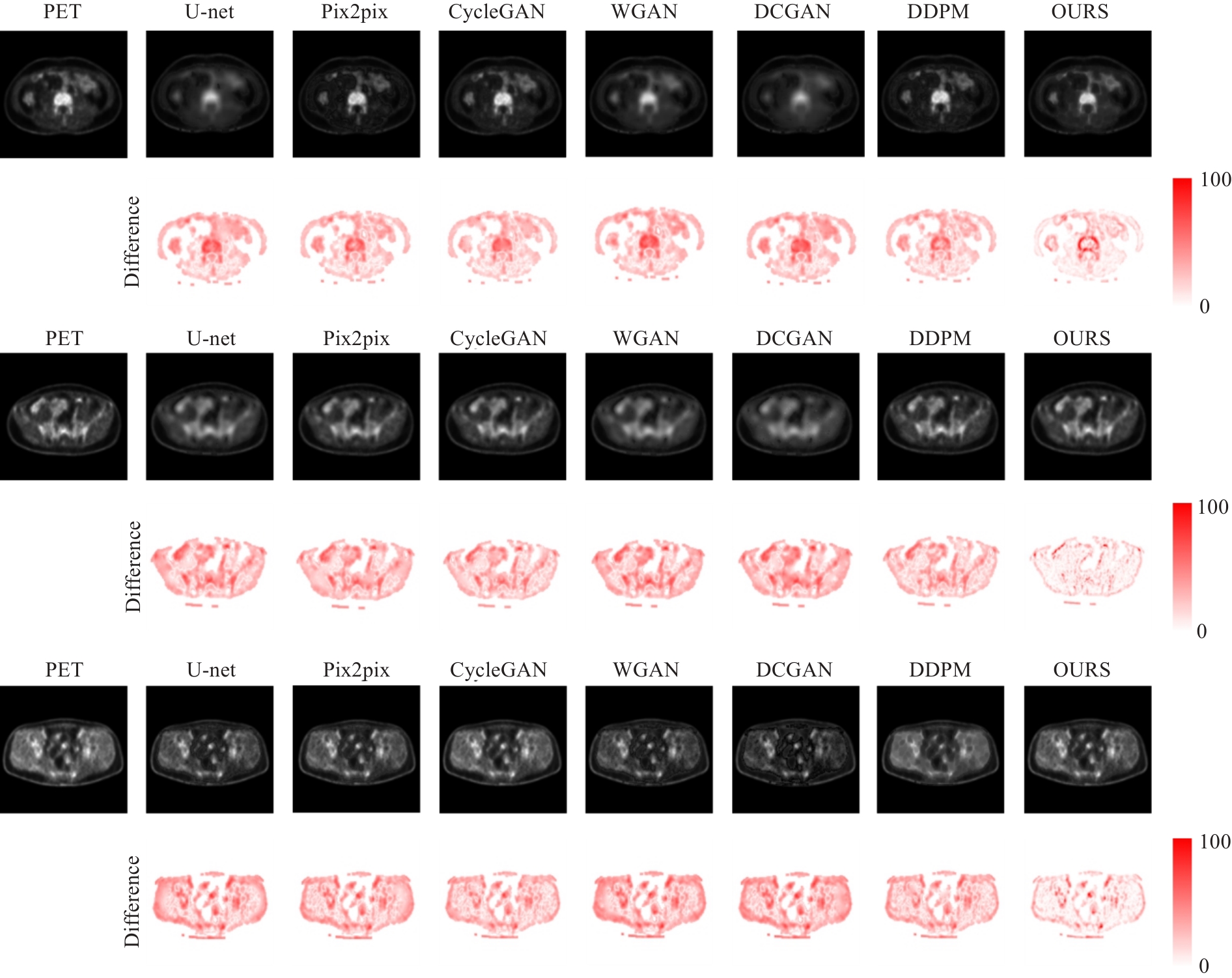

Fig.6 Visual comparison of synthesized images with different methods.

Tab.2 Comparison of segmentation performance of different methods in different ABM regions.

Methods	Dice				ASSD
Methods	Lumbosacral spine	Ilium	Lower pelvis	Average	Lumbosacral spine	Ilium	Lower pelvis	Average
GAN+U-net^[20]	0.696±0.031	0.652±0.039	0.638±0.035	0.662±0.035	4.21±0.48	5.08±0.63	5.61±0.71	4.97±0.61
SynSeg-Net^[24]	0.718±0.027	0.675±0.034	0.661±0.032	0.685±0.031	3.89±0.44	4.68±0.58	5.15±0.64	4.57±0.55
Robust-Mseg^[25]	0.731±0.024	0.693±0.030	0.675±0.028	0.700±0.027	3.67±0.40	4.35±0.52	4.83±0.58	4.28±0.50
SCM^[26]	0.715±0.029	0.677±0.033	0.661±0.031	0.684±0.031	3.87±0.43	4.62±0.56	5.10±0.62	4.53±0.54
PEMMA^[27]	0.748±0.022	0.709±0.026	0.688±0.027	0.715±0.025	3.45±0.38	4.12±0.49	4.56±0.55	4.04±0.47
Ours	0.806±0.019	0.771±0.023	0.754±0.026	0.777±0.023	3.02±0.33	3.58±0.41	3.95±0.49	3.52±0.41

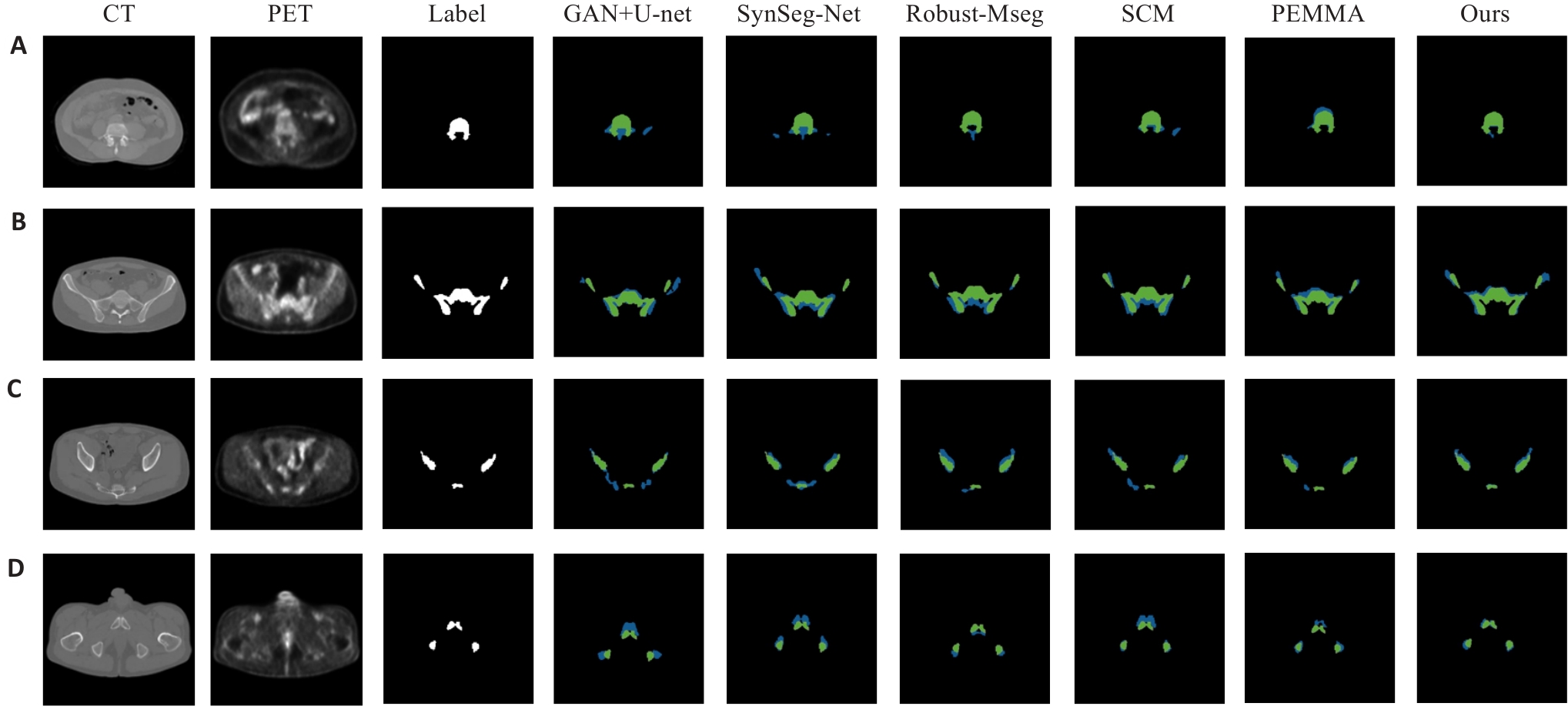

Fig.7 Visual examples of ABM segmentation results. (A) Lumbosacral spine region; (B) Ilium region; (C) Lower pelvis region; (D) Representative case with ground truth (green) and predictions (blue).

Tab.3 Comparison of image generation effects and segmentation prediction under different diffusion steps

Diffusion steps T	PSNR (dB)	SSIM	NMSE	Dice	Average time (Epoch/s)
100	22.28±1.29	0.797±0.043	0.0449±0.0076	0.548±0.049	113.5
250	23.94±1.05	0.827±0.036	0.0383±0.0063	0.625±0.041	142.6
500	25.58±0.86	0.861±0.029	0.0305±0.0050	0.715±0.020	184.0
1000	26.42±0.63	0.894±0.011	0.0235±0.0026	0.777±0.023	239.8
1500	26.21±0.70	0.888±0.025	0.0238±0.0039	0.768±0.030	337.1
2000	26.03±0.76	0.884±0.028	0.0245±0.0043	0.761±0.033	431.0

Tab.4 Impact of different weighting strategies on model performance

Weight strategy	Weight function	PSNR (dB)	SSIM	NMSE	Dice
Fixed weight (0.3:0.7)	$W C T = 0.3$	24.91±0.92	0.851±0.026	0.0339±0.0048	0.728±0.037
Fixed weight (0.5:0.5)	$W C T = 0.5$	25.07±0.84	0.862±0.022	0.0323±0.0044	0.745±0.033
Fixed weight (0.7:0.3)	$W C T = 0.7$	24.73±0.99	0.845±0.029	0.0357±0.0055	0.719±0.040
Linear decay	$W C T = 1 - t T$	25.58±0.75	0.871±0.018	0.0287±0.0036	0.763±0.026
Cosine decay	$W C T = 1 + c o s (π t T) 2$	25.84±0.70	0.878±0.016	0.0271±0.0033	0.769±0.024
Exponential decay	$W C T = e - λ t$	26.08±0.66	0.885±0.014	0.0253±0.0030	0.772±0.023
Exponential decay+error feedback	$W C T = e - λ t (1 + β ϵ)$	26.42±0.63	0.894±0.011	0.0235±0.0026	0.777±0.023

Tab.4 Impact of different weighting strategies on model performance

Weight strategy	Weight function	PSNR (dB)	SSIM	NMSE	Dice
Fixed weight (0.3:0.7)	$W C T = 0.3$	24.91±0.92	0.851±0.026	0.0339±0.0048	0.728±0.037
Fixed weight (0.5:0.5)	$W C T = 0.5$	25.07±0.84	0.862±0.022	0.0323±0.0044	0.745±0.033
Fixed weight (0.7:0.3)	$W C T = 0.7$	24.73±0.99	0.845±0.029	0.0357±0.0055	0.719±0.040
Linear decay	$W C T = 1 - t T$	25.58±0.75	0.871±0.018	0.0287±0.0036	0.763±0.026
Cosine decay	$W C T = 1 + c o s (π t T) 2$	25.84±0.70	0.878±0.016	0.0271±0.0033	0.769±0.024
Exponential decay	$W C T = e - λ t$	26.08±0.66	0.885±0.014	0.0253±0.0030	0.772±0.023
Exponential decay+error feedback	$W C T = e - λ t (1 + β ϵ)$	26.42±0.63	0.894±0.011	0.0235±0.0026	0.777±0.023

Tab.5 Ablation study results

Configuration	Input modality	Dice	ASSD	PSNR (dB)	SSIM	NMSE
Baseline	CT only	0.664±0.036	4.97±0.62	-	-	-
+CycleGAN	CT+pseudo-PET	0.702±0.028	4.28±0.51	24.35±0.81	0.861±0.017	0.0281±0.0033
+Conditional diffusion	CT+enhanced-PET	0.726±0.031	4.11±0.55	26.42±0.63	0.894±0.011	0.0235±0.0026
+Multi-scale fusion	CT+enhanced-PET+advanced fusion	0.758±0.025	3.76±0.44	26.42±0.63	0.894±0.011	0.0235±0.0026
Complete method	Full pipeline with joint optimization	0.777±0.023	3.52±0.41	26.42±0.63	0.894±0.011	0.0235±0.0026
