面向边界模糊与异质性区域的半监督MRI图像分割双网络模型

doi:10.12122/j.issn.1673-4254.2026.08.23

南方医科大学学报 ›› 2026, Vol. 46 ›› Issue (8): 1956-1966.doi: 10.12122/j.issn.1673-4254.2026.08.23

• • 上一篇

面向边界模糊与异质性区域的半监督MRI图像分割双网络模型

黄凌霄¹^,⁴^,⁵(), 徐海喆¹^,⁴^,⁵(), 黄凌燕²^,³, 姚新波¹^,⁴^,⁵, 周开元¹^,⁴^,⁵, 高勇占¹^,⁴^,⁵

^1.宁夏大学信息工程学院，宁夏银川 750021
^2.宁夏医科大学总医院病理科，宁夏银川 750021
^3.海南医科大学第二附属医院病理科，海南海口 570000
^4.宁夏“东数西算”人工智能与信息安全重点实验室，宁夏银川 750021
^5.宁夏大数据与人工智能省部共建协同创新中心，宁夏银川 750021

收稿日期:2025-12-27 出版日期:2026-08-20 发布日期:2026-08-01
通讯作者: 徐海喆 E-mail:huanglx@nxu.edu.cn;xhz246824@163.com
作者简介:黄凌霄，博士，副教授，E-mail: huanglx@nxu.edu.cn
基金资助:
国家自然科学基金(12462027);宁夏自然科学基金项目(2025AAC030205);宁夏回族自治区重点研发计划项目(2023BEG02023);宁夏大学研究生创新项目(CXXM2025-042)

A semi-supervised MRI image segmentation dual-network model for regions with ambiguous boundaries and heterogeneous regions

Lingxiao HUANG¹^,⁴^,⁵(), Haizhe XU¹^,⁴^,⁵(), Lingyan HUANG²^,³, Xinbo YAO¹^,⁴^,⁵, Kaiyuan ZHOU¹^,⁴^,⁵, Yongzhan GAO¹^,⁴^,⁵

^1.School of Information Engineering, Ningxia University, Yinchuan 750021, China
^2.Department of Pathology, General Hospital of Ningxia Medical University, Yinchuan 750021, China
^3.Department of Pathology, Second Affiliated Hospital of Hainan Medical University, Haikou 570000, China
^4.Ningxia Key Laboratory of Artificial Intelligence and Information Security for Channeling Computing Resources from the East to the West, Yinchuan 750021, China
^5.Collaborative Innovation Center for Ningxia Big Data and Artificial Intelligence Co-founded by Ningxia Municipality and Ministry of Education, Yinchuan 750021, China

Received:2025-12-27 Online:2026-08-20 Published:2026-08-01
Contact: Haizhe XU E-mail:huanglx@nxu.edu.cn;xhz246824@163.com
Supported by:
National Natural Science Foundation of China(12462027)

摘要/Abstract

摘要：

目的构建在极低标注率条件下的高价值区域引导双网络半监督分割方法（HVASS），针对MRI肿瘤亚区异质性及边界模糊难题，提升心脏和脑胶质瘤复杂边界分割的准确性和可靠性。方法提出一种双网络协同学习框架，通过预测一致性差异自动识别两类临床高风险区域：双网络预测不一致但至少一方置信度较高的“高置信歧义区”；双网络预测一致但整体置信度较低的“低置信稳定区”。针对上述区域构建自适应双教师互导机制以优化伪标签质量。同时，引入高价值区域感知卷积模块加强对肿瘤边界模糊和异质性区域的结构捕获，并结合小波频域特征精炼模块强化边缘细节。模型在BraTS2019脑肿瘤MRI数据集及ACDC心脏MRI数据集上进行验证。结果在ACDC数据集HVASS平均相似系数（Dice）达90.34%、95HD2.46 mm，较当前最佳方法提升Dice3.24%、95HD下降2.68 mm；在BraTS2019Dice达85.07%、95HD7.68 mm，增强肿瘤区Dice提升约3.8%，边界误差显著减小。结论 HVASS在极少标注下显著提升心脏和脑胶质瘤MRI分割精度，能够有效识别MRI肿瘤中的边界模糊与异质性区域，尤其对临床最关注的模糊边界和小病灶效果突出，可有效减轻医师标注负担，具有较高临床应用价值。

关键词: 心脏磁共振成像, 脑胶质瘤, 图像分割, 半监督学习, 深度学习, 模糊边界

Abstract:

Objective To construct a high-value region-guided dual-network semi-supervised segmentation method (HVASS) under extremely low labeling rates for addressing the challenges of heterogeneity and blurred boundaries in MRI tumor subregions and improving the accuracy and reliability of complex boundary segmentation for the heart and glioma. Methods HVASS employs a dual-network collaborative learning architecture that leverages prediction inconsistency to automatically identify two clinically significant high-risk regions: the high-confidence ambiguity zones, where predictions between the two networks diverge despite at least one network exhibiting high confidence; and the low-confidence stable zones, where predictions agree but with consistently low confidence across both networks. To refine pseudo-label quality, an adaptive dual-teacher mutual distillation mechanism was introduced for dynamically leveraging complementary knowledge from both networks. A high-value region-aware convolutional module was integrated to strengthen feature representation at the tumor margins and the heterogeneous areas, while a wavelet-based frequency-domain refinement module was incorporated to preserve the fine-grained edge details. The framework was evaluated on two publicly available datasets: BraTS2019 for brain glioma MRI and ACDC for cardiac MRI. Results On the ACDC dataset, HVASS achieved a mean Dice score of 90.34% and a 95th percentile Hausdorff Distance (95HD) of 2.46 mm, representing a 3.24% improvement in Dice and a 2.68 mm reduction in 95HD compared to the state-of-the-art model. On BraTS2019, the model attained a Dice score of 85.07% and a 95HD of 7.68 mm, with a 3.8% increase in Dice for enhancing tumor sub-region and a substantial reduction of boundary localization error. Conclusion HVASS demonstrates superior segmentation performance under minimal annotation settings and allows effective capture of fuzzy boundaries and heterogeneous tumor regions in MRI. The method shows particular strength in segmenting small lesions and ill-defined edges and thus lessens the annotation burden of the radiologists.

Key words: cardiac magnetic resonance imaging, glioma, image segmentation, semi-supervised learning, deep learning, fuzzy boundary

黄凌霄, 徐海喆, 黄凌燕, 姚新波, 周开元, 高勇占. 面向边界模糊与异质性区域的半监督MRI图像分割双网络模型[J]. 南方医科大学学报, 2026, 46(8): 1956-1966.

Lingxiao HUANG, Haizhe XU, Lingyan HUANG, Xinbo YAO, Kaiyuan ZHOU, Yongzhan GAO. A semi-supervised MRI image segmentation dual-network model for regions with ambiguous boundaries and heterogeneous regions[J]. Journal of Southern Medical University, 2026, 46(8): 1956-1966.

图/表 13

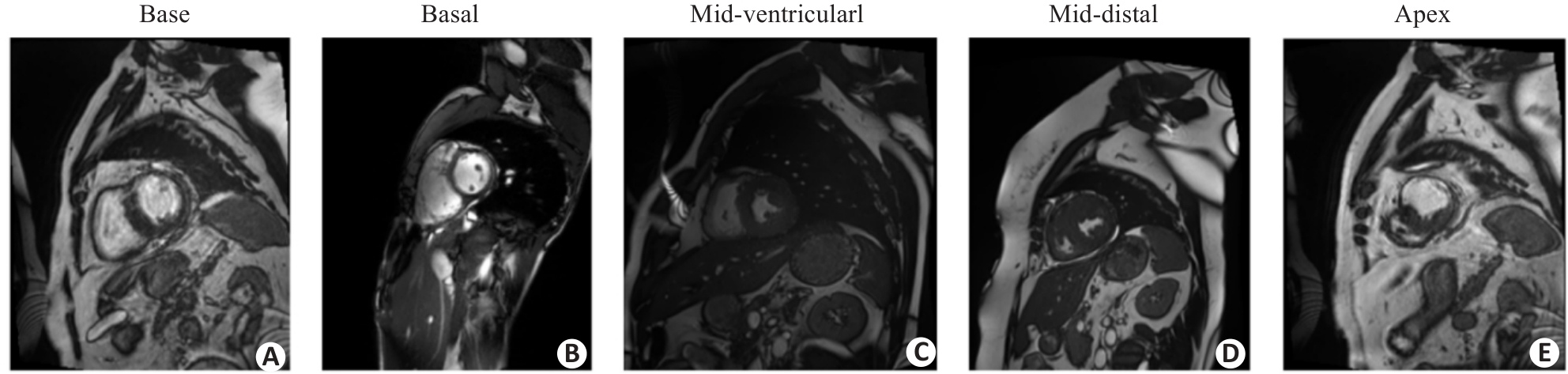

图1 ACDC数据集2D切片图像样例

Fig.1 Sample two-dimensional slice images of the ACDC dataset. A: Transverse section slice of the base of the heart. B: Transverse section tissue slice of the middle part of the heart. C: Transverse section tissue slice of the middle part of the ventricular wall of the heart. D: Transverse section tissue slice of the distal part of the heart. E: Transverse section tissue slice of the apex of the heart.

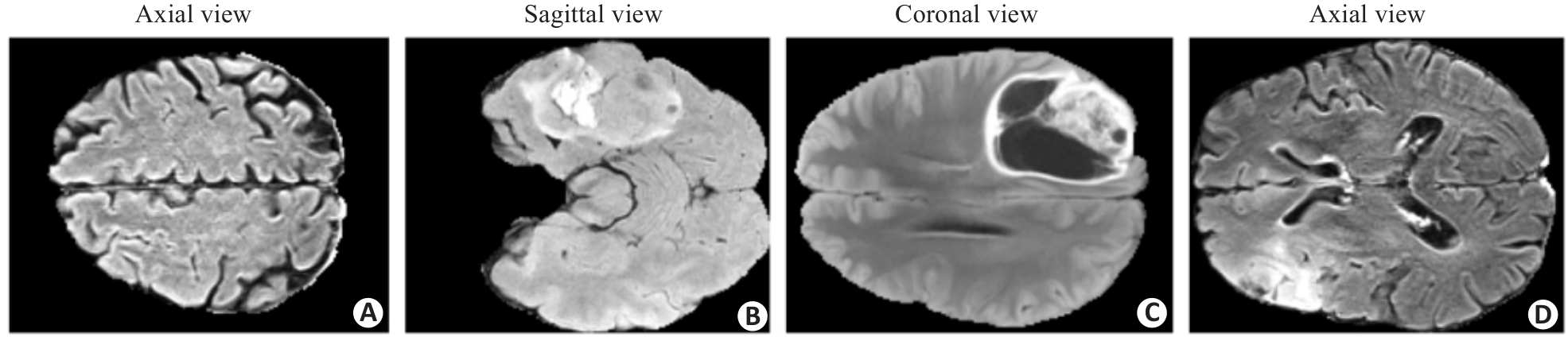

图2 BraTS2019数据集2D切片图像样例

Fig.2 Sample 2D slice images of the BraTS2019 dataset. A: Axial horizontal cross-section of the brain. B: Parasagittal sagittal section of the brain. C: Coronal section of the brain. D: Axial horizontal cross-section of the brain.

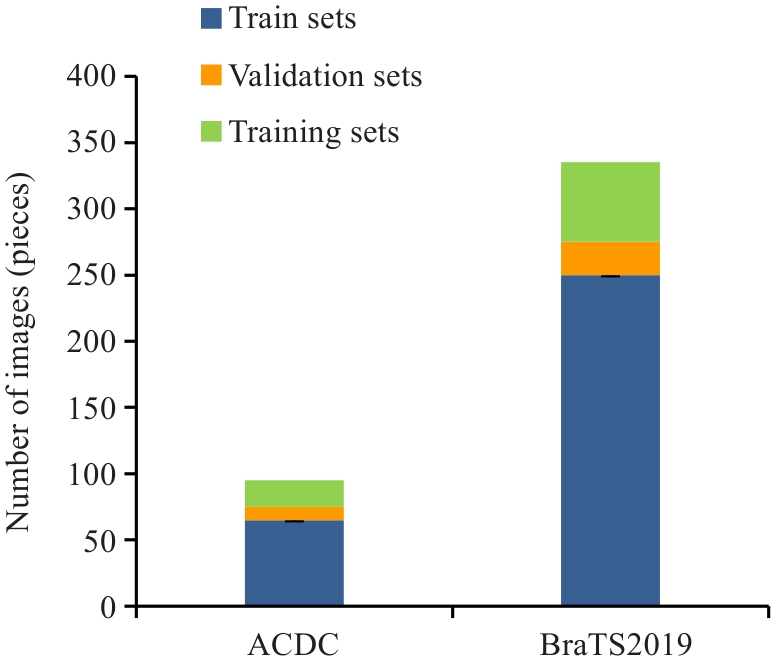

图3 ACDC、BraTS2019数据集图像样本分布图

Fig.3 Distribution of image samples in ACDC and BraTS2019 datasets.

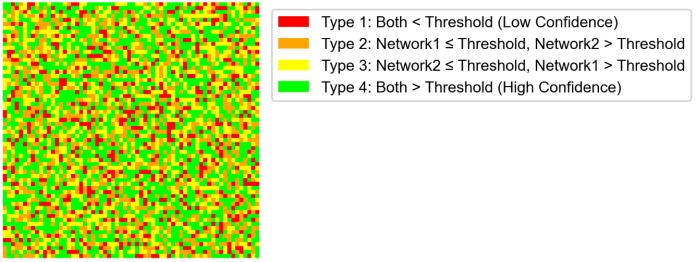

图4 双网络像素级置信度类型空间分布热力图

Fig.4 Heatmap of double-network pixel-level confidence type spatial distribution.

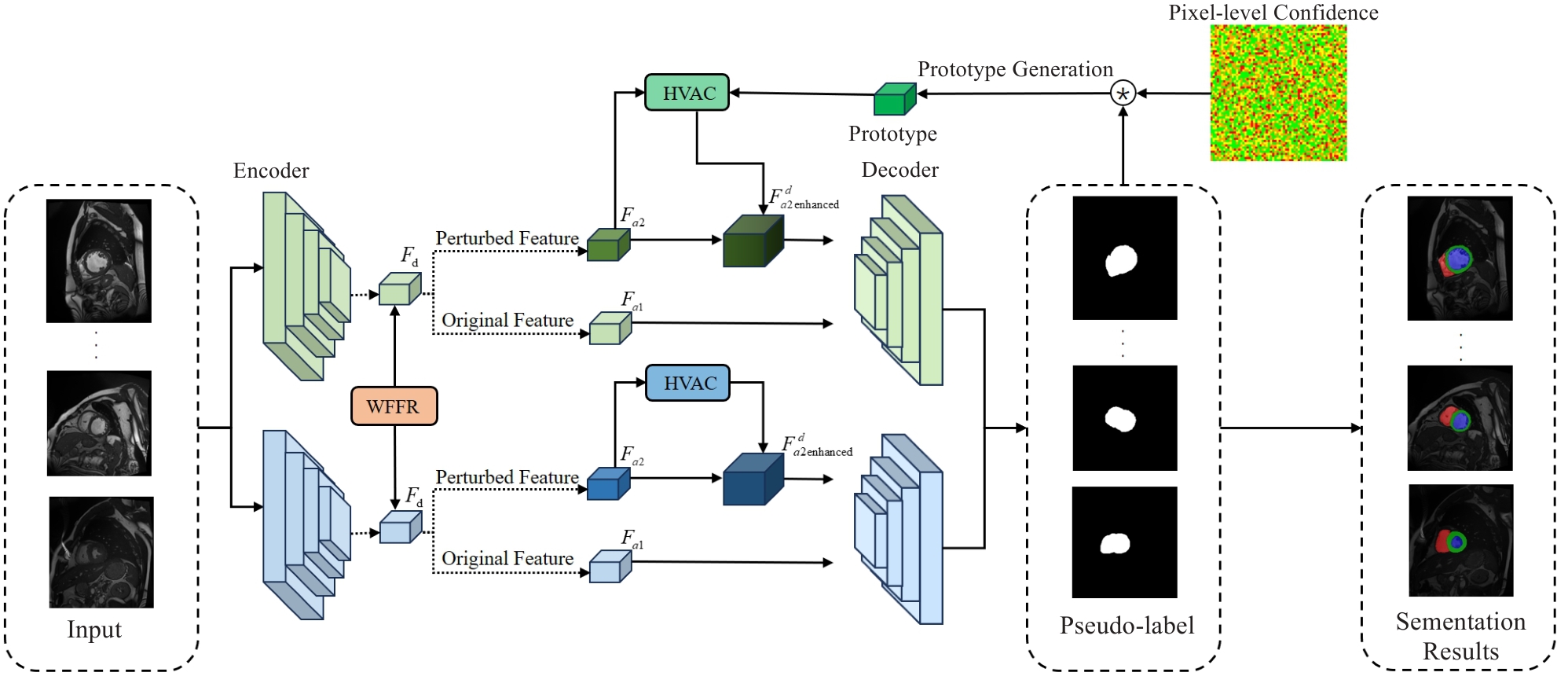

图5 HVASS模型网络结构

Fig.5 HVASS model network architecture.

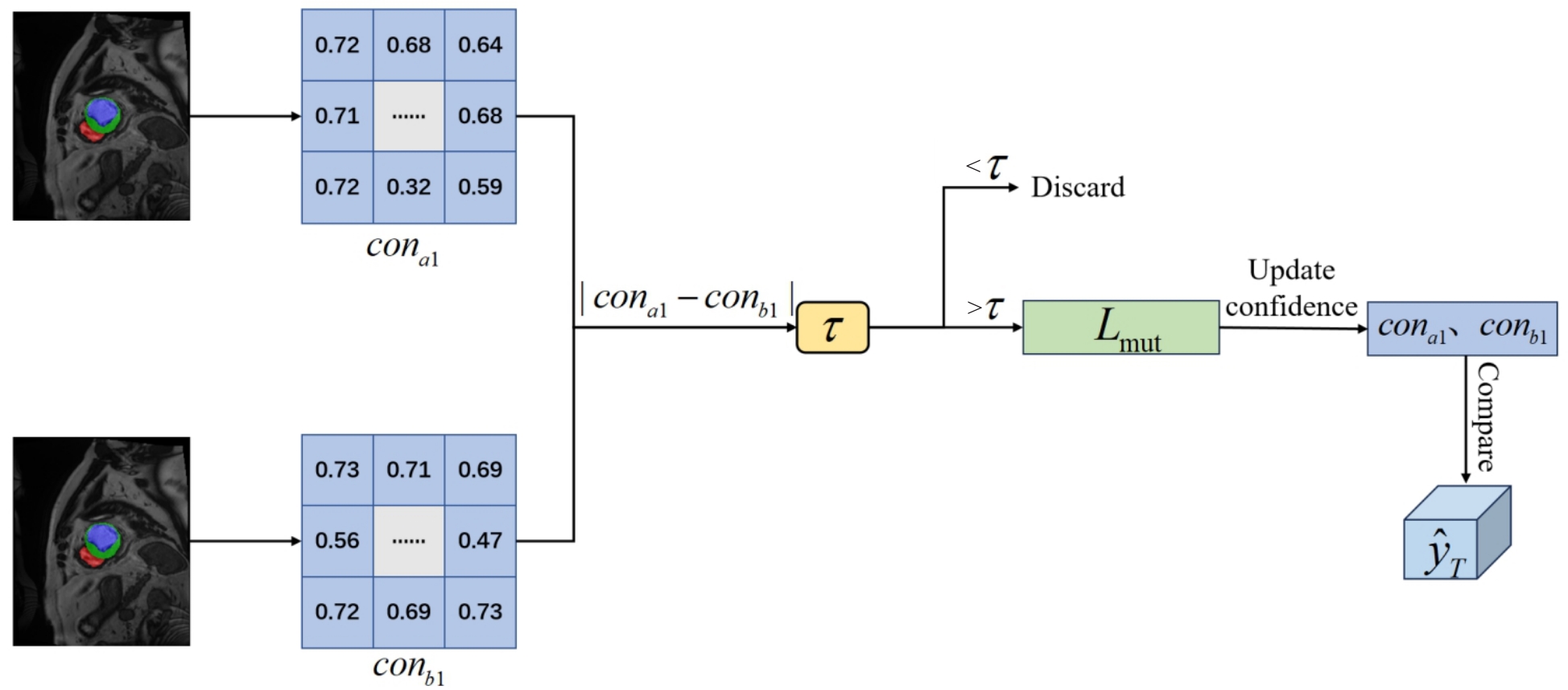

图6 ADTMG模块结构图

Fig.6 ADTMG module structure diagram.

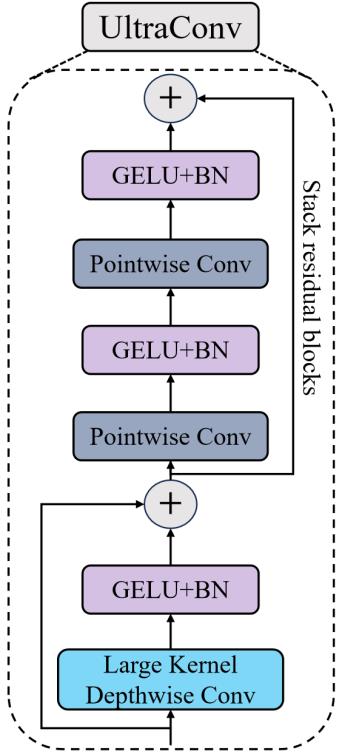

图7 HVAC模块结构图

Fig.7 HVAC module structure diagram.

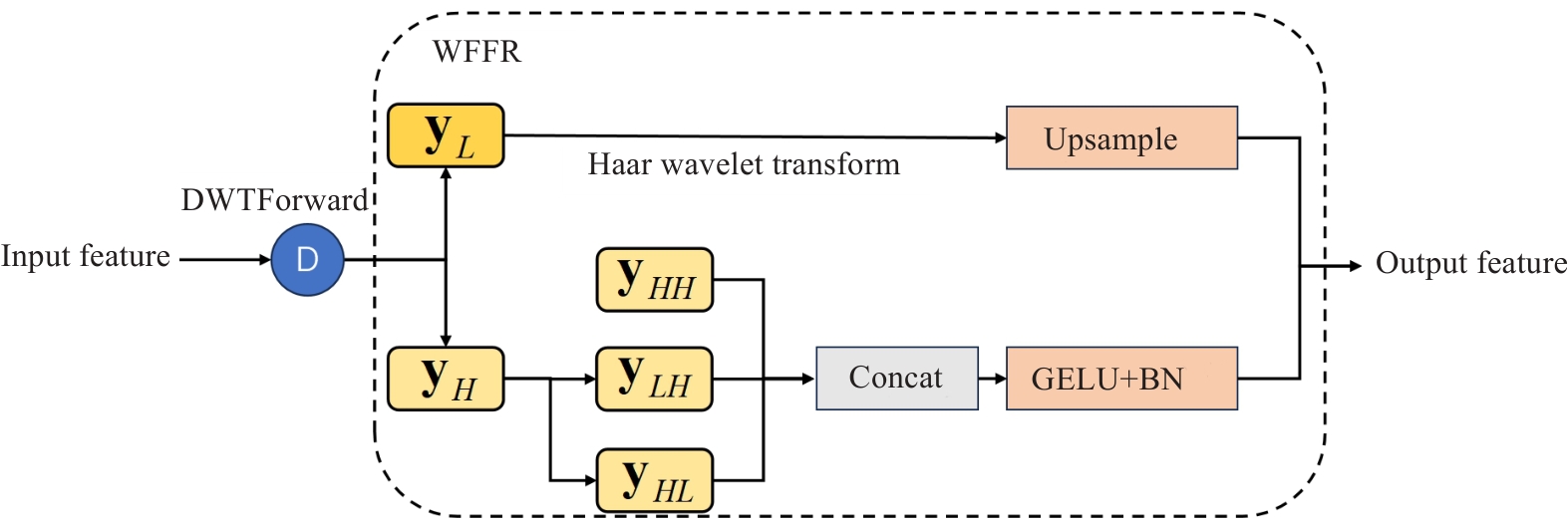

图8 WFFR模块结构图

Fig.8 WFFR module structure diagram.

表1 实验环境配置

Tab.1 Experimental environment configuration

Configuration name	Model version
System environment	Ubuntu20.04
Central processing unit	Intel(R) Xeon(R) Gold 5418Y
Graphics processing unit	NVIDIA GeForce RTX 3090 24GB
Graphics processing unit acceleration library	CUDA 12.2
Random access memory	32 GB
Deep learning framework	Pytorch 2.0.0

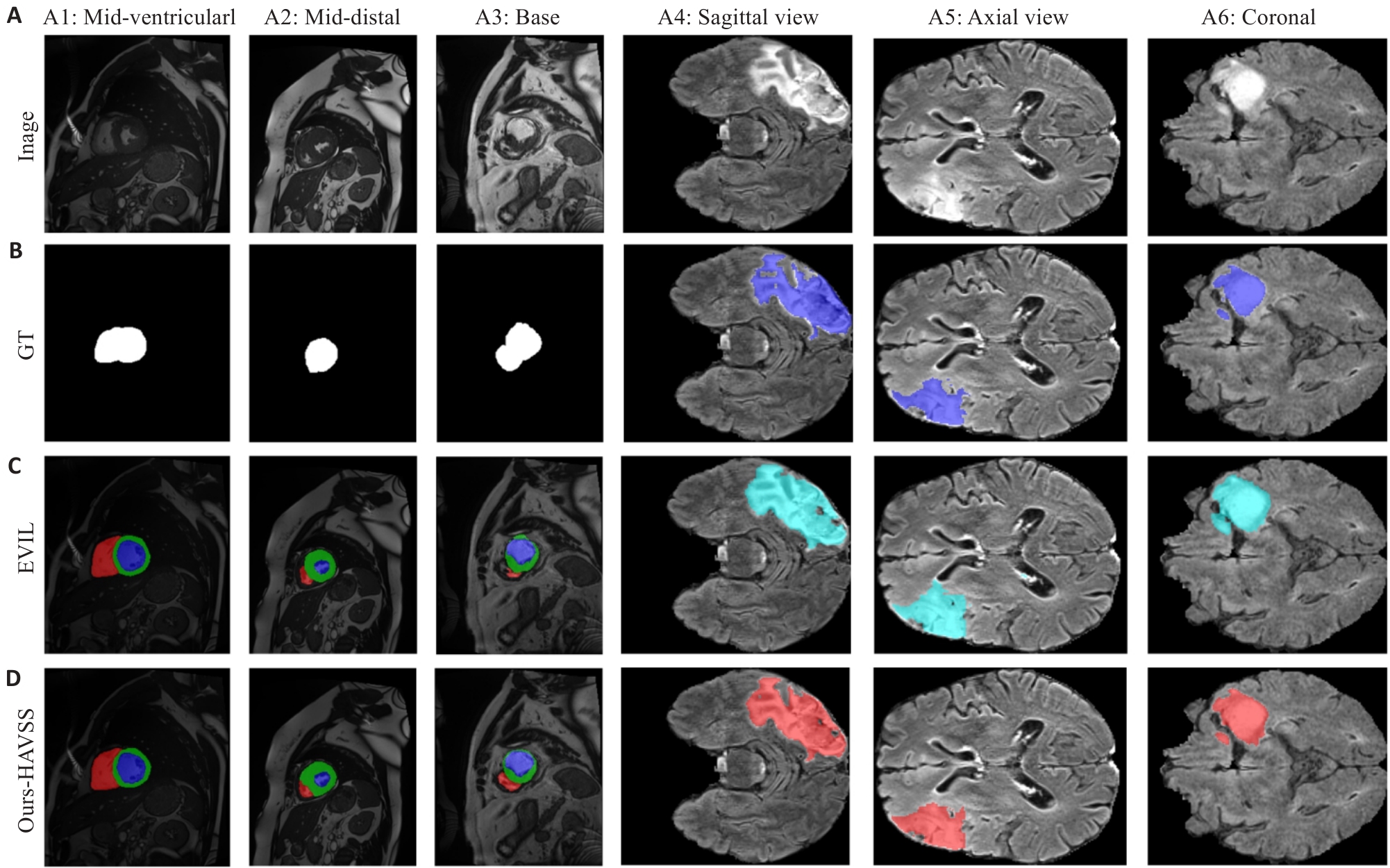

图9 不同算法的分割可视化结果

Fig.9 Visualization results of segmentation by different algorithms. A: Original 2D axial MRI image (A1: Two-dimensional transverse section tissue slice of the middle part of the ventricular wall of the heart. A2: Two-dimensional transverse section tissue slice of the distal part of the heart. A3: Two-dimensional transverse section slice of the base of the heart. A4: Parasagittal sagittal section of the brain. A5: Axial horizontal cross-section of the brain. A6: Coronal section of the brain.). B: Ground truth annotation map. C: Lesion localization heatmap generated by the EVIL method. D: Lesion localization heatmap generated by the HAVSS method proposed in this study.

表2 ACDC数据集上的HVASS对比实验结果

Tab.2 Comparison results of HVASS on the ACDC dataset

Method	Labeled	Unlabeled	Dice	IoU	95HD	ASD
MT_NIPS'2017	7 (10%)	63 (90%)	83.65	73.15	13.45	3.61
MCF_CVPR'2023			85.18	75.22	10.73	2.78
CPS_CVPR'2021			85.34	75.50	8.78	2.37
MC-Net_MICCAI'2021			86.07	76.58	11.48	3.37
AC-MT_MIA'2023			86.36	76.86	9.64	2.59
AAU_MIA'2024			86.46	76.99	8.00	2.06
UG-MCL_AIIM'2023			86.84	77.60	7.77	1.94
MLRP_MIA'2024			87.10	78.16	4.91	1.30
EVIL_CBM'2024			87.25	78.18	5.31	1.35
Ours-HVASS			90.34	83.13	2.46	0.79
MT_NIPS'2017	14 (20%)	56 (80%)	86.55	77.49	6.86	2.15
MC-Net_MICCAI'2021			86.58	77.68	15.99	4.93
CPS_CVPR'2021			87.03	78.13	6.66	2.12
MCF_CVPR'2023			87.32	78.43	6.53	2.00
AAU_MIA'2024			87.71	78.92	8.51	2.14
AC-MT_MIA'2023			87.99	79.34	7.85	2.14
MLRP_MIA'2024			88.00	79.54	5.41	1.58
EVIL_CBM'2024			88.34	79.90	6.46	1.68
UG-MCL_AIIM'2023			88.40	79.86	9.12	2.44
Ours-HVASS			91.02	83.65	2.74	0.78

表3 BraTS2019数据集上的HVASS对比实验结果

Tab.3 Comparison results of HVASS on the BraTS2019 dataset

Method	Labeled	Unlabeled	Dice	IoU	95HD	ASD
MT_NIPS'2017	50 (20%)	200 (80%)	80.49	69.99	11.71	3.46
MCF_CVPR'2023			81.96	71.76	13.96	3.99
AC-MT_MIA'2023			82.09	71.65	15.91	4.81
AAU_MIA'2024			82.43	72.33	13.83	4.18
MC-Net_MICCAI'2021			82.51	72.98	14.57	3.78
EVIL_CBM'2024			82.60	72.46	11.44	2.76
CPS_CVPR'2021			82.70	72.30	12.99	3.46
UG-MCL_AIIM'2023			82.85	72.69	11.12	2.28
MLRP_MIA'2024			83.96	74.00	15.16	4.21
Ours-HVASS			85.07	75.80	7.68	2.03

表4 HVASS在10%的标注下ACDC和BraTS2019 数据集上的消融实验结果

Tab.4 Ablation experiment results of HVASS on the ACDC and BraTS2019 datasets under 10% annotation

Datasets	ADTMG	HVAC	WFFR	Dice	IoU	95HD	ASD
ACDC				84.38	71.45	18.23	4.61
	√			87.23	80.30	8.78	1.87
		√		86.97	79.28	11.48	3.37
			√	85.56	79.42	10.73	3.97
	√	√		88.78	80.22	3.86	0.98
	√		√	89.08	82.59	3.79	1.23
		√	√	88.89	81.43	5.31	1.58
	√	√	√	90.34	83.13	2.46	0.79
