基于Swin-ResViT网络的低质量动态cine-MR至高质量定位MR图像实时生成研究

doi:10.12122/j.issn.1673-4254.2026.04.21

摘要/Abstract

摘要：

目的探索基于Swin-ResViT网络从动态cine-MR生成高质量治疗前定位MR（sMR），提升实时影像的信噪比和对比度。方法提出一种融合Swin Transformer模块的ResViT模型（Swin-ResViT），通过优化瓶颈层结构以提升特征提取效率。回顾性收集2024年2~7月在中山大学肿瘤防治中心接受治疗的17例肝癌患者数据，其中12例肝癌患者的治疗中cine-MR和治疗前定位MR作为训练集，5例患者为测试集。通过量化sMR与参考定位MR的归一化均方根误差（NRMSE）、峰值信噪比（PSNR）、结构相似性指标（SSIM）、运动标记点误差以及模型推理速度，综合评估图像生成质量和模型性能。结果生成图像质量方面，Swin-ResViT生成的sMR相较于原始cine-MR，NRMSE、LPIPS分别下降约90%、82%（P<0.001）；PSNR、SSIM、CNR分别提升约157%、79%、181%（P<0.001）。结构准确性方面，动态sMR序列中右肝叶肝膈交界处运动标记点的平均定位误差为0.7695±0.7294 mm（P<0.05）。模型推理速度方面，对于224×224像素的单帧图像，在NVIDIA GeForce RTX 2080 Ti GPU上Swin-ResViT的平均处理时间为15.5 ms，对比标准ResViT为41.4 ms，减少了约62%。结论 Swin-ResViT模型能从cine-MR合成高质量sMR，该方法兼具高效计算与显著图像增强优势，对实时MRgRT具有重要临床意义。

关键词: 磁共振引导放射治疗, Transformer, cine-MR, 合成MR, 深度学习

Abstract:

Objective To obtain high-quality pre-treatment localization MR (sMR) images from dynamic cine-MR using the Swin-ResViT network for target tracking in MRgRT. Methods We propose a ResViT model fused with a Swin Transformer module (Swin-ResViT) with an optimized bottleneck layer structure for enhancing feature extraction efficiency. Seventeen liver cancer patients were retrospectively enrolled from Sun Yat-sen University Cancer Center from February to July 2024, and 12 of them were assigned to the training set (using intra-treatment cine-MR and pre-treatment planning MR), with the remaining 5 patients as the test set. Image generation quality and model performance were comprehensively evaluated by quantifying the normalized root mean square error (NRMSE), peak signal-to-noise ratio (PSNR), structural similarity index (SSIM), motion marker point error, and model inference speed between sMR and reference localization MR. Results Regarding image quality, Swin-ResViT reduced NRMSE and LPIPS by 90% and 82% compared to cine-MR (P<0.001), and improved PSNR, SSIM, and CNR by 157%, 79%, and 181% (P<0.001), respectively. Regarding structural accuracy, the mean localization error of motion markers at the right hepatophrenic junction in the generated dynamic sMR sequences was 0.7695±0.7294 mm (P<0.05). Regarding model inference speed, for a single 224×224-pixel frame, the average processing time on an NVIDIA GeForce RTX 2080 Ti GPU was 15.5 ms for Swin-ResViT as compared with 41.4 ms for the ResViT network, demonstrating a 62% reduction. Conclusion The Swin-ResViT model can synthesize high-quality sMR from cine-MR images. This method combines computational efficiency with significant image enhancement advantages, and thus has important clinical significance for real-time MRgRT.

Key words: MRgRT, Transformer, cine-MR, synthetic MR images, deep learning

陈博湧, 汪新怡, 赵新新, 宋婷, 李永宝. 基于Swin-ResViT网络的低质量动态cine-MR至高质量定位MR图像实时生成研究[J]. 南方医科大学学报, 2026, 46(4): 929-938.

Boyong CHEN, Xinyi WANG, Xinxin ZHAO, Ting SONG, Yongbao LI. Swin-ResViT network for real-time generation of high-quality localization MR images from low-quality cine-MR[J]. Journal of Southern Medical University, 2026, 46(4): 929-938.

图/表 11

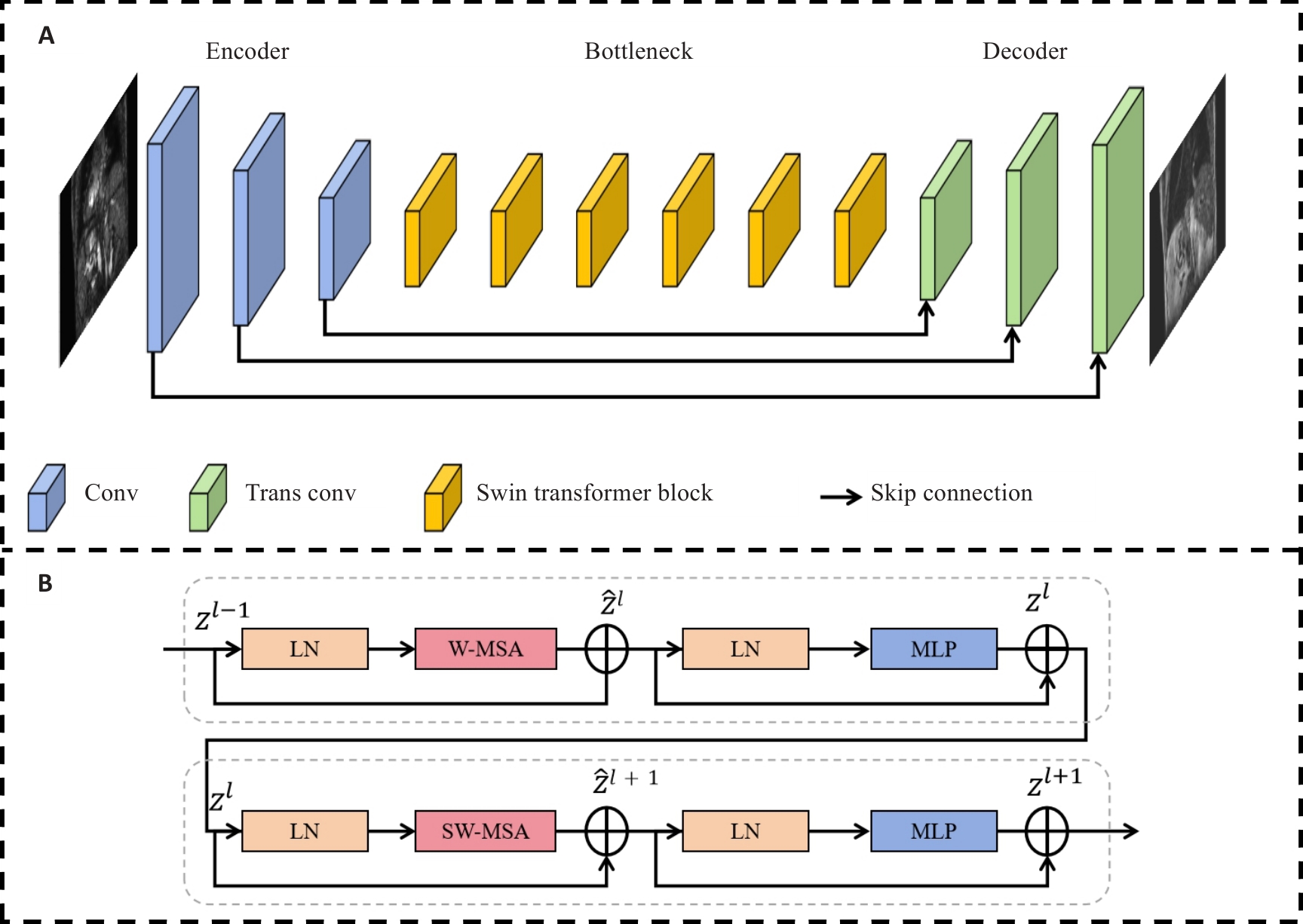

图1 Swin-ResViT的网络结构示意图

Fig.1 Schematic diagram of the structure of the Swin-ResViT network. A: Structure of the network. B: Structure of the Swin Transformer block.

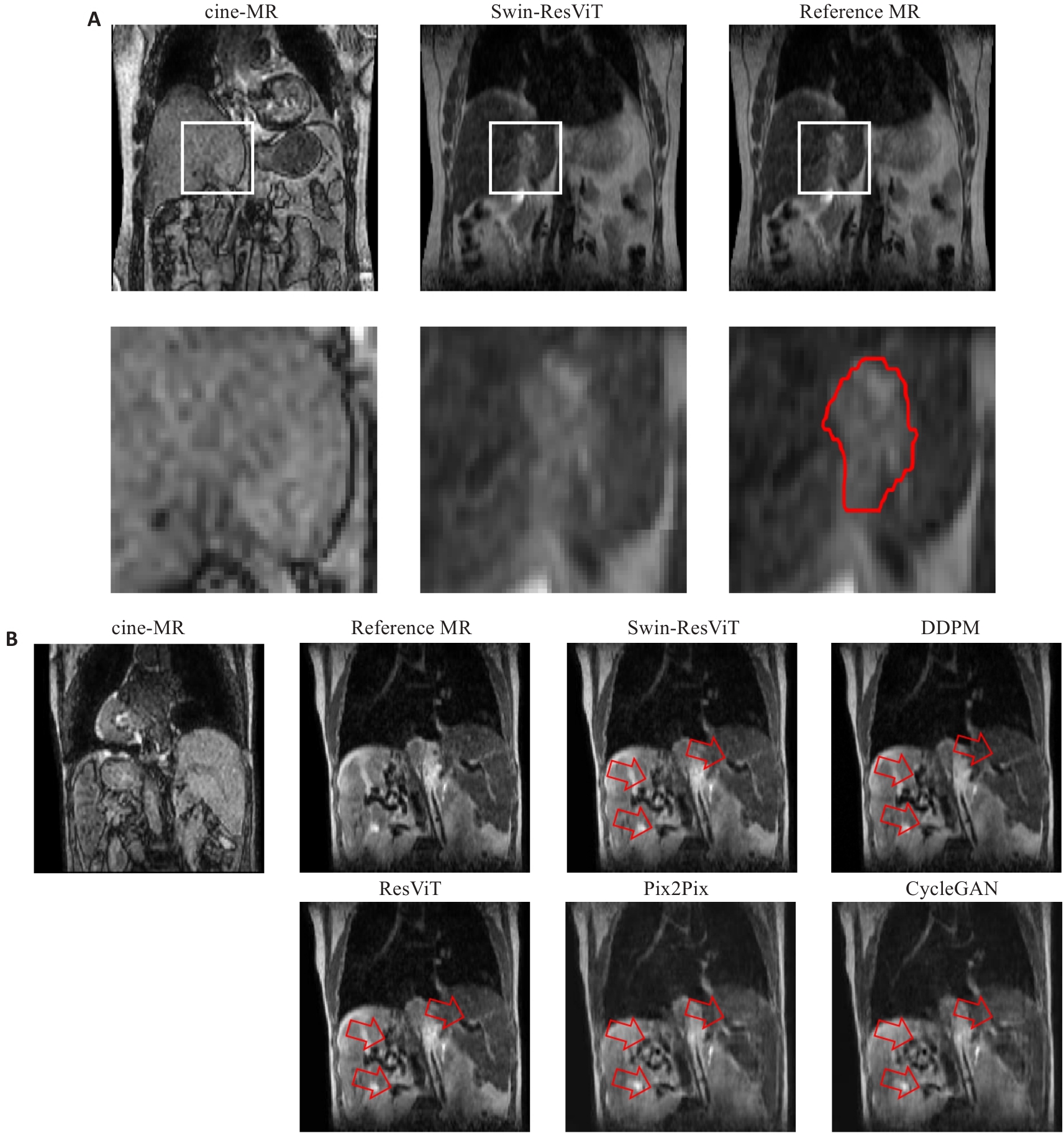

图2 2例肝细胞癌患者的cine-MR、合成sMR和reference MR图像

Fig.2 Cine-MR, synthesized MR (sMR), and localization MR reference slice (reference MR) images from two hepatocellular carcinoma patients. A: Comparison of tumor boundary contrast in images. The white boxes indicate the magnified regions. The red contours outline the gross tumor volume (GTV). B: Comparison of image artifacts. The red arrows highlight regions with anatomical blurring, residual artifacts, or texture distortion in baseline methods, and Swin-ResViT preserved these details more accurately.

表1 sMR、cine-MR与reference MR的图像质量及模型推理速度定量对比

Tab.1 Quantitative comparison of image quality between sMR, cine-MR and reference MR images and latencies of different models (Mean±SD)

Methods	NRMSE	PSNR	SSIM	CNR	LPIPS	Latency (ms)
cine-MR	0.1990±0.0305	14.2808±1.3035	0.5434±0.0436	0.3128±0.1939	0.3602±0.0076	-
CycleGAN	0.1335±0.0444	18.2640±2.9407	0.6918±0.1046	0.3322±0.1217	0.3471±0.0122	15.6
Pix2Pix	0.1139±0.0239	19.6097±2.0893	0.7497±0.0372	0.3652±0.1428	0.2877±0.0109	15.9
cDDPM	0.0350±0.0172	29.9420±3.789	0.8885±0.0652	0.5826±0.1667	0.0359±0.0162	20026.9
ResViT	0.0238±0.0172	34.4067±3.8455	0.9623±0.0308	0.8472±0.0513	0.0581±0.0154	41.4
Swin-ResViT	0.0199±0.0181	36.7590±5.4363	0.9737±0.0356	0.8795±0.0489	0.0656±0.0181	15.5

表2 Swin-ResViT 4折交叉验证结果

Tab.2 Results of 4-fold cross-validation of Swin-ResViT

Swin-ResViT	NRMSE	PSNR	SSIM
Fold 1	0.0155	37.4514	0.9865
Fold 2	0.0168	37.7475	0.9840
Fold 3	0.0042	42.3498	0.9985
Fold 4	0.0439	29.7120	0.9274
Average	0.0201±0.0168	36.8151±5.2396	0.9741±0.0317

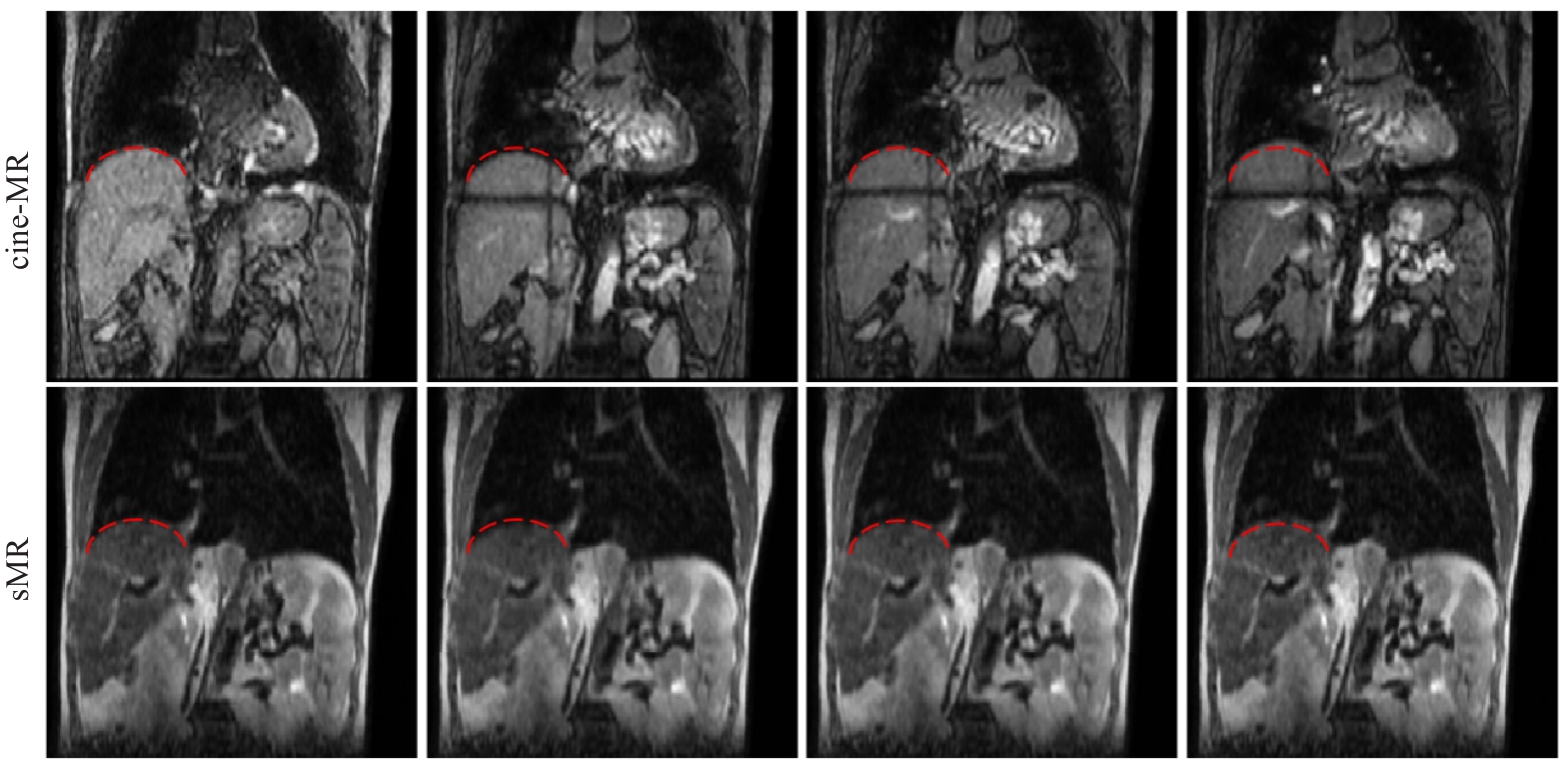

图3 cine-MR序列及sMR序列图像

Fig.3 cine-MR sequence and sMR sequence images. The red dashed line is the reference line.

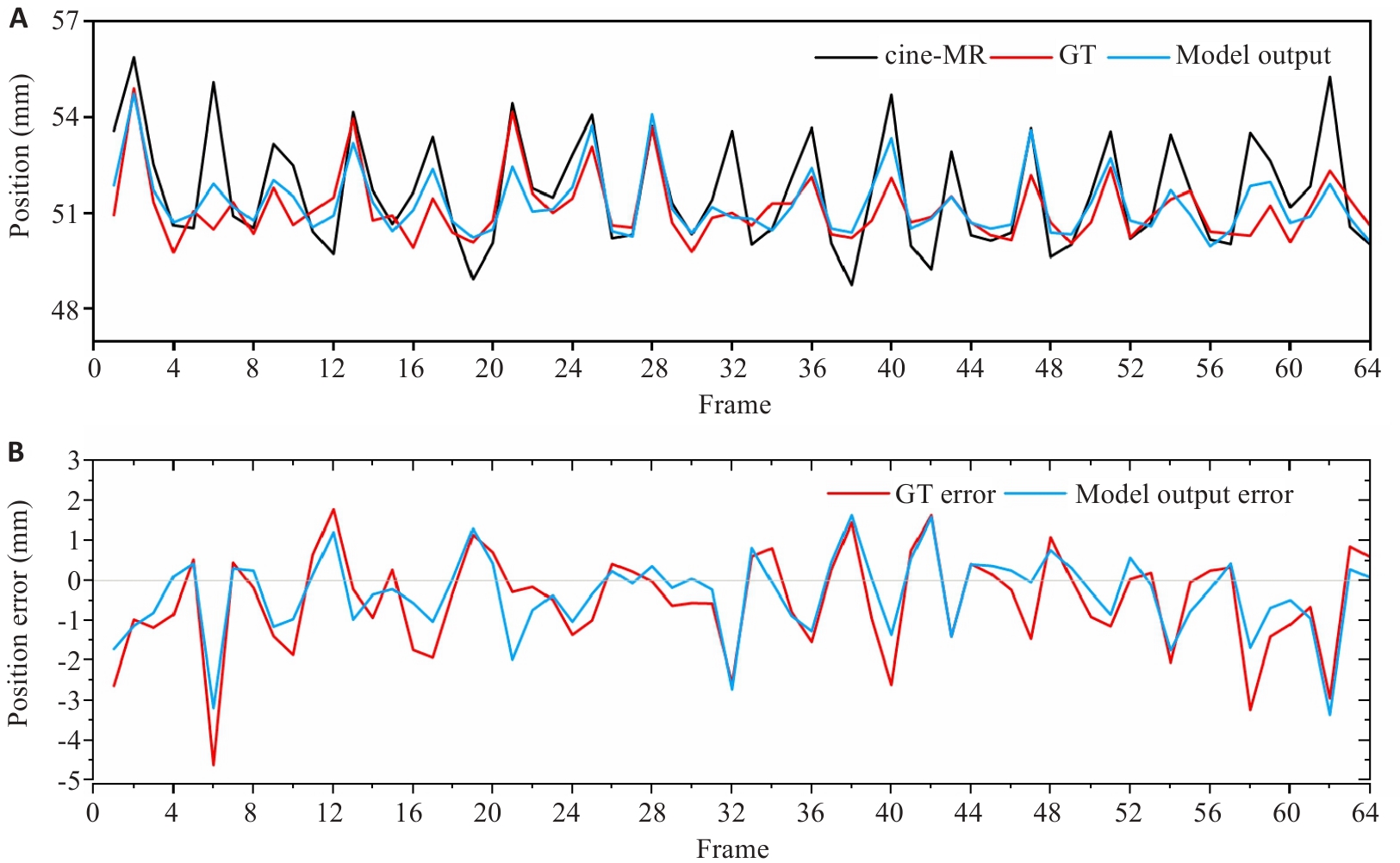

图4 标记点的运动轨迹与误差分析

Fig.4 Motion trajectory and position error of landmarks. A: Motion trajectory of landmarks. B: Position errors of the reference MR and sMR relative to the cine-MR.

表3 不同损失函数组合下的模型性能对比

Tab.3 Model performance comparison with different loss function combinations (Mean±SD)

Loss	NRMSE	PSNR	SSIM
MAE	0.0270±0.0126	32.6261±3.8100	0.9695±0.0252
MAE+grad loss	0.0209±0.0135	35.5751±5.9679	0.9780±0.0244
Proposed loss	0.0199±0.0181	36.7590±5.4363	0.9737±0.0356

表4 不同数量跳跃连接的模型性能对比

Tab.4 Model performance comparison with different numbers of skip connections (Mean±SD)

Skip connection	NRMSE	PSNR	SSIM
0	0.0238±0.0128	35.8764±5.8769	0.9684±0.0242
1	0.0232±0.0126	35.9615±5.7804	0.9709±0.0241
1, 2	0.0228±0.0127	35.9133±5.8754	0.9718±0.0236
1, 2, 3	0.0199±0.0181	36.7590±5.4363	0.9737±0.0356

表5 不同网络架构的模型性能对比

Tab.5 Model performance comparison with different network architecture (Mean±SD)

Model variant	NRMSE	PSNR	SSIM	Latency (ms)
Baseline 1	0.0238±0.0128	35.8764±5.8769	0.9684±0.0242	10.7
Baseline 2	0.0221±0.0163	34.7482±3.8342	0.9654±0.0238	43.2
Swin-ResViT	0.0199±0.0181	36.7590±5.4363	0.9737±0.0356	15.5

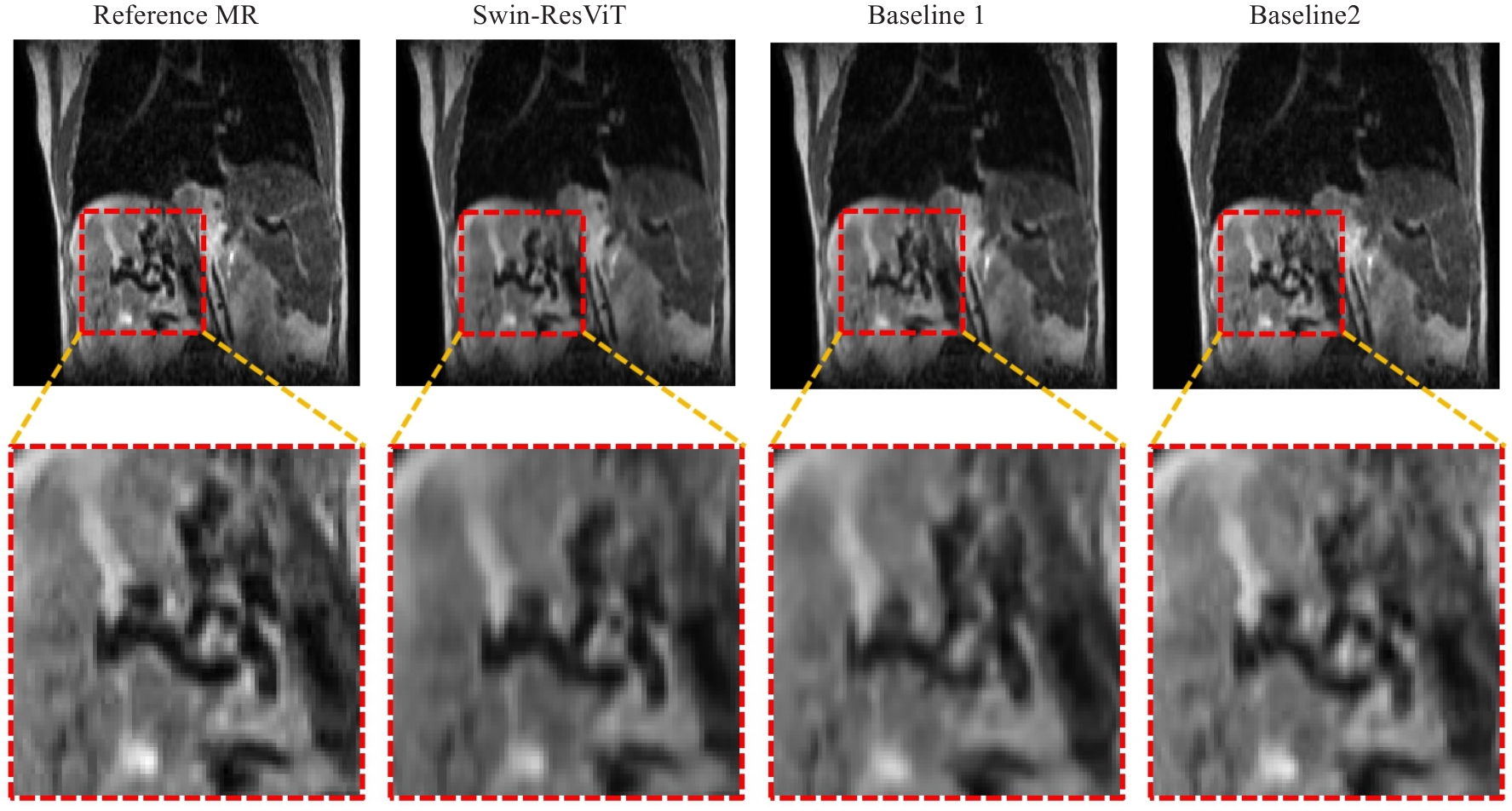

图5 不同网络架构的定性消融结果

Fig.5 Qualitative ablation results of different network variants. The red dashed boxes indicate the magnified regions.

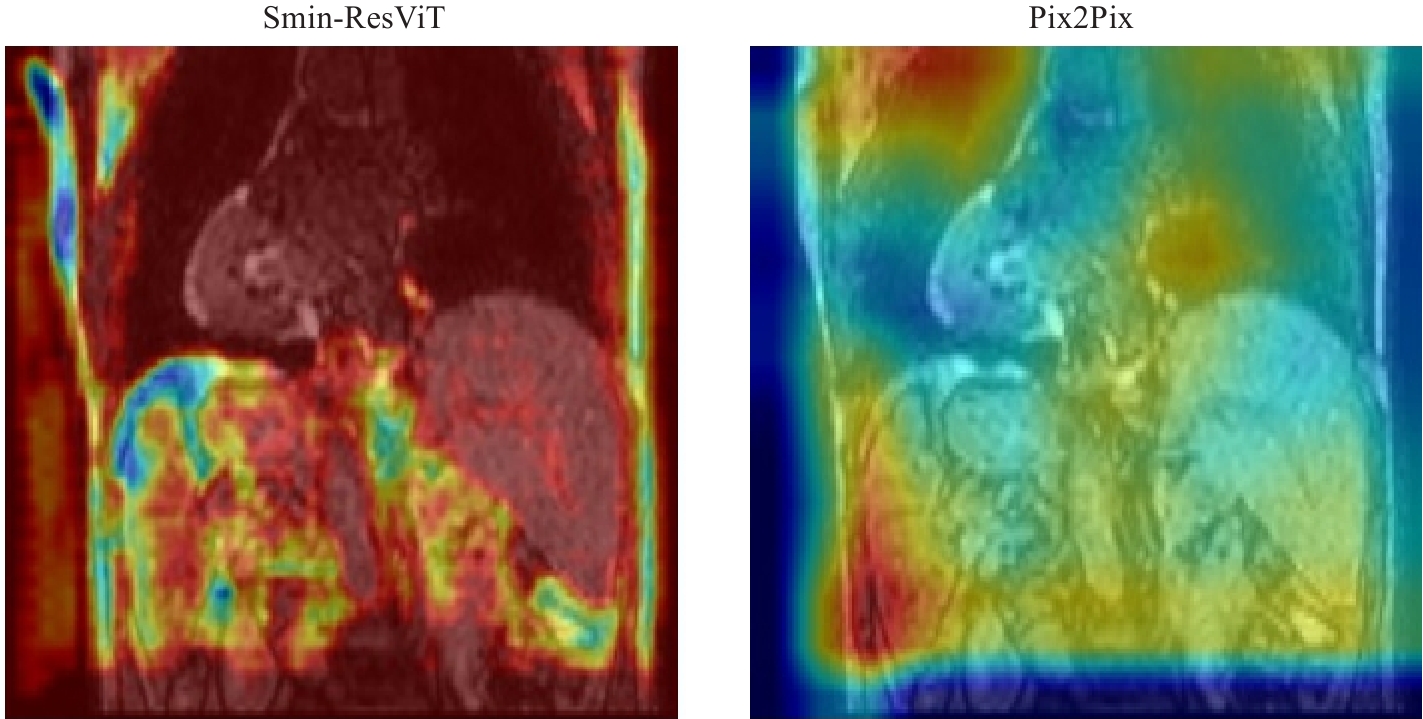

图6 基于Grad-CAM的模型注意力热力图可视化对比

Fig.6 Visualization comparison of model attention heatmaps based on Grad-CAM.
