南方医科大学学报 ›› 2025, Vol. 45 ›› Issue (9): 1946-1958.doi: 10.12122/j.issn.1673-4254.2025.09.14
• • 上一篇
云琦1,2(), 杜若丽3,4, 贺玉莹1,2, 张贻欣5, 王佳慧3,4, 叶红伟3,4, 李正红1,2, 高琴3,4(
)
收稿日期:
2025-02-13
出版日期:
2025-09-20
发布日期:
2025-09-28
通讯作者:
高琴
E-mail:yunqiyq1009@163.com;bbmcgq@126.com
作者简介:
云 琦,硕士,E-mail: yunqiyq1009@163.com
基金资助:
Qi YUN1,2(), Ruoli DU3,4, Yuying HE1,2, Yixin ZHANG5, Jiahui WANG3,4, Hongwei YE3,4, Zhenghong LI1,2, Qin GAO3,4(
)
Received:
2025-02-13
Online:
2025-09-20
Published:
2025-09-28
Contact:
Qin GAO
E-mail:yunqiyq1009@163.com;bbmcgq@126.com
摘要:
目的 基于网络药理学技术结合动物实验探讨肉桂酸(CA)改善阿霉素心肌损伤(DIC)的可能机制。 方法 采用网络药理学分析得到CA改善DIC的关键靶点,并通过分子对接进行验证。6~8周龄SPF级雄性C57BL/6J小鼠被随机分为5组(6只/组):Sham组、阿霉素(DOX)组、CA(25 mg/kg)+DOX组、CA(50 mg/kg)+DOX组、CA(100 mg/kg)+DOX和铁死亡抑制剂(Ferrostatin-1 5 mg/kg)+DOX组。超声心动图和HE染色观察心肌组织病理变化;检测小鼠血清 CK-MB、LDH、MDA、IL-6、TNF-α和心肌ROS水平。蛋白免疫印迹检测心肌组织中TLR4及铁死亡通路相关蛋白表达水平。构建慢病毒介导的基因稳定敲低TLR4的小鼠心肌HL-1细胞株,细胞分为6组:阴性对照组(NC);DOX模型组(DOX);铁死亡诱导剂组(Erastin);低表达组(si-TLR4组);DOX+si-TLR4组;Erastin+si-TLR4组。CCK8测定细胞活力;荧光探针检测细胞ROS含量变化;免疫荧光检测GPX4蛋白的表达。 结果 通过网络药理学分析获得交集靶点28个,KEGG富集分析显示,CA可能通过Toll样受体信号通路作用于DIC。动物实验显示,与Sham组相比,DOX组超声心动图和HE 染色结果显示心脏损伤,血清CK-MB、LDH、MDA、炎症因子和心肌ROS水平升高(P<0.01),SLC7A11和GPX4蛋白表达降低,TLR4和PTGS2蛋白表达升高(P<0.05)。经CA处理后,心超功能指标水平升高(P<0.05);血清 CK-MB、LDH、MDA、炎症因子和心肌ROS水平降低(P<0.05);CA和铁死亡抑制剂使心肌组织SLC7A11和GPX4蛋白表达升高,TLR4和PTGS2蛋白表达降低(P<0.05)。低表达TLR4细胞株中,与NC组相比,DOX组和Erastin组细胞,ROS水平升高(P<0.001),GPX4蛋白表达降低(P<0.001);与DOX组和Erastin组相比,DOX+si-TLR4组和Erastin+si-TLR4组细胞ROS水平降低(P<0.05),GPX4蛋白表达升高(P<0.01)。 结论 CA减轻小鼠DIC,其机制可能与抑制TLR4减轻铁死亡有关。
云琦, 杜若丽, 贺玉莹, 张贻欣, 王佳慧, 叶红伟, 李正红, 高琴. 肉桂酸通过抑制TLR4减轻阿霉素诱导的小鼠心肌损伤铁死亡的发生[J]. 南方医科大学学报, 2025, 45(9): 1946-1958.
Qi YUN, Ruoli DU, Yuying HE, Yixin ZHANG, Jiahui WANG, Hongwei YE, Zhenghong LI, Qin GAO. Cinnamic acid ameliorates doxorubicin-induced myocardial injury in mice by attenuating cardiomyocyte ferroptosis via inhibiting TLR4[J]. Journal of Southern Medical University, 2025, 45(9): 1946-1958.

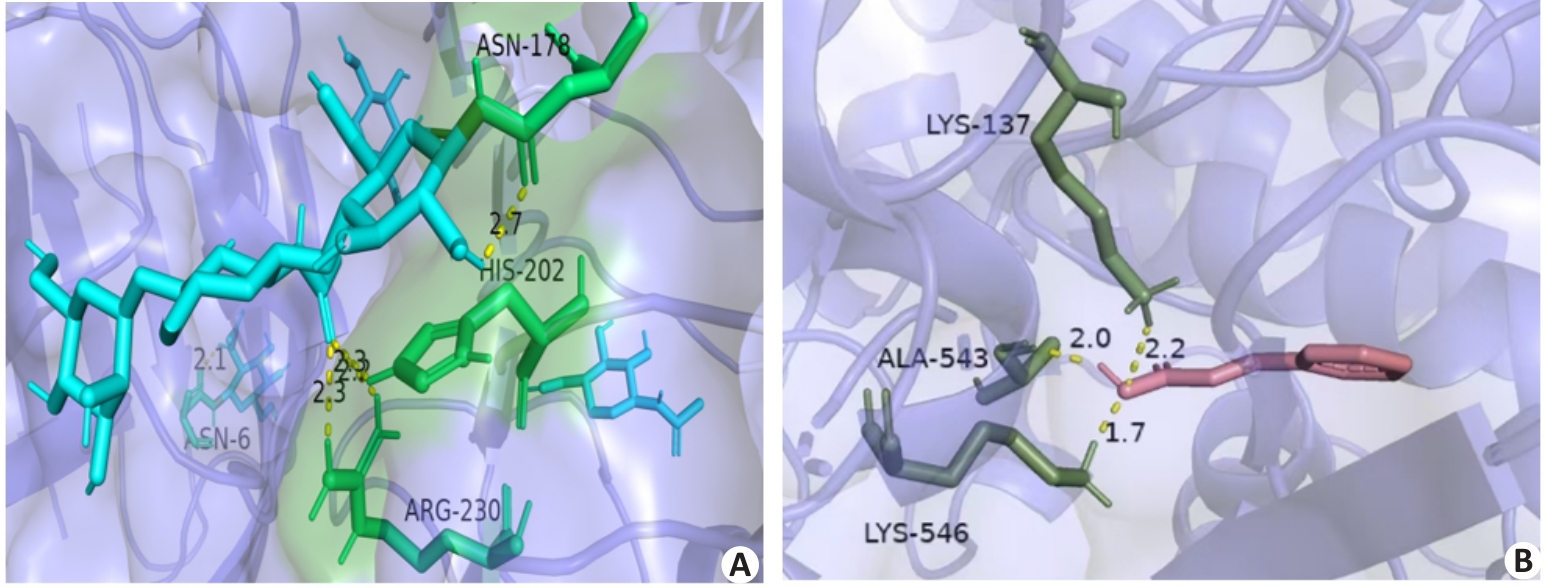

图4 分子对接可视化结果
Fig.4 Visualization of molecular docking results. A: Potential interaction between CA and TLR4. B: Potential interaction between cinnamic acid and PTGS2.

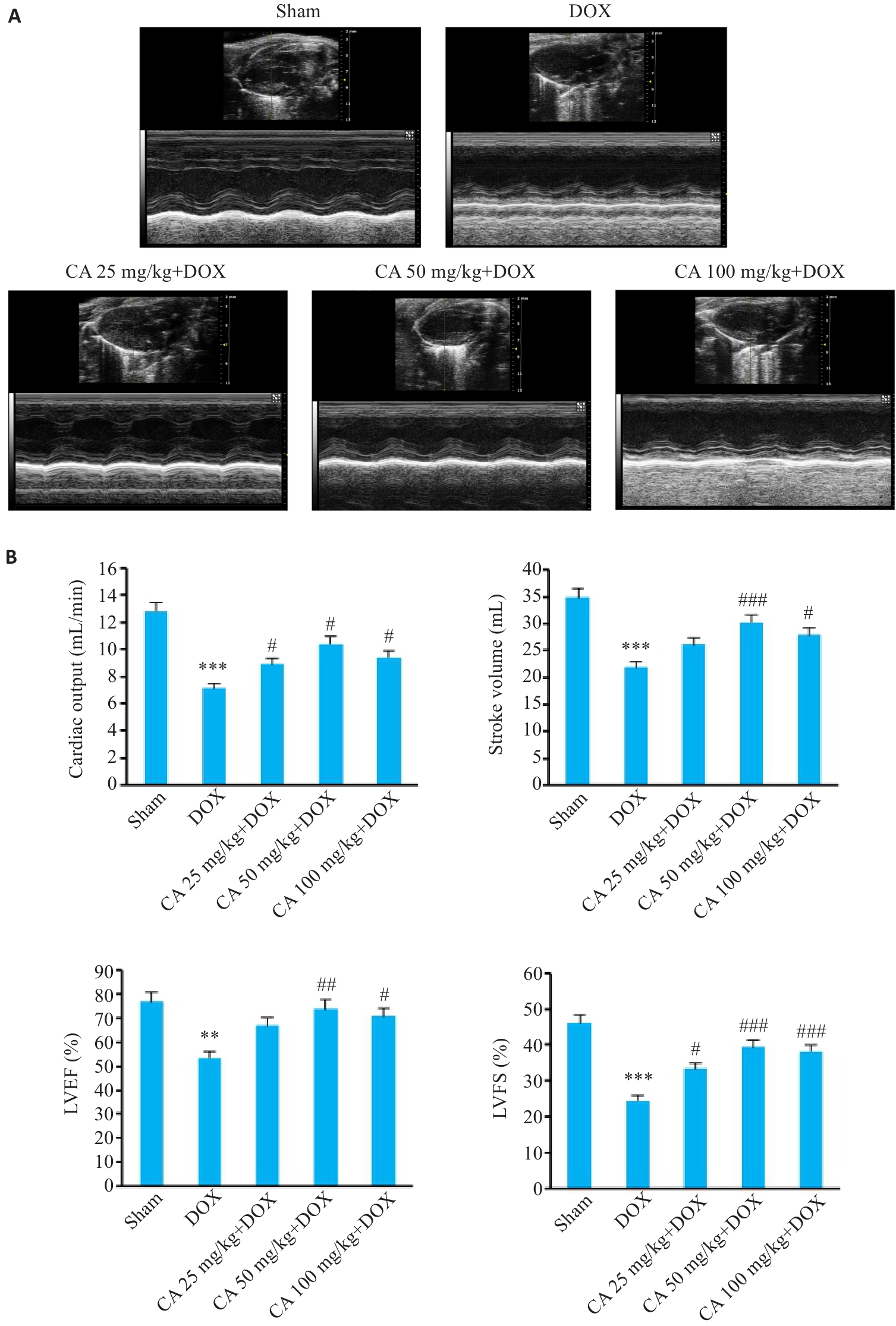

图5 各组小鼠心脏超声图像和心功能各指标变化
Fig.5 Cardiac ultrasound images and cardiac function indexes of the mice in different groups (Mean±SD, n=6). A: Evaluation of cardiac function by M-mode echocardiography. B: Comparison of echocardiographic parameters. LVEF: Left ventricle ejection fraction; LVFS: Left ventricular fractional shortening. **P<0.01, ***P<0.001 vs the Sham group; #P<0.05, ##P<0.01, ###P<0.001 vs the DOX group.

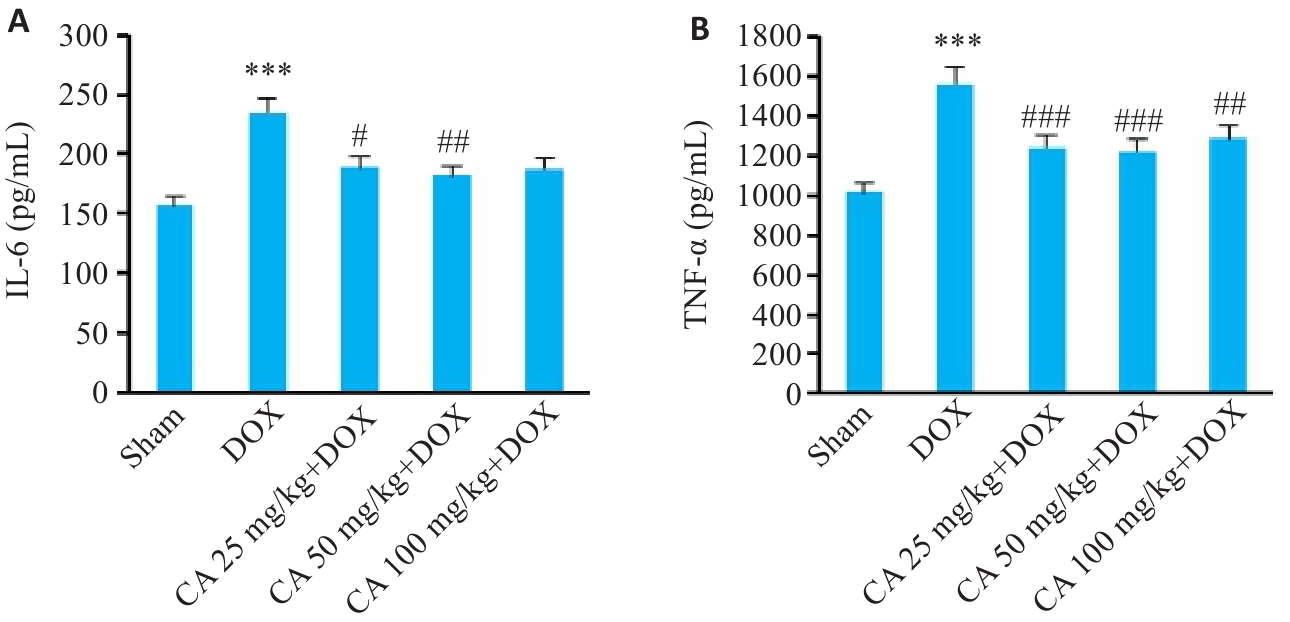

图8 各组小鼠血清IL-6和TNF-α的变化
Fig.8 Serum IL-6 (A) and TNF-α (B) levels in different groups (Mean±SD, n=6). ***P<0.001 vs the Sham group; #P<0.05, ##P<0.01, ###P<0.001 vs the DOX group.

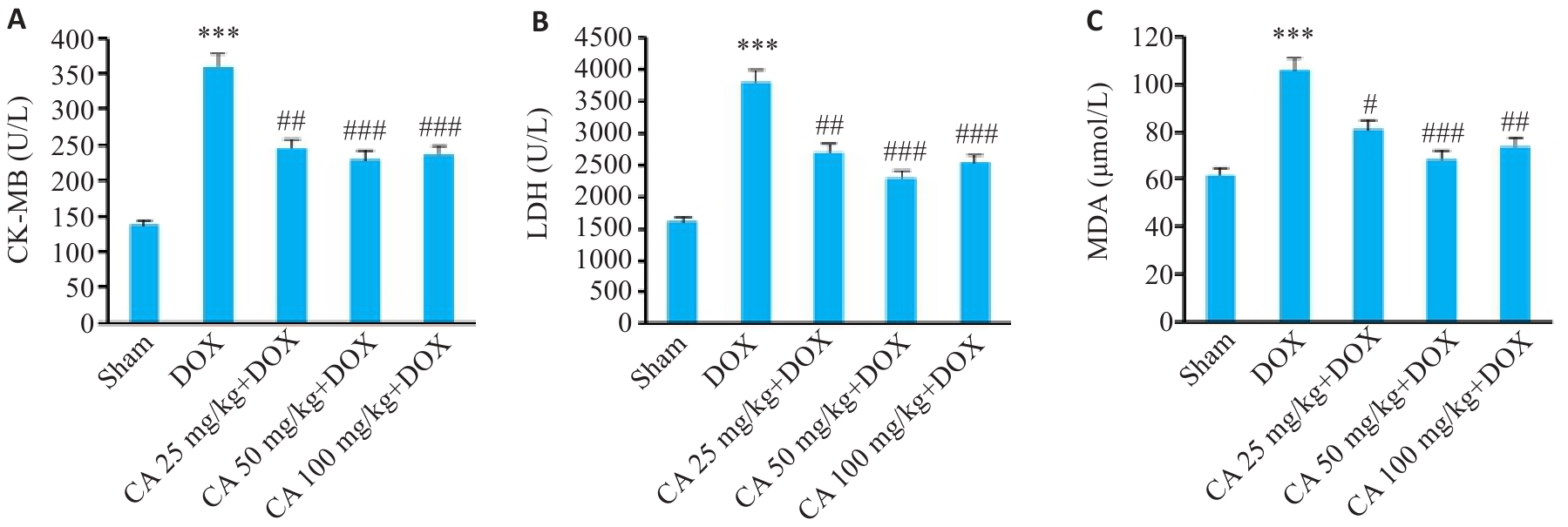

图9 各组小鼠血清CK-MB、LDH和MDA的变化
Fig.9 Serum CK-MB (A), LDH (B) and MDA (C) levels in different groups (Mean±SD, n=6). ***P<0.001 vs the Sham group; #P<0.05, ##P<0.01, ###P<0.001 vs the DOX group.

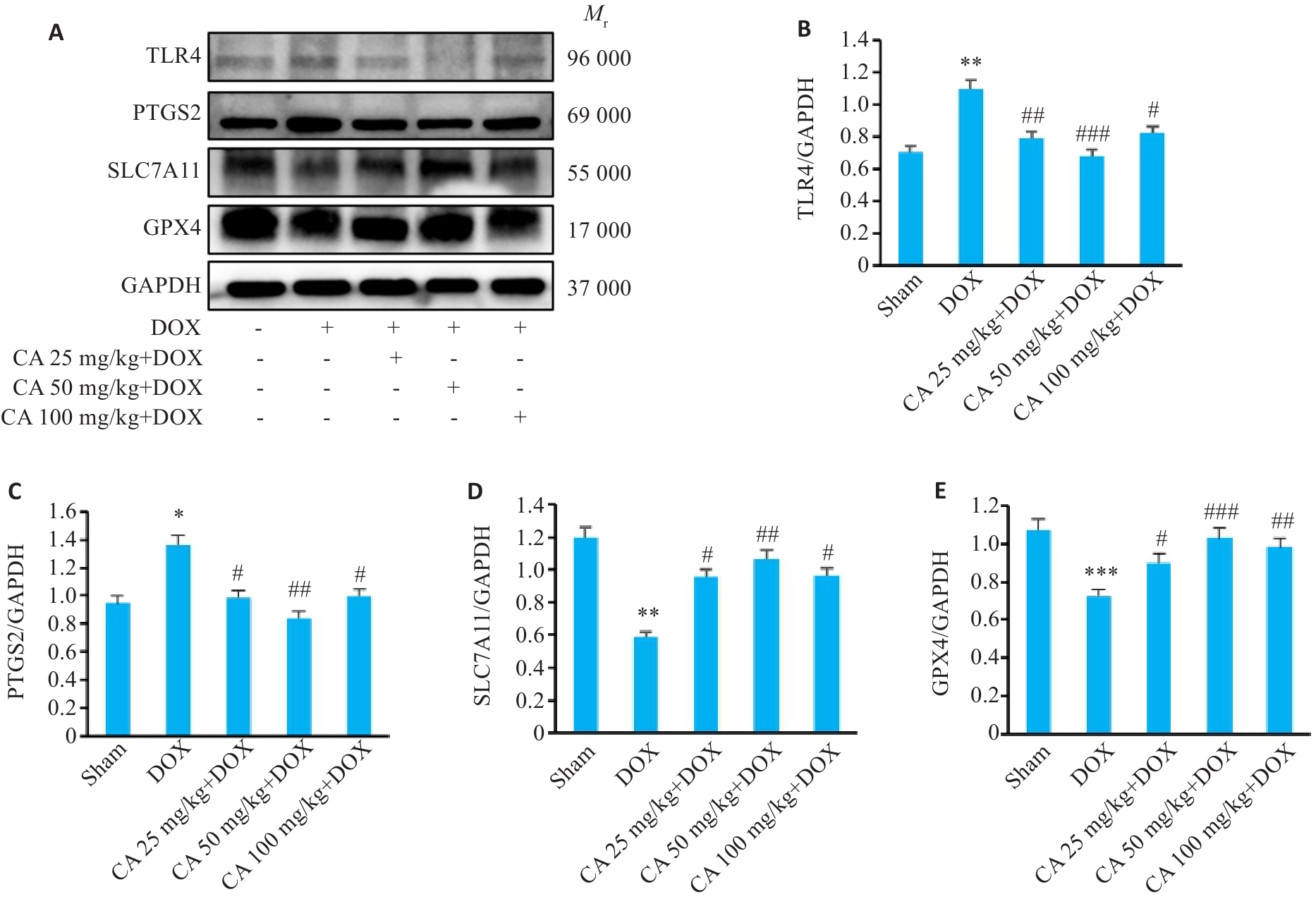

图10 各组小鼠心肌组织中TLR4、PTGS2、SLC7A11和GPX4蛋白表达的变化
Fig.10 TLR4, PTGS2, SLC7A11 and GPX4 protein expressions in the myocardial tissues in the 5 groups. A: Protein bands in Western blotting. B-E: Relative protein levels of TLR4, PTGS2, SLC7A11 and GPX4 proteins (Mean±SD, n=3). *P<0.05, **P<0.01, ***P<0.001 vs the Sham group; #P<0.05, ##P<0.01, ###P<0.001 vs the DOX group.

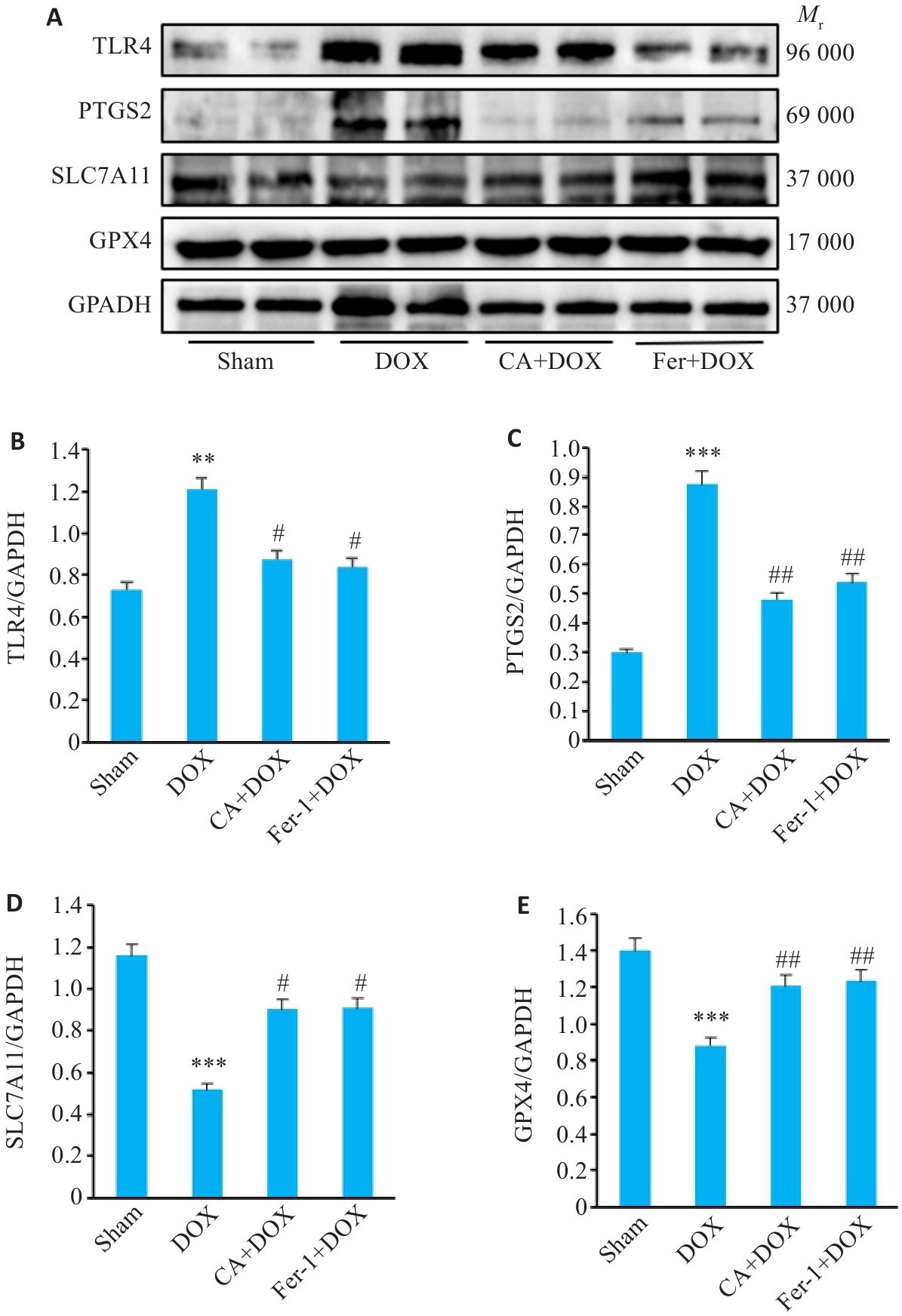

图11 各组小鼠心肌组织中TLR4、PTGS2、SLC7A11和GPX4蛋白表达的变化
Fig.11 Comparison of TLR4, PTGS2, SLC7A11 and GPX4 protein expressions in the myocardial tissues among the 4 groups. A: Protein bands in Western blotting. B-E: Relative protein levels of TLR4, PTGS2, SLC7A11 and GPX4 proteins (Mean±SD, n=3). **P<0.01, ***P<0.001 vs the Sham group; #P<0.05, ##P<0.01 vs the DOX group.

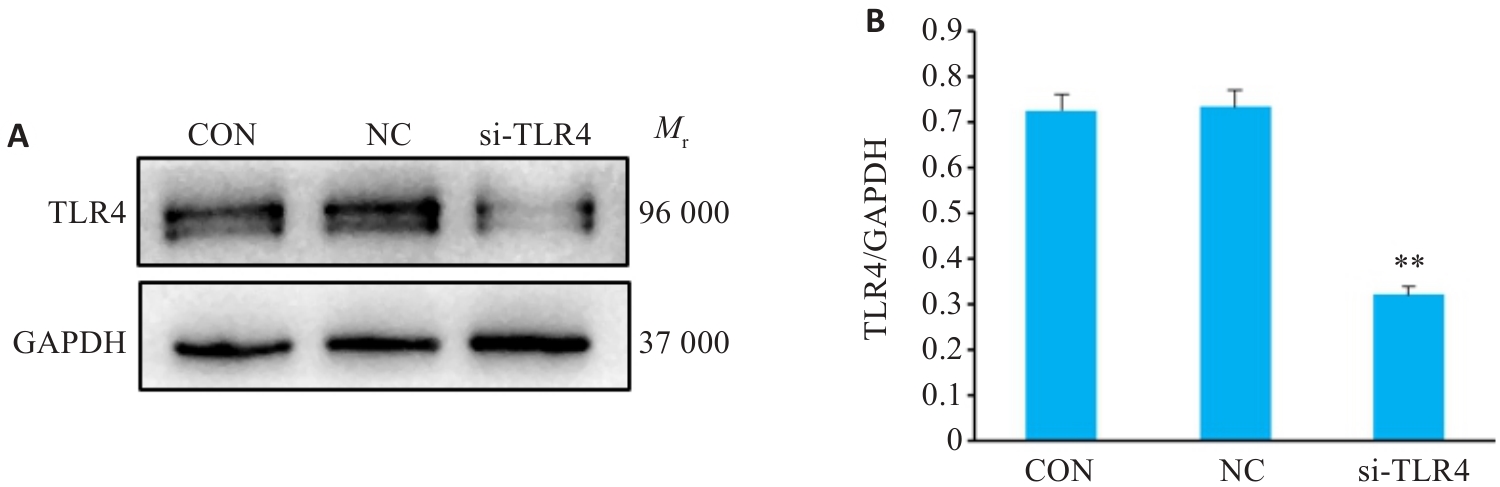

图12 Western blotting检测低表达TLR4感染效率
Fig.12 Western blotting for detection of si-TLR4 transfection efficiency. A: Protein bands in Western blotting. B: Relative protein levels of TLR4 protein (Mean±SD, n=3). **P<0.01 vs the NC group.
图13 HL-1心肌细胞活性
Fig.13 Viability of HL-1 cells treated with different concentrations of DOX (A) and Erastin (B). Data are presented as Mean±SD (n=6). **P<0.01, ***P<0.001 vs the NC group.

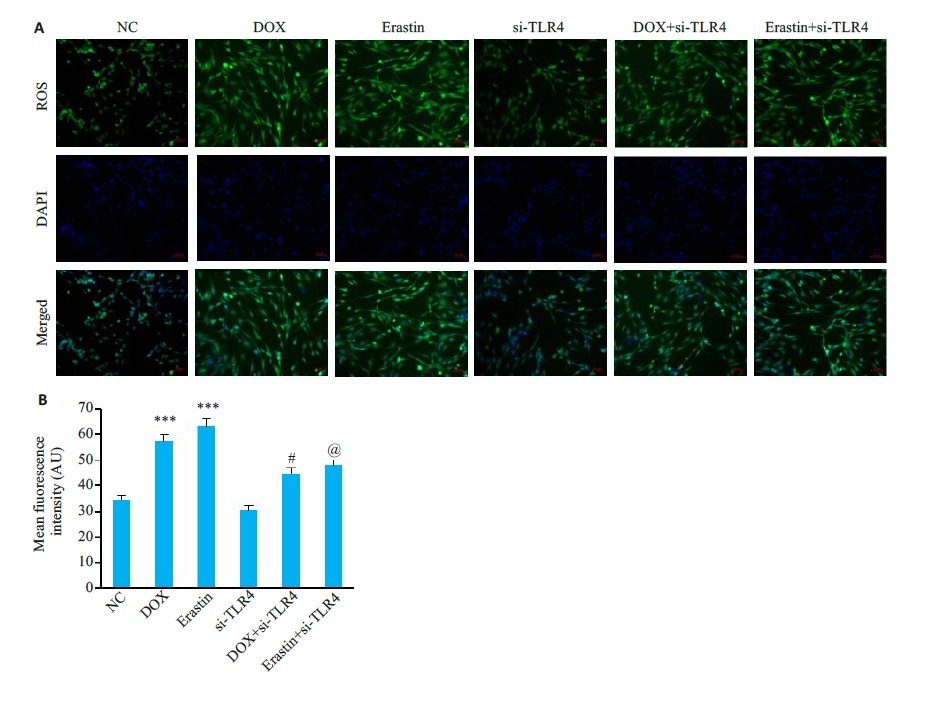

图14 HL-1细胞中ROS水平
Fig.14 ROS levels in HL-1 cardiomyocytes in each group. A:DCFH-DA staining of HL-1 of the cells (×200). B: Meanfluorescence intensity levels (Mean±SD, n=6) ***P<0.001 vs the NC group; #P<0.05 vs the DOX group; @<0.05 vs the Erastin group.

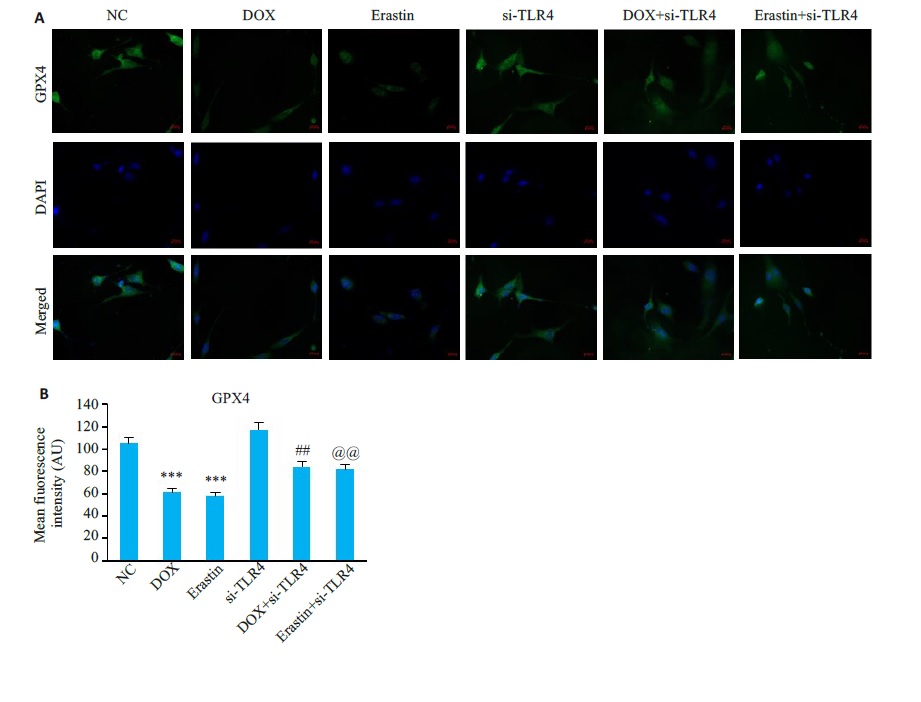

图15 HL-1细胞中GPX4免疫荧光
Fig.15 Immunofluorescence staining for GPX4 in HL-1cells in each group. A: Representative images ofimmunofluorescence staining of HL-1 cells in each group(×400). B: GPX4 fluorescence intensity in each group (Mean±SD,n=6). ***P<0.001vsP<0.01 vsthe NC group; ##P<0.01 vs the DOX group; @@P<0.01 vs the Erastin group.
[1] | Sohail M, Sun Z, Li Y, et al. Research progress in strategies to improve the efficacy and safety of doxorubicin for cancer chemotherapy[J]. Expert Rev Anticancer Ther, 2021, 21(12): 1385-98. doi:10.1080/14737140.2021.1991316 |
[2] | Prasanna PL, Renu K, Valsala Gopalakrishnan A. New molecular and biochemical insights of doxorubicin-induced hepatotoxicity[J]. Life Sci, 2020, 250: 117599. doi:10.1016/j.lfs.2020.117599 |
[3] | Dixon SJ, Lemberg KM, Lamprecht MR, et al. Ferroptosis: an iron-dependent form of nonapoptotic cell death[J]. Cell, 2012, 149(5): 1060-72. doi:10.1016/j.cell.2012.03.042 |
[4] | Cheng YF, Zak O, Aisen P, et al. Structure of the human transferrin receptor-transferrin complex[J]. Cell, 2004, 116(4): 565-76. doi:10.1016/s0092-8674(04)00130-8 |
[5] | Yu H, Yang C, Jian L, et al. Sulfasalazine-induced ferroptosis in breast cancer cells is reduced by the inhibitory effect of estrogen receptor on the transferrin receptor[J]. Oncol Rep, 2019, 42(2): 826-38. |
[6] | Teschke R. Treatment of drug-induced liver injury[J]. Biomedicines, 2022, 11(1): 15. doi:10.3390/biomedicines11010015 |
[7] | Pontiki E, Hadjipavlou-Litina D. Multi-target cinnamic acids for oxidative stress and inflammation: design, synthesis, biological evaluation and modeling studies[J]. Molecules, 2018, 24(1): E12. doi:10.3390/molecules24010012 |
[8] | Song F, Li H, Sun JY, et al. Protective effects of cinnamic acid and cinnamic aldehyde on isoproterenol-induced acute myocardial ischemia in rats[J]. J Ethnopharmacol, 2013, 150(1): 125-30. doi:10.1016/j.jep.2013.08.019 |
[9] | Sova M. Antioxidant and antimicrobial activities of cinnamic acid derivatives[J]. Mini Rev Med Chem, 2012, 12(8): 749-67. doi:10.2174/138955712801264792 |
[10] | Takao K, Toda K, Saito T, et al. Synthesis of amide and ester derivatives of cinnamic acid and its analogs: evaluation of their free radical scavenging and monoamine oxidase and cholinesterase inhibitory activities[J]. Chem Pharm Bull: Tokyo, 2017, 65(11): 1020-7. doi:10.1248/cpb.c17-00416 |
[11] | 王凤雪, 高 宇, 刘海波.中药网络药理学研究流程及代表性数据库工具[J].中国现代中药, 2021, 23(6): 1111-8. |
[12] | Lu SM, Yang B, Tan ZB, et al. TaoHe ChengQi decoction ameliorates sepsis-induced cardiac dysfunction through anti-ferroptosis via the Nrf2 pathway[J]. Phytomedicine, 2024, 129: 155597. doi:10.1016/j.phymed.2024.155597 |
[13] | Volkova M, Russell R. Anthracycline cardiotoxicity: prevalence, pathogenesis and treatment[J]. Curr Cardiol Rev, 2011, 7(4): 214-20. doi:10.2174/157340311799960645 |
[14] | Tacar O, Sriamornsak P, Dass CR. Doxorubicin: an update on anticancer molecular action, toxicity and novel drug delivery systems[J]. J Pharm Pharmacol, 2013, 65(2): 157-70. doi:10.1111/j.2042-7158.2012.01567.x |
[15] | Wang L, Chen Q, Qi H, et al. Doxorubicin-induced systemic inflammation is driven by upregulation of toll-like receptor TLR4 and endotoxin leakage[J]. Cancer Res, 2016, 76(22): 6631-42. doi:10.1158/0008-5472.can-15-3034 |
[16] | Singla DK, Johnson TA, Tavakoli Dargani Z. Exosome treatment enhances anti-inflammatory M2 macrophages and reduces inflammation-induced pyroptosis in doxorubicin-induced cardiomyopathy[J]. Cells, 2019, 8(10): E1224. doi:10.3390/cells8101224 |
[17] | Lan Y, Wang Y, Huang K, et al. Heat shock protein 22 attenuates doxorubicin-induced cardiotoxicity via regulating inflammation and apoptosis[J]. Front Pharmacol, 2020, 11: 257. doi:10.3389/fphar.2020.00257 |
[18] | Hu S, Liu B, Yang M, et al. Carnosic acid protects against doxorubicin-induced cardiotoxicity through enhancing the Nrf2/HO-1 pathway[J]. Food Funct, 2023, 14(8): 3849-62. doi:10.1039/d2fo03904d |
[19] | Tadokoro T, Ikeda M, Ide T, et al. Mitochondria-dependent ferroptosis plays a pivotal role in doxorubicin cardiotoxicity[J]. JCI Insight, 2020, 5(9): 132747. doi:10.1172/jci.insight.132747 |
[20] | Fang X, Wang H, Han D, et al. Ferroptosis as a target for protection against cardiomyopathy[J]. Proc Natl Acad Sci USA, 2019, 116(7): 2672-80. doi:10.1073/pnas.1821022116 |
[21] | Xu F, Wang F, Wen T, et al. Protective effect of cinnamic acid in endotoxin-poisoned mice[J]. Phytother Res, 2017, 31(12): 1946-53. doi:10.1002/ptr.5944 |
[22] | Koczurkiewicz-Adamczyk P, Klaś K, Gunia-Krzyżak A, et al. Cinnamic acid derivatives as cardioprotective agents against oxidative and structural damage induced by doxorubicin[J]. Int J Mol Sci, 2021, 22(12): 6217. doi:10.3390/ijms22126217 |
[23] | 庄延双, 蔡宝昌, 张自力. 网络药理学在中药研究中的应用进展[J]. 南京中医药大学学报, 2021, 37(1): 156-60. |
[24] | 杜若丽, 云 琦, 王奕人, 等.白花丹素通过抑制JAK2/STAT3通路减弱焦亡对抗脓毒症心肌损伤[J].南方医科大学学报,2024,44(11):2209-19. |
[25] | Oo TT, Sumneang N, Ongnok B, et al. L6H21 protects against cognitive impairment and brain pathologies via toll-like receptor 4-myeloid differentiation factor 2 signalling in prediabetic rats[J]. Br J Pharmacol, 2022, 179(6): 1220-36. doi:10.1111/bph.15741 |
[26] | Alanazi AM, Fadda L, Alhusaini A, et al. Liposomal resveratrol and/or carvedilol attenuate doxorubicin-induced cardiotoxicity by modulating inflammation, oxidative stress and S100A1 in rats[J]. Antioxidants: Basel, 2020, 9(2): E159. doi:10.3390/antiox9020159 |
[27] | Li B, Cai XY, Wang YX, et al. Circ-SKA3 enhances doxorubicin toxicity in AC16 cells through miR-1303/TLR4 axis[J]. Int Heart J, 2021, 62(5): 1112-23. doi:10.1536/ihj.20-809 |
[28] | Xu L, Wang C, Zou Z, et al. Ozone attenuated H9c2 cell injury induced by doxorubicin[J]. J Cardiovasc Pharmacol, 2021, 78(1): e86-93. doi:10.1097/fjc.0000000000001043 |
[29] | Feng PP, Yang Y, Liu N, et al. Baicalin regulates TLR4/IκBα/NFκB signaling pathway to alleviate inflammation in Doxorubicin related cardiotoxicity[J]. Biochem Biophys Res Commun, 2022, 637: 1-8. doi:10.1016/j.bbrc.2022.10.061 |
[30] | Riad A, Bien S, Gratz M, et al. Toll-like receptor-4 deficiency attenuates doxorubicin-induced cardiomyopathy in mice[J]. Eur J Heart Fail, 2008, 10(3): 233-43. doi:10.1016/j.ejheart.2008.01.004 |
[31] | Li YC, Huang LT, Li JL, et al. Targeting TLR4 and regulating the Keap1/Nrf2 pathway with andrographolide to suppress inflamm-ation and ferroptosis in LPS-induced acute lung injury[J]. Chin J Nat Med, 2024, 22(10): 914-28. doi:10.1016/s1875-5364(24)60727-2 |
[32] | Chen D, Geng Y, Deng Z, et al. Inhibition of TLR4 alleviates heat stroke-induced cardiomyocyte injury by down-regulating inflamm-ation and ferroptosis[J]. Molecules, 2023, 28(5): 2297. doi:10.3390/molecules28052297 |
