A single repetition time quantitative magnetic susceptibility imaging method for the lumbar spine using bipolar readout gradient

doi:10.12122/j.issn.1673-4254.2025.06.23

Abstract

Abstract:

Objective To propose a single repetition time (TR) quantitative magnetic susceptibility imaging method for the lumbar spine using bipolar readout gradient, and compare the quantitative magnetic susceptibility measurement using single TR and dual TR methods for the lumbar spine with different bone densities. Methods A translation correction method was proposed to correct spatial misalignment along the frequency encoding direction between positive and negative gradient readout images, and the phase difference between the images was eliminated using a phase correction method. The data of lumbar vertebrae L1-L5 were collected using single TR and dual TR methods from 6 normal individuals, 2 patients with osteopenia, and 2 patients with osteoporosis. The magnetic susceptibility map was reconstructed, the quantitative results of single TR before and after correction were compared with those of the dual TR method. Results The linear regression result of the lumbar spine magnetic susceptibility values obtained by the single TR method before calibration and the dual TR method is Y=0.64*X-11.61. The linear regression result of the lumbar spine magnetic susceptibility values corrected by the single TR method and the dual TR method is Y=1.03*X+0.25. The results of the corrected single TR method were highly consistent with those of the dual TR method, and the calibrated single TR method could effectively distinguish osteopenia and osteoporosis patients from normal individuals. Conclusion The calibrated single TR bipolar readout gradient method can generate artifact-free lumbar spine quantitative magnetic susceptibility distribution maps and reduce data acquisition time by 50%.

Key words: magnetic resonance imaging, quantitative susceptibility mapping, single TR, lumbar spine, osteoporosis

Zhenxiang DONG, Yihao GUO, Qiang LIU, Yizhe ZHANG, Qianyi QIU, Xiaodong ZHANG, Yanqiu FENG. A single repetition time quantitative magnetic susceptibility imaging method for the lumbar spine using bipolar readout gradient[J]. Journal of Southern Medical University, 2025, 45(6): 1336-1342.

Figures/Tables 7

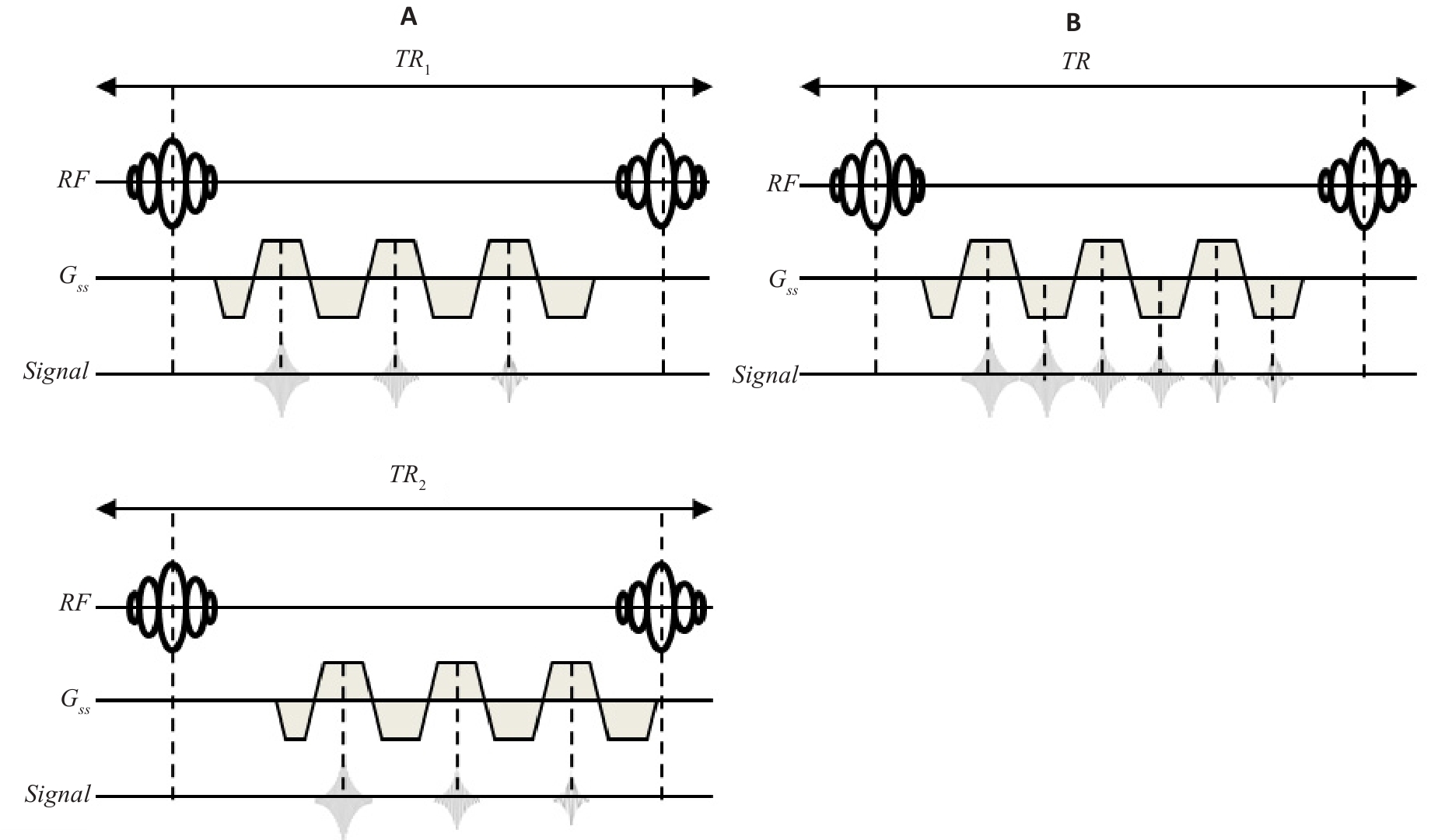

Fig.1 Diagram of lumbar QSM acquisition sequence. A: Dual TR. B: Single TR. RF: radio frequency.

Tab.1 MR scan parameters of dual TR and single TR gradient echo sequences

MR scan sequence	Dual TR gradient echo sequence	Single TR gradient echo sequence
Field of view	256×184×152 mm³	256×184×152 mm³
Voxel size	2 mm isotropic	2 mm isotropic
Flip angle	15°	15°
Echo time	TE₁=1.54 ms, $∆$ TE =2.3 ms; TE₂=2.3 ms, $∆$ TE =2.3 ms;N_TE =3	TE₁=1.2 ms, $∆$ TE =1.2 ms, N_TE =6
Bandwidth	996 hz/pixel	996 hz/pixel
TR	25 ms	25 ms
Scan time	9 min10 s	4 min35 s
SENSE	SENSE=1	SENSE=1

Tab.1 MR scan parameters of dual TR and single TR gradient echo sequences

MR scan sequence	Dual TR gradient echo sequence	Single TR gradient echo sequence
Field of view	256×184×152 mm³	256×184×152 mm³
Voxel size	2 mm isotropic	2 mm isotropic
Flip angle	15°	15°
Echo time	TE₁=1.54 ms, $∆$ TE =2.3 ms; TE₂=2.3 ms, $∆$ TE =2.3 ms;N_TE =3	TE₁=1.2 ms, $∆$ TE =1.2 ms, N_TE =6
Bandwidth	996 hz/pixel	996 hz/pixel
TR	25 ms	25 ms
Scan time	9 min10 s	4 min35 s
SENSE	SENSE=1	SENSE=1

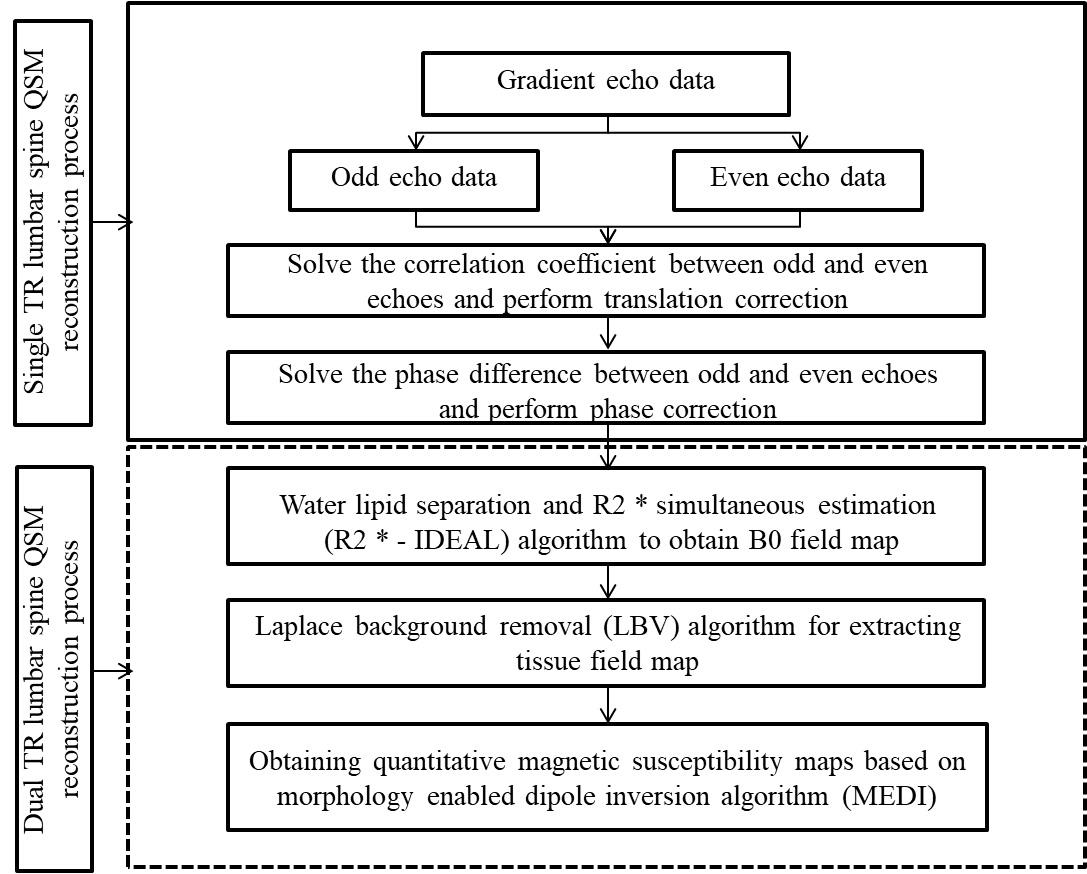

Fig.2 Flowchart of single repetition time bipolar readout sequence.

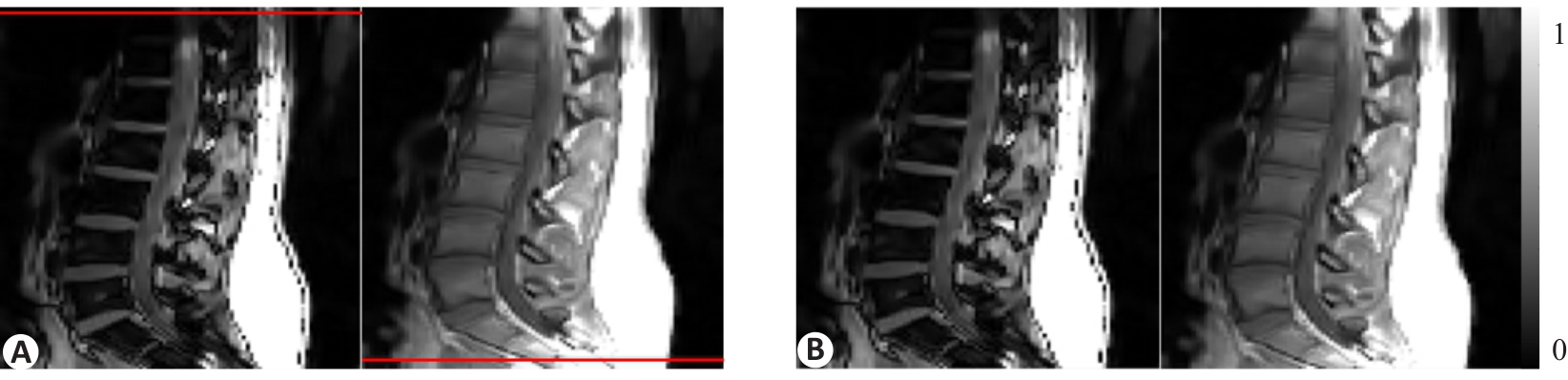

Fig.3 Comparison of the results of odd echo and even echo before (A) and after (B) translation calibration.

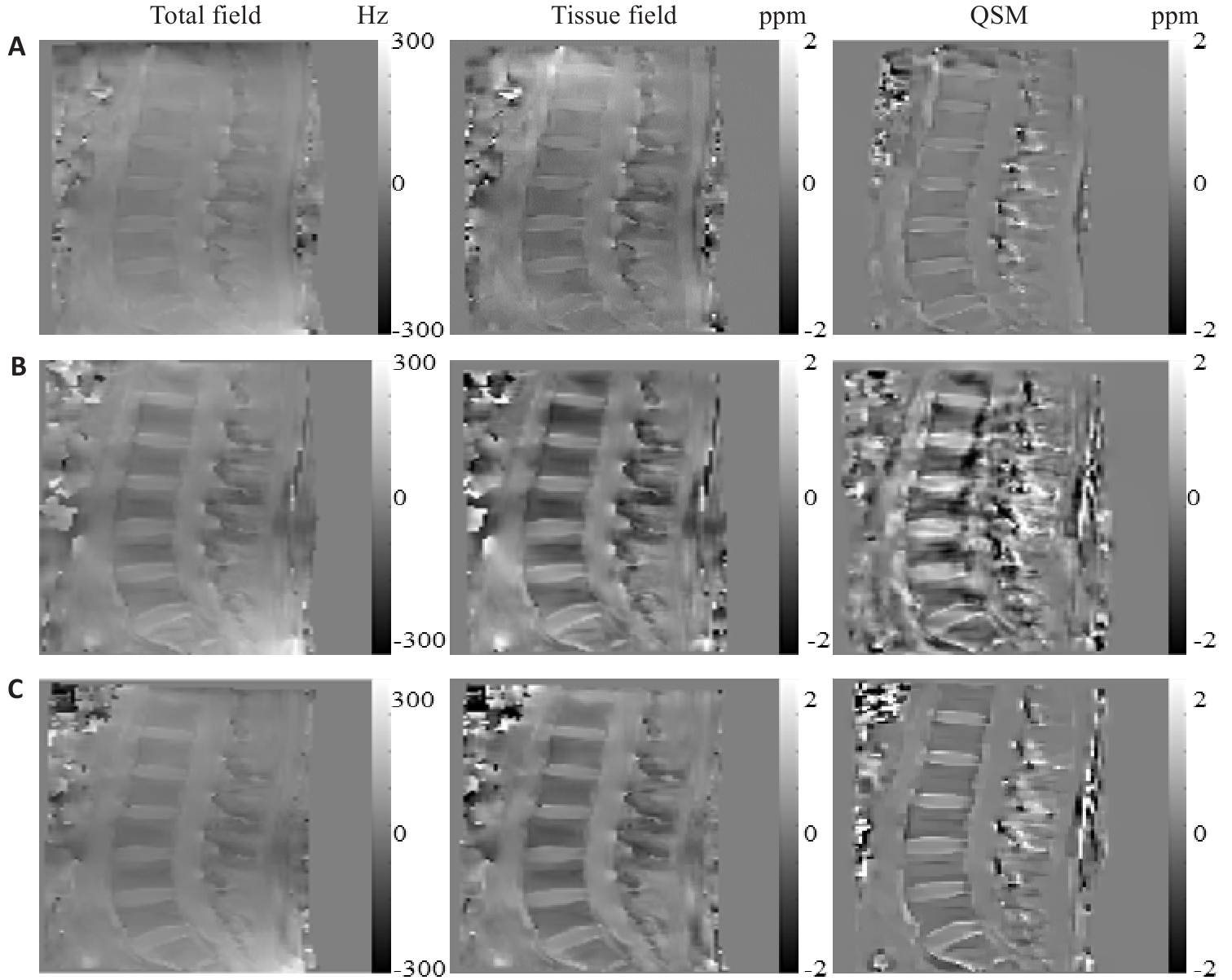

Fig.4 Total field map, tissue field map, and QSM results of the lumbar spine of normal volunteers.A: Dual TR method fitting results. B: Single TR method fitting results before calibration. C: Single TR method fitting results after calibration.

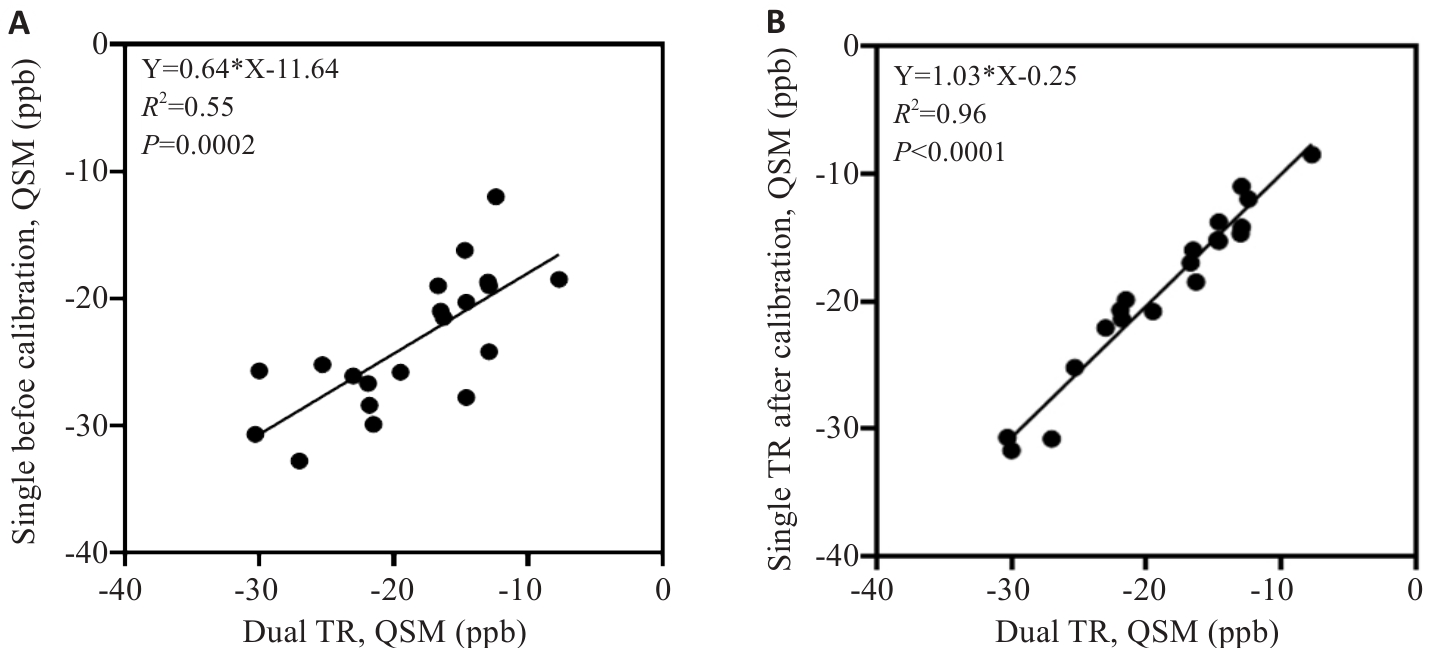

Fig.5 Comparison of quantitative results between dual TR lumbar spine QSM and single TR. A: Comparison of dual TR and single TR before calibration. B: Comparison of dual TR and single TR after calibration.

Fig.6 QSM results of the single TR method in normal individuals and in patients with osteopenia and osteoporosis. ***P<0.01.
