An artificial neural network diagnostic model for scleroderma and immune cell infiltration analysis based on mitochondria-associated genes

doi:10.12122/j.issn.1673-4254.2024.05.14

Abstract

Abstract:

Objective To establish a diagnostic model for scleroderma by combining machine learning and artificial neural network based on mitochondria-related genes. Methods The GSE95065 and GSE59785 datasets of scleroderma from GEO database were used for analyzing expressions of mitochondria-related genes, and the differential genes were identified by Random forest, LASSO regression and SVM algorithms. Based on these differential genes, an artificial neural network model was constructed, and its diagnostic accuracy was evaluated by 10-fold crossover verification and ROC curve analysis using the verification dataset GSE76807. The mRNA expressions of the key genes were verified by RT-qPCR in a mouse model of scleroderma. The CIBERSORT algorithm was used to estimate the bioinformatic association between scleroderma and the screened biomarkers. Results A total of 24 differential genes were obtained, including 11 up-regulated and 13 down-regulated genes. Seven most relevant mitochondria-related genes (POLB, GSR, KRAS, NT5DC2, NOX4, IGF1, and TGM2) were screened using 3 machine learning algorithms, and the artificial neural network diagnostic model was constructed. The model showed an area under the ROC curves of 0.984 for scleroderma diagnosis (0.740 for the verification dataset and 0.980 for cross-over validation). RT-qPCR detected significant up-regulation of POLB, GSR, KRAS, NOX4, IGF1 and TGM2 mRNAs and significant down-regulation of NT5DC2 in the mouse models of scleroderma. Immune cell infiltration analysis showed that the differential genes in scleroderma were associated with follicular helper T cells, immature B cells, resting dendritic cells, memory activated CD4⁺T cells, M0 macrophages, monocytes, resting memory CD4⁺T cells and mast cell activation. Conclusion The artificial neural network diagnostic model for scleroderma established in this study provides a new perspective for exploring the pathogenesis of scleroderma.

Key words: scleroderma, mitochondria, artificial neural network, immune cell infiltration, machine learning

Zhiwei ZUO, Qingliang MENG, Jiakang CUI, Kelei GUO, Hua BIAN. An artificial neural network diagnostic model for scleroderma and immune cell infiltration analysis based on mitochondria-associated genes[J]. Journal of Southern Medical University, 2024, 44(5): 920-929.

Figures/Tables 12

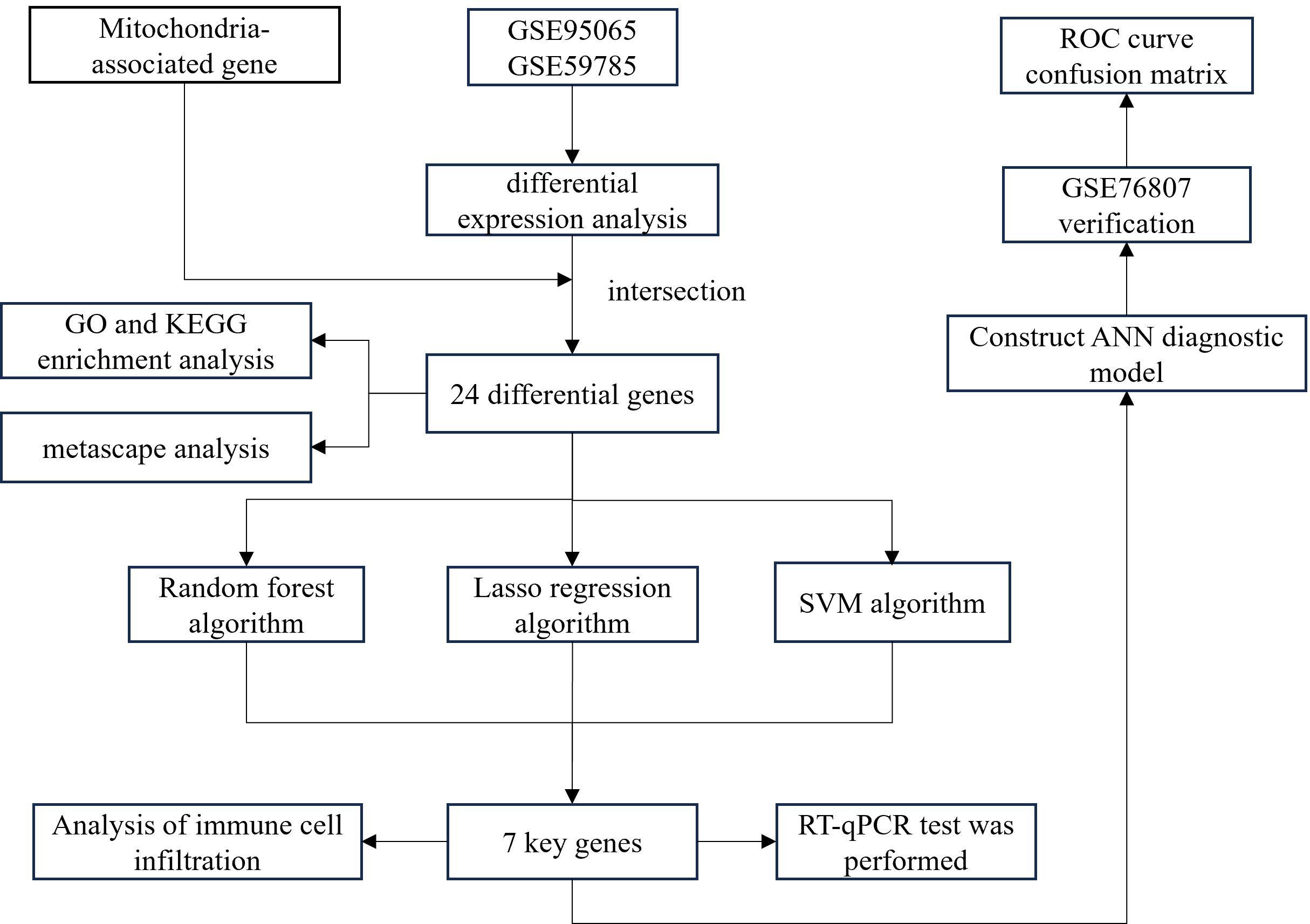

Fig.1 Flow chart of the study design.

Tab.1 GEO database chip data set

DATA	Sample size	Normal sample	SSc sample	Organization type	Data type
GSE95065	33	15	18	Homo sapiens	Expression profiling by array
GSE59785	82	2	80	Homo sapiens	Expression profiling by array
GSE76807	15	5	10	Homo sapiens	Expression profiling by array

Tab.2 Primer sequence of the target genes

Primer	Sequence 5'-3'
POLB	F: CTTCACTGGGAGTGACATCTTT R: CAGCGACTCCAGTGACC
GSR	F: GAGCTCCAAGTGGTGACTTC R: CAGGCCCTTAGAATTTGGGT
KRAS	F: GTGGATGAGTATGACCCTACG R GACCTGCTGTGTCGAGAATATC
NT5DC2	F: ACGTCGTCATCGTCCAG R: TCTCTAGGCGAGTGATACGG
NOX4	F: AGACTCTACACATCACATGTGG R: AAAGTTGAGGGCATTCACCA
IGF1	F: CCCACTGAAGCCTACAAA R: TTTCTTGTTTGTCGATAGGGA
TGM2	F: TGTCTGACAATGTGGAGGAG R: GCTGTAGCGAGAGGACATT
β-actin	F: TGCTGTCCCTGTATGCCTCTG R: TGATGTCACGCACGATTTCC

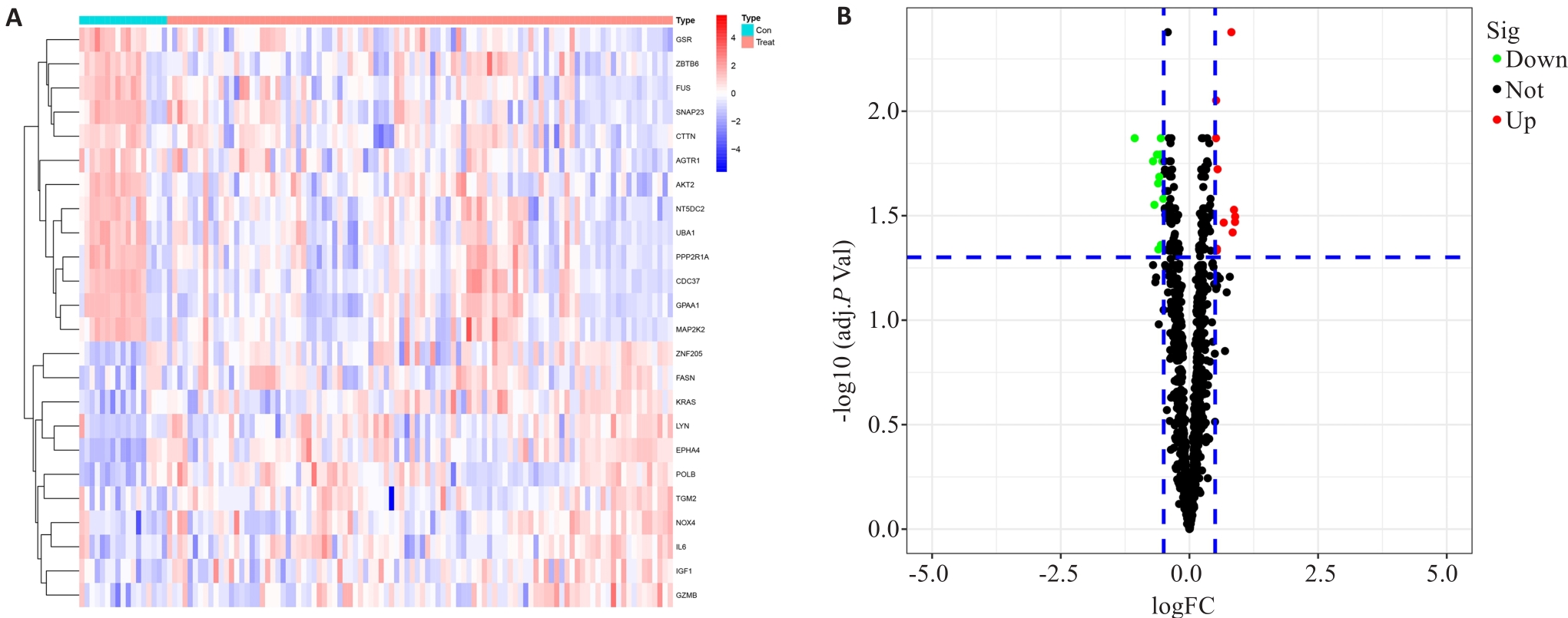

Fig.2 Analysis of the differential expressions of the differential mitochondria-related gene in scleroderma. A: DEGs heatmap (red for up-regulated and blue for down-regulated genes). B: DEGs volcano map (red for up-regulated and blue for down-regulated genes).

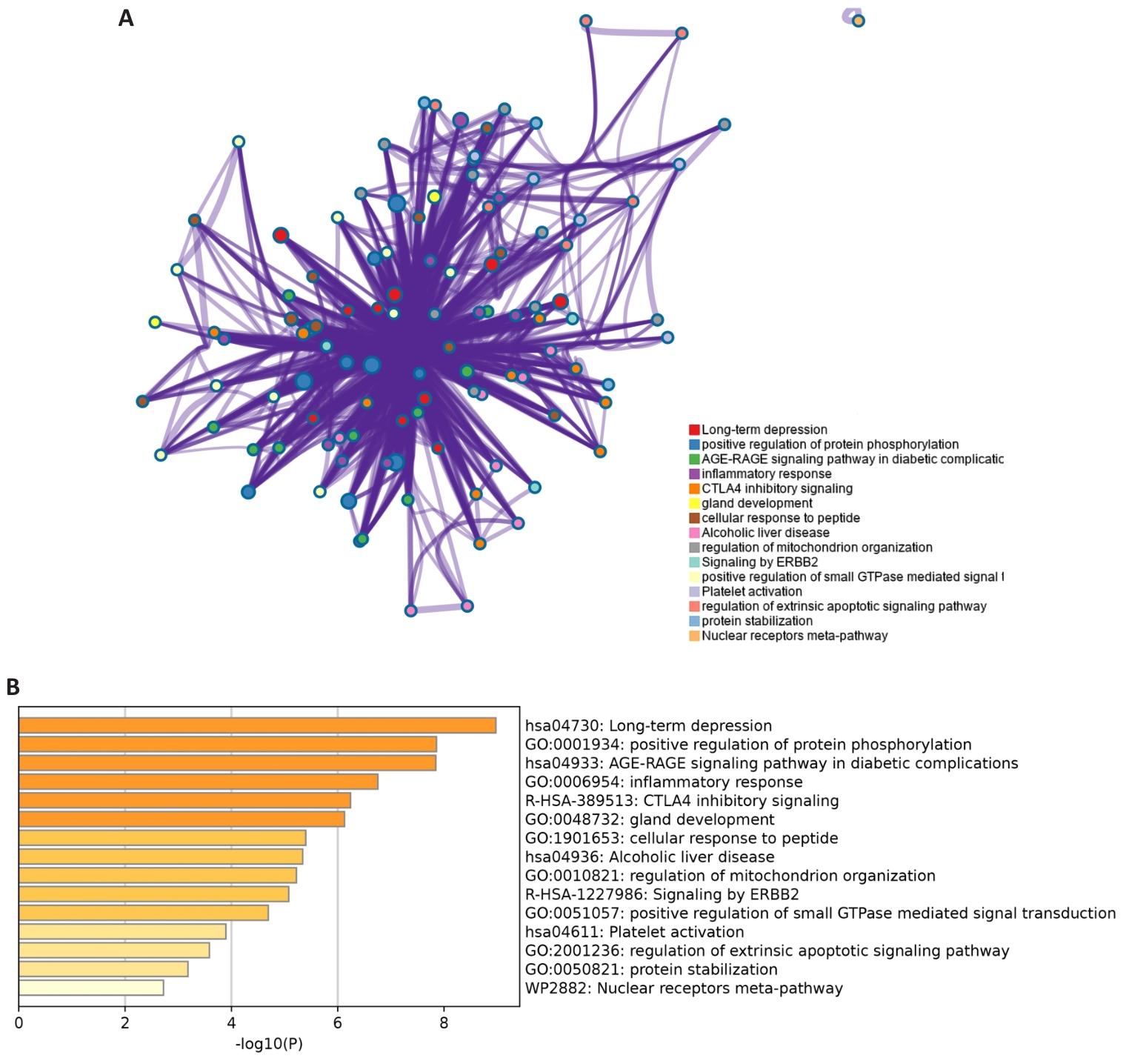

Fig.3 Metascape analysis of the DEGs in scleroderma. A: DEG enrichment pathway and process network. B: Histogram of DEGs enrichment pathways and processes.

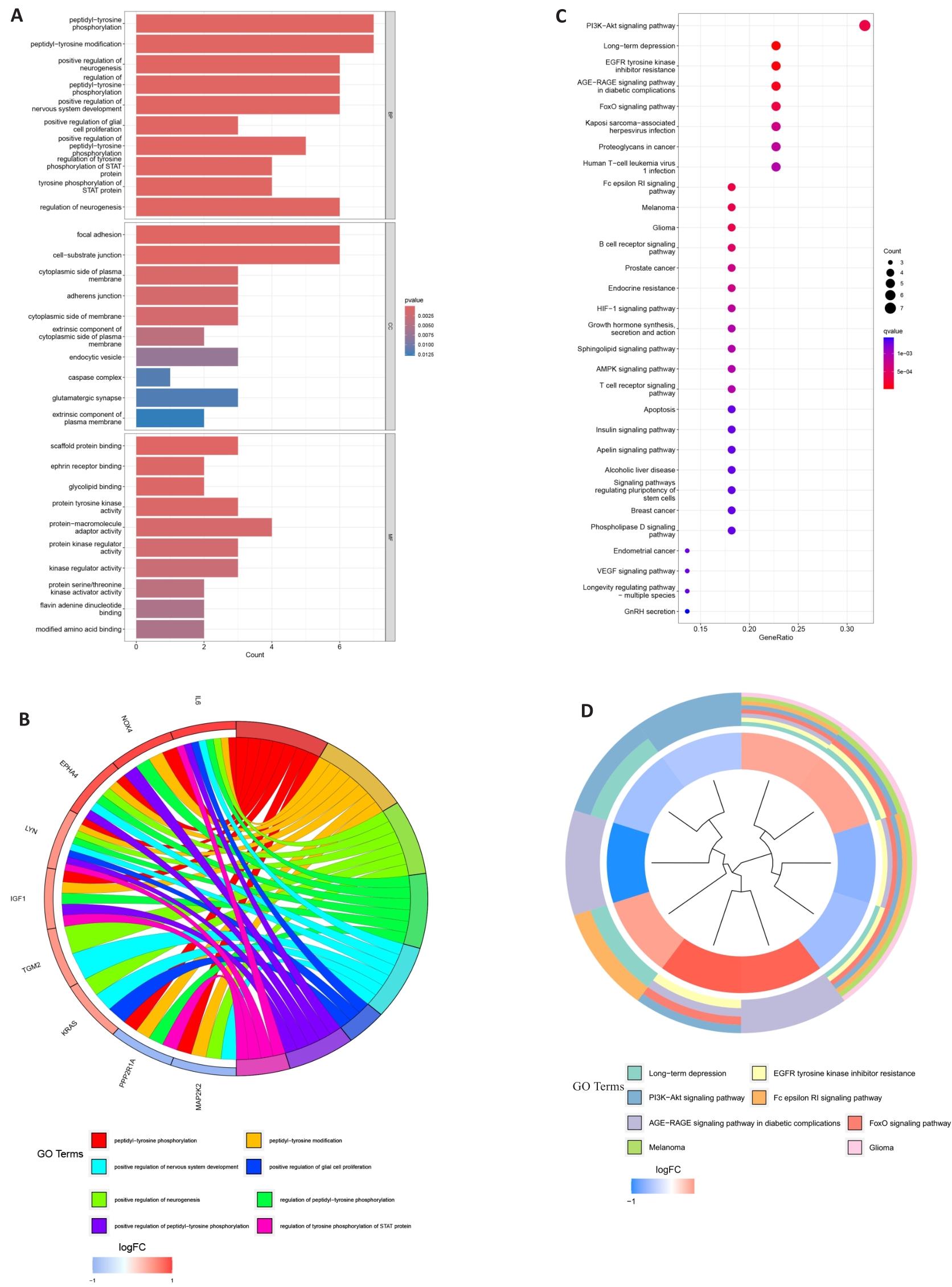

Fig.4 GO and KEGG enrichment analysis of DEGs in scleroderma. A: GO bar chart. B: GO circle. C: KEGG bubble diagram. D: KEGG cluster graph.

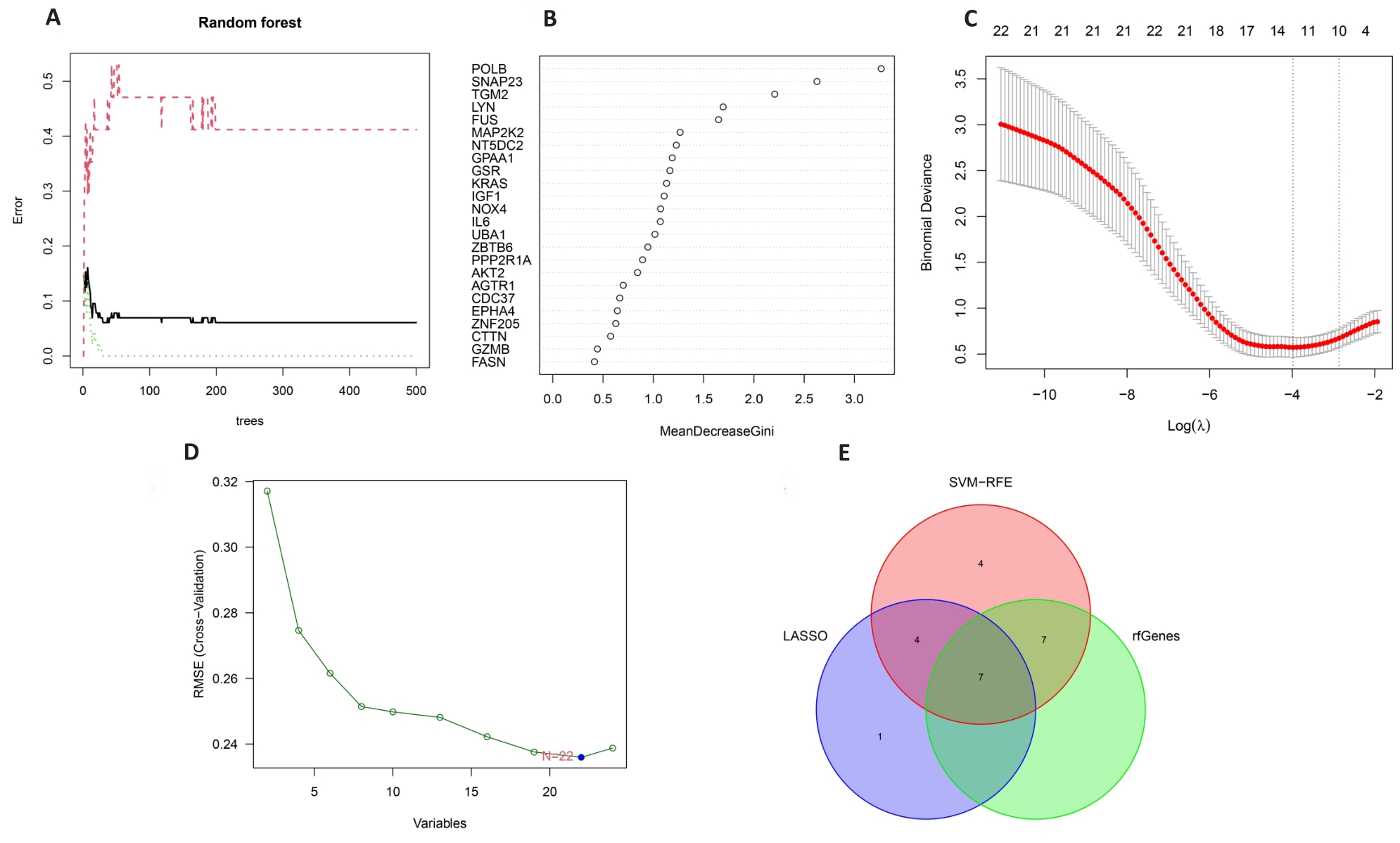

Fig.5 Selection of the key genes using 3 machine learning algorithms. A: Correlation between the number of random forest trees and the model error. B: Result of Gini coefficient method in random forest classifier. C: Characteristic genes selected by LASSO regression algorithm. D: Feature genes screened by SVM algorithm. E: Venn diagram of the intersected genes of the 3 algorithms.

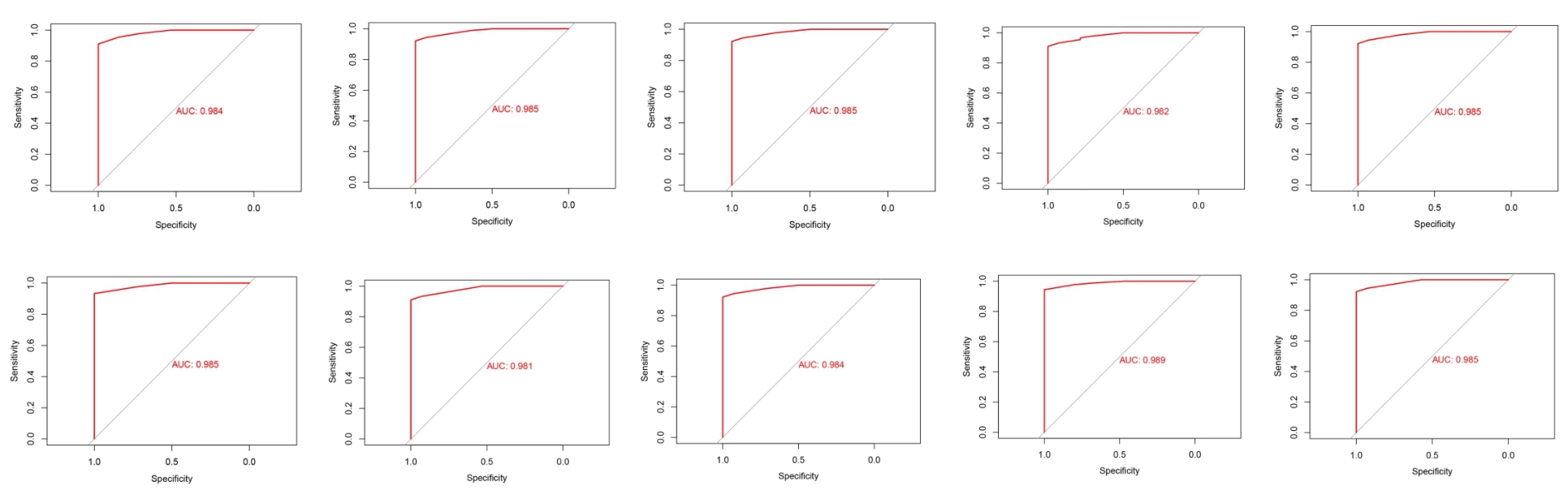

Fig.6 10-fold cross-validation result.

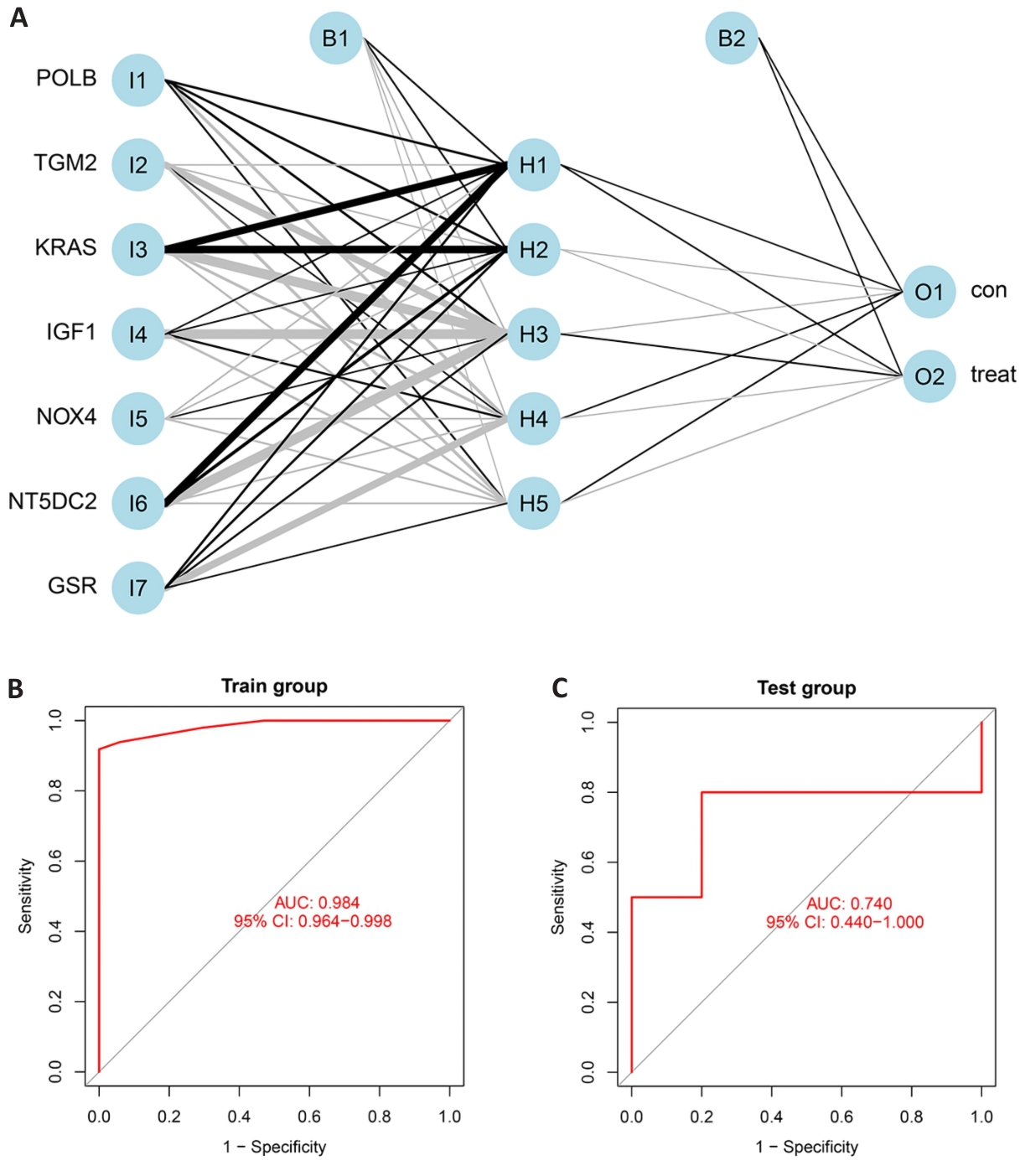

Fig.7 Construction and verification of artificial neural network model. A: ANN result visualization. B: ROC curves of mitochondria-associated genes in the training dataset. C: ROC curves for mitochondria-related genes in the verification dataset.

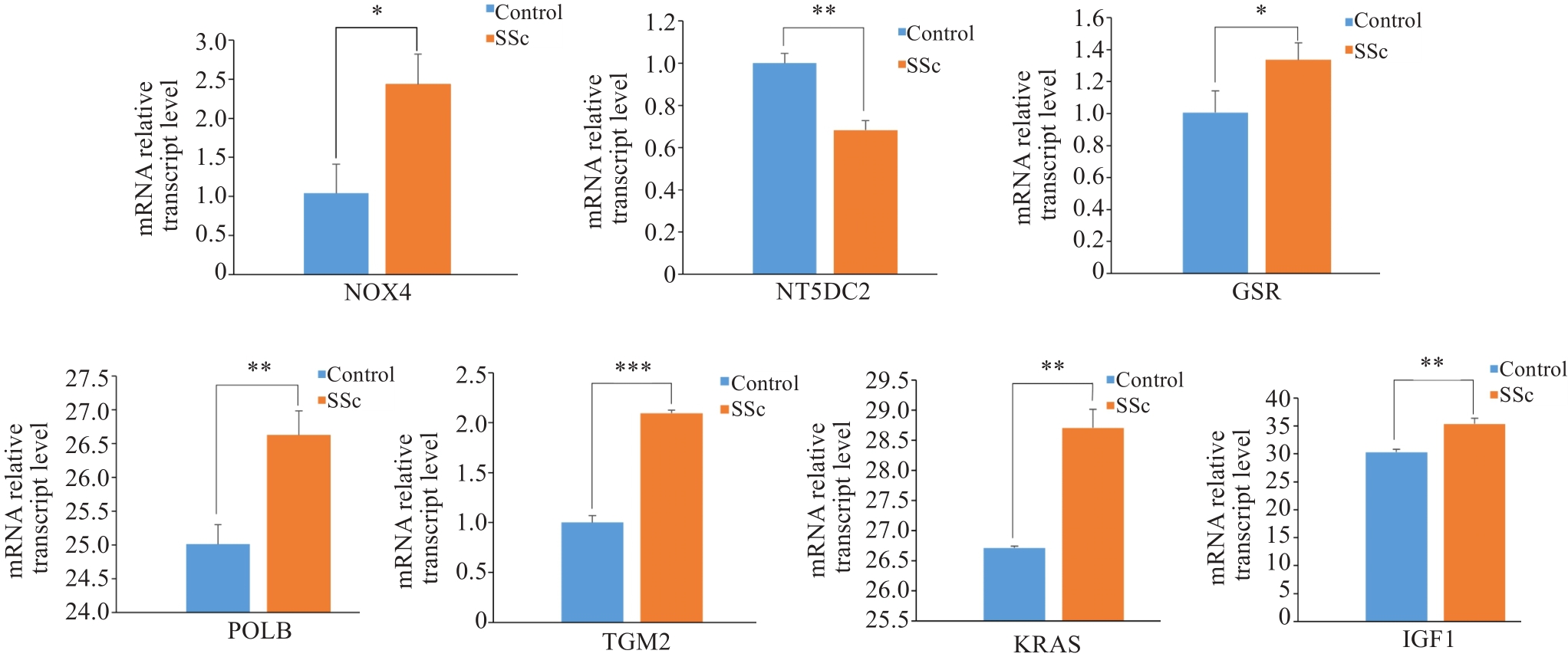

Fig.8 Relative mRNA expressions of the key genes in mouse models of scleroderma. *P<0.05, **P<0.01, ***P<0.001.

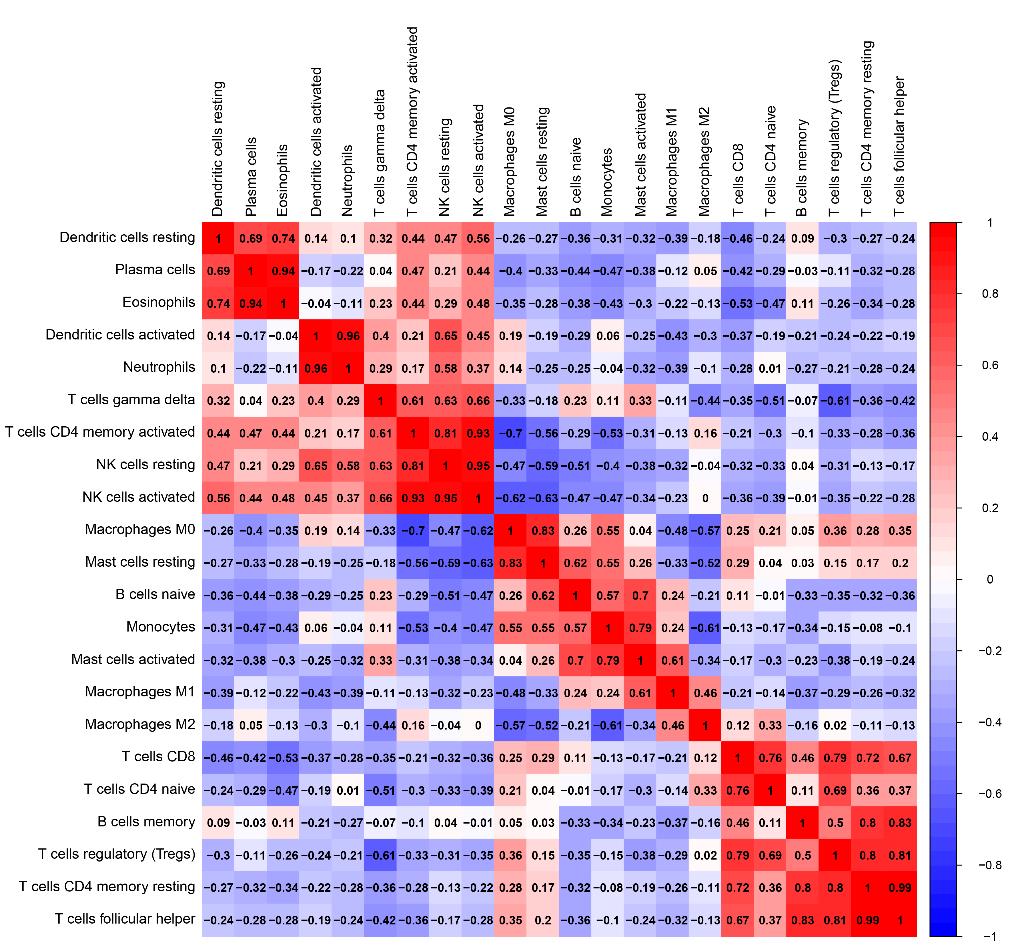

Fig.9 Correlation analysis of immune cell expression. Red indicates a positive correlation and blue indicates a negative correlation.

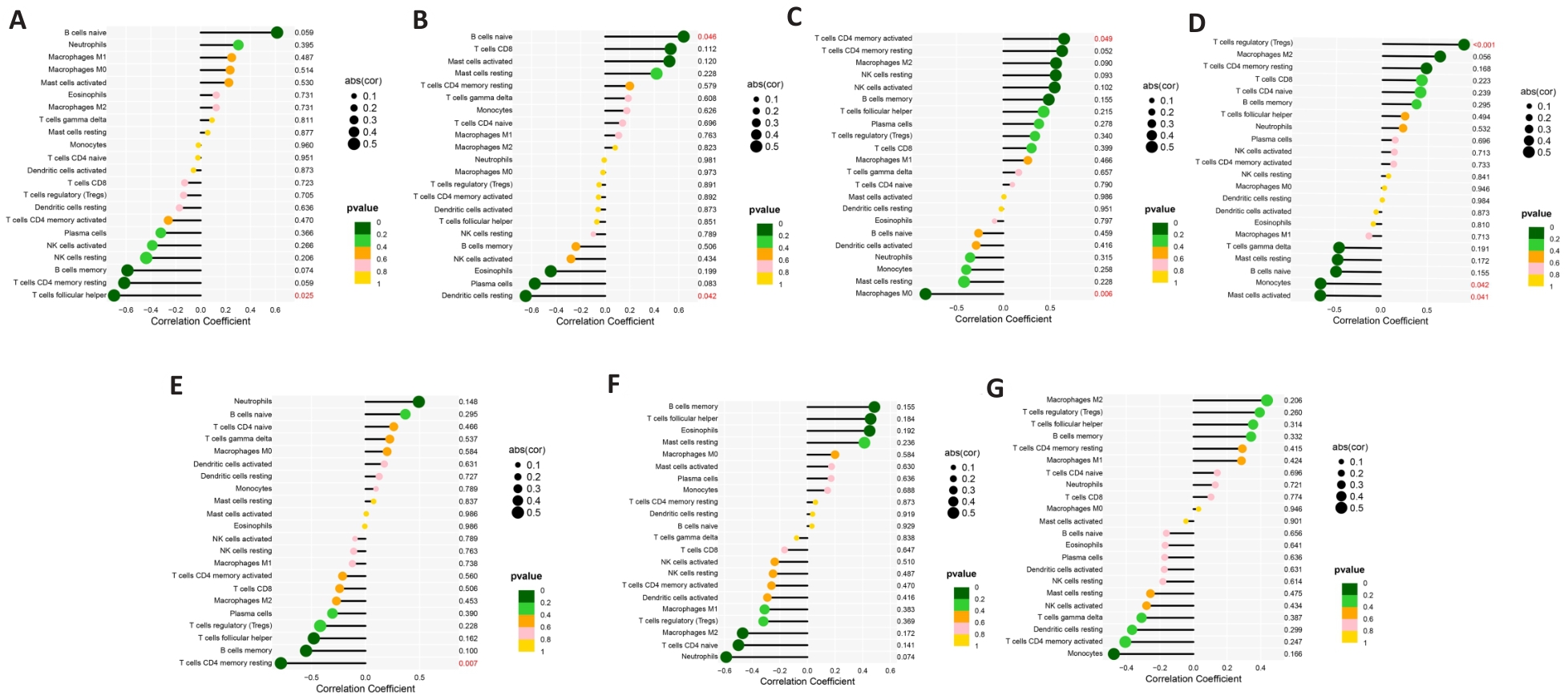

Fig.10 Correlation of the genetic biomarkers with the infiltrating immune cells. A: GSR. B: IGF1. C: KRAS. D: NOX4. E: NT5DC2. F: POLB. G: TGM2. P<0.05 indicates a significant correlation between immune cells and genes.

References 35

1	Orteu CH, Ong VH, Denton CP. Scleroderma mimics - Clinical features and management[J]. Best Pract Res Clin Rheumatol, 2020, 34(1): 101489. DOI: 10.1016/j.berh.2020.101489
2	Li SC. Scleroderma in children and adolescents: localized Scleroderma and systemic sclerosis[J]. Pediatr Clin North Am, 2018, 65(4): 757-81. DOI: 10.1016/j.pcl.2018.04.002
3	Tsou PS, Sawalha AH. Unfolding the pathogenesis of scleroderma through genomics and epigenomics[J]. J Autoimmun, 2017, 83: 73-94. DOI: 10.1016/j.jaut.2017.05.004
4	Ge YZ, Zhou L, Chen ZX, et al. Identification of differentially expressed genes, signaling pathways and immune infiltration in rheumatoid arthritis by integrated bioinformatics analysis[J]. Hereditas, 2021, 158(1): 5. DOI: 10.1186/s41065-020-00169-3
5	Swanson MB, Weidemann DK, Harshman LA. The impact of rural status on pediatric chronic kidney disease[J]. Pediatr Nephrol, 2024, 39(2): 435-46. DOI: 10.1007/s00467-023-06001-0
6	Spinelli JB, Haigis MC. The multifaceted contributions of mitochondria to cellular metabolism[J]. Nat Cell Biol, 2018, 20(7): 745-54. DOI: 10.1038/s41556-018-0124-1
7	Uzhachenko R, Shanker A, Yarbrough WG, et al. Mitochondria, calcium, and tumor suppressor Fus1: At the crossroad of cancer, inflammation, and autoimmunity[J]. Oncotarget, 2015, 6(25): 20754-72. DOI: 10.18632/oncotarget.4537
8	Henderson J, Duffy L, Stratton R, et al. Metabolic reprogramming of glycolysis and glutamine metabolism are key events in myofibroblast transition in systemic sclerosis pathogenesis[J]. J Cell Mol Med, 2020, 24(23): 14026-38. DOI: 10.1111/jcmm.16013
9	Zhou X, Trinh-Minh T, Tran-Manh C, et al. Impaired mitochondrial transcription factor A expression promotes mitochondrial damage to drive fibroblast activation and fibrosis in systemic sclerosis[J]. Arthritis Rheumatol, 2022, 74(5): 871-81. DOI: 10.1002/art.42033
10	Leek JT, Johnson WE, Parker HS, et al. The sva package for removing batch effects and other unwanted variation in high-throughput experiments[J]. Bioinformatics, 2012, 28(6): 882-3. DOI: 10.1093/bioinformatics/bts034
11	Chen BY, Li YX, Yan YP, et al. Construction and analysis of heart failure diagnosis model based on random forest and artificial neural network[J]. Medicine, 2022, 101(41): e31097. DOI: 10.1097/md.0000000000031097
12	Rongvaux A. Innate immunity and tolerance toward mitochondria[J]. Mitochondrion, 2018, 41: 14-20. DOI: 10.1016/j.mito.2017.10.007
13	Kaufman BA, Van Houten B. POLB: a new role of DNA polymerase beta in mitochondrial base excision repair[J]. DNA Repair, 2017, 60: A1-A5. DOI: 10.1016/j.dnarep.2017.11.002
14	Sykora P, Kanno S, Akbari M, et al. DNA polymerase beta participates in mitochondrial DNA repair[J]. Mol Cell Biol, 2017, 37(16): e00237-17. DOI: 10.1128/mcb.00237-17
15	Couto N, Wood J, Barber J. The role of glutathione reductase and related enzymes on cellular redox homoeostasis network[J]. Free Radic Biol Med, 2016, 95: 27-42. DOI: 10.1016/j.freeradbiomed.2016.02.028
16	Xia YC, Wang GH, Jiang ML, et al. A novel biological activity of the STAT3 inhibitor stattic in inhibiting glutathione reductase and suppressing the tumorigenicity of human cervical cancer cells via a ROS-dependent pathway[J]. Onco Targets Ther, 2021, 14: 4047-60. DOI: 10.2147/ott.s313507
17	Niihori T, Aoki Y, Narumi Y, et al. Germline KRAS and BRAF mutations in cardio-facio-cutaneous syndrome[J]. Nat Genet, 2006, 38(3): 294-6. DOI: 10.1038/ng1749
18	Schubbert S, Zenker M, Rowe SL, et al. Germline KRAS mutations cause Noonan syndrome[J]. Nat Genet, 2006, 38(3): 331-6. DOI: 10.1038/ng1748
19	Groesser L, Herschberger E, Ruetten A, et al. Postzygotic HRAS and KRAS mutations cause nevus sebaceous and Schimmelpenning syndrome[J]. Nat Genet, 2012, 44(7): 783-7. DOI: 10.1038/ng.2316
20	Aslam A, Salam A, Griffiths CE, et al. Naevus sebaceus: a mosaic RASopathy[J]. Clin Exp Dermatol, 2014, 39(1): 1-6. DOI: 10.1111/ced.12209
21	Li RQ, Liu RQ, Zheng SY, et al. Comprehensive analysis of prognostic value and immune infiltration of the NT5DC family in hepatocellular carcinoma[J]. J Oncol, 2022, 2022: 2607878. DOI: 10.1155/2022/2607878
22	Li KS, Zhu XD, Liu HD, et al. NT5DC2 promotes tumor cell proliferation by stabilizing EGFR in hepatocellular carcinoma[J]. Cell Death Dis, 2020, 11(5): 335. DOI: 10.1038/s41419-020-2549-2
23	Qiu LX, Gong GC, Wu WJ, et al. A novel prognostic signature for idiopathic pulmonary fibrosis based on five-immune-related genes[J]. Ann Transl Med, 2021, 9(20): 1570. DOI: 10.21037/atm-21-4545
24	Jiménez SA, Castro SV, Piera-Velázquez S. Role of growth factors in the pathogenesis of tissue fibrosis in systemic sclerosis[J]. Curr Rheumatol Rev, 2010, 6(4): 283-94. DOI: 10.2174/157339710793205611
25	Piera-Velazquez S, Makul A, Jiménez SA. Increased expression of NAPDH oxidase 4 in systemic sclerosis dermal fibroblasts: regulation by transforming growth factor Β[J]. Arthritis Rheumatol, 2015, 67(10): 2749-58. DOI: 10.1002/art.39242
26	Cho SY, Oh Y, Jeong EM, et al. Amplification of transglutaminase 2 enhances tumor-promoting inflammation in gastric cancers[J]. Exp Mol Med, 2020, 52(5): 854-64. DOI: 10.1038/s12276-020-0444-7
27	Wang K, Zu CH, Zhang Y, et al. Blocking TG2 attenuates bleomycin-induced pulmonary fibrosis in mice through inhibiting EMT[J]. Respir Physiol Neurobiol, 2020, 276: 103402. DOI: 10.1016/j.resp.2020.103402
28	Tabata K, Mikita N, Yasutake M, et al. Up-regulation of IGF-1, RANTES and VEGF in patients with anti-centromere antibody-positive early/mild systemic sclerosis[J]. Mod Rheumatol, 2021, 31(1): 171-6. DOI: 10.1080/14397595.2020.1726599
29	Hamaguchi Y, Fujimoto M, Matsushita T, et al. Elevated serum insulin-like growth factor (IGF-1) and IGF binding protein-3 levels in patients with systemic sclerosis: possible role in development of fibrosis[J]. J Rheumatol, 2008, 35(12): 2363-71. DOI: 10.3899/jrheum.080340
30	Jin W, Zheng Y, Zhu P. T cell abnormalities in systemic sclerosis[J]. Autoimmun Rev, 2022, 21(11): 103185. DOI: 10.1016/j.autrev.2022.103185
31	DJrMesquita, Cruvinel WM, Resende LS, et al. Follicular helper T cell in immunity and autoimmunity [J]. Braz J Med Biol Res, 2016, 49(5): e5209. DOI: 10.1590/1414-431x20165209
32	Jaguin M, Fardel O, Lecureur V. AhR-dependent secretion of PDGF-BB by human classically activated macrophages exposed to DEP extracts stimulates lung fibroblast proliferation[J]. Toxicol Appl Pharmacol, 2015, 285(3): 170-8. DOI: 10.1016/j.taap.2015.04.007
33	Cardamone C, Parente R, Feo GD, et al. Mast cells as effector cells of innate immunity and regulators of adaptive immunity[J]. Immunol Lett, 2016, 178: 10-4. DOI: 10.1016/j.imlet.2016.07.003
34	Lescoat A, Ballerie A, Jouneau S, et al. M1/M2 polarisation state of M-CSF blood-derived macrophages in systemic sclerosis[J]. Ann Rheum Dis, 2019, 78(11): e127. DOI: 10.1136/annrheumdis-2018-214333
35	Maehara T, Kaneko N, Perugino CA, et al. Cytotoxic CD4⁺ T lymphocytes may induce endothelial cell apoptosis in systemic sclerosis[J]. J Clin Invest, 2020, 130(5): 2451-64. DOI: 10.1172/jci131700
