超声协同靶向纳米粒抑制乏氧肺癌细胞增殖、迁移及侵袭

doi:10.12122/j.issn.1673-4254.2026.06.08

摘要/Abstract

摘要：

目的针对肿瘤微环境构建一种能同时负载阿霉素（DOX）与过氧化氢酶（CAT）的AS1411适配体修饰的介孔聚多巴胺纳米颗粒（AS1411-D/C-MPDA），并探讨其联合超声对Lewis肺癌（LLC）细胞的协同治疗效果。方法通过一步组装法合成负载DOX和CAT并经AS1411适配体修饰的AS1411-D/C-MPDA，检测其物理特性；在细胞水平，将LLC细胞分为游离DOX组、DOX-MPDA组及AS1411-D/C-MPDA组及对应的超声组进行处理。超声参数设置为：频率1.0 MHz，强度1.0 W/cm²，持续时间3 min。通过CCK-8法检测细胞活性，流式细胞术（Annexin V-FITC/PI染色）分析细胞凋亡，划痕实验评估细胞迁移能力，以及Transwell实验评估细胞侵袭能力。结果成功制备AS1411-D/C-MPDA纳米材料，其呈大小均匀的球形颗粒，粒径为183.36±15.99 nm、包封率DOX（91.17±0.08）%，CAT（29.59±0.2）%，具有pH响应性，能裂解并促进药物释放，DOX释药率为（81.25±1.61）%，该纳米材料有较强的产氧能力，缓解了缺氧状态。AS1411修饰的纳米材料对LLC细胞的摄取显著增强。与游离DOX和DOX-MPDA联合超声相比，AS1411-D/C-MPDA联合超声能诱导LLC细胞产生更多的活性氧，从而诱导细胞凋亡，细胞活性明显降低、划痕愈合面积减小（0.097±0.010 mm²vs 0.278±0.001 mm²，P<0.01）及侵袭细胞数量减少（24.33±12.01个vs 352±4.36个，P<0.001）。结论 AS1411-D/C-MPDA联合超声通过靶向递送抗癌药物，有望成为物理声学、药物化学、微环境调控协同治疗肺癌的新策略。

关键词: 肺癌, 声动力疗法, 多巴胺, 纳米药物, 主动靶向

Abstract:

Objective To construct AS1411 aptamer-modified mesoporous polydopamine (MPDA) nanoparticles co-loaded with doxorubicin (DOX) and catalase (AS1411-D/C-MPDA nanoparticles) targeting the tumor microenvironment and evaluate their efficacy in synergy with ultrasound for inhibiting Lewis lung carcinoma (LLC) cells. Methods AS1411-D/C-MPDA nanoparticles were synthesized using a one-step assembly method, and their physicochemical properties were characterized. Cultured LLC cells were treated with free DOX, DOX-loaded MPDA nanoparticles or AS1411-D/C-MPDA nanoparticles with or without ultrasound exposures (frequency 1.0 MHz and intensity 1.0 W/cm²) for 3 min. The changes in viability, apoptosis, and migration and invasion abilities of the cells were assessed using CCK-8 assay, flow cytometry (Annexin V-FITC/PI staining), wound healing assay, and Transwell assay, respectively. Results The prepared AS1411-D/C-MPDA nanomaterials showed a uniform spherical morphology, a mean particle size of 183.36±15.99 nm, and DOX and catalase encapsulation efficiencies of (91.17±0.08)% and (29.59±0.2)%, respectively. The nanoparticles demonstrated good pH responsiveness to enable disintegration for promoting drug release, with a cumulative DOX release rate of (81.25±1.61)%. The nanoparticles possessed strong oxygen-generating capacity to alleviate cell hypoxia. AS1411-modified nanoparticles showed significantly enhanced cellular uptake by LLC cells. Compared with free DOX and DOX-MPDA nanoparticles combined with ultrasound, AS1411-D/C-MPDA in synergy with ultrasound induced higher levels of ROS in LLC cells, resulted in a higher cell apoptosis rate, and more efficiently reduced cell viability and suppressed cell migration and invasion. Conclusion AS1411-D/C-MPDA nanoparticles combined with ultrasound allow targeted delivery of anticancer drugs and represent a promising strategy for synergistic treatment of lung cancer by integrating physical acoustics, pharmaceutical chemistry, and tumor microenvironment regulation.

Key words: lung cancer, sonodynamic therapy, mesoporous polydopamine, nanodrug, active targeting

董俊余, 郭佳俊, 李岱容, 杜永洪. 超声协同靶向纳米粒抑制乏氧肺癌细胞增殖、迁移及侵袭[J]. 南方医科大学学报, 2026, 46(6): 1278-1289.

Junyu DONG, Jiajun GUO, Dairong LI, Yonghong DU. Ultrasound-synergized targeted nanoparticles suppress proliferation, migration and invasion of hypoxic lung cancer cells in vitro[J]. Journal of Southern Medical University, 2026, 46(6): 1278-1289.

图/表 11

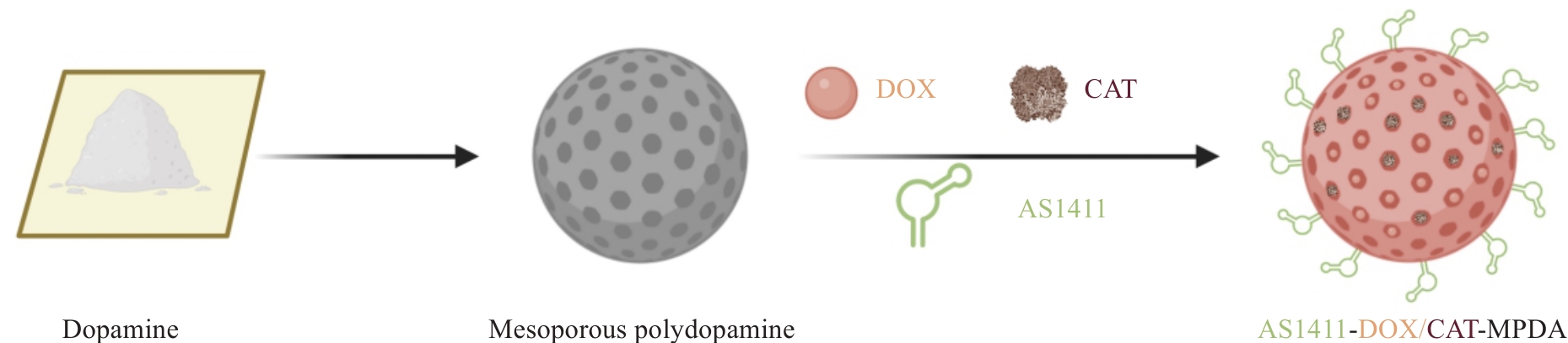

图1 AS1411-DOX/CAT-MPDA的制备示意图

Fig.1 Schematic diagram of the preparation of AS1411-DOX/CAT-MPDA nanoparticles.

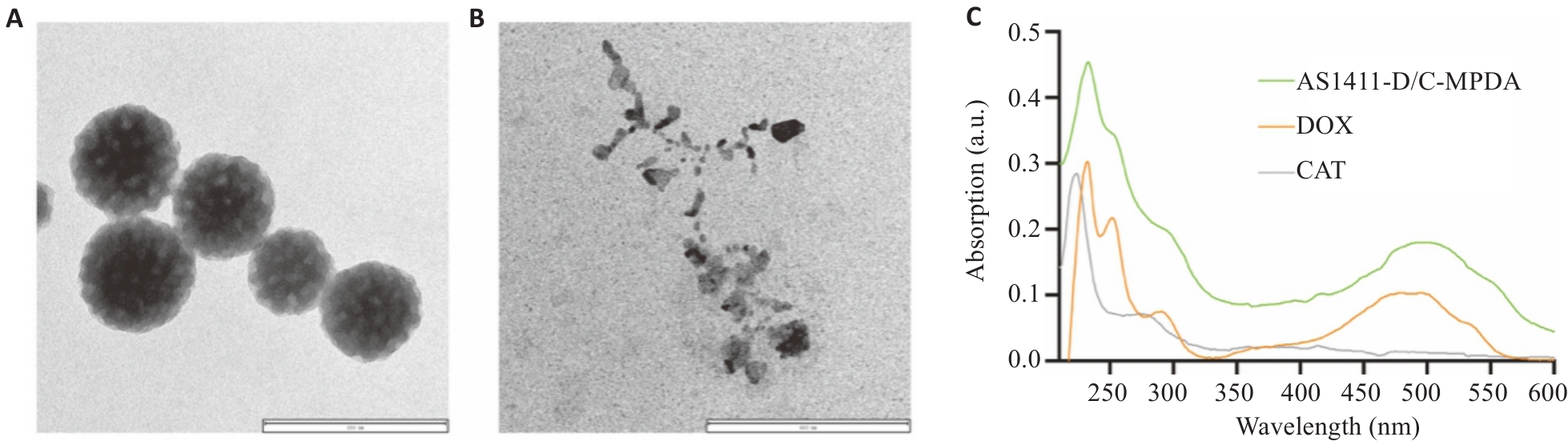

图2 透射电镜图及DOX、CAT和AS1411-D/C-MPDA的紫外光谱图

Fig.2 Transmission electron microscopy and UV-Vis spectra of DOX, CAT, and AS1411-D/C-MPDA. A: Transmission electron microscopy of AS1411-D/C-MPDA nanoparticles (Original magnification: ×18 500, scale bar=200 nm). B: Transmission electron microscopy of AS1411-D/C-MPDA nanoparticles at pH5.5 (×6800, scale bar=600 nm). C: UV-Vis spectra of DOX, CAT, and AS1411-D/C-MPDA nanoparticles (n=3).

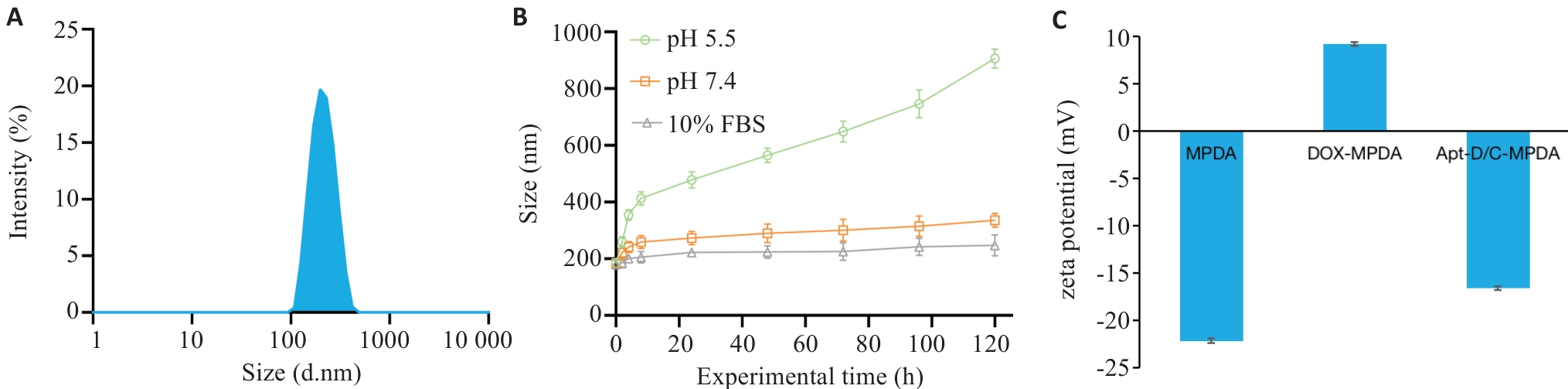

图3 AS1411-D/C-MPDA具有良好稳定性和pH响应性

Fig.3 AS1411-D/C-MPDA exhibits excellent stability and pH responsiveness. A: Average hydrodynamic size of AS1411-D/C-MPDA nanoparticles. B: Size changes of AS1411-D/C-MPDA nanoparticles after treatment with PBS (pH7.4), PBS (pH5.5), or 10% FBS. C: Average zeta potential of AS1411-D/C-MPDA nanoparticles (n=3).

图5 CLSM显示AS1411-D/C-MPDA的体外肿瘤靶向性

Fig.5 CLSM images showing in vitro tumor-targeting capability of AS1411-D/C-MPDA nanoparticles (×60).

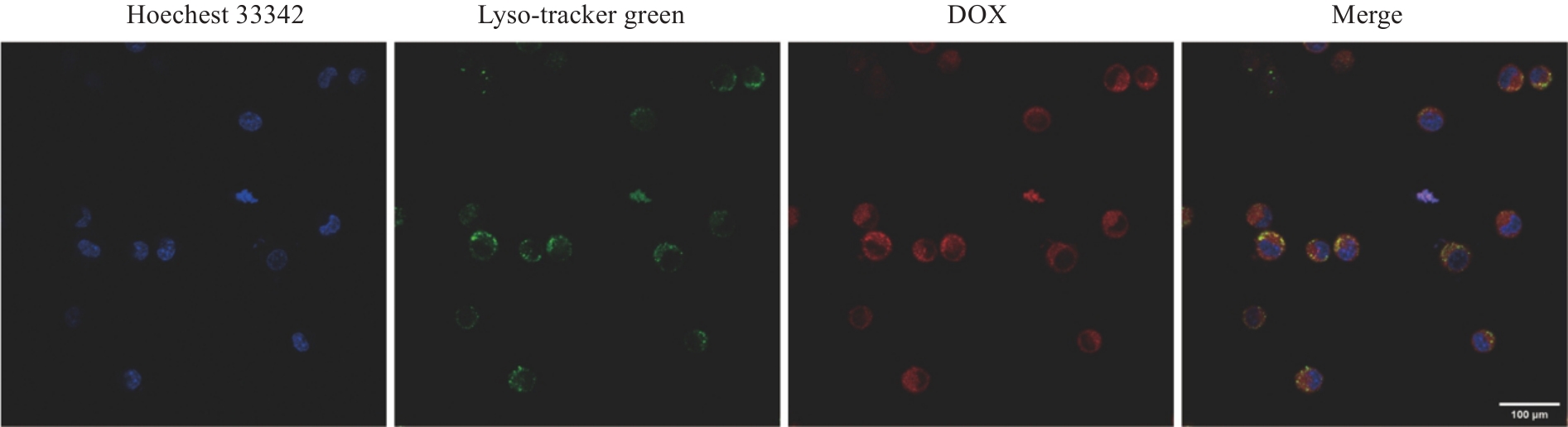

图6 CLSM显示LLC细胞摄取AS1411-D/C-MPDA

Fig.6 CLSM images showing the cellular uptake of AS1411-D/C-MPDA nanoparticles by LLC cells (×60).

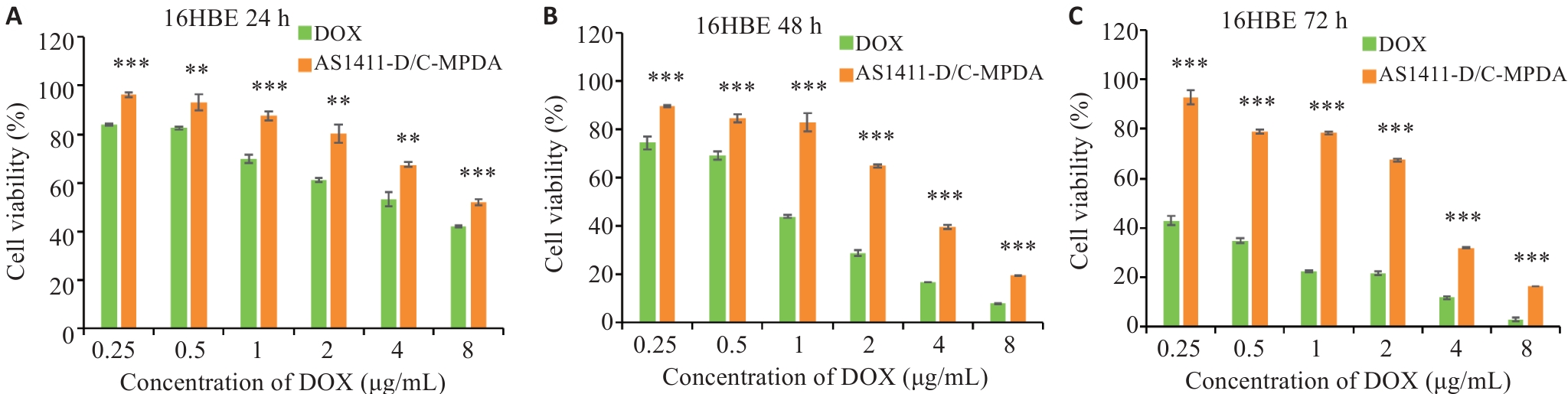

图7 不同方式处理24、48、72 h后16HBE的相对细胞活性

Fig.7 Relative viability of 16HBE cells after treatment with different formulations for 24, 48 and 72 h (n=3). **P<0.01, ***P<0.001.

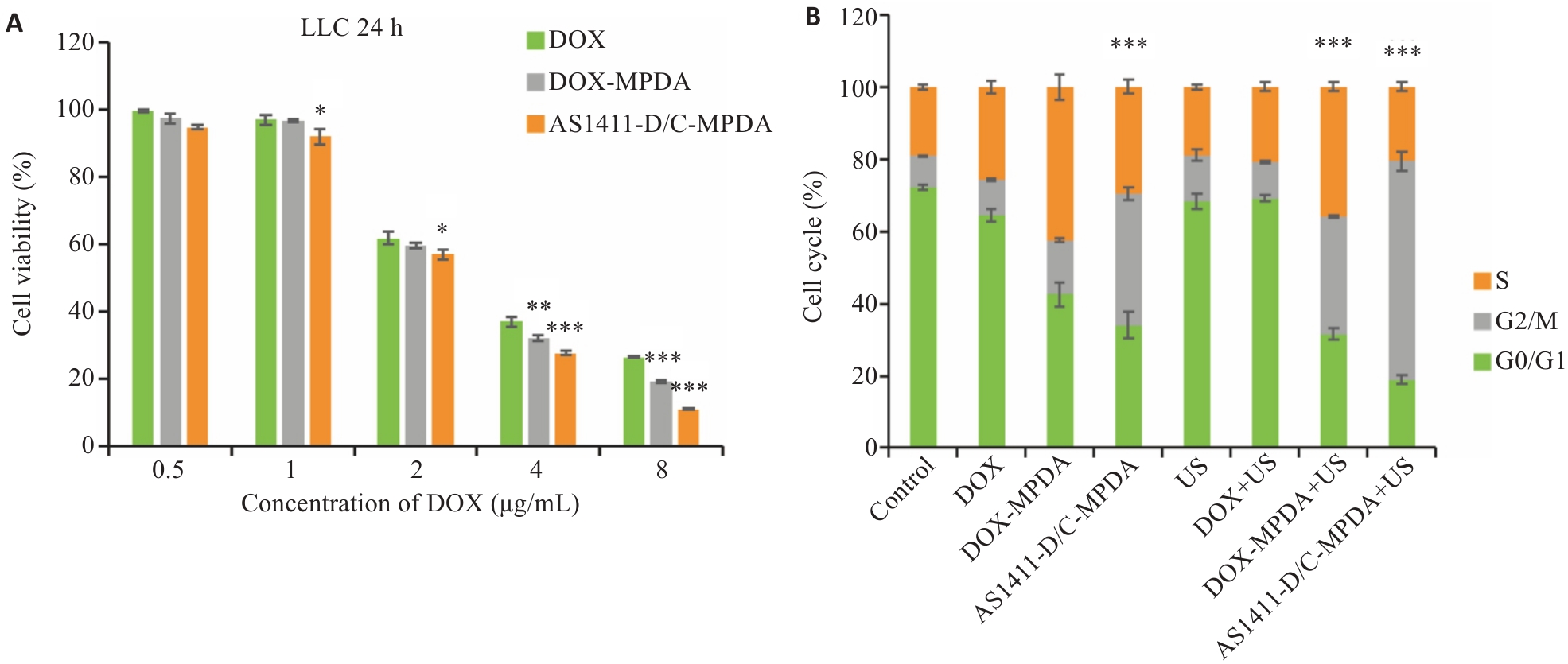

图8 CCK-8测定LLC细胞活性、流式检测LLC细胞周期分布

Fig.8 Assessment of viability and cell cycle distribution of LLC cells using CCK-8 assay and flow cytometry. A: Relative viability of LLC cells after 24 h of treatment with different formulations. B: Cell cycle distribution of LLC cells after 24 h of treatment with different formulations. *P<0.05, **P<0.01, ***P<0.001 (n=3).

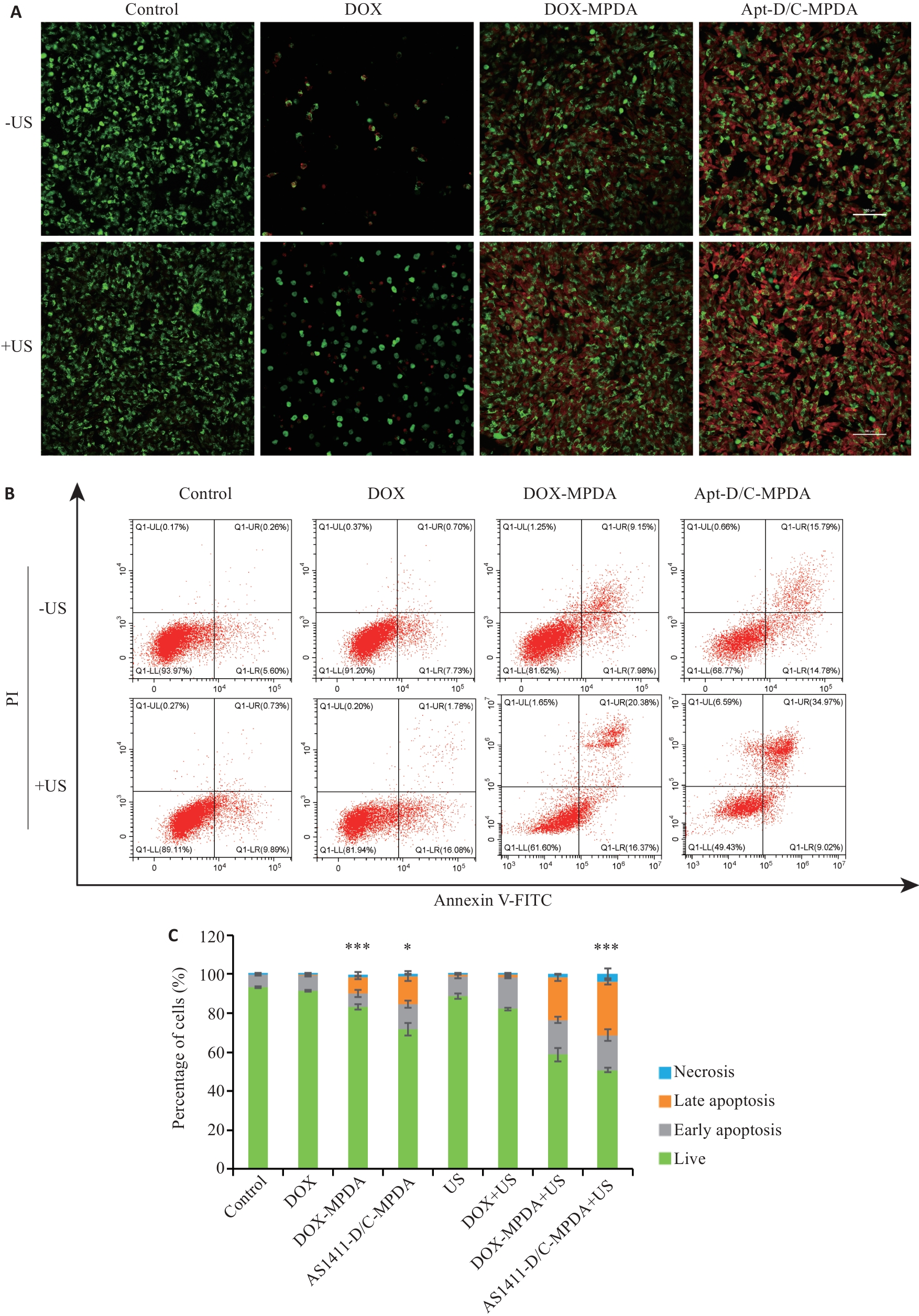

图9 CLSM分析AS1411-D/C-MPDA联合超声对LLC细胞活死状态的影响,流式细胞术检测各组LLC细胞的凋亡率

Fig.9 CLSM images showing effect of AS1411-D/C-MPDA nanoparticles combined with ultrasound on viability and apoptosis of LLC cells. A: Viability of LLC cells (×20). B: Apoptosis rates of LLC cells in different treatment groups detected by flow cytometry. C: Statistical results of apoptosis rates in each treatment group (n=3). *P<0.05, ***P<0.001.

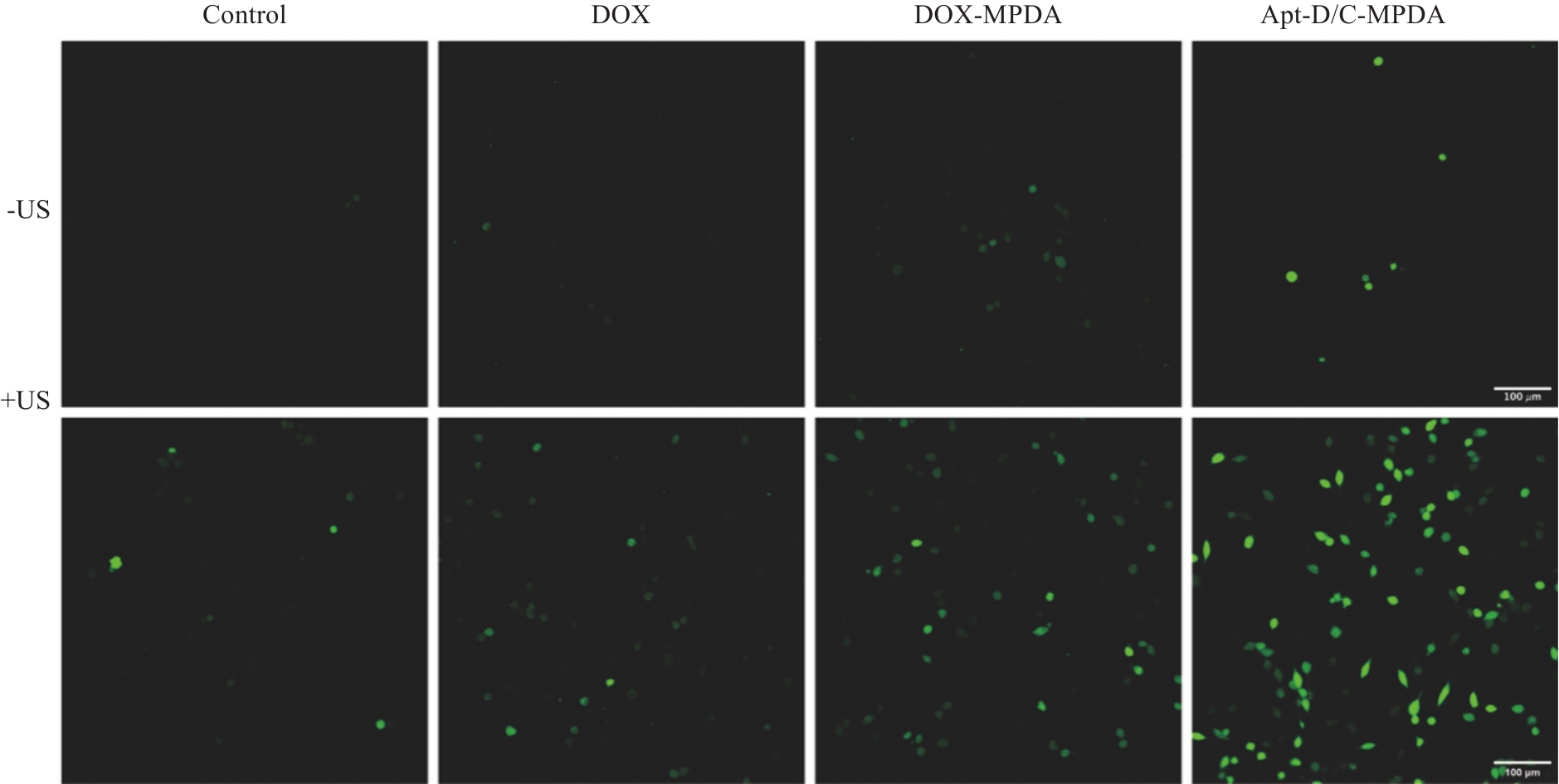

图10 CLSM显示各组LLC细胞内活性氧水平

Fig.10 CLSM images showing intracellular ROS levels in LLC cells in each group (×20).

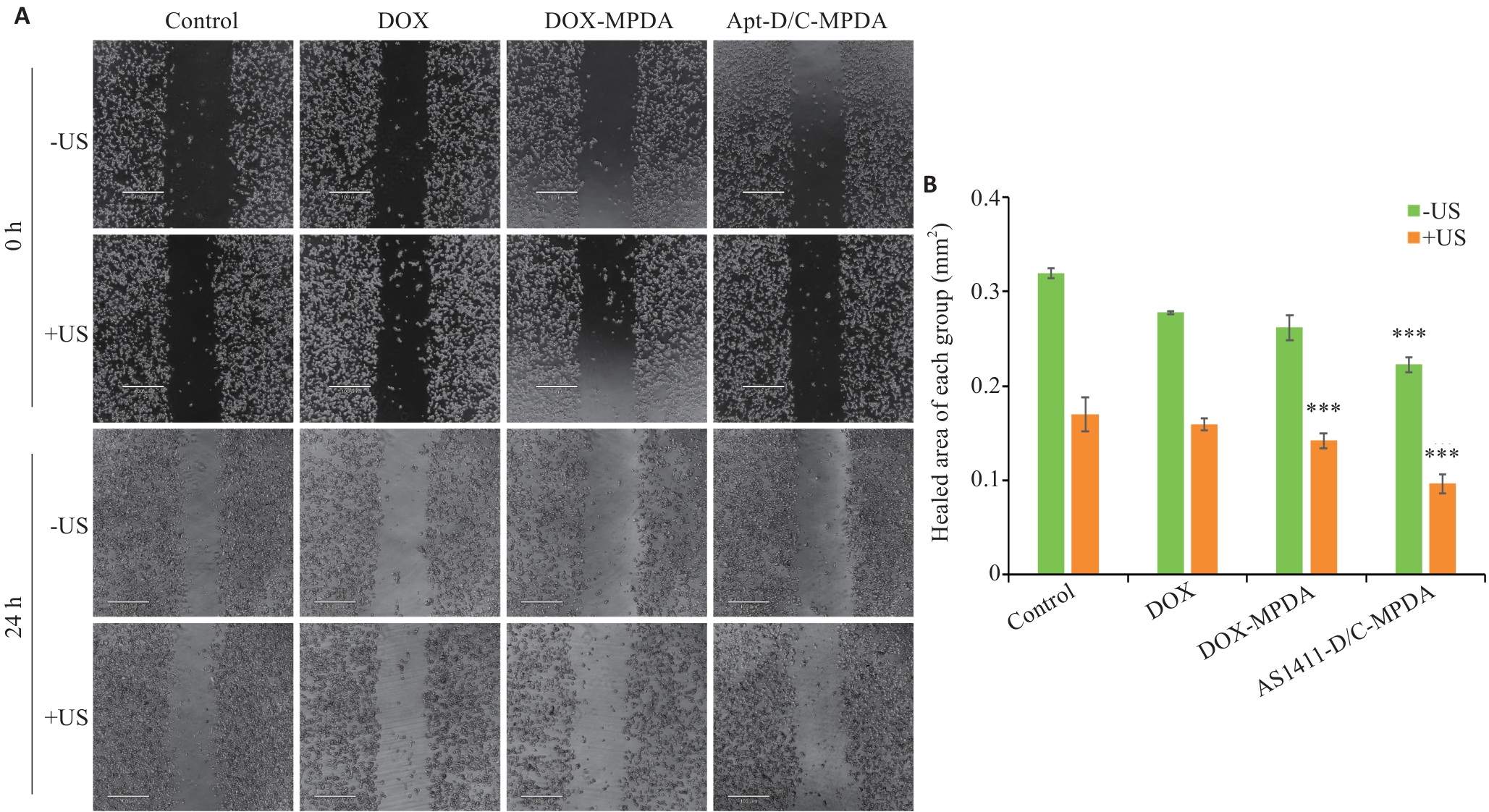

图11 划痕实验评价各组LLC细胞的迁移能力及其数据定量分析

Fig.11 Wound healing assay for evaluating migration ability of LLC cells in different treatment groups (×20). ***P<0.001 (n=3).

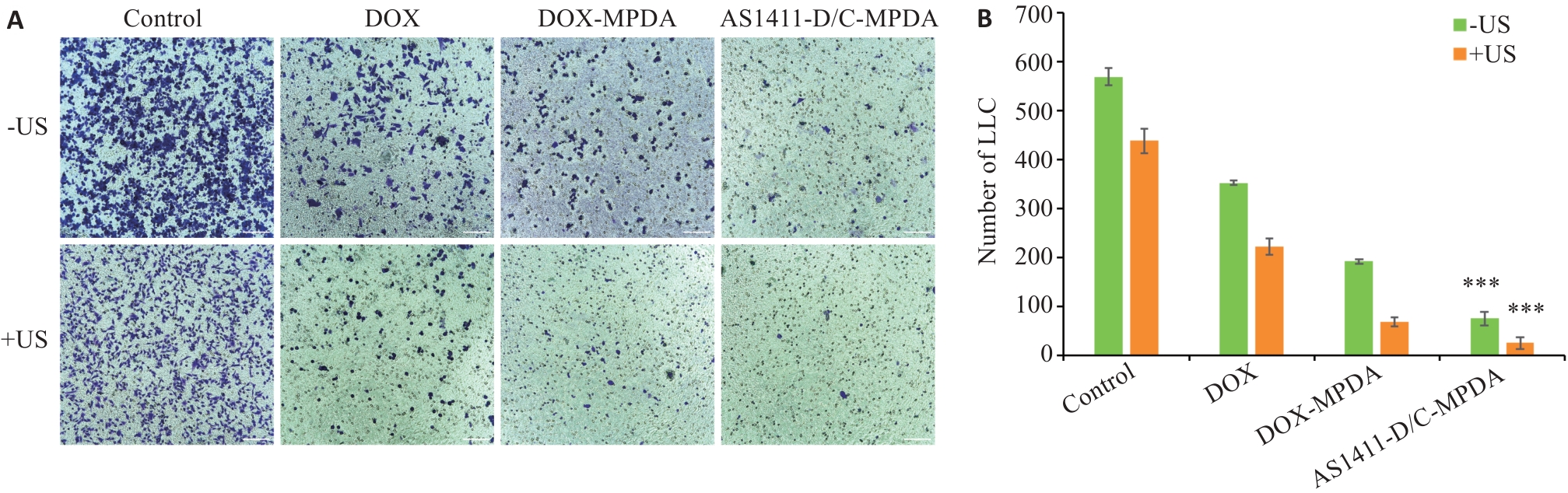

图12 Transwell小室实验评价各组LLC细胞的侵袭能力

Fig.12 Transwell chamber assay for evaluating invasion ability of LLC cells in different treatment groups (×20). ***P<0.001 vs DOX (n=3).
