AConvLSTM U-Net：基于双向稠密连接和注意力机制的多尺度颌骨囊肿分割模型

doi:10.12122/j.issn.1673-4254.2025.05.22

摘要/Abstract

摘要：

目的提出一种基于双向稠密连接和注意力机制的多尺度颌骨囊肿分割模型（AConvLSTM U-Net），实现颌骨囊肿图像的准确自动分割。方法使用含有2592张颌骨囊肿图像数据集。首先，AConvLSTM U-Net在编码路径上设计移动翻转瓶颈卷积模块（MBC）以增强特征提取能力。其次，采用双路径稠密卷积（DPD）连接编码器和解码器，在跳跃连接中引入双向ConvLSTM以获取丰富的语义信息。然后，解码路径上使用基于空间和通道注意力的解码块（scSE），以提升对重要信息的关注。最后，设计了全尺寸深度监督模块（DS），并结合联合损失函数对模型进行优化，以进一步提高分割精度。结果 AConvLSTM U-Net在颌骨囊肿病灶分割的实验结果在MCC、DSC和JSC方面分别达到93.8443%、93.9067%、88.5133%，性能均优于所有被比较的分割模型。结论所提出的算法在颌骨囊肿数据集上表现出较高的准确性与鲁棒性，优于多种主流方法，展现了AConvLSTM U-Net在颌骨囊肿图像分割的优越性能和辅助诊断的巨大潜力。

关键词: 注意力机制, 多尺度颌骨囊肿分割模型, 稠密卷积

Abstract:

Objective We propose a multi-scale jaw cyst segmentation model, AConvLSTM U-Net, which is based on bidirectional dense connections and attention mechanisms to achieve accurate automatic segmentation of mandibular cyst images. Methods A dataset consisting of 2592 jaw cyst images was used. AConvLSTM U-Net designs a MBC on the encoding path to enhance feature extraction capabilities. A DPD was used to connect the encoder and decoder, and a bidirectional ConvLSTM was introduced in the jump connection to obtain rich semantic information. A decoding block based on scSE was then used on the decoding path to enhance the focus on important information. Finally, a DS was designed, and the model was optimized by integrating a joint loss function to further improve the segmentation accuracy. Results The experiment with AConvLSTM U-Net for jaw cyst lesion segmentation showed a MCC of 93.8443%, a DSC of 93.9067%, and a JSC of 88.5133%, outperforming all the other comparison segmentation models. Conclusion The proposed algorithm shows a high accuracy and robustness on the jaw cyst dataset, demonstrating its superior performance over many existing methods for automatic segmentation of jaw cyst images and its potential to assist clinical diagnosis.

Key words: attention mechanism, jaw cyst segmentation, dense convolution

李苏强, 王周阳, 产思贤, 周小龙. AConvLSTM U-Net：基于双向稠密连接和注意力机制的多尺度颌骨囊肿分割模型[J]. 南方医科大学学报, 2025, 45(5): 1082-1092.

Suqiang LI, Zhouyang WANG, Sixian CHAN, Xiaolong ZHOU. AConvLSTM U-Net: a multi-scale jaw cyst segmentation model based on bidirectional dense connection and attention mechanism[J]. Journal of Southern Medical University, 2025, 45(5): 1082-1092.

图/表 18

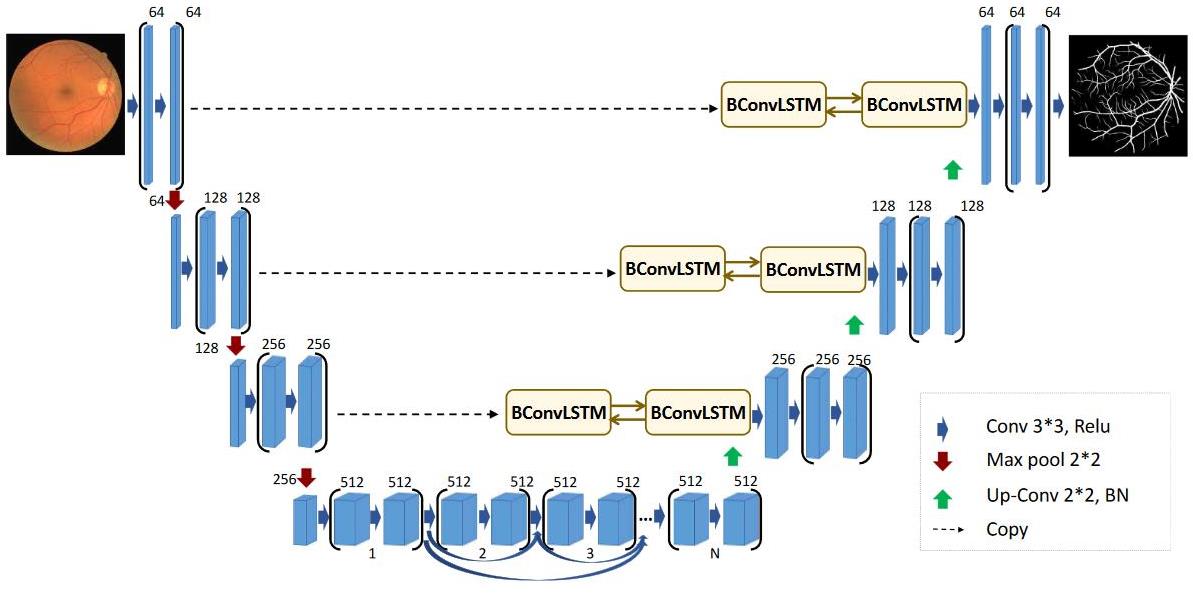

图1 BCDU-Net结构图

Fig.1 Framework of BCDU-Net.

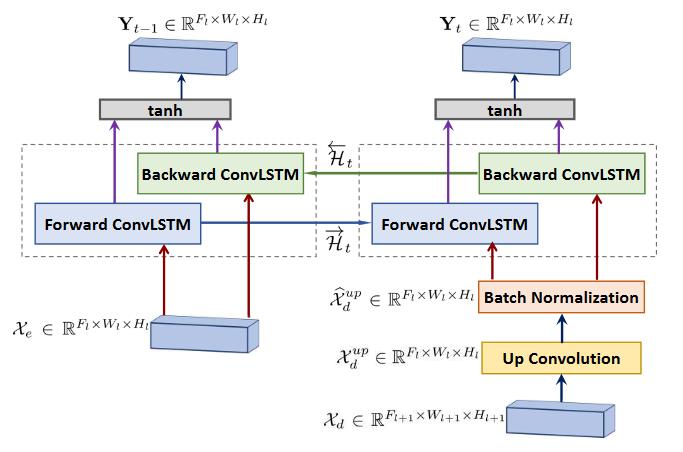

图2 双向ConvLSTM结构图

Fig.2 Diagram of the bidirectional ConvLSTM.

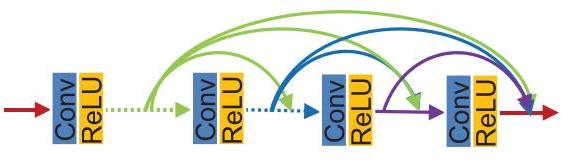

图3 稠密卷积块结构图

Fig.3 Structure of the dense convolution block.

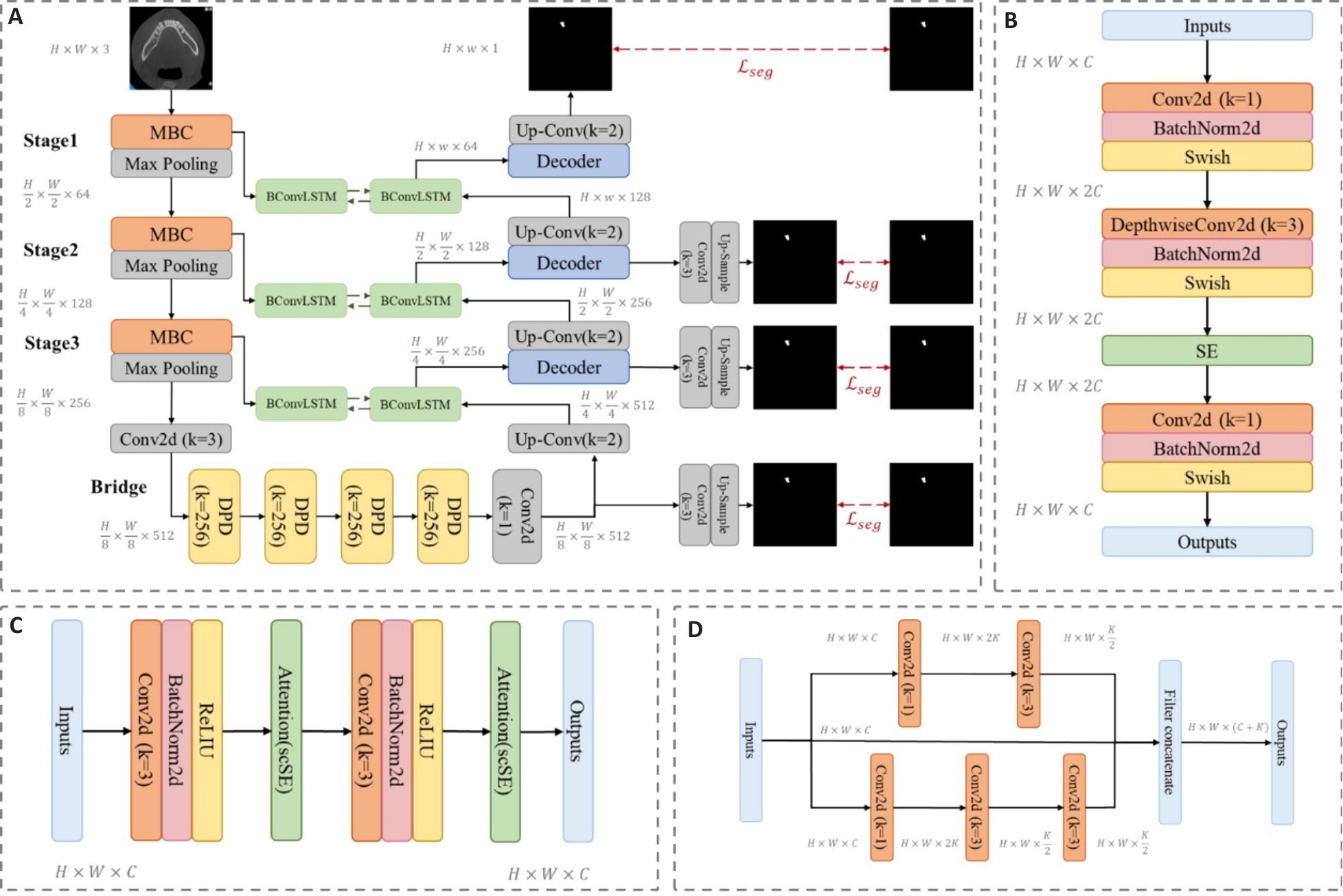

图4 AConvLSTM U-Net框架图以及主要模块示意图

Fig.4 Overall framework of AConvLSTM U-Net and the main components.

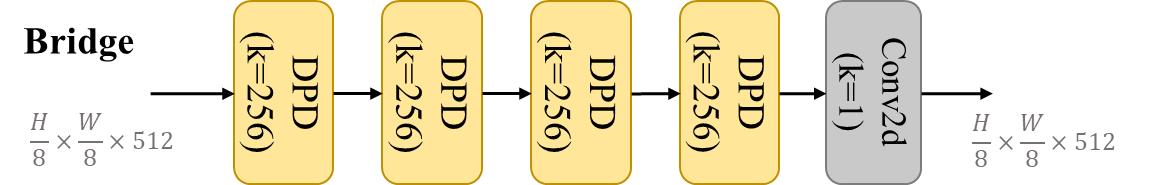

图5 编码器和解码器连接桥梁结构图

Fig.5 Encoder and decoder connection bridge structure.

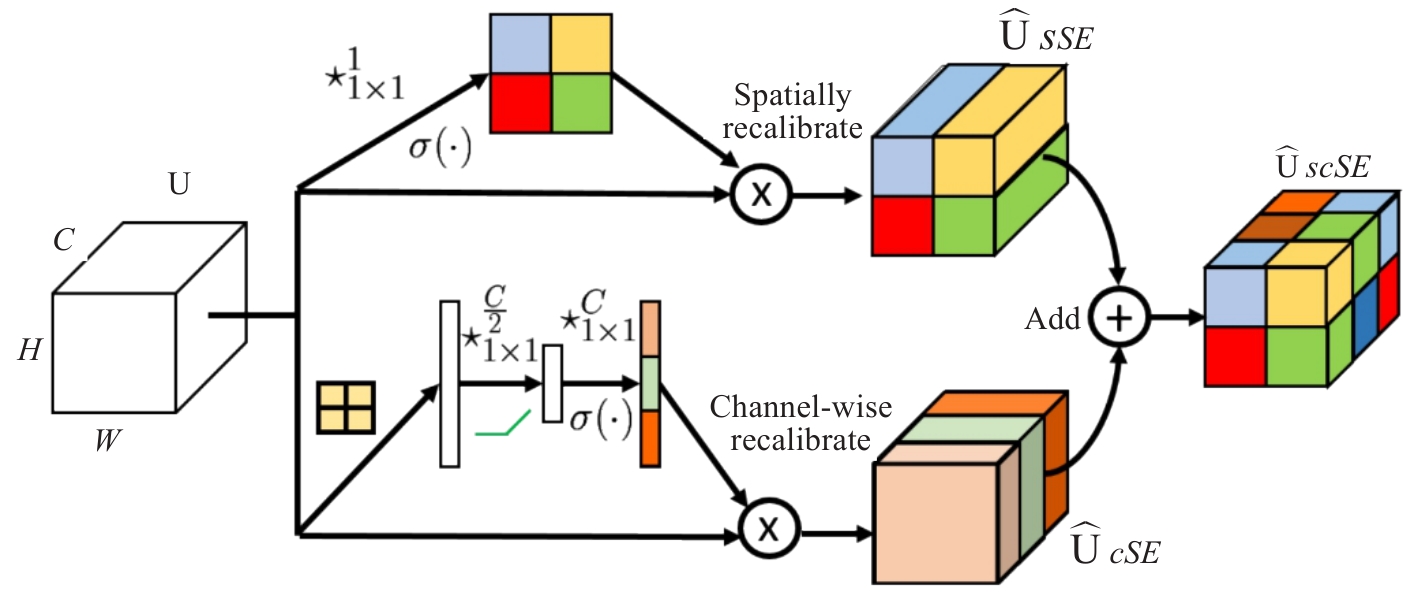

图6 空间及通道注意力机制模块图

Fig.6 Schematic diagram of scSE block.

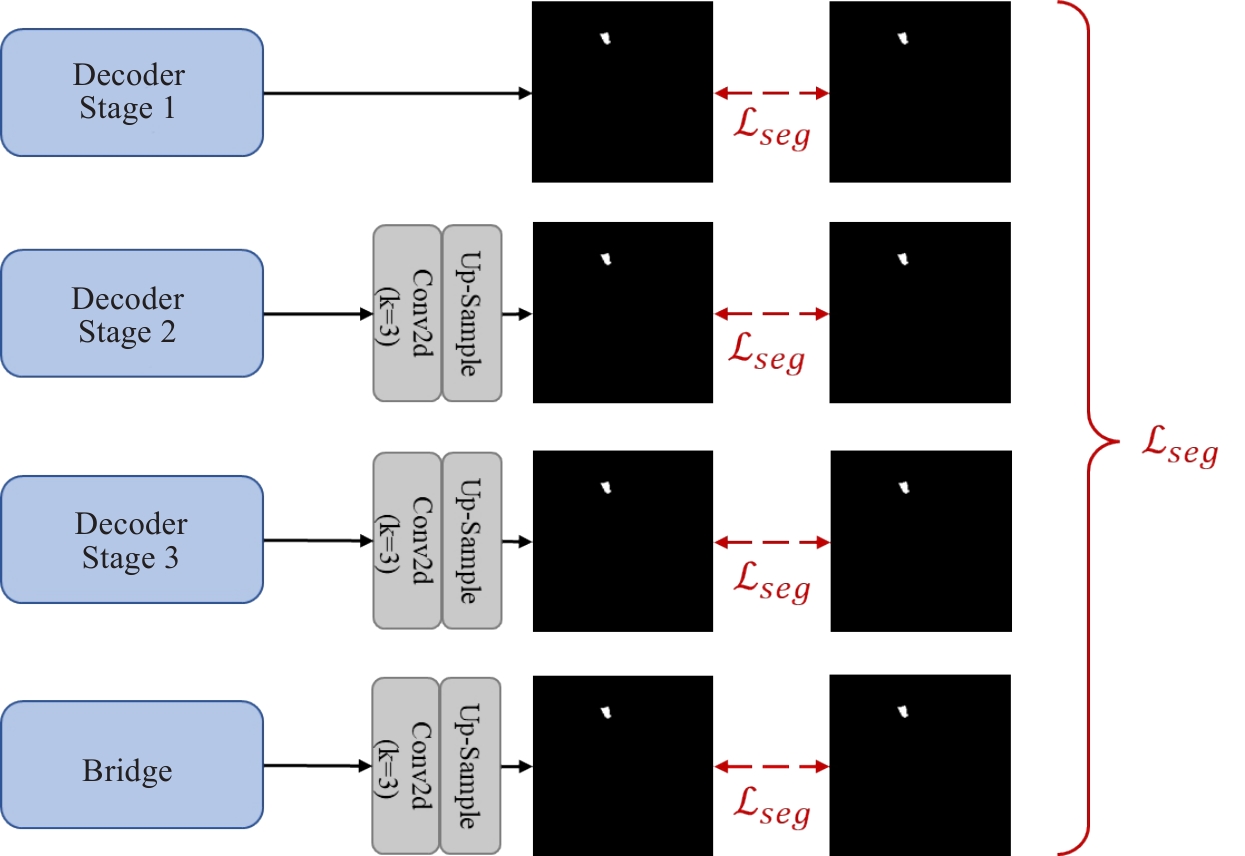

图7 深度监督示意图

Fig.7 Schematic illustration of the deep supervision.

图8 实验数据集样本图

Fig.8 Samples of experimental dataset

表1 在JCMI数据集上与主流医学图像分割方法对比

Tab.1 Comparison with mainstream methods for medical image segmentation on the JCMI dataset

Method	DSC	MCC	JSC
Unet	86.842%	86.942%	76.745%
BCDUNet	89.889%	90.090%	83.985%
MedSAM	91.870%	92.046%	85.806%
DS-TransUnet	92.832%	92.900%	87.154%
H2Former	92.390%	92.540%	86.440%
SwinUnet	89.683%	89.827%	82.686%
AConvLSTM U-Net	93.039%	92.968%	87.183%

表2 在BUSI数据集上的定性比较

Tab.2 Qualitative comparison on the BUSI dataset

Methods	F1	IoU
Unet	79.37	66.95
Unet++	77.54	64.33
ResUNet	78.25	64.89
MedT	76.93	63.89
TransUNet	79.30	66.92
UNeXt	79.37	66.95
AAU-net	-	64.26
AConvLSTM U-Net	78.87	65.11

表3 模块有效性验证结果

Tab.3 Module effectiveness verification results

Methods	DSC	MCC	JSC	Params
Baseline	89.889%	90.090%	83.985%	23.03M
Baseline+MBC	90.697%	90.876%	85.043%	22.11M
Baseline+MBC+scSE	90.792%	90.732%	83.136%	22.28M
Baseline+MBC+DPD	92.247%	92.172%	85.610%	17.95M
Baseline+MBC+DPD+scSE	92.399%	92.322%	85.872%	18.10M
AConvLSTM U-Net	93.039%	92.968%	87.183%	18.12M

表4 联合损失函数有效性对比结果

Tab.4 Evaluation of the effectiveness of the combined loss function

Methods	Loss		DSC	MCC	JSC
Methods	Loss_BCE	Loss_Dice	DSC	MCC	JSC
Baseline	√		89.889%	90.090%	83.985%
		√	0.000%	0.000%	0.000%
	√	√	90.355%	90.284%	84.759%
Ours	√		93.039%	92.968%	87.1832%
		√	2.008%	0.000%	1.014%
	√	√	93.907%	93.844%	88.513%

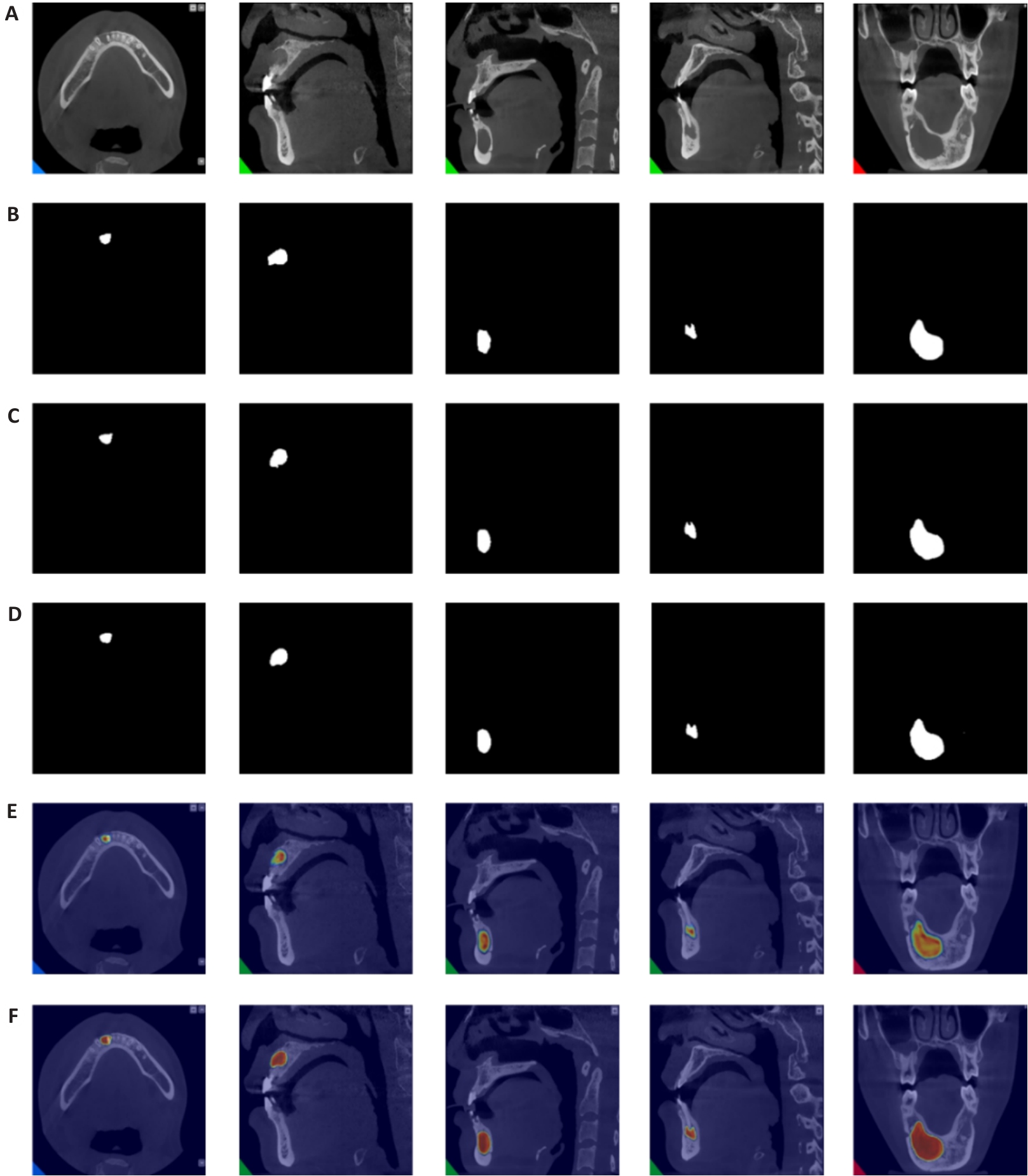

图9 颌骨囊肿可视化结果对比

Fig.9 Visual comparison of jaw cysts detection results. A: Original CT image of jaw cyst. B: Ground truth segmentation label image. C: Segmentation result by BCDUNet model. D: Segmentation result by AConvLSTM U-Net. E: Heatmap of segmentation result by the baseline model. F: Heatmap of segmentation result by AConvLSTM U-Net.

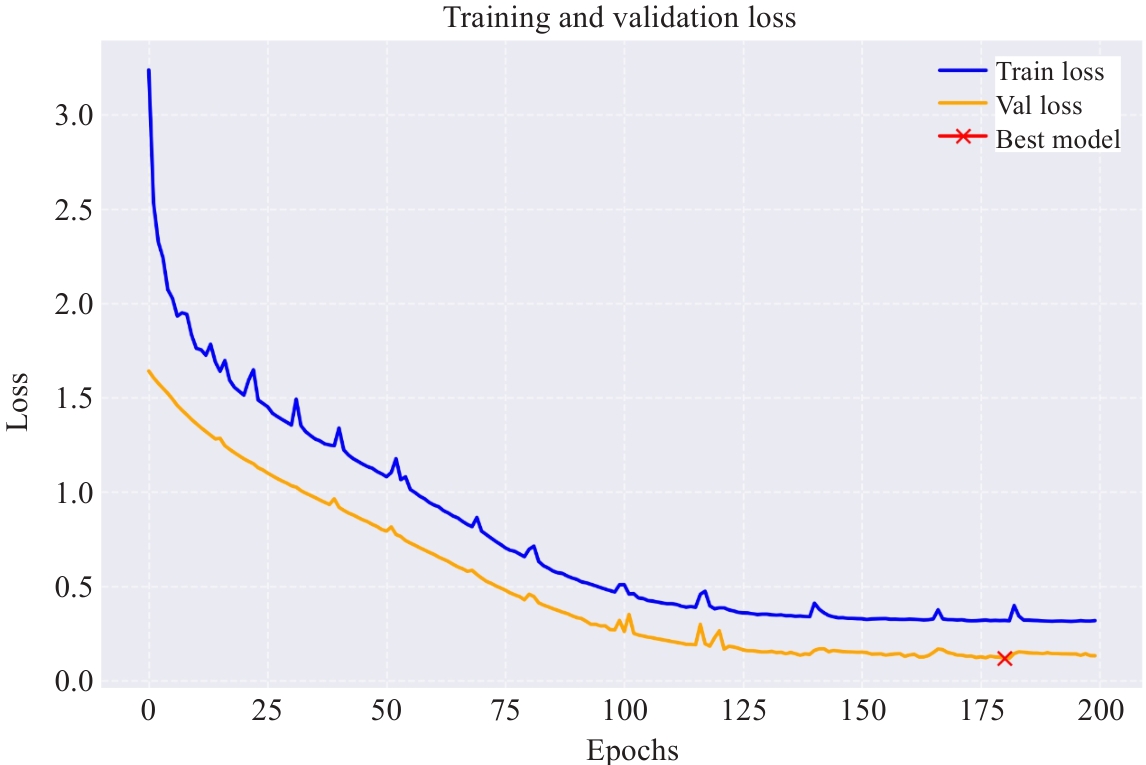

图10 AConvLSTM U-Net训练和验证损失曲线

Fig.10 AConvLSTM U-Net training and validation loss curves.

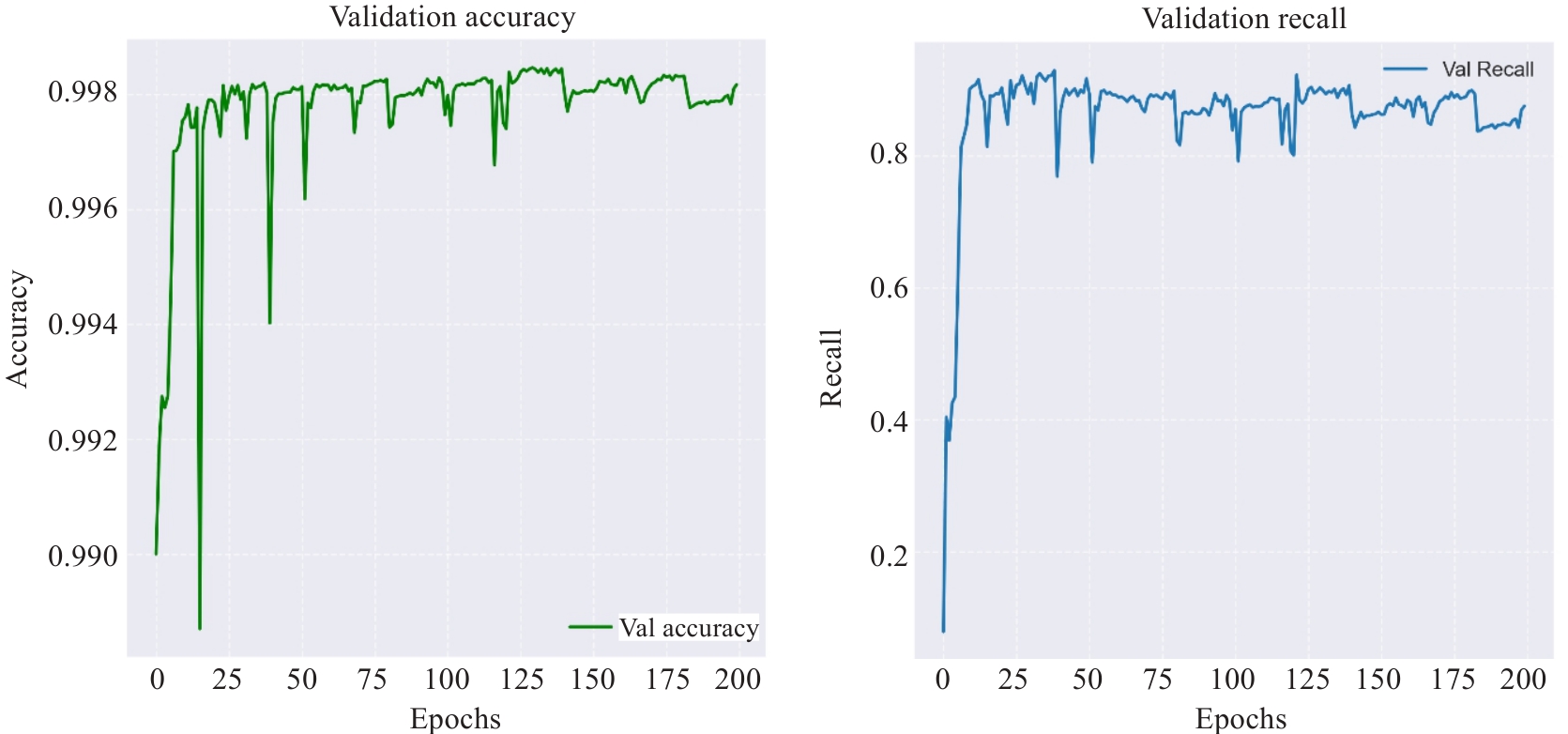

图11 AConvLSTM U-Net在验证集上的准确率和召回率迭代曲线

Fig.11 Iterative curves of Accuracy and Recall of AConvLSTM U-Net on the validation set.

表5 在BUSI 数据集上的五重交叉验证结果

Tab.5 Five-fold cross-validation results on the BUSI dataset

Test set	DSC	MCC	JSC
Subset 1	95.461%	95.174%	91.316%
Subset 2	93.771%	93.395%	88.272%
Subset 3	91.275%	90.805%	83.950%
Subset 4	90.688%	90.201%	82.963%
Subset 5	95.358%	95.160%	91.127%
Average value	93.311%	92.947%	87.526%

表6 学习率对模型精确度

Tab.6 The effect of learning rate on model accuracy

Learning rate	DSC	MCC	JSC
1×10^-2	0.000%	0.000%	0.000%
1×10^-3	77.962%	77.220%	63.884%
1×10^-4	78.871%	78.134%	65.114%

表7 基准数据集CVC-ClinicDB上的比较

Tab.7 Quantitative evaluation on the benchmark CVC-ClinicDB dataset

Method	DSC	IoU
Unet	85.75%	75.05%
Unet++	87.76%	78.19%
SwinUnet	86.45%	76.13%
Polyp-SAM	92.00%	87.00%
Polyp-SAM++	91.00%	86.00%
TASPP-Unet	89.67%	87.89%
AConvLSTM U-Net	93.03%	86.43%
