艾灸通过调控miR-223-3p/NLRP3焦亡通路修复薄型子宫内膜

doi:10.12122/j.issn.1673-4254.2025.07.04

摘要/Abstract

摘要：

目的探讨艾灸通过miR-223-3p/NLRP3/pyroptosis 信号轴促进子宫内膜修复的机制。方法将SD大鼠随机分为对照组（CON）、模型组（MOD）、艾灸组（MOX），16只/组。使用95%无水乙醇造模，MOX组给予艾灸关元穴治疗。检索公共数据库结合高通量测序寻找薄型子宫内膜（TE）的靶基因；双荧光素酶验证miR-223-3p和NLRP3的靶向关系；HE染色法观察子宫病理形态；RT-qPCR法检测miR-223-3p、NLRP3表达；ELISA法检测IL-1β、IL-18水平；Western blotting法检测NLRP3、ASC、Caspase-1、GSDMD的表达；统计大鼠妊娠情况。结果共检索到13个TE与细胞焦亡相交的靶基因，差异基因富集提示TE中炎症反应上调。双荧光素酶实验验证了miR-223-3p靶向抑制NLRP3的表达。与CON组比，MOD大鼠子宫内膜厚度、腺体及血管数量减少（P<0.01），NLRP3的mRNA表达增强（P<0.05），血清IL-1β、IL-18水平升高（P<0.01），NLRP3、ASC、Caspase-1、GSDMD蛋白表达增加（P<0.05），患侧妊娠率降低（P<0.05），患侧及健侧妊娠数量和妊娠总数均减少（P<0.01）；与MOD比，MOX组大鼠内膜厚度、腺体和血管数增加（P<0.01），miR-223-3p表达上调（P<0.05），IL-1β、IL-18含量减少（P<0.05），NLRP3、ASC、Caspase-1、GSDMD的蛋白表达降低（P<0.05），健侧妊娠数量和妊娠总数量增多（P<0.05）。结论艾灸关元穴可以上调miR-223-3p靶向抑制NLRP3，缓解细胞焦亡，促进子宫内膜修复和妊娠功能恢复。

关键词: 薄型子宫内膜, 中医药, 艾灸, 关元穴, 细胞焦亡, miR-223-3p/NLRP3/pyroptosis 信号轴

Abstract:

Objective To explore the mechanism through which moxibustion promotes endometrial repair in rats with in thin endometrium (TE). Methods Female SD rats were randomized into control group, 95% anhydrous ethanol-induced TE model group and moxibustion (at "Guan Yuan") group. High-throughput sequencing was used to identify the target genes of TE, and the targeting relationship between miR-223-3p and NLRP3 was verified using a dual luciferase assay. Histopathological of rat uterus was observed with HE staining, and expressions of miR-223-3p and NLRP3 were detected using RT-qPCR; serum levels of IL-1β and IL-18 of the rats were detected using ELISA, and protein expressions of NLRP3, ASC, caspase-1 and GSDMD in the uterus were detected with Western blotting. The pregnancies of the rats after treatment were counted. Results Enrichment analysis of the differential genes suggested up-regulated inflammatory response in TE, and dual luciferase assay verified targeted inhibition of NLRP3 expression by miR-223-3p. The rat models of TE had significantly decreased endometrial thickness and reduced endometrial glands and blood vessels with enhanced mRNA expression of NLRP3, increased serum levels of IL-1β and IL-18, up-regulated protein expressions of NLRP3, ASC, caspase-1 and GSDMD, lowered pregnancy rates on both the affected and unaffected sides and the overall number of pregnancies. Treatment of the rat models with mo-xibustion obviously increased the endometrial thickness and the density of glands and blood vessels, up-regulated miR-223-3p expression, lowered serum IL-1β and IL-18 levels and the protein expressions of NLRP3, ASC, caspase-1 and GSDMD, and significantly increased the number of pregnancies. Conclusion Moxibustion at "Guan Yuan" acupoint up-regulates the expression of miR-223-3p, which results in targeted inhibition of NLRP3 to suppress pyroptosis and promote endometrial repair in rat models of TE.

Key words: thin endometrium, Chinese medicine, moxibustion, Guan Yuan acupoint, pyroptosis, miR-223-3p/NLRP3/pyroptosis signaling pathway

周海忆, 何斯怡, 韩瑞芳, 关永格, 董丽娟, 宋阳. 艾灸通过调控miR-223-3p/NLRP3焦亡通路修复薄型子宫内膜[J]. 南方医科大学学报, 2025, 45(7): 1380-1388.

Haiyi ZHOU, Siyi HE, Ruifang HAN, Yongge GUAN, Lijuan DONG, Yang SONG. Moxibustion promotes endometrial repair in rats with thin endometrium by inhibiting the NLRP3/pyroptosis axis via upregulating miR-223-3p[J]. Journal of Southern Medical University, 2025, 45(7): 1380-1388.

图/表 9

表 1 qRT-PCR引物序列

Tab.1 Primers equence of qRT-PCR

Gene	Primers sequence (5'→3')
miR-223-3p	F: ACACTCCAGCTGGGTGTCAGTTTGTCAAA
miR-223-3p	R: CTCAACTGGTGTCGTGGAGTCGGCAATTCAGTTGAGGGGGTATT
U6	F: CTCGCTTCGGCAGCACA
U6	R: AACGCTTCACGAATTTGCGT
NLRP3	F: ACCAACCAGAACCTCACACA
NLRP3	R: GGCTCTGGTTATGGGTCAGA
GAPDH	F: CTGGAGAAACCTGCCAAGTATG
GAPDH	R: GGTGGAAGAATGGGAGTTGCT

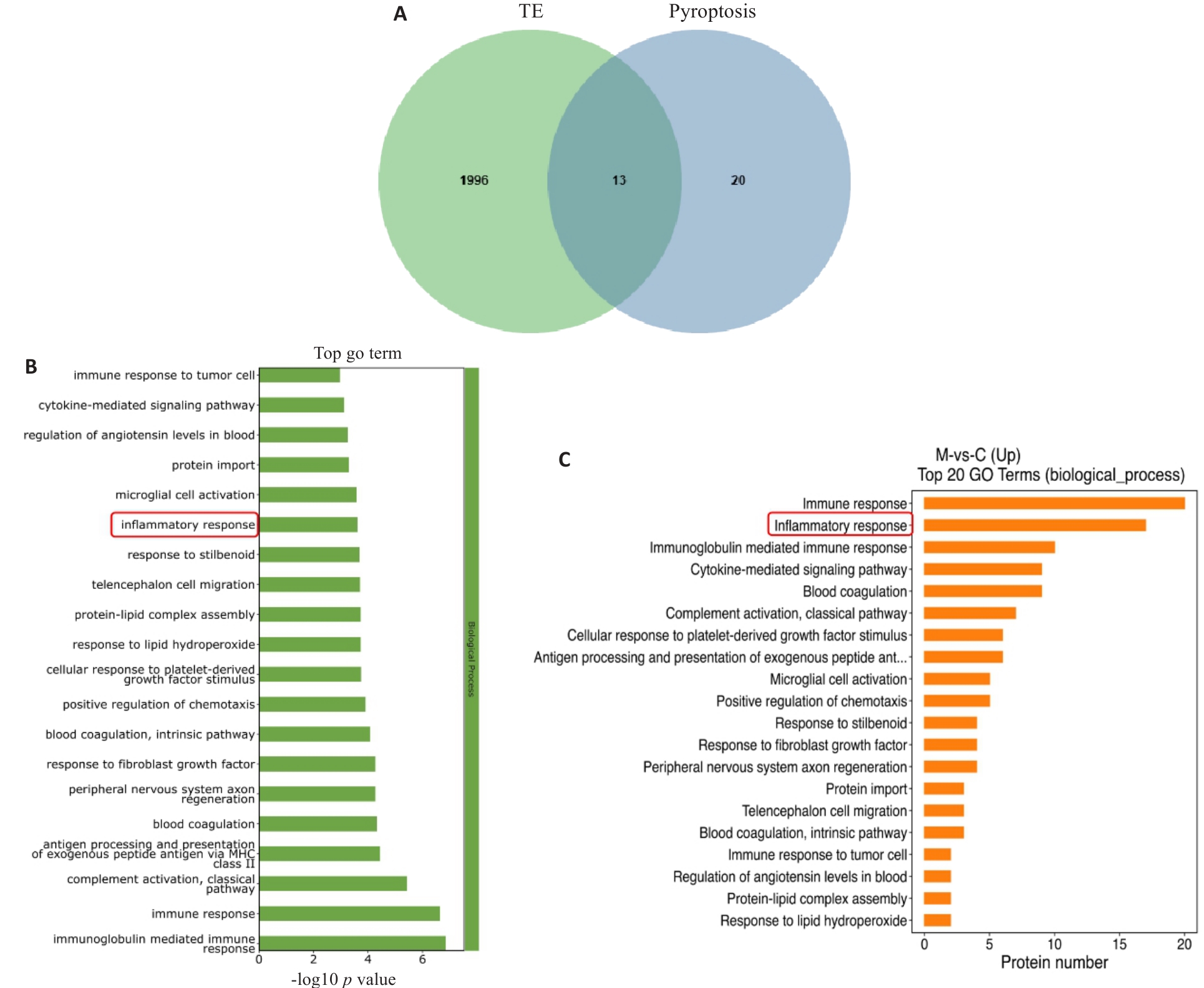

图1 韦恩图和GO富集分析Top 20柱状图

Fig.1 Venn diagram and histograms of the top 20 GO terms. A: Intersection of the target genes of TE and pyroptosis. B: Histogram of the top 20 GO terms for differentially expressed mRNAs. C: Histogram of the top 20 GO terms for differentially expressed proteins.

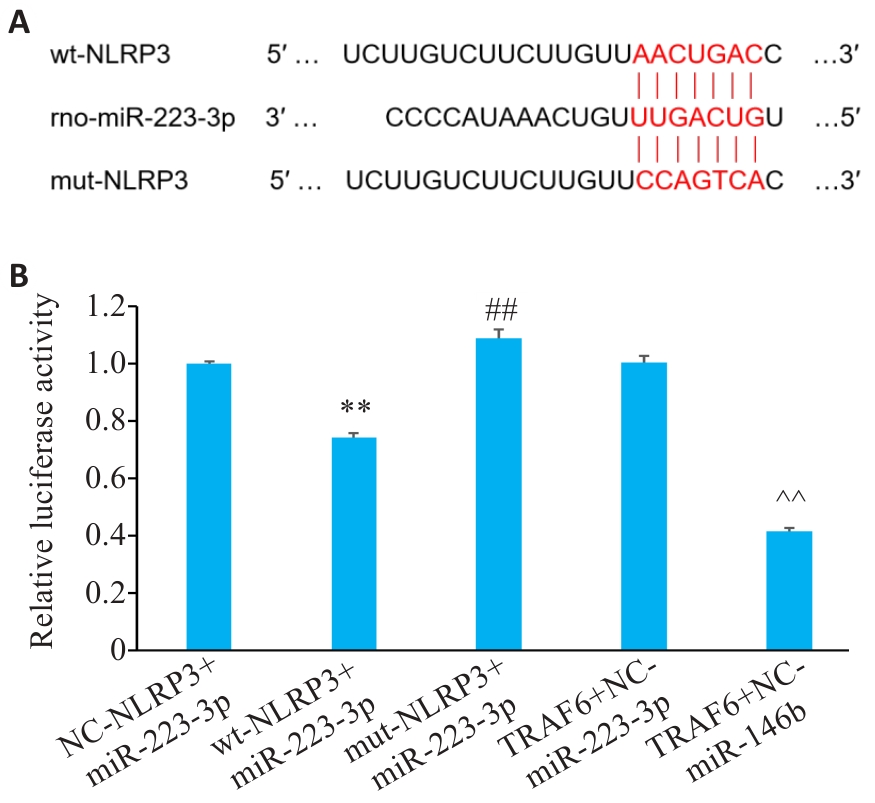

图2 靶基因结合位点及双荧光素酶实验

Fig.2 Target gene binding sites (A) and results of dual-luciferase assay (B). **P<0.01 vs NC-NLRP3+miR-223-3p; ##P<0.01 vs wt-NLRP3+miR-223-3p; ^^P<0.01 vs TRAF6+NC-miR-223-3p group.

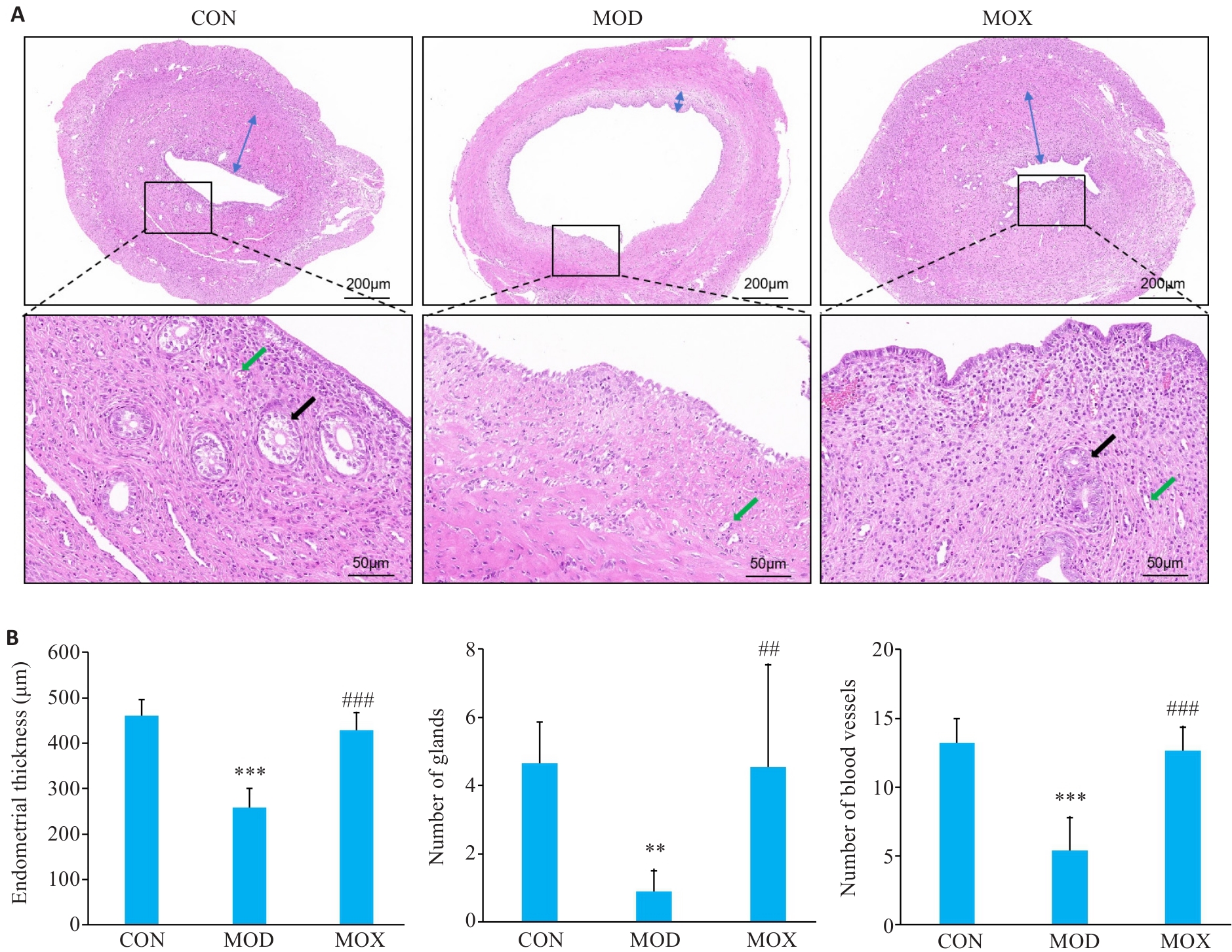

图 3 各组大鼠子宫病理形态比较及统计分析

Fig.3 Comparison of pathological morphology of the uterus among the 3 groups. A: HE staining of uterine tissue of the rats in each group (blue arrows indicate the endometrial thickness, black arrows indicate the glands, and green arrows indicate blood vessels). B: Statistical analysis of endometrial thickness, number of glands and blood vessels in each group. **P<0.01, ***P<0.001 vs CON group; ##P<0.01, ###P<0.001 vs MOD group.

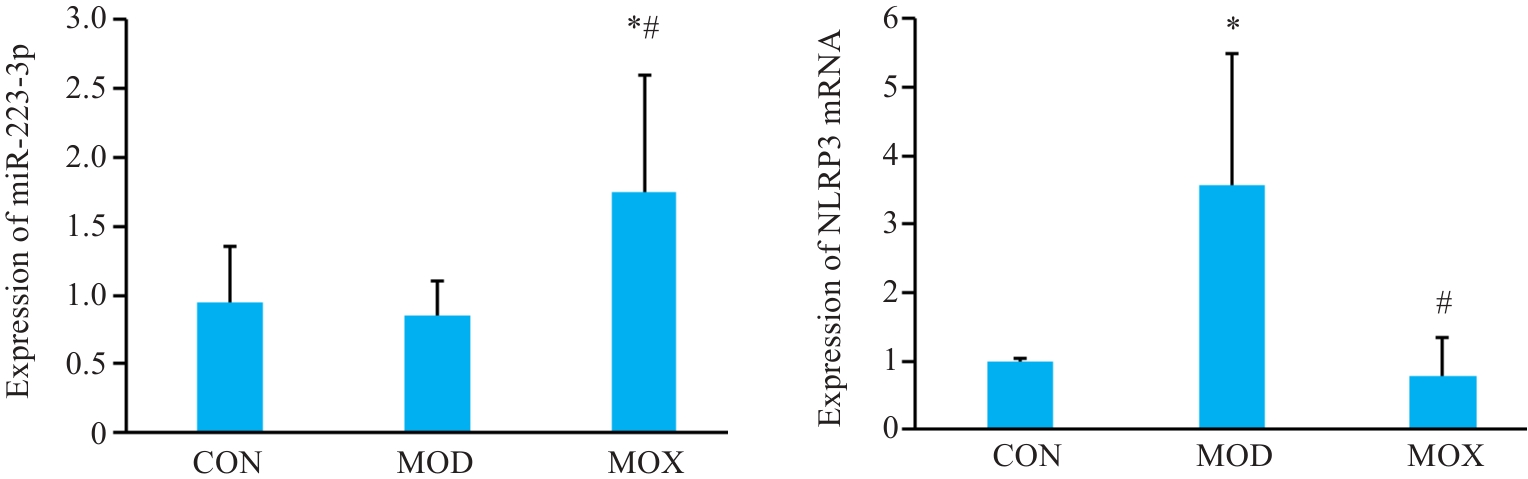

图 4 各组大鼠子宫组织的基因表达情况

Fig.4 Expressions of miR-223-3p and NLRP3 mRNA in the uterine tissue of the rats in each group. *P<0.05 vs CON group; #P<0.05 vs MOD group.

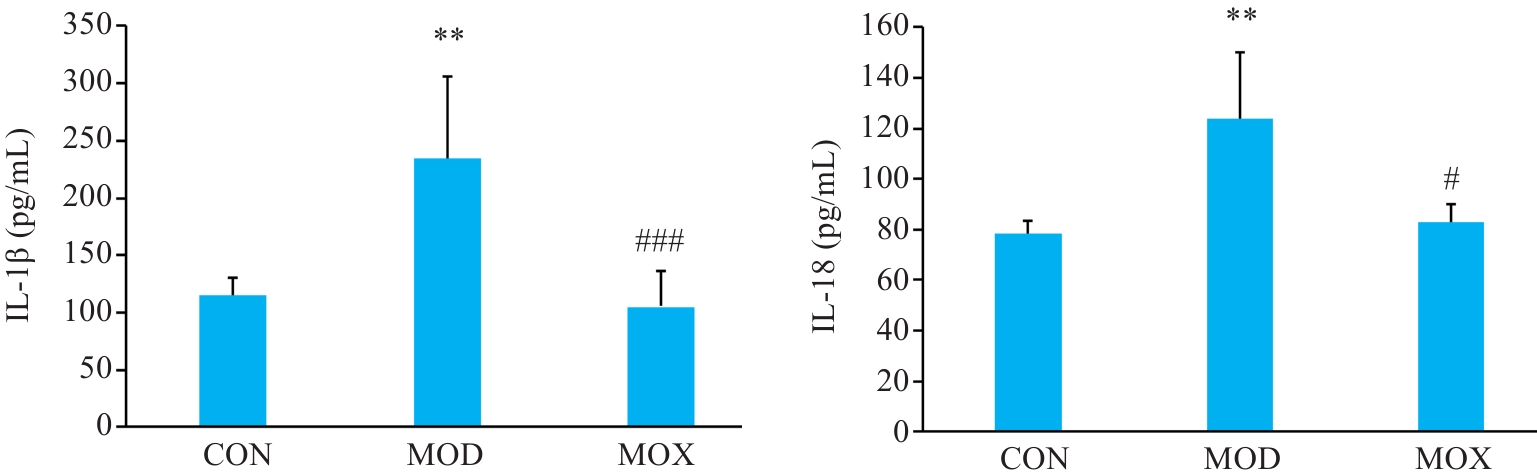

图 5 各组大鼠血清IL-1β、IL-18含量

Fig.5 Serum levels of IL-1β and IL-18 levels of the rats in each group. **P<0.01 vs CON group; #P<0.05, ###P<0.001 vs MOD group.

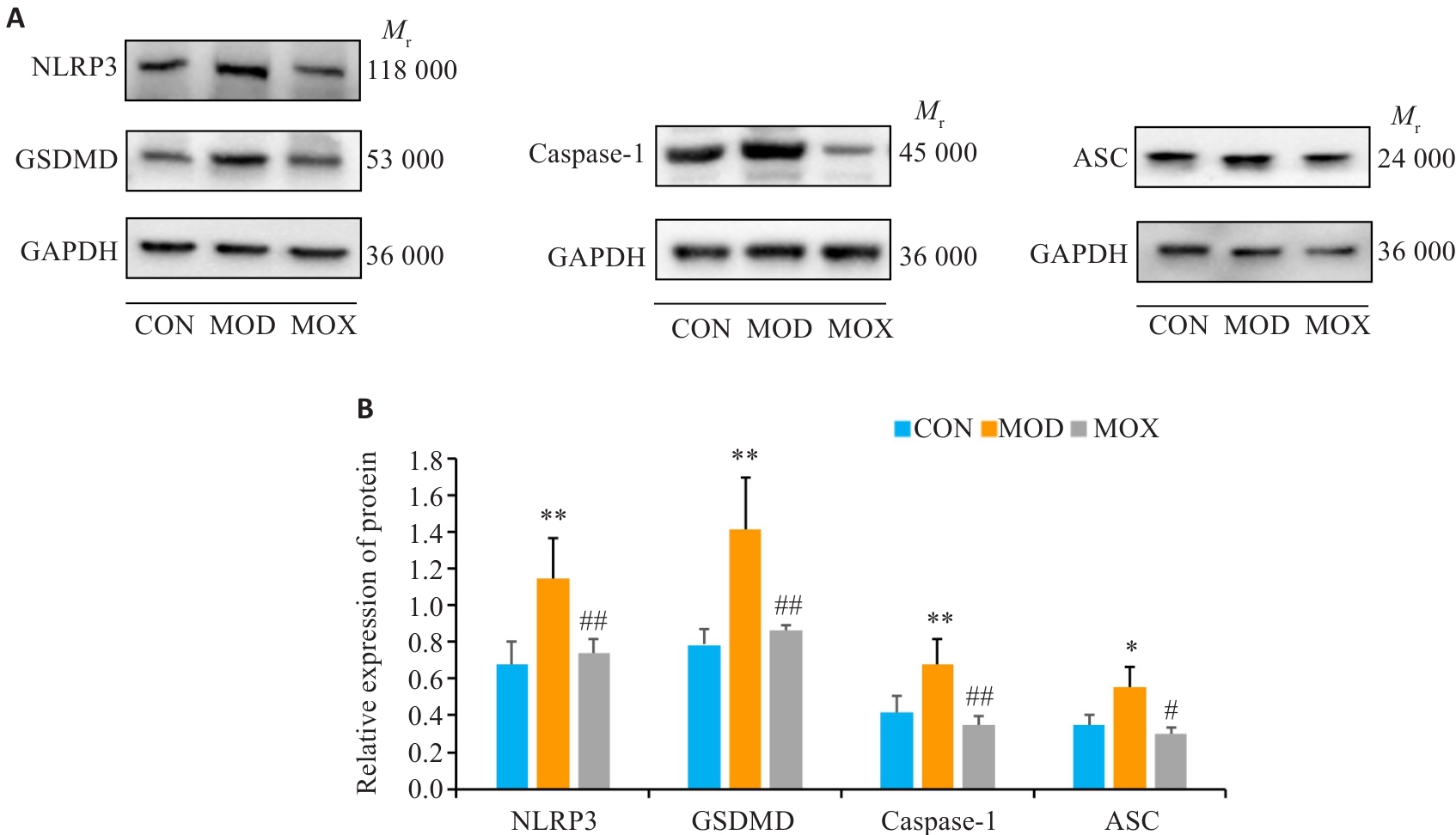

图6 各组大鼠子宫组织中焦亡相关因子的蛋白表达情况

Fig.6 Protein expression of pyroptosis-related factors in the uterine tissues of rats in each group. A: Western blotting for detecting the protein expressions of pyroptosis factors in rat uterine tissues. B: Relative expression of pyroptosis-related factors. *P<0.05, **P<0.01 vs CON group; #P<0.05, ##P<0.01 vs MOD group.

表2 各组大鼠妊娠情况统计

Tab.2 Pregnancy rates and number of embryos of the rats in the 3 groups (n=8)

Group

Pregnancy rate on the left side (%)

Embryo counts on the left

(Mean±SD)

Embryo counts on the right (Mean±SD)

Bilateral embryo counts

(Mean±SD)

图7 各组大鼠妊娠情况代表图

Fig.7 Representative diagram of pregnancy in each group of rats.

参考文献 36

[1]	佟亚菲, 王晓红. 辅助生殖技术中异常子宫内膜诊疗的中国专家共识解读[J]. 实用妇产科杂志, 2020, 36(4): 257-60.
[2]	Roy KK, Baruah J, Sharma JB, et al. Reproductive outcome following hysteroscopic adhesiolysis in patients with infertility due to Asherman's syndrome[J]. Arch Gynecol Obstet, 2010, 281(2): 355-61. doi：10.1007/s00404-009-1336-1
[3]	Kasius A, Smit JG, Torrance HL, et al. Endometrial thickness and pregnancy rates after IVF: a systematic review and meta-analysis[J]. Hum Reprod Update, 2014, 20(4): 530-41. doi：10.1093/humupd/dmu011
[4]	von Wolff M, Fäh M, Roumet M, et al. Thin endometrium is also associated with lower clinical pregnancy rate in unstimulated menstrual cycles: a study based on natural cycle IVF[J]. Front Endocrinol (Lausanne), 2018, 9: 776. doi：10.3389/fendo.2018.00776
[5]	Maekawa R, Taketani T, Mihara Y, et al. Thin endometrium transcriptome analysis reveals a potential mechanism of implantation failure[J]. Reprod Med Biol, 2017, 16(2): 206-27. doi：10.1002/rmb2.12030
[6]	Sundaram B, Pandian N, Mall R, et al. NLRP12-PANoptosome activates PANoptosis and pathology in response to heme and PAMPs[J]. Cell, 2023, 186(13): 2783-801. e20. doi：10.1016/j.cell.2023.05.005
[7]	Fu YJ, Mackowiak B, Feng DC, et al. microRNA-223 attenuates hepatocarcinogenesis by blocking hypoxia-driven angiogenesis and immunosuppression[J]. Gut, 2023, 72(10): 1942-58. doi：10.1136/gutjnl-2022-327924
[8]	Zhao G, Jiang KF, Yang YP, et al. The potential therapeutic role of miR-223 in bovine endometritis by targeting the NLRP3 inflammasome[J]. Front Immunol, 2018, 9: 1916. doi：10.3389/fimmu.2018.01916
[9]	Calvente CJ, Tameda M, Johnson CD, et al. Neutrophils contribute to spontaneous resolution of liver inflammation and fibrosis via microRNA-223[J]. J Clin Invest, 2019, 129(10): 4091-109. doi：10.1172/jci122258
[10]	伍娟娟, 邓海婷, 严斯琪, 等.补肾调冲汤对薄型子宫内膜大鼠细胞焦亡的作用研究[J].中药材, 2021, 44(9): 2179-83.
[11]	王晓梅, 穆敬平, 丁光宏, 等. 艾灸效应的红外物理特性研究进展[J]. 辽宁中医药大学学报, 2010, 12(4): 63-6.
[12]	胡玉姣, 夏良君, 姚兵, 等. 麦粒灸对大鼠薄型子宫内膜的修复作用[J]. 中国针灸, 2019, 39(9): 963-9.
[13]	韩兴军, 王璇. 脐疗治疗肾虚血瘀型排卵障碍性不孕症的机理与临床疗效研究[J]. 中国中医基础医学杂志, 2017, 23(7): 999-1000, 1008.
[14]	庄海娜, 钱婧, 杨泽冠, 等. 针灸改善子宫内膜容受性的临床研究特点分析[J]. 中医学报, 2019, 34(5): 1126-30.
[15]	寇任重, 邹洋洋, 张建斌. 艾灸关元穴生物学效应及其影响因素探讨[J]. 中国针灸, 2016, 36(12): 1273-7. doi：10.13703/j.0255-2930.2016.12.013
[16]	姚志城, 黄小冰, 卓善蓝, 等. 督灸联合柳氮磺吡啶治疗早中期强直性脊柱炎疗效观察[J]. 上海针灸杂志, 2022, 41(12): 1200-4. doi：10.13460/j.issn.1005-0957.2022.12.1200
[17]	许春燕, 宋阳, 李坤寅, 等. 薄型子宫内膜模型的动物选择及其造模方法改进[J]. 中国实验动物学报, 2016, 24(2): 217-20. doi：10.3969/j.issn.1005-4847.2016.02.021
[18]	中国针灸学会. 实验动物常用穴位名称与定位第2部分: 大鼠[J]. 针刺研究, 2021, 46(4): 351-2.
[19]	Zong L, Zheng SX, Meng Y, et al. Integrated transcriptomic analysis of the miRNA-mRNA interaction network in thin endometrium[J]. Front Genet, 2021, 12: 589408. doi：10.3389/fgene.2021.589408
[20]	Bauernfeind F, Rieger A, Schildberg FA, et al. NLRP3 inflamm-asome activity is negatively controlled by miR-223[J]. J Immunol, 2012, 189(8): 4175-81. doi：10.4049/jimmunol.1201516
[21]	Yu ZW, Zhang J, Li X, et al. A new research hot spot: The role of NLRP3 inflammasome activation, a key step in pyroptosis, in diabetes and diabetic complications[J]. Life Sci, 2020, 240: 117138. doi：10.1016/j.lfs.2019.117138
[22]	Luo T, Jia X, Feng WD, et al. Bergapten inhibits NLRP3 inflammasome activation and pyroptosis via promoting mitophagy[J]. Acta Pharmacol Sin, 2023, 44(9): 1867-78. doi：10.1038/s41401-023-01094-7
[23]	Wang YQ, Kanneganti TD. From pyroptosis, apoptosis and necroptosis to PANoptosis: a mechanistic compendium of pro-grammed cell death pathways[J]. Comput Struct Biotechnol J, 2021, 19: 4641-57. doi：10.1016/j.csbj.2021.07.038
[24]	Liu WX, Liu AQ, Li XJ, et al. Dual-engineered cartilage-targeting extracellular vesicles derived from mesenchymal stem cells enhance osteoarthritis treatment via miR-223/NLRP3/pyroptosis axis: Toward a precision therapy[J]. Bioact Mater, 2023, 30: 169-83. doi：10.1016/j.bioactmat.2023.06.012
[25]	Zhang D, Lee H, Wang XY, et al. A potential role of microvesicle-containing miR-223/142 in lung inflammation[J]. Thorax, 2019, 74(9): 865-74. doi：10.1136/thoraxjnl-2018-212994
[26]	陈宝珍. 消化性溃疡中医证候与相关因素的研究[D]. 福州: 福建中医药大学, 2014.
[27]	李凌云, 陈文裕, 廖剑艺, 等. 针刺配合滋肾填精方对子宫内膜薄性不孕症的影响[J]. 上海针灸杂志, 2020, 39(4): 411-5.
[28]	马娟娟, 张勤华, 翁晓晨, 等. 温针灸对IVF-ET肾阳虚型反复移植失败患者子宫内膜容受性及妊娠结局的影响[J]. 上海针灸杂志, 2018, 37(12): 1339-44. doi：10.13460/j.issn.1005-0957.2018.12.1339
[29]	Li CC, Tan XY, Deng DS, et al. A dopamine-modified hyaluronic acid-based mucus carrying phytoestrogen and urinary exosome for thin endometrium repair[J]. Adv Mater, 2024, 36(39): 2407750.
[30]	Pinto V, Matteo M, Tinelli R, et al. Altered uterine contractility in women with chronic endometritis[J]. Fertil Steril, 2015, 103(4): 1049-52. doi：10.1016/j.fertnstert.2015.01.007
[31]	江奕楠, 生秀杰. 子宫内膜炎与不孕的关系[J]. 中国实用妇科与产科杂志, 2025, 41(3): 263-8.
[32]	薛慧琴, 丁劲, 陈若岚, 等. 不同灸温对2期压力性损伤大鼠创面修复的实验研究[J]. 护理学杂志, 2024, 39(8): 70-3, 96.
[33]	江亮, 王安, 胥杜鹃, 等. 针灸在IVF-ET周期中辅助治疗薄型子宫内膜(肾阳虚证)不孕患者的临床应用研究[J]. 现代诊断与治疗, 2024, 35(4): 479-81.
[34]	黎玉婷, 刘桂英, 何志群, 等. 补肾活血中药联合艾灸治疗薄型内膜不孕患者40例疗效观察[J]. 云南中医中药杂志, 2020, 41(6): 31-3.
[35]	秦爱华, 林燕, 邓佳妮. 补肾调经汤联合温和灸法对辅助生殖子宫内膜薄的临床观察[J]. 世界中医药, 2019, 14(12): 3364-8. doi：10.3969/j.issn.1673-7202.2019.12.059
[36]	李月, 陈惠芳, 曾伟, 等. 悬灸加阿司匹林治疗对于薄型子宫内膜修复的临床研究[J]. 中医临床研究, 2018, 10(29): 102-4.
