甲基巴多索龙通过抑制NLRP3炎症小体活化缓解小鼠急性肝损伤

doi:10.12122/j.issn.1673-4254.2024.09.05

摘要/Abstract

摘要：

目的探究小分子化合物甲基巴多索隆（CDDO-Me）抑制NLRP3炎症小体活化并缓解急性肝损伤的作用机制。方法体外实验：CDDO-Me预处理小鼠骨髓来源巨噬细胞（BMDM）或人急性单核细胞白血病（THP-1）细胞后，利用多种NLRP3炎症小体活化剂（Nigericin、ATP、MSU、胞内LPS转染）活化NLRP3炎症小体，使用聚脱氧腺苷酸（poly A∶T）活化AIM2炎症小体，通过Western blotting和ELISA检测细胞培养上清中caspase-1和白细胞介素1β（IL-1β）的分泌水平，确定CDDO-Me对NLRP3炎症小体的抑制效果及其特异性。体内实验：将SPF级雄性C57BL/6J小鼠随机分为4组，即空白对照组（Control组）、急性肝损伤组（APAP组）、CDDO-Me低剂量治疗组（APAP+CDDO-Me20 mg/kg组）和CDDO-Me高剂量治疗组（APAP+CDDO-Me40 m/kg组），ELISA检测小鼠血清中IL-1β、肿瘤坏死因子α（TNF-α）、谷草转氨酶（AST）、谷丙转氨酶（ALT）的表达水平，HE染色观察肝组织结构变化。结果 CDDO-Me可剂量依赖性的抑制多种激动剂诱导的NLRP3炎症小体活化以及胞内转染LPS诱导非经典NLRP3炎症小体的活化（P<0.05），但对NLRP3炎症小体非依赖的相关炎性因子白细胞介素6（IL-6）、TNF-α的分泌无显著影响（P>0.05）。此外，CDDO-Me对AIM2炎症小体的活化无显著影响（P>0.05）。动物实验结果表明，相较急性肝损伤组（APAP组），CDDO-Me治疗组（APAP+CDDO-Me20 mg/kg组和APAP+CDDO-Me40 mg/kg组）小鼠血清IL-1β、AST和ALT的表达水平显著降低，肝组织HE染色结果显示CDDO-Me能明显改善ALI小鼠损伤的肝组织结构，减少炎性细胞浸润，且呈剂量依赖性（P<0.05）。结论 CDDO-Me能够特异性抑制NLRP3炎症小体活化并缓解APAP诱导的小鼠急性肝损伤。

关键词: 甲基巴多索龙, NLRP3炎症小体, 炎症小体相关疾病, 急性肝损伤

Abstract:

Objective To investigate the inhibitory effect of bardoxolone methyl (CDDO-Me) on activation of NLRP3 inflammasome and its mechanism for alleviating acute liver injury (ALI). Methods Mouse bone marrow-derived macrophages (BMDM) and THP-1 cells were pre-treated with CDDO-Me followed by treatment with Nigericin, ATP, MSU, intracellular LPS transfection for activation of NLRP3 inflammasomes, or poly A:T for activation of AIM2 inflammasomes. The levels of caspase-1 and IL-1β in the cell culture supernatant was determined with Western blotting and ELISA to assess the inhibitory effect of CDDO-Me on NLRP3 inflammasomes and its specificity. In the animalexperiment, male C57BL/6J mouse models of acetaminophen-induced ALI were treated with low-dose (20 mg/kg) and high-dose (40 mg/kg) CDDO-Me, and the changes in serum levels of IL-1β, TNF-α, AST and ALT were measured by ELISA and liver tissue pathology was observed using HE staining. Results In mouse BMDM and THP-1 cells, CDDO-Me dose-dependently inhibited the activation of NLRP3 inflammasomes without significantly affecting the secretion of non-inflammasome-related inflammatory factors IL-6 and TNF-α or AIM2 inflammasome activation. In the mouse models of ALI, CDDO-Me treatment at both the low and high doses significantly reduced serum levels of IL-1β, AST and ALT, ameliorated histological changes and reduced inflammatory cell infiltration in the liver tissue, and the effects exhibited a distinct dose dependence. Conclusion CDDO-Me can specifically inhibit the activation of NLRP3 inflammasomes to alleviate acetaminophen-induced ALI in mice.

Key words: bardoxolone methyl, NLRP3 inflammasomes, inflammasome-related diseases, acute liver injury

李明远, 张玮, 华梦晴. 甲基巴多索龙通过抑制NLRP3炎症小体活化缓解小鼠急性肝损伤[J]. 南方医科大学学报, 2024, 44(9): 1662-1669.

Mingyuan LI, Wei ZHANG, Mengqing HUA. Bardoxolone methyl alleviates acute liver injury in mice by inhibiting NLRP3 inflammasome activation[J]. Journal of Southern Medical University, 2024, 44(9): 1662-1669.

图/表 6

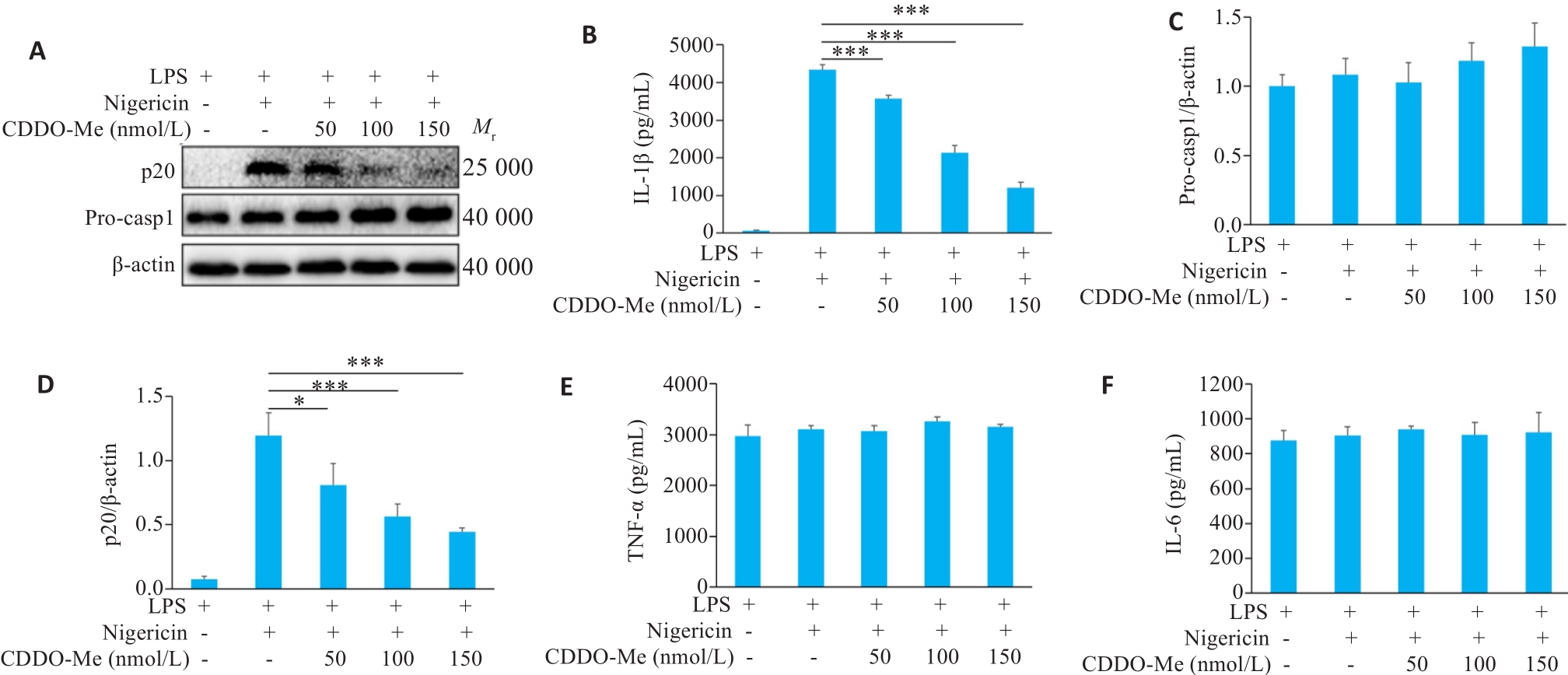

图1 CDDO-Me抑制nigericin诱导的NLRP3炎症小体活化

Fig.1 CDDO-Me suppresses nigericin-induced NLRP3 inflammasome activation in mouse bone marrow-derived macrophages (BMDM). A: Western blotting of cleaved p20 in the culture supernatants (SN) and pro-caspase-1 (Pro-casp1) in the cell lysate (Input) of BMDM. B, C: Quantitative analysis of the expressions of p20 and Pro-casp1 in BMDM. D-F: ELISA of IL-1β, TNF-α and IL-6 in cell culture supernatants, respectively. *P<0.05, ***P<0.001.

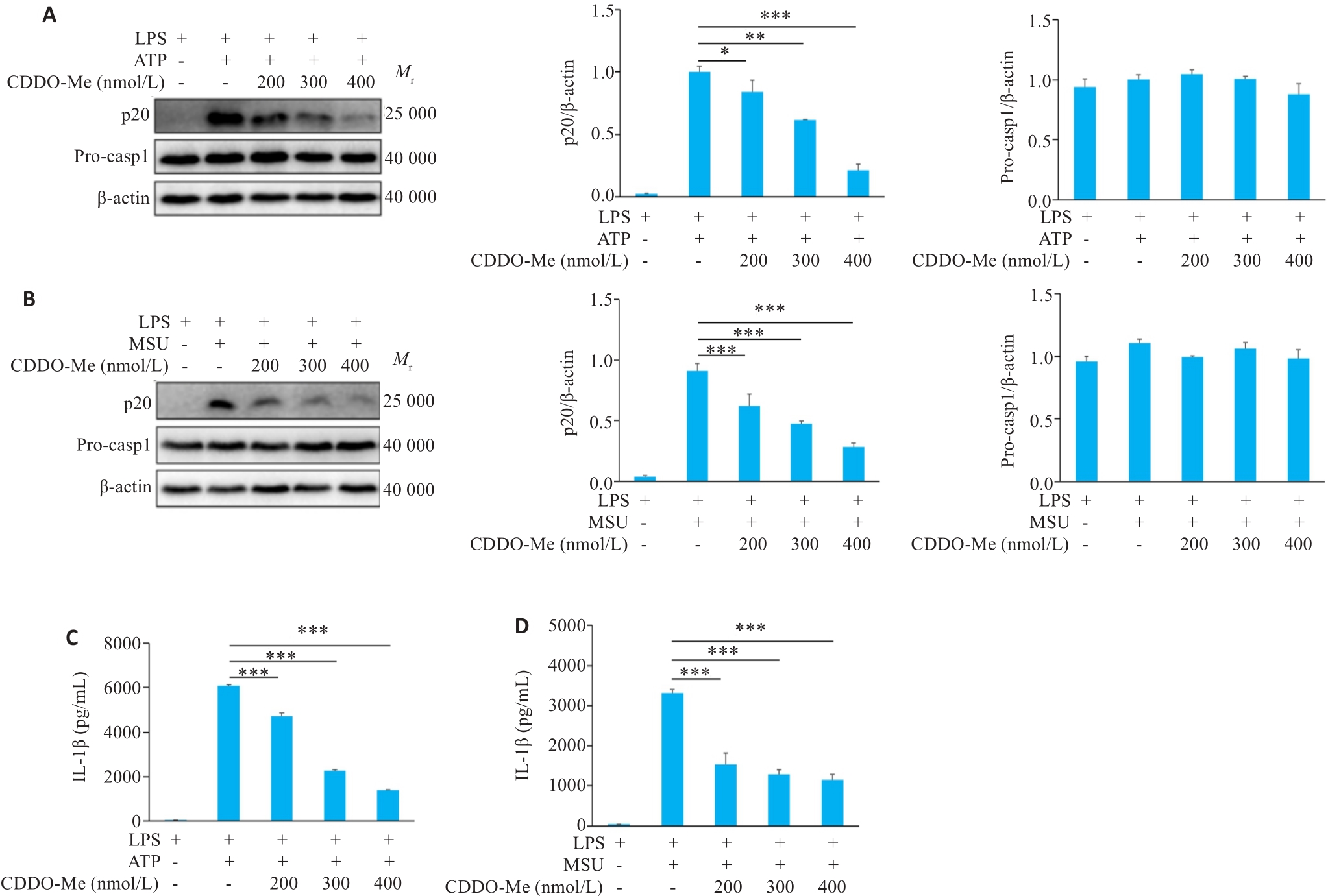

图 2 CDDO-Me抑制ATP和MSU诱导的NLRP3炎症小体活化

Fig.2 CDDO-Me inhibits NLRP3 inflam-masome activation in BMDM induced by ATP, MSU and LPS. A, B: Western blotting of p20 in supernatants (SN) and Pro-casp1 in cell lysates (Input) of BMDM. C, D: ELISA of mature IL-1β in the culture supernatant of BMDM. *P<0.05, **P<0.01, ***P<0.001.

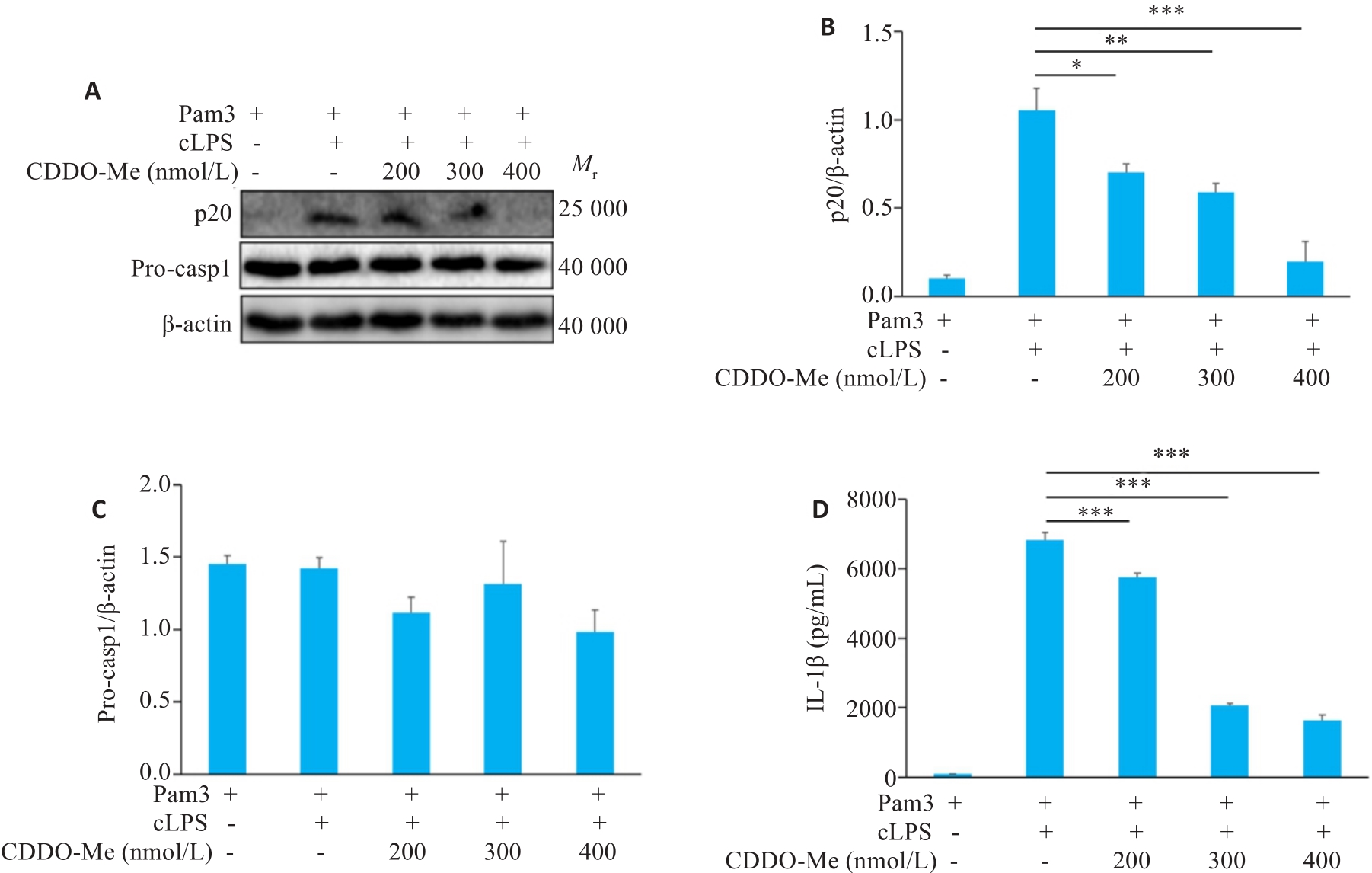

图 3 CDDO-Me抑制非经典NLRP3炎症小体活化

Fig.3 CDDO-Me inhibits non-canonical NLRP3 inflammasome activation in BMDM. A: Western blotting of p20 in culture supernatants (SN) and Pro-casp1 in lysates (Input) of BMDM. B, C: Quantitative analysis of the expressions of p20 and Pro-casp1 in BMDM. D: ELISA of mature IL-1β in the culture supernatant of BMDM. *P<0.05, **P<0.01, ***P<0.001.

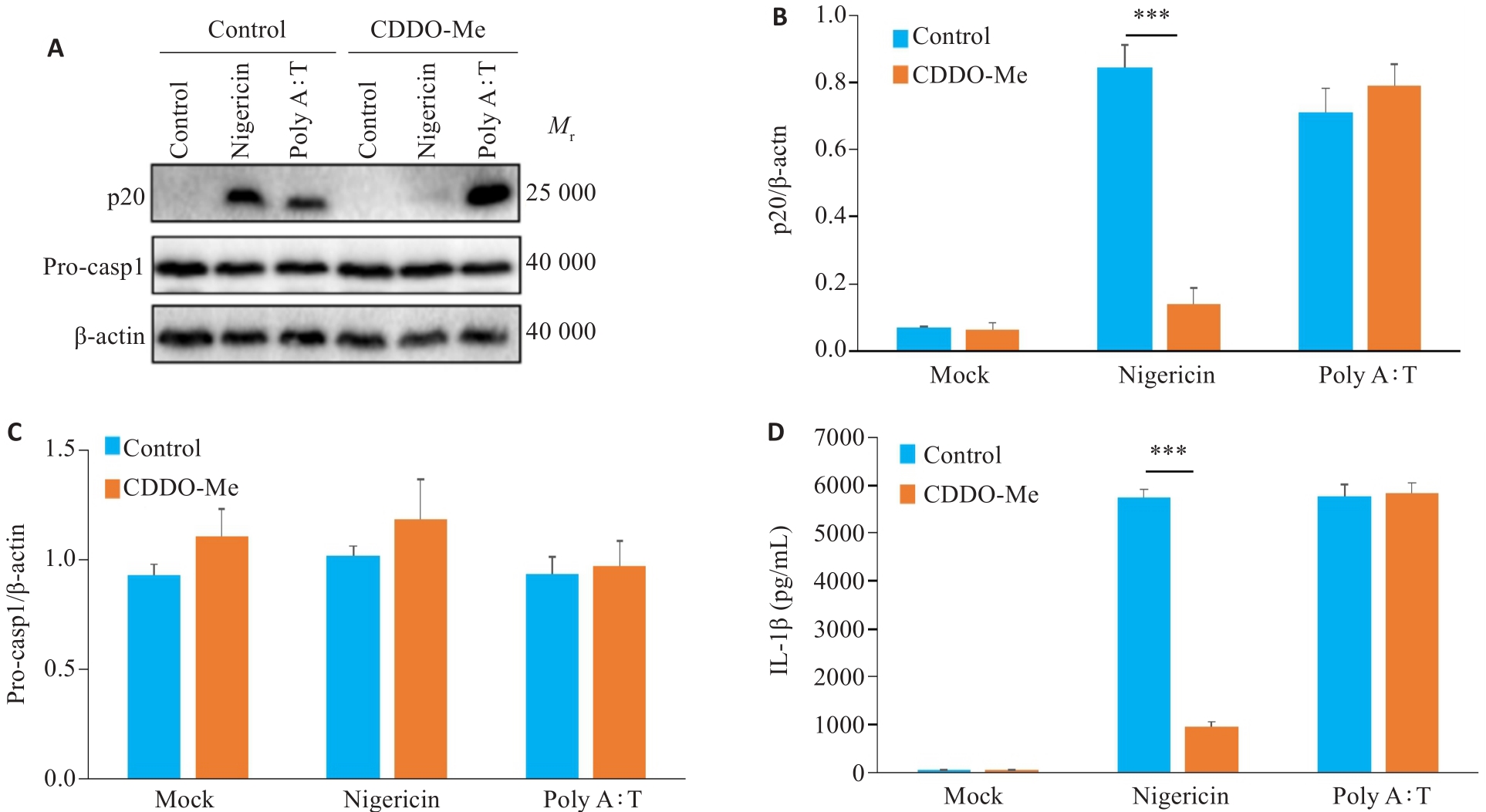

图 4 CDDO-Me对AIM2炎症小体活化无影响

Fig.4 CDDO-Me does not affect AIM2 inflammasome activation in BMDM. A: Western blotting of p20 in culture supernatants (SN) and Pro-casp1 in lysates (Input) of BMDM. B, C: Quantitative analysis of the expressions of p20 and Pro-casp1 in BMDM. D: ELISA of matureIL-1β in the culture supernatant of BMDM. ***P<0.001.

图 5 CDDO-Me抑制人THP-1细胞中NLRP3炎症小体活化

Fig.5 CDDO-Me inhibits NLRP3 inflammasome activation in human THP-1 cells. A: Western blotting of p20 in culture supernatants (SN) and Pro-casp1 in lysates (Input) of human THP-1 cells. B, C: Quantitative analysis of the expressions of p20 and Pro-casp1 in human THP- 1 cells. D, E: ELISA of IL-1β (D) and TNF-α (E) in the culture supernatant of THP-1 cells. ***P<0.001.

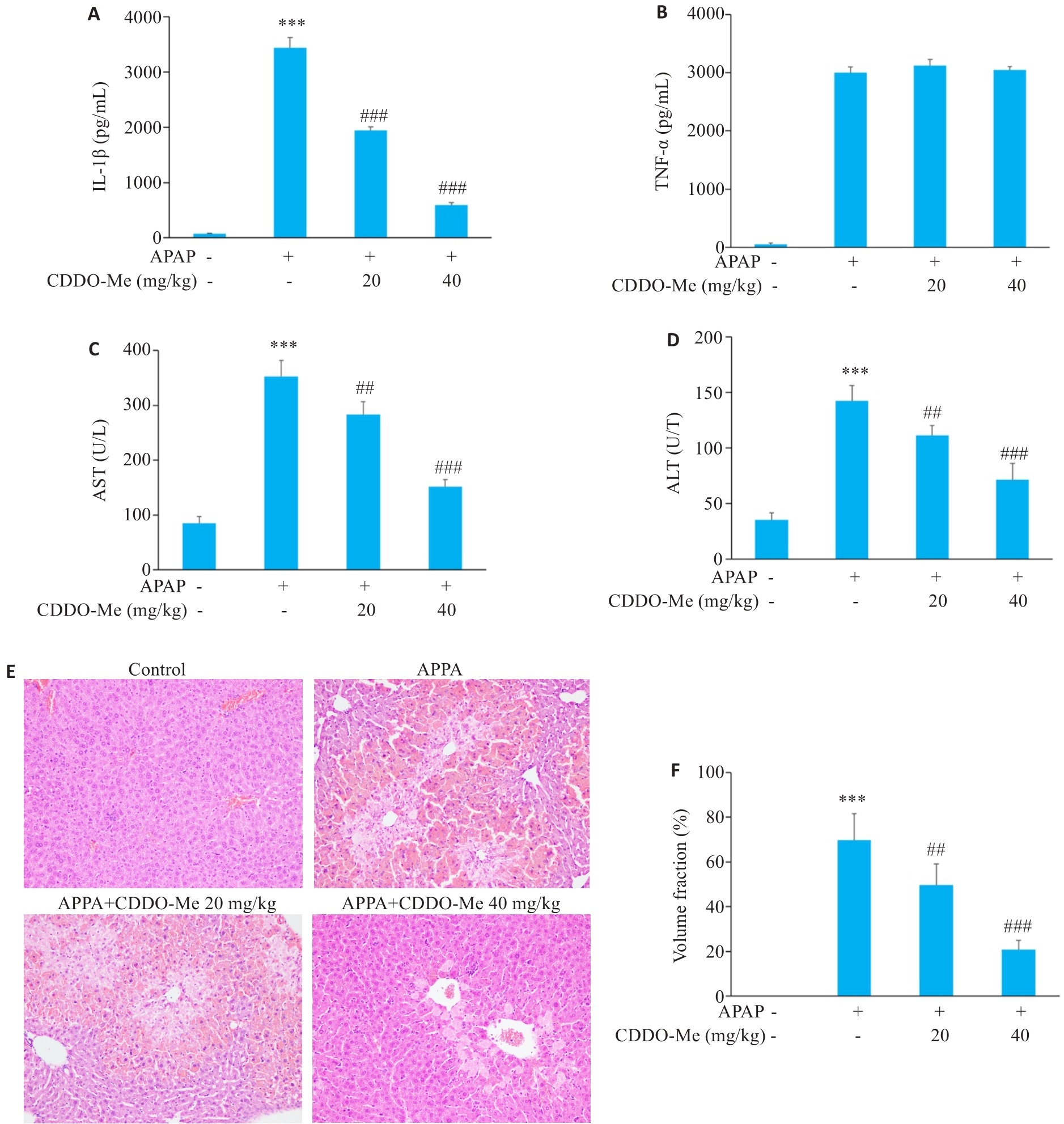

图 6 CDDO-Me缓解对乙酰氨基酚(APPA)引起的急性肝损伤(AILI)

Fig.6 CDDO-Me relieves acetaminophen (APPA)-induced acute liver injury (ALI) in mice. A, B: ELISA of IL-1β (A) and TNF-α (B) in the serum from C57BL/6J mice. C-D: Levels of AST (C) and ALT (D) determined with ELISA in the serum from C57BL/6J mice in control, APAP and APAP plus CDDO-Me (20 and 40 mg/kg) groups. E: HE staining of liver sections from ALI mice in control, APAP and APAP plus CDDO-Me (20 and 40 mg/kg) groups (Original magnification: ×200). F: Quantification of necrotic areas by Image J software. ***P<0.001 vs control; ##P<0.01 vs APPA group, ###P<0.001 vs APPA group.

参考文献 34

1	Jaeschke H, Akakpo JY, Umbaugh DS, et al. Novel therapeutic approaches against acetaminophen-induced liver injury and acute liver failure[J]. Toxicol Sci, 2020, 174(2): 159-67.
2	Yang WC, Tao KX, Zhang P, et al. Maresin 1 protects against lipopolysaccharide/d-galactosamine-induced acute liver injury by inhibiting macrophage pyroptosis and inflammatory response[J]. Biochem Pharmacol, 2022, 195: 114863.
3	Yu CQ, Chen P, Miao LY, et al. The role of the NLRP3 inflammasome and programmed cell death in acute liver injury[J]. Int J Mol Sci, 2023, 24(4): 3067.
4	Kelley N, Jeltema D, Duan YH, et al. The NLRP3 inflammasome: an overview of mechanisms of activation and regulation[J]. Int J Mol Sci, 2019, 20(13): 3328.
5	Maresh MM, Abdelaziz RR, Ibrahim TM. Febuxostat mitigates concanavalin A-induced acute liver injury via modulation of MCP-1, IL-1β, TNF-α, neutrophil infiltration, and apoptosis in mice[J]. Life Sci, 2020, 260: 118307.
6	Dinarello CA, van der Meer JWM. Treating inflammation by blocking interleukin-1 in humans[J]. Semin Immunol, 2013, 25(6): 469-84.
7	Liu YH, Shang LR, Zhou JB, et al. Emodin Attenuates LPS-Induced Acute Lung Injury by Inhibiting NLRP3 Inflammasome-Dependent Pyroptosis Signaling Pathway in vitro and in vivo [J]. Inflammation, 2022, 45(2): 753-67.
8	Miao RF, Huang J. MCC950 improves lipopolysaccharide-induced systemic inflammation in mice by relieving pyroptosis in blood neutrophils[J]. Exp Ther Med, 2023, 26(3): 417.
9	Casares L, Moreno R, Ali KX, et al. The synthetic triterpenoids CDDO-TFEA and CDDO-Me, but not CDDO, promote nuclear exclusion of BACH1 impairing its activity[J]. Redox Biol, 2022, 51: 102291.
10	Borella R, Forti L, Gibellini L, et al. Synthesis and anticancer activity of CDDO and CDDO-me, two derivatives of natural triterpenoids[J]. Molecules, 2019, 24(22): 4097.
11	Xu C, Liu X, Zhai XW, et al. CDDO-Me ameliorates podocyte injury through anti-oxidative stress and regulation of actin cytoskeleton in adriamycin nephropathy[J]. Biomedecine Pharmacother, 2023, 167: 115617.
12	Kanda H, Yamawaki K. Bardoxolone methyl: drug development for diabetic kidney disease[J]. Clin Exp Nephrol, 2020, 24(10): 857-64.
13	Lee DS, Kim TH, Park H, et al. CDDO-me abrogates aberrant mitochondrial elongation in clasmatodendritic degeneration by regulating NF‑κB-PDI-mediated S-nitrosylation of DRP1[J]. Int J Mol Sci, 2023, 24(6): 5875.
14	Torres GM, Yang H, Park C, et al. T cells and CDDO-me attenuate immunosuppressive activation of human melanoma-conditioned macrophages[J]. Front Immunol, 2022, 13: 768753.
15	Kim JE, Park H, Kang TC. CDDO-me distinctly regulates regional specific astroglial responses to status epilepticus via ERK1/2-Nrf2, PTEN-PI3K-AKT and NFκB signaling pathways[J]. Antioxidants, 2020, 9(10): 1026.
16	Fu JN, Wu H. Structural mechanisms of NLRP3 inflammasome assembly and activation[J]. Annu Rev Immunol, 2023, 41: 301-16.
17	Zhang J, Liu XQ, Wan CY, et al. NLRP3 inflammasome mediates M1 macrophage polarization and IL-1β production in inflammatory root resorption[J]. J Clin Periodontol, 2020, 47(4): 451-60.
18	Wang LX, Ren W, Wu QJ, et al. NLRP3 inflammasome activation: a therapeutic target for cerebral ischemia-reperfusion injury[J]. Front Mol Neurosci, 2022, 15: 847440.
19	Kulkarni AA, Thatcher TH, Hsiao HM, et al. The triterpenoid CDDO-Me inhibits bleomycin-induced lung inflammation and fibrosis[J]. PLoS One, 2013, 8(5): e63798.
20	Zhao CY, Zhao W. NLRP3 inflammasome-a key player in antiviral responses[J]. Front Immunol, 2020, 11: 211.
21	Elliott EI, Sutterwala FS. Initiation and perpetuation of NLRP3 inflammasome activation and assembly[J]. Immunol Rev, 2015, 265(1): 35-52.
22	Han CH, Godfrey V, Liu ZD, et al. The AIM2 and NLRP3 inflammasomes trigger IL-1-mediated antitumor effects during radiation[J]. Sci Immunol, 2021, 6(59): eabc6998.
23	Lu L, Liu D, Yang Y, et al. [WP1130 relieves septic shock in mice by inhibiting NLRP3 inflammasome activation] [J]. Nan Fang Yi Ke Da Xue Xue Bao, 2022, 42(12): 1747-54.
24	Palazón-Riquelme P, Worboys JD, Green J, et al. USP7 and USP47 deubiquitinases regulate NLRP3 inflammasome activation[J]. EMBO Rep, 2018, 19(10): e44766.
25	Liu YR, Wang JQ, Li J. Role of NLRP3 in the pathogenesis and treatment of gout arthritis[J]. Front Immunol, 2023, 14: 1137822.
26	Ratajczak MZ, Mack A, Bujko K, et al. ATP-Nlrp3 inflammasome-complement cascade axis in sterile brain inflammation in psychiatric patients and its impact on stem cell trafficking[J]. Stem Cell Rev Rep, 2019, 15(4): 497-505.
27	Zhang W, Shi C, Yao ZY, et al. Bardoxolone methyl attenuates doxorubicin-induced cardiotoxicity by inhibiting the TXNIP-NLRP3 pathway through Nrf2 activation[J]. Environ Toxicol, 2024, 39(4): 1936-50.
28	Kayagaki N, Warming S, Lamkanfi M, et al. Non-canonical inflammasome activation targets caspase-11[J]. Nature, 2011, 479(7371): 117-21.
29	Wang LQ, Cai J, Zhao X, et al. Palmitoylation prevents sustained inflammation by limiting NLRP3 inflammasome activation through chaperone-mediated autophagy[J]. Mol Cell, 2023, 83(2): 281-97.e10.
30	Li ZY, Liu T, Feng Y, et al. PPARγ alleviates sepsis-induced liver injury by inhibiting hepatocyte pyroptosis via inhibition of the ROS/TXNIP/NLRP3 signaling pathway[J]. Oxid Med Cell Longev, 2022, 2022: 1269747.
31	Xiao T, Cui YL, Ji HY, et al. Baicalein attenuates acute liver injury by blocking NLRP3 inflammasome[J]. Biochem Biophys Res Commun, 2021, 534: 212-8.
32	Teschke R. Treatment of drug-induced liver injury[J]. Biomedicines, 2022, 11(1): 15.
33	Hefler J, Hatami S, Thiesen A, et al. Model of acute liver failure in an isolated perfused porcine liver-challenges and lessons learned[J]. Biomedicines, 2022, 10(10): 2496.
34	Honma Y, Shibata M, Gohda T, et al. Rapid progression of liver fibrosis induced by acute liver injury due to immune-related adverse events of atezolizumab[J]. Intern Med, 2021, 60(12): 1847-53.
