Reconstruction from CT truncated data based on dual-domain transformer coupled feature learning

doi:10.12122/j.issn.1673-4254.2024.05.17

Abstract

Abstract:

Objective To propose a CT truncated data reconstruction model (DDTrans) based on projection and image dual-domain Transformer coupled feature learning for reducing truncation artifacts and image structure distortion caused by insufficient field of view (FOV) in CT scanning. Methods Transformer was adopted to build projection domain and image domain restoration models, and the long-range dependency modeling capability of the Transformer attention module was used to capture global structural features to restore the projection data information and enhance the reconstructed images. We constructed a differentiable Radon back-projection operator layer between the projection domain and image domain networks to enable end-to-end training of DDTrans. Projection consistency loss was introduced to constrain the image forward-projection results to further improve the accuracy of image reconstruction. Results The experimental results with Mayo simulation data showed that for both partial truncation and interior scanning data, the proposed DDTrans method showed better performance than the comparison algorithms in removing truncation artifacts at the edges and restoring the external information of the FOV. Conclusion The DDTrans method can effectively remove CT truncation artifacts to ensure accurate reconstruction of the data within the FOV and achieve approximate reconstruction of data outside the FOV.

Key words: CT truncation artifacts, transformer, deep learning, dual-domain

Chen WANG, Mingqiang MENG, Mingqiang LI, Yongbo WANG, Dong ZENG, Zhaoying BIAN, Jianhua MA. Reconstruction from CT truncated data based on dual-domain transformer coupled feature learning[J]. Journal of Southern Medical University, 2024, 44(5): 950-959.

Figures/Tables 12

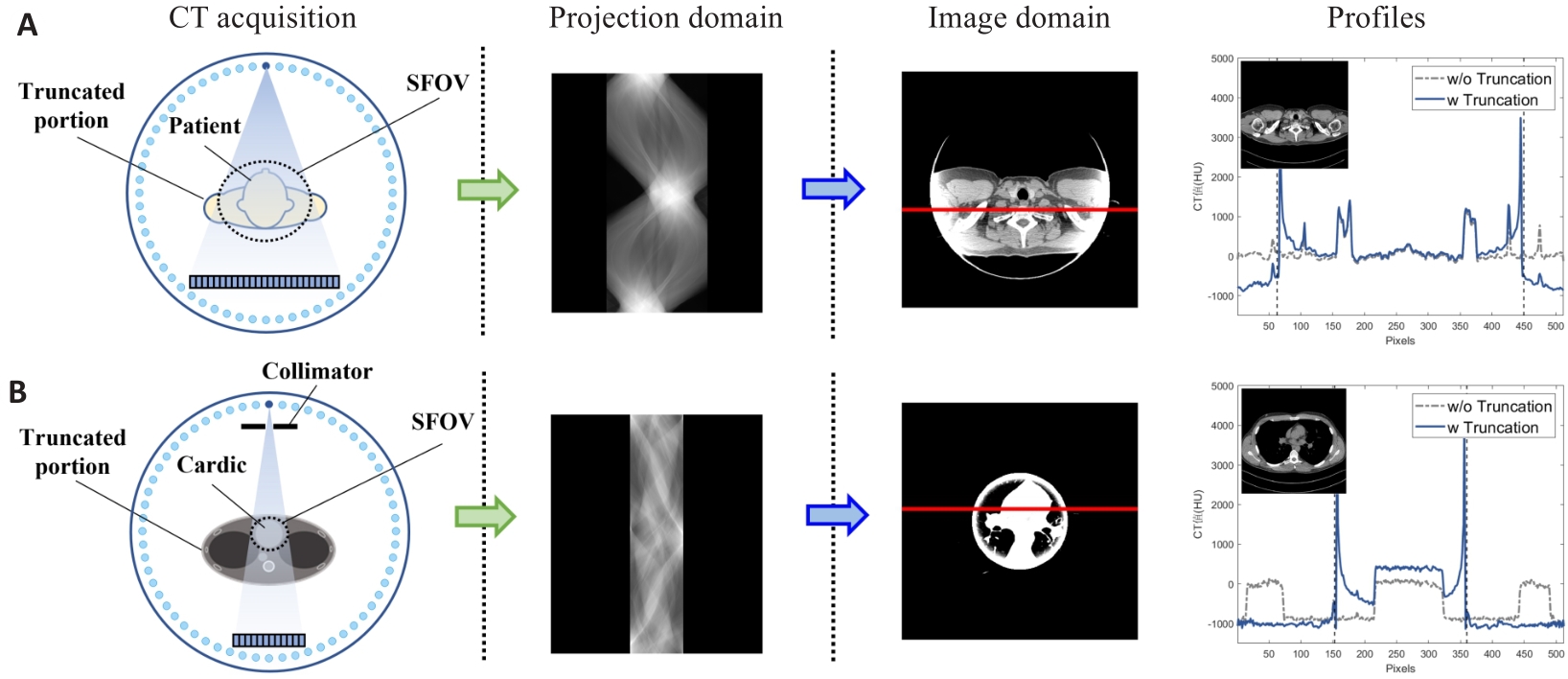

Fig.1 Illustration of truncation artifacts of the projection data collected under two truncation conditions, the reconstructed images and profiles comparison with the non-truncated image at the position marked by red solid line (the vertical dashed lines represent the truncation boundaries). A: Partial truncation at the patient's shoulder. B: Cardiac interior scanning.

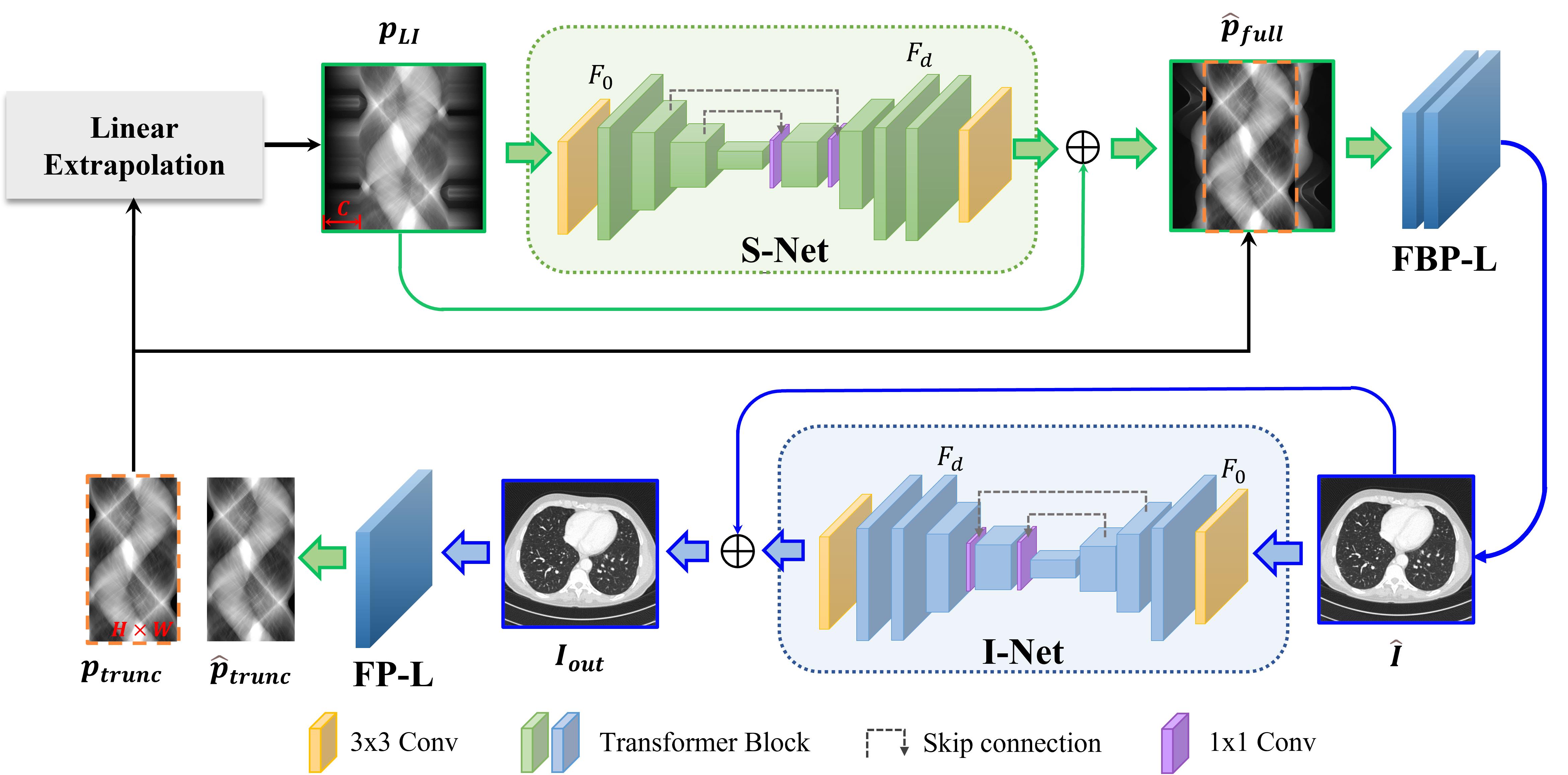

Fig.2 Overall architecture of the proposed DDTrans.

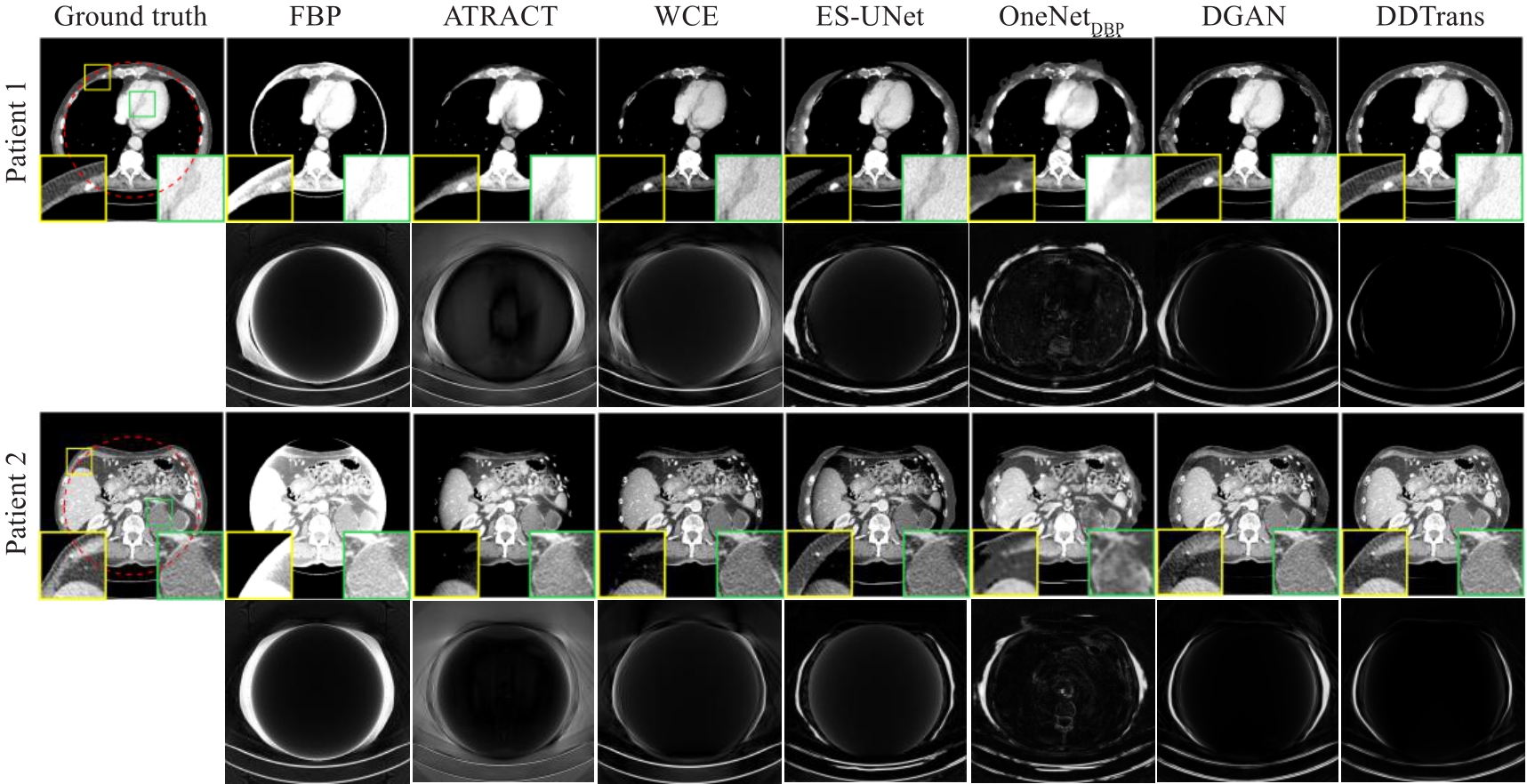

Fig.3 Comparison of truncation artifacts correction results with different methods for partial truncation data. The display window is [-200, 200]HU. The second and fourth rows are absolute residual images of different algorithm results with respect to the ground truth.

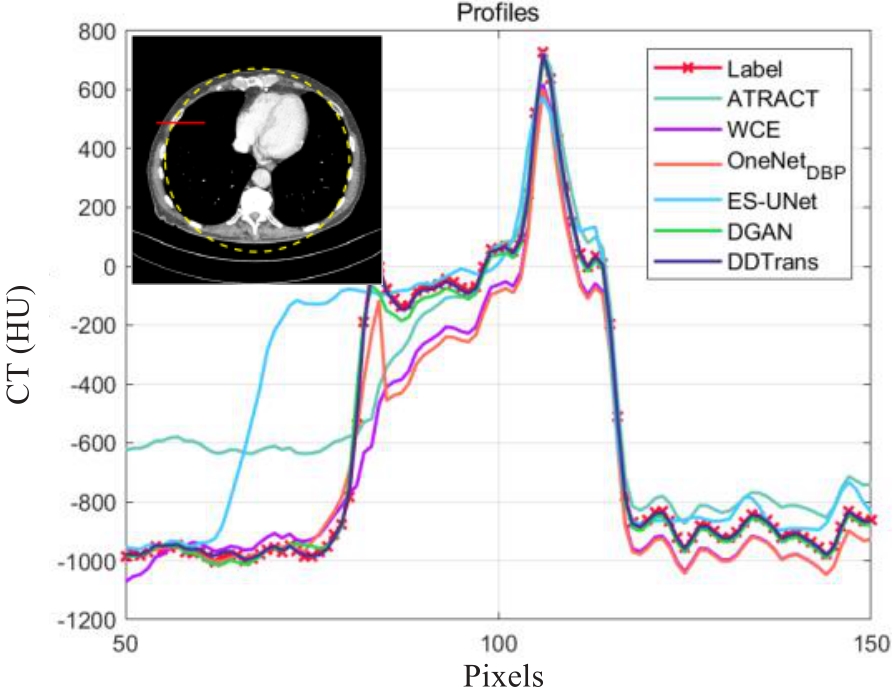

Fig.4 Comparison of the profiles at red solid line locations for partial truncation data.

Tab.1 Comparison of quantitative results of different methods for partial truncation data

Methods	RMSE		SSIM		PSNR
Methods	Inside FOV	Outside FOV	Inside FOV	Outside FOV	Inside FOV	Outside FOV
FBP	189.0240	269.5267	0.9134	0.5618	18.9133	4.3666
ATRACT	62.8714	234.9390	0.9290	0.6436	29.4219	7.0502
WCE	26.1827	152.8316	0.9628	0.7531	38.0734	9.5631
ES-UNet	40.6024	155.7068	0.9458	0.8858	33.2551	9.2289
OneNet_DBP	61.3758	158.5035	0.8821	0.8530	27.1814	9.2492
DGAN	22.0072	138.6643	0.9837	0.8917	41.8713	10.3352
DDTrans	5.4097	116.9005	0.9991	0.9250	52.4910	12.0010

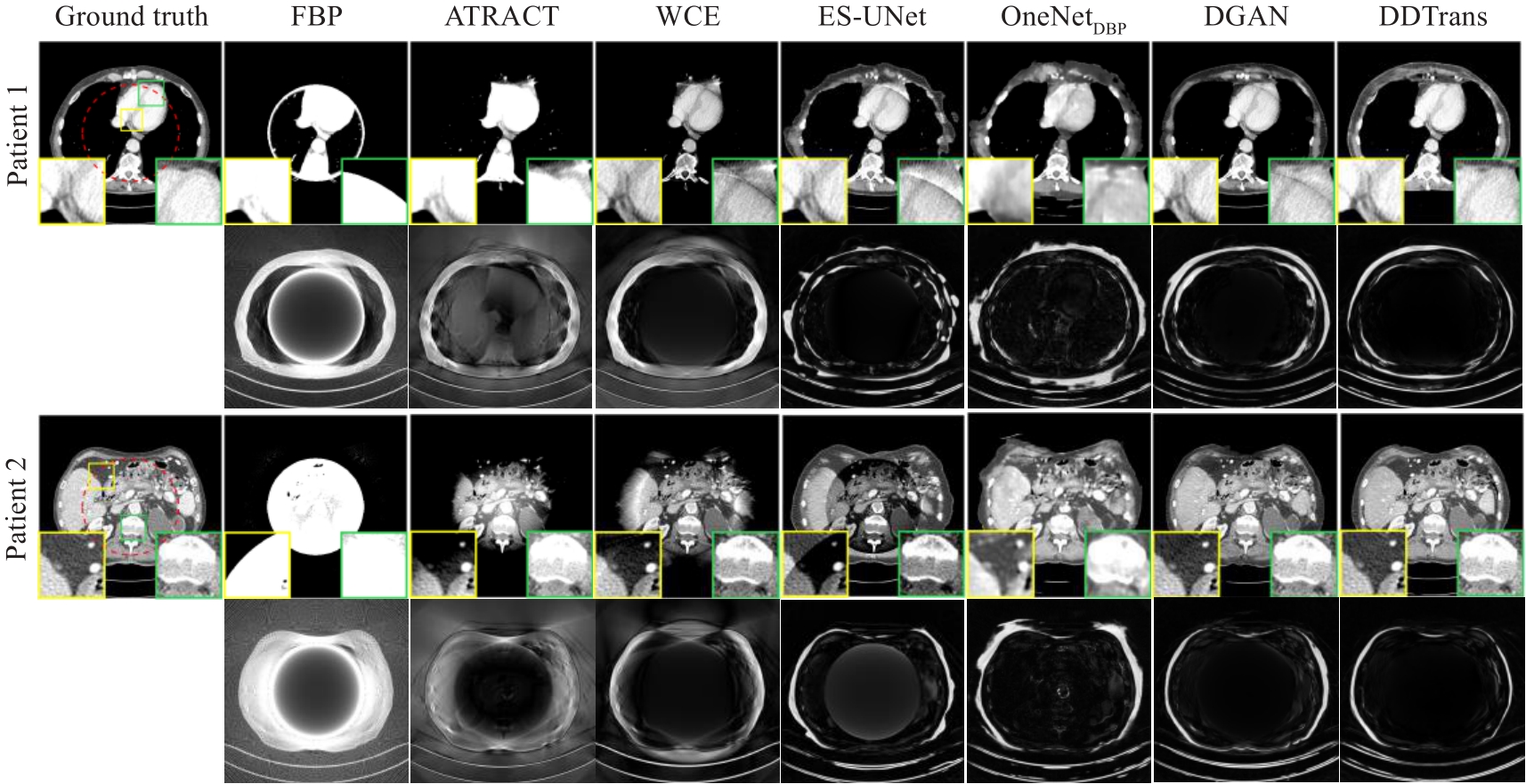

Fig.5 Comparison of truncation artifacts correction results with different methods for interior scanning. The display window is [-200, 200]HU. The second and fourth rows are absolute residual images of different algorithm results with respect to the ground truth.

Tab.2 Comparison of quantitative results of different methods for interior scanning data

Methods	RMSE		SSIM		PSNR
Methods	Inside FOV	Outside FOV	Inside FOV	Outside FOV	Inside FOV	Outside FOV
FBP	488.4375	556.6830	0.6466	0.2275	7.5358	7.0234
ATRACT	62.3716	287.6859	0.8911	0.5542	25.8800	13.1452
WCE	37.0367	225.5691	0.8819	0.5915	32.9671	14.9137
ES-UNet	54.7751	226.6859	0.8906	0.8062	29.2464	14.8481
OneNet_DBP	48.7271	219.1173	0.8279	0.7781	26.1069	15.2767
DGAN	29.6017	201.8265	0.9537	0.7769	33.4705	15.4285
DDTrans	8.0043	174.9918	0.9836	0.8317	42.9410	17.0266

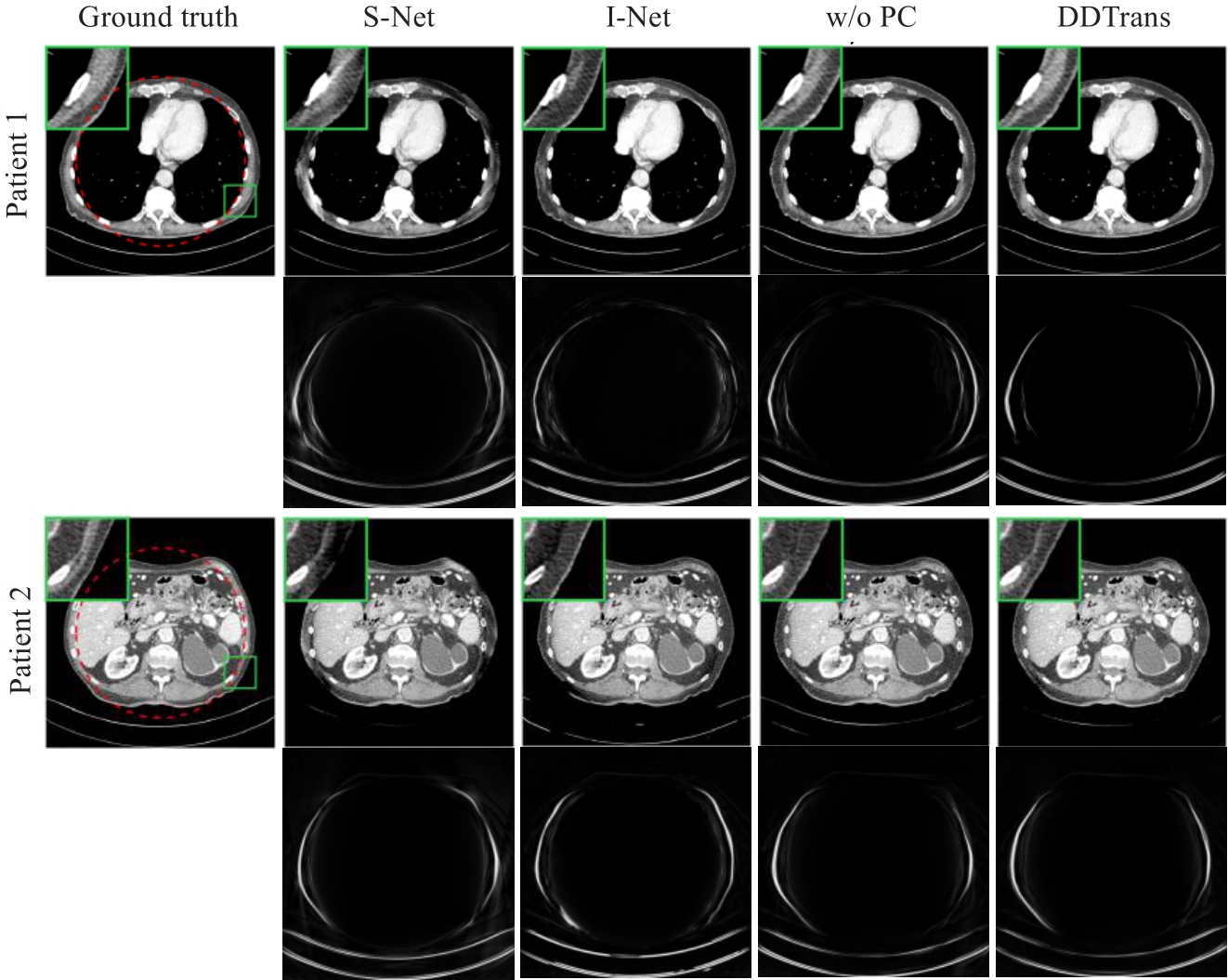

Fig.6 Ablation experiment results of single projection domain network (S-Net), single image domain network (I-Net), dual domain network without projection consistency constraint layer (w/o PC) and DDTrans. The display window is [-200, 200]HU.

Tab.3 Quantitative comparison of ablation experimental results

Methods	RMSE		SSIM		PSNR
Methods	Inside FOV	Outside FOV	Inside FOV	Outside FOV	Inside FOV	Outside FOV
S-Net	6.5405	120.0671	0.9982	0.8898	49.0927	11.5285
I-Net	11.3366	130.1608	0.9965	0.9124	41.9385	10.7919
w/o PC	6.5004	117.1258	0.9989	0.9232	50.4997	11.7845
DDTrans	5.4079	116.9005	0.9991	0.9250	52.4910	12.0010

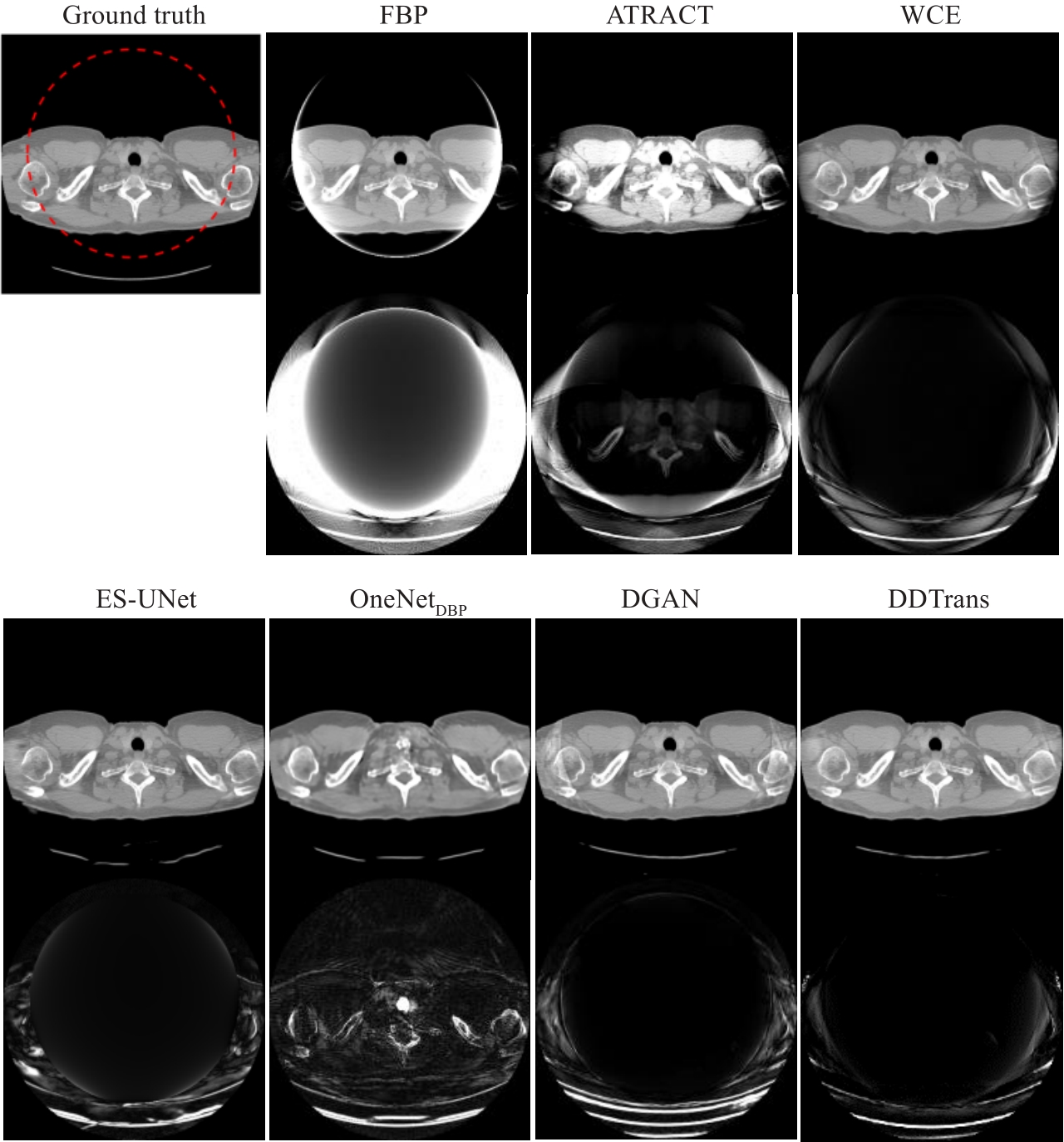

Fig.7 Comparison of the generalization capabilities of different algorithms on shoulder data. The head data display window is [-500, 500]HU. The second and fourth rows are absolute residual images of different algorithm results with respect to the ground truth.

Tab.4 Quantitative comparison of generalization capabilities of different methods.

Methods	RMSE		SSIM		PSNR
Methods	Inside FOV	Outside FOV	Inside FOV	Outside FOV	Inside FOV	Outside FOV
FBP	341.9528	460.3208	0.6594	0.5833	14.7162	9.5040
ATRACT	100.3245	261.8279	0.8597	0.7811	24.1792	13.2714
WCE	22.6755	187.2308	0.9611	0.8212	41.6179	16.1640
ES-UNet	36.4977	149.5005	0.9148	0.8647	40.7829	16.2713
OneNet_DBP	108.2811	159.9267	0.8676	0.8098	23.5470	15.7454
DGAN	19.9203	174.9319	0.9800	0.8205	41.3990	15.4051
DDTrans	16.9099	144.0732	0.9897	0.8891	42.4004	16.7163

Tab.5 Comparison of time consumption of different methods for reconstructing 526 images

Methods	FBP	ATRACT	WCE	ES-UNet	OneNet_DBP	DGAN	DDTrans
Time-consumption (s)	85.7	111.3	93.9	63.5	353.5	114.1	40.6
