多参数多区域MRI影像组学特征与临床信息联合模型可有效预测脑胶质瘤患者生存期

doi:10.12122/j.issn.1673-4254.2024.10.19

摘要/Abstract

摘要：

目的探讨脑胶质瘤患者肿瘤亚区影像组学特征，评估其对患者生存期的预后价值。方法对388例胶质瘤患者的术前MRI多序列影像和临床数据进行回顾性分析，从瘤周水肿区域、肿瘤核心区以及全肿瘤区域提取T1、T2、T1加权对比增强（T1CE）、液体衰减反转恢复（FLAIR）序列的影像组学特征。将病例按照7∶3分为训练集（271例）和测试集（117例）。利用随机生存森林算法在训练集中筛选与总生存期相关的影像组学特征，并构建影像组学评分（Rad-score）。根据Rad-score将患者分为高、低风险组，使用Kaplan-Meier分析两组生存差异。建立瘤周水肿区、肿瘤核心区和全肿瘤区域的Cox比例风险回归模型，并通过五折交叉验证及受试者工作特征曲线下面积评估模型1年、3年生存率的预测效能，采用10例胶质瘤患者作外部验证。选择表现最优的模型进行生存期预测情况的列线图分析。结果肿瘤核心区、瘤周水肿区和全肿瘤区域分别筛选出的影像组学特征数量分别为5、7、5，根据Rad-score，两风险组在训练集和测试集的总生存期存在差异（P<0.05）。单因素和多因素Cox分析显示，年龄、异柠檬酸脱氢酶状态和Rad-score是总生存期的独立影响因素。联合模型在训练集和测试集中的AUC表现优于单一Rad-score模型，其中全肿瘤模型的1年、3年生存率预测AUC分别为0.750、0.778（训练集），0.764、0.800（测试集）和0.938、0.917（外部验证集）。结论基于术前多模态MRI影像组学特征与临床信息联合构建的预测模型能有效预测胶质瘤患者的生存期。

关键词: 胶质瘤, 影像组学, 磁共振成像, 机器学习, 预后分析

Abstract:

Objective To establish a predictive model for survival outcomes of glioma patients based on both brain radiomics features from preoperative MRI multi-sequence images and clinical features. Methods We retrospectively analyzed the MRI images and clinical data of 388 glioma patients and extracted the radiomics features from the peritumoral edema zone, tumor core, and whole tumor on T1, T2, and T1-weighted contrast-enhanced (T1CE) and fluid attenuated inversion recovery (FLAIR) sequences. The cases were divided into a training set (271 cases) and a test set (117 cases). Random survival forest algorithms were used to select the radiomics features associated with overall survival (OS) in the training set to construct a radiomic score (Rad-score), based on which the patients were classified into high- and low-risk groups for Kaplan-Meier survival analysis. Cox proportional hazard regression models for the 3 different tumor zones were constructed, and their performance for predicting 1- and 3-year survival rates was evaluated using 5-fold cross-validation and AUC analysis followed by external validation using data from another 10 glioma patients. The best-performing model was used for constructing a nomogram for survival predictions. Results Five radiomics features from the tumor core, 7 from the peritumoral edema zone, and 5 from the whole tumor were selected. In both the training and test sets, the high- and low-risk groups had significantly different OS (P<0.05), and age, IDH status and Rad-score were independent factors affecting OS. The combined model showed better performance than the Rad-score model with AUCs for 1-year and 3-year survival prediction of 0.750 and 0.778 in the training set, 0.764 and 0.800 in the test set, and 0.938 and 0.917 in external validation, respectively. Conclusion The predictive model combining preoperative multi-modal MRI radiomics features and clinical features can effectively predict survival outcomes of glioma patients.

Key words: glioma, radiomics, magnetic resonance imaging, machine learning, prognostic analysis

黄晓茵, 陈凤莲, 张煜, 梁淑君. 多参数多区域MRI影像组学特征与临床信息联合模型可有效预测脑胶质瘤患者生存期[J]. 南方医科大学学报, 2024, 44(10): 2004-2014.

Xiaoyin HUANG, Fenglian CHEN, Yu ZHANG, Shujun LIANG. A predictive model for survival outcomes of glioma patients based on multi-parametric, multi-regional MRI radiomics features and clinical features[J]. Journal of Southern Medical University, 2024, 44(10): 2004-2014.

图/表 14

图1 研究设计流程图

Fig.1 Flowchart of the study design. T1CE: T1-weighted contrast-enhanced; FLAIR: Fluid attenuated inversion recovery; GLCM: Gray-level co-occurrence matrix; GLRLM: Gray-level run-length matrix; GLSZM: Gray-level size zone matrix; GLDM: Gray-level dependence matrix; NGTDM: Neighborhood gray tone difference matrix; TC: Tumor core; ED: Edema region; WT: Whole tumor; AUC: Area under the curve; DCA: Decision curve analysis.

表1 训练集与测试集患者的一般临床资料比较

Tab.1 Comparison of general clinical data of the patients between the training and test datasets

Item	Training dataset (n=271)	Test dataset (n=117)	χ²	P
Age (year, Mean±SD)	60.72±13.40	58.32±13.29	79.249	0.110
Gender [n (%)]			2.399	0.121
Male	158 (58.30)	78 (66.70)
Female	113 (41.70)	39 (33.30)
WHO grade [n (%)]			1.990	0.370
Ⅱ	2 (0.70)	0 (0.00)
Ⅲ	3 (1.10)	3 (2.60)
Ⅳ	266 (98.20)	114 (97.40)
IDH [n (%)]			1.462	0.227
Wide type	251 (92.60)	104 (88.90)
Mutant	20 (7.40)	13 (11.10)
Status [n (%)]			1.421	0.233
Non-censoring	159 (58.70)	61 (52.10)
Censoring	112 (41.30)	76 (47.90)
Survival time (d, Mean±SD)	461.57±414.48	558.85±463.16	329.837	0.312

表2 预测胶质瘤预后的最优特征所属序列及其系数（肿瘤核心区）

Tab.2 Optimal features from the tumor core for predicting glioma prognosis and the corresponding sequences and coefficients (Core tumor)

No.	Feature name	Sequence	Coefficient
1	wavelet.HHH_glszm_SizeZoneNonUniformityNormalized	T1	-2.886
2	wavelet.HHL_glcm_Imc2	T1	-1.126
3	lbp.3D.m2_firstorder_Maximum	T1	1.154
4	wavelet.HHL_gldm_DependenceNonUniformityNormalized	T2	-1.209
5	original_shape_MajorAxisLength	FLAIR	1.530

表3 预测胶质瘤预后的最优特征所属序列及其系数（瘤周水肿区）

Tab.3 Optimal features from the peritumor edema region for predicting glioma prognosis and their corresponding sequences and coefficients (Edema region)

No.	Feature name	Sequence	Coefficient
1	original_shape_Maximum2DDiameterSlice	T1	0.988
2	original_shape_Flatness	T1	-0.915
3	wavelet.HHH_gldm_DependenceNonUniformityNormalized	T1CE	0.902
4	wavelet.HHL_glszm_SizeZoneNonUniformity	T1CE	0.526
5	lbp.3D.m2_firstorder_90Percentile	T1CE	0.956
6	lbp.3D.k_firstorder_Minimum	FLAIR	-3.017
7	log.sigma.4.0.mm.3D_glrlm_LongRunLowGrayLevelEmphasis	FLAIR	2.411

表4 预测胶质瘤预后的最优特征所属序列及其系数（全肿瘤区域）

Tab.4 Optimal features from the whole tumor for predicting glioma prognosis and their corresponding sequences and coefficients (The whole tumor)

No.	Feature name	Sequence	Coefficient
1	wavelet.HLL_firstorder_Mean	T1	1.787
2	log.sigma.5.0.mm.3D_firstorder_90Percentile	T1	2.131
3	original_shape_Sphericity	FLAIR	-1.247
4	wavelet.LLH_firstorder_Skewness	FLAIR	-0.228
5	wavelet.LHL_firstorder_Skewness	FLAIR	-1.360

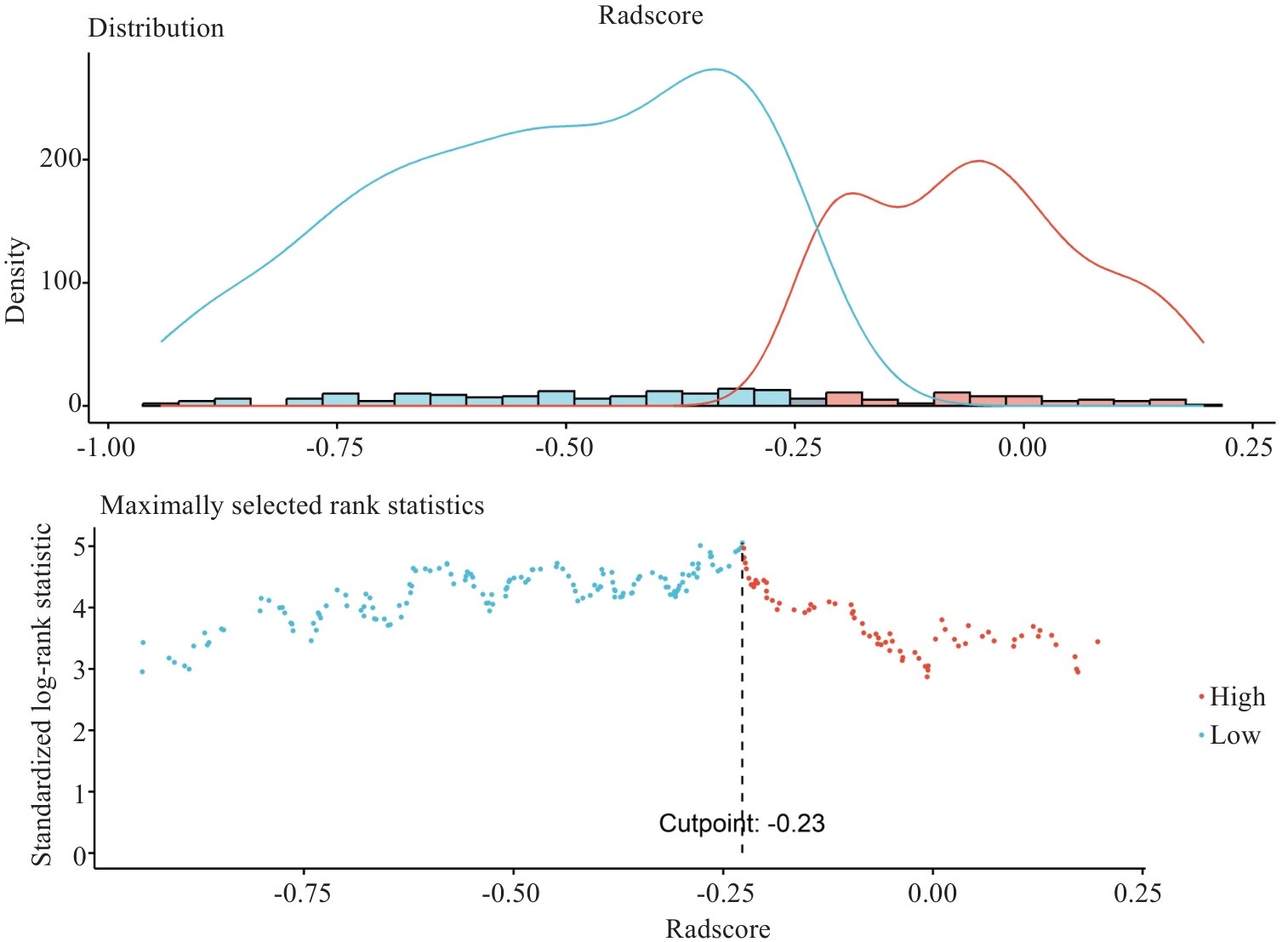

图2 Rad-score最佳阈值的确定(全肿瘤区域)

Fig.2 Optimal cutoff value of Rad-score for the whole tumor. Red lines or dots represent patients with high-risk prognosis and blue ones the low-risk patients. The optimal cutoff value is -0.2274 (shown by the vertical line).

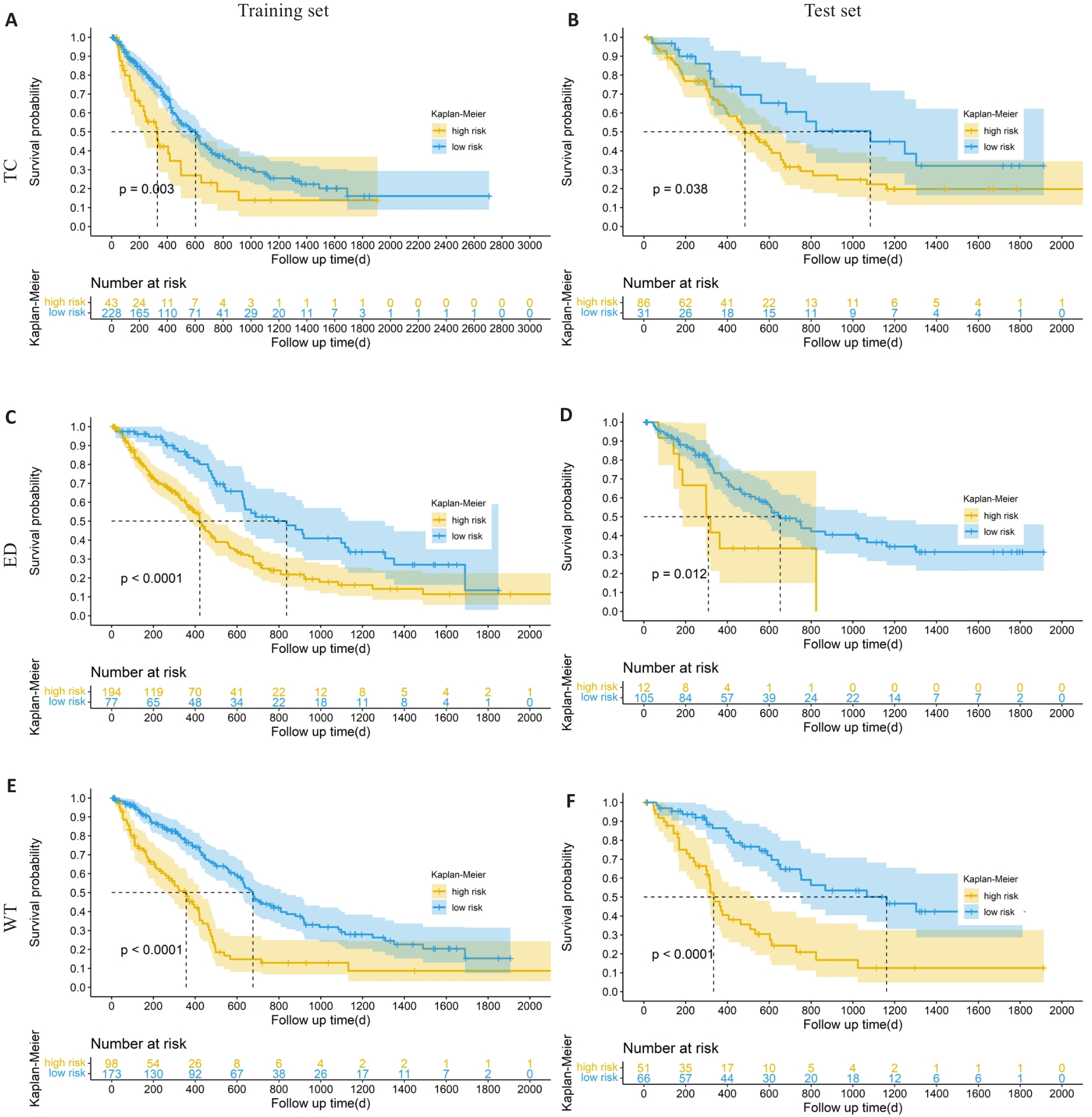

图3 训练集和测试集不同分组的Kaplan-Meier分析

Fig.3 Kaplan-Meier survival analysis of the patients in the high- and low-risk groups in the training and test sets. A, B: Kaplan-Meier analysis of the core tumor area in training set and test set. C, D: Kaplan-Meier analysis of peritumoral edema in the training set and test set. E, F: Kaplan-Meier analysis of the whole tumor in the training set and test set.

表5 胶质瘤患者总生存期预测的单因素和多因素分析结果

Tab.5 Univariate and multivariate analysis of Cox proportional hazards of overall survival of the glioma patients

Item	Univariate analysis			Multivariate analysis
Item	HR	95% CI	P	HR	95% CI	P
Age	1.04	1.03-1.06	<0.001	1.03	1.02-1.05	<0.001
Gender	0.96	0.73-1.25	0.748	-	-	-
WHO grade	3.16	2.27-4.40	<0.001	1.30	0.92-1.84	0.138
IDH	0.13	0.06-0.33	<0.001	0.23	0.09-0.56	0.001
Rad-score (TC)	1.51	1.15-1.98	0.003	1.43	1.08-1.91	0.013
Rad-score (ED)	1.48	1.18-1.86	<0.001	1.49	1.18-1.88	0.001
Rad-score (WT)	2.79	2.15-3.61	<0.001	2.31	1.77-3.03	<0.001

表6 不同模型的效能

Tab.6 Performance of different models

Tumor area	Model	Training set (Cross validation)		Test set
Tumor area	Model	1-year overall survival AUC	3-year overall survival AUC	1-year overall survival AUC	3-year overall survival AUC
TC	Clinical information	0.716	0.758	0.682	0.743
	Rad-score	0.583	0.613	0.503	0.637
	Joint model	0.727	0.792	0.684	0.707
ED	Clinical information	0.716	0.767	0.682	0.743
	Rad-score	0.678	0.728	0.582	0.613
	Joint model	0.750	0.816	0.678	0.747
WT	Clinical information	0.722	0.752	0.682	0.743
	Rad-score	0.707	0.711	0.711	0.739
	Joint model	0.750	0.778	0.764	0.800

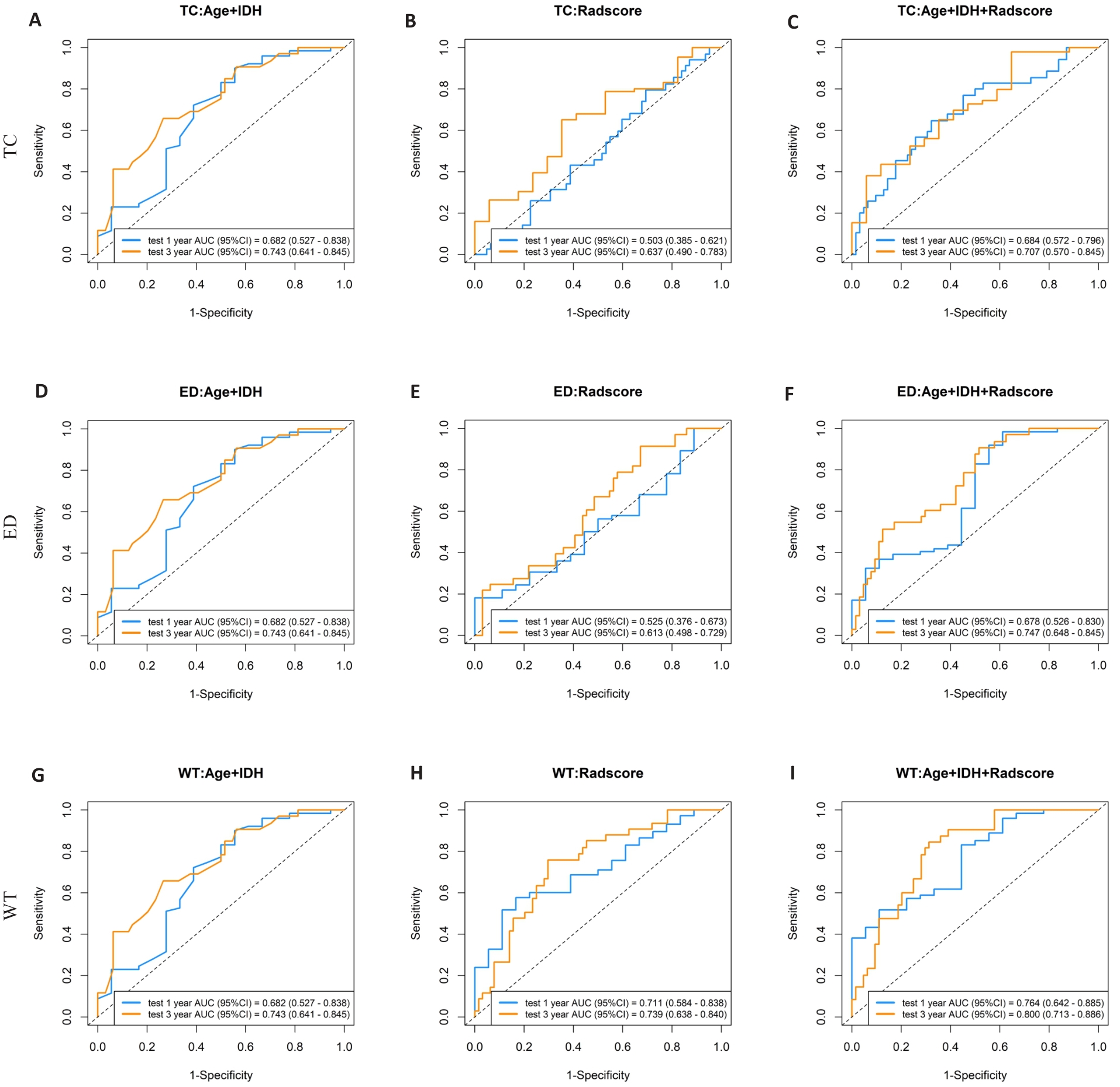

图4 肿瘤核心区、瘤周水肿区、全肿瘤区域的测试集中不同模型之间1、3年生存率受试者工作特征曲线

Fig.4 Receiver-operating characteristic curves of 1-year and 3-year survival rates predicted by the clinical information model, Rad-score model, and joint model in the test set for core tumor area (A-C), peritumoral edema area (D-F), and whole tumor (G-I).

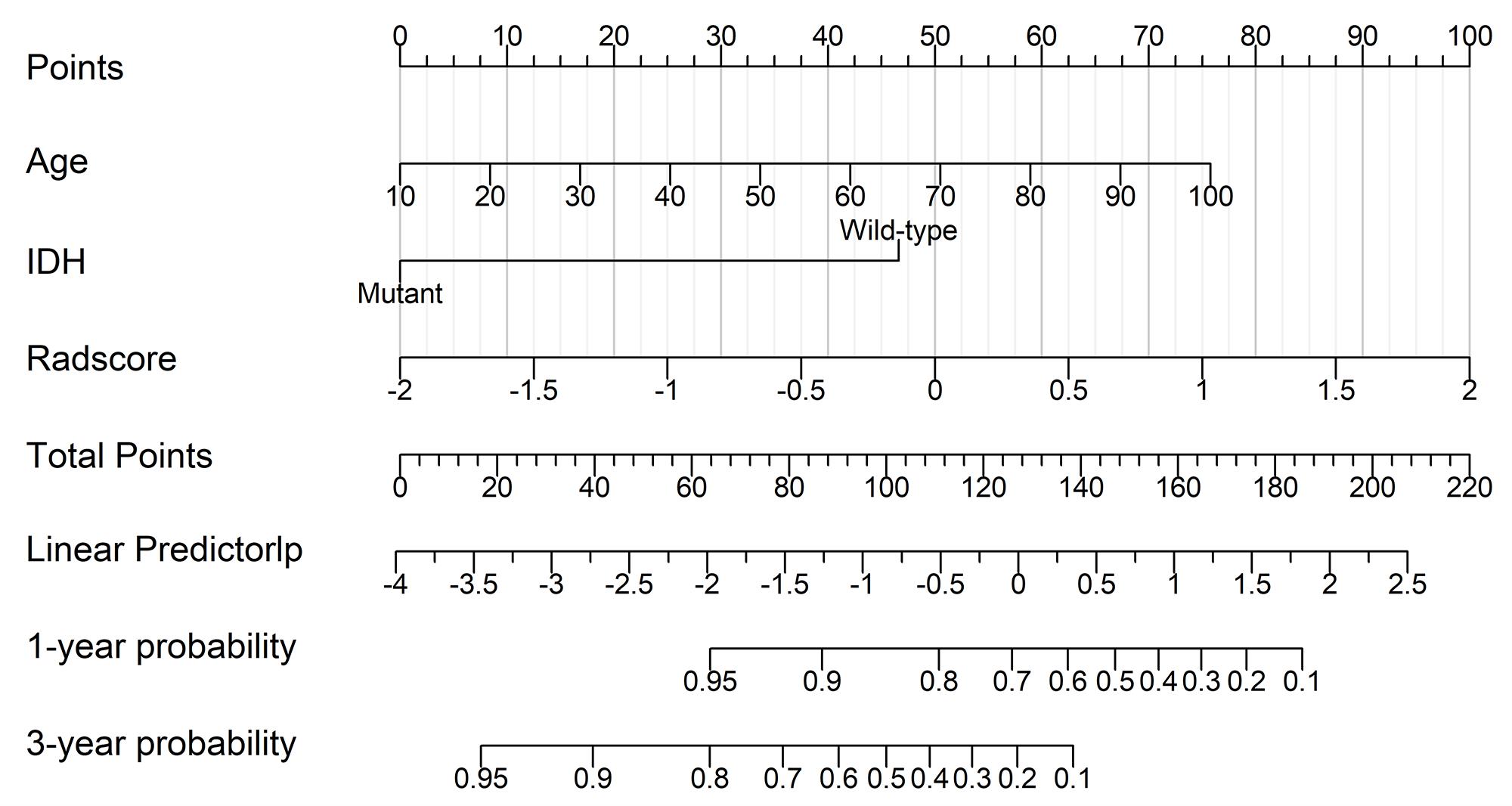

图5 胶质瘤患者1年、3年生存率预后预测列线图

Fig.5 Prognosis prediction nomogram of 1-year and 3-year survival rate in glioma patients.

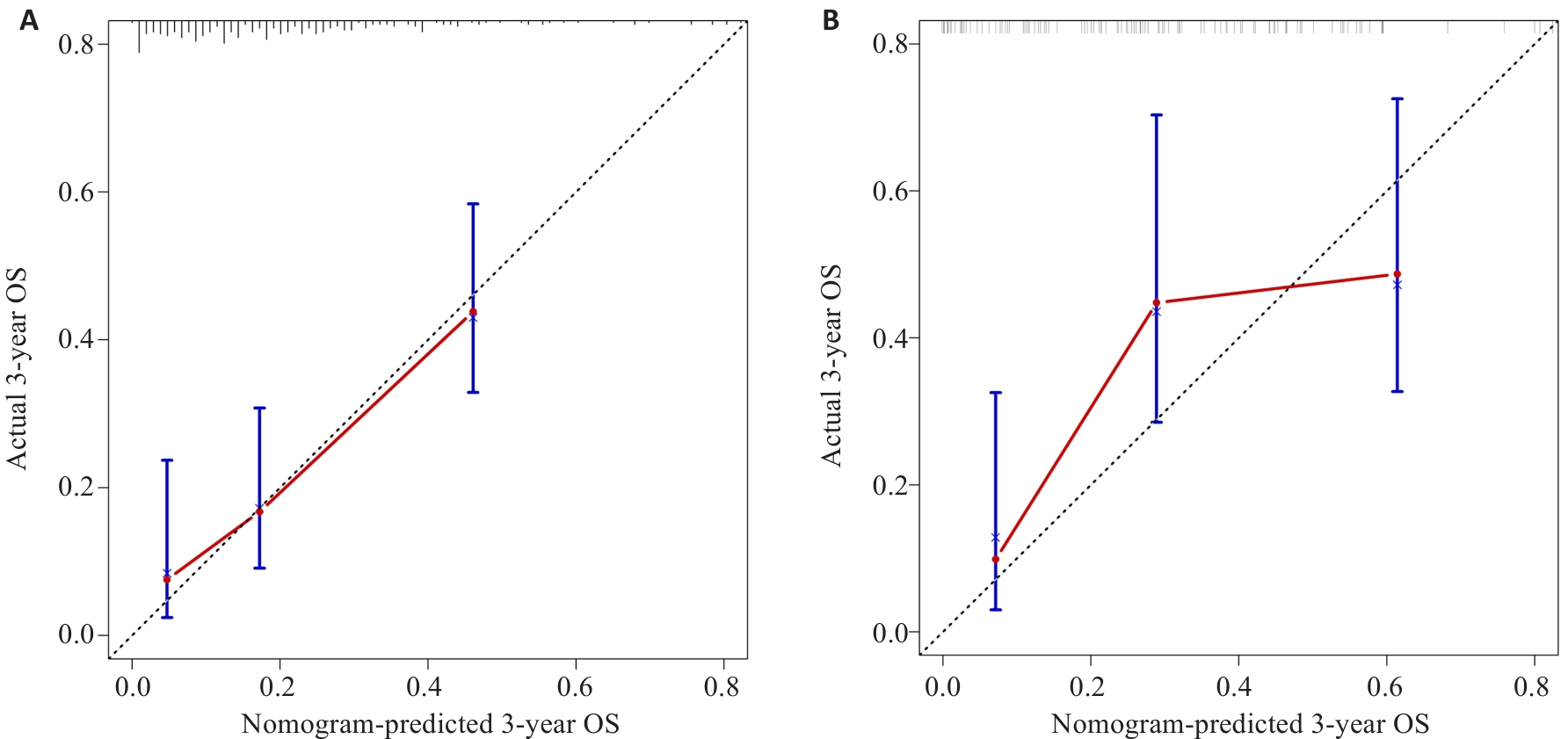

图6 训练集(A)和测试集(B)中胶质瘤患者预测3年生存率列线图的校准曲线

Fig.6 Nomogram for predicting 3-year OS and PFS in patients with glioma in the training set (A) and test set (B).

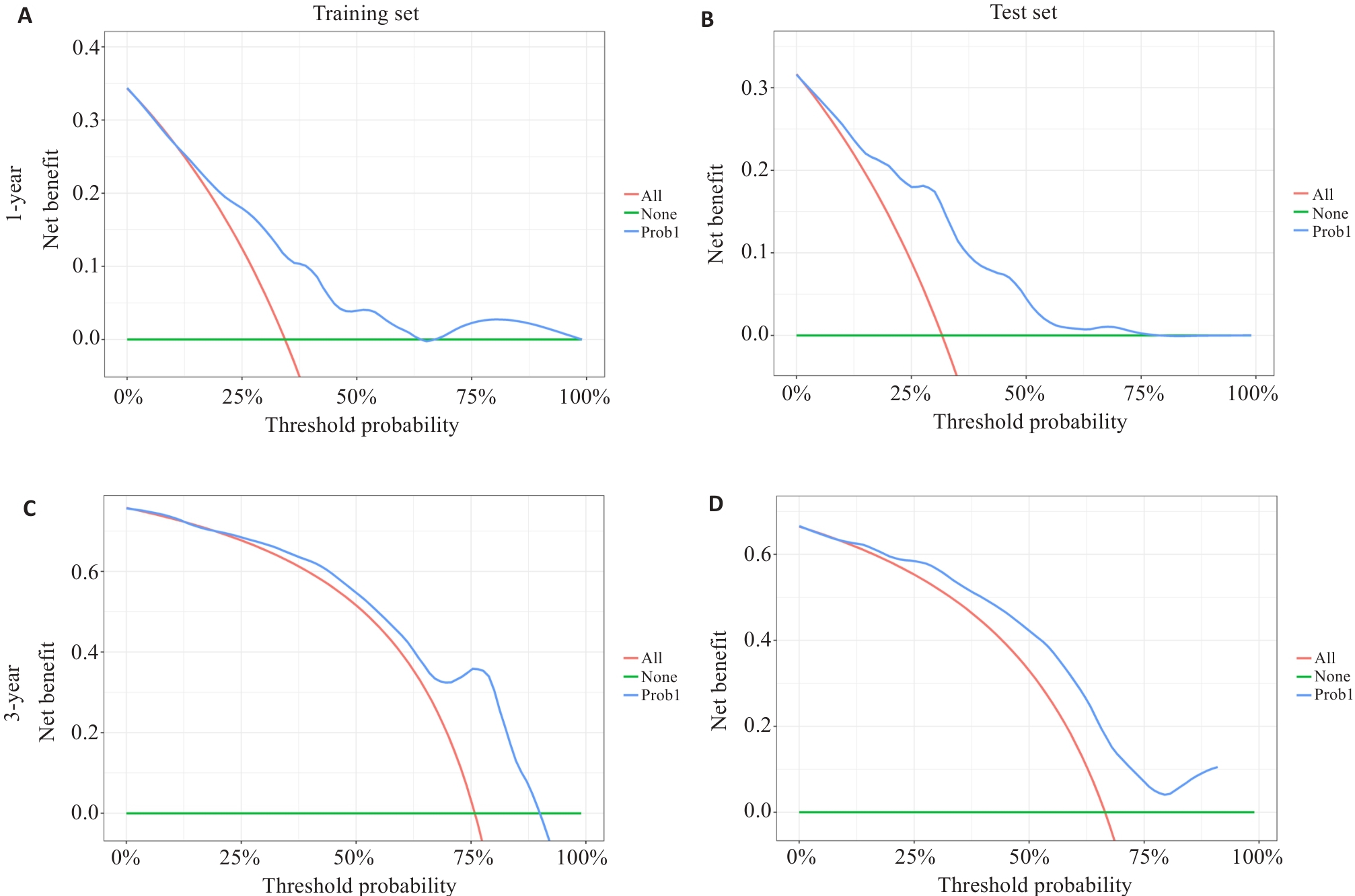

图7 训练集(A、C)和测试集(B、D)中列线图模型分别预测胶质瘤1、3年总生存率的决策曲线

Fig.7 Decision curve analysis of survival prediction nomograms for 1-year and 3-year overall survival rates of glioma patients in the training set (A, C) and test set (B, D).
