Influence of implant depth and scanning rod length on accuracy of digital impression for mandibular posterior single-tooth implant restoration

doi:10.12122/j.issn.1673-4254.2024.11.23

Abstract

Abstract:

Objective To study the influence of implant depth and scanning rod lengths on the accuracy of digital impression for single-tooth implant restoration of the mandibular posterior teeth. Methods Five standard dental cast models with missing right mandibular first molar (46) were prepared with the subgingival implant depths of 0, 1, 3, 5 and 7 mm. ITI RC and ITI RC H11 scanning rods were connected to the replacement body and placed into the seating tract for scanning. The reference data were obtained using a 3D dental scanner, and the experimental data were obtained by 10 scans of each model using a digitized intraoral scanner. Geomagic Wrap 2021 was used to analyze the model data to test the trueness and precision of the models. Results The trueness did not differ significantly among the groups (P>0.05). The implant depth of 1 mm achieved the highest impression precision (66.81±2.45 μm), and the depth of 0 mm resulted in a significantly lower precision (95.60±3.04 μm) than the depth of 1 and 3 mm. Starting from the subgingival depth of 1 mm, the precision of the scan decreased progressively with the increase of the implant depth. At the subgingival implant depth of 5 or 7 mm, the use of an extended rod significantly improved the scan precision. Conclusion For single-tooth implant restoration of the mandibular posterior teeth, the implant depth can substantially affect the accuracy of digital impression, which decreases as the implant depth increases. For a deep implant, the use of a longer scanning rod can improve the scanning accuracy.

Key words: Oral implants, implantation depth, scanning rod, Impression accuracy, Digital impression technology

Shuyu SUN, Xinyan ZHENG, Hongqin GAN, Ruixue TIAN, Xiaofei XIE. Influence of implant depth and scanning rod length on accuracy of digital impression for mandibular posterior single-tooth implant restoration[J]. Journal of Southern Medical University, 2024, 44(11): 2250-2255.

Figures/Tables 7

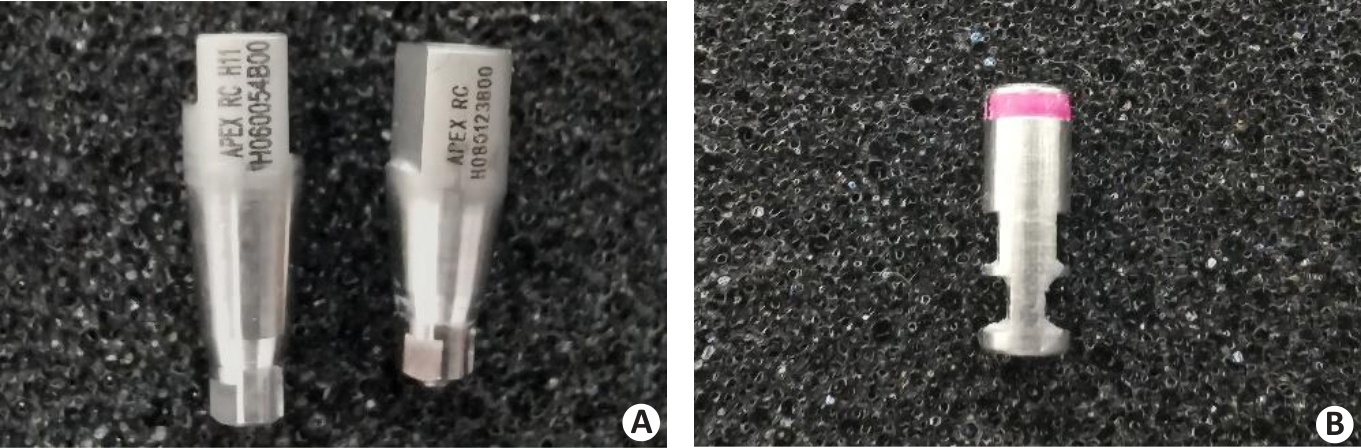

Fig.1 ITI RC and ITI RC H11 model scanning rods (A) and the replacement body (B).

Fig. 2 Implantation models showing placement of ITI RC and ITI RC H11 scanning rods with subgingival implant depth and upper scanning rod length of 0 mm and 9.15 mm (A), 1 mm and 8.15 mm (B), 3 mm and 6.15 mm (C), 5 mm and 4.15 mm (D, using an ITI RC scanning rod), or 7 mm and 2.15 mm (E, using an ITI RC scanning rod), respectively. F: Implant depth of 5 mm with placement of an ITI RC H11 scanning rod. G: Implant depth of 7 mm with placement of an ITI RC H11 rod.

Fig.3 3D dental scanner.

Fig.4 Scanning model obtained using a 3D tooth scanner.

Tab.1 Comparison of precision RMS values among groups with different subgingival implant depth (n=10, μm)

Group	Mean±SD	Min	Max	LSD
A (0 mm)	95.60±3.04	90.8	99.7	A>C>B* B<C<D<E^#
B (1 mm)	66.81±2.45*	61.2	69.7
C (3 mm)	85.84±2.54*^#	81.3	89.8
D (5 mm)	96.09±2.92^#	91.3	99.7
E (7 mm)	105.93±3.81^#	100.2	110.7
Total	90.05±13.68	61.2	110.7

Fig.5 Color map of implant scanning data deviation under different subgingival implant depths. A: 0 mm; B: 1 mm; C: 3 mm; D: 5 mm; E: 7 mm.

Tab.2 Comparison of model precision RMS values using scan rods of different lengths (n=10, μm)

Subgingival (mm)	Type	Mean±SD	t	P
5	RC	96.09±2.92	8.129	<0.01
5	RC H11	84.49±2.57	8.129	<0.01
7	RC	105.93±3.81	7.877	<0.01
7	RC H11	93.74±2.98	7.877	<0.01

References 32
