Tougu Xiaotong Capsule alleviates cartilage degeneration in mice with knee osteoarthritis by modulating Nav1.7

doi:10.12122/j.issn.1673-4254.2024.11.03

Abstract

Abstract:

Objective To investigate the mechanism by which Tougu Xiaotong Capsule (TGXTC) alleviates chondrocyte degeneration in knee osteoarthritis (KOA). Methods Thirty 2-month-old C57BL/6 mouse models of KOA established using the Hulth method were randomized into model group, TGXTC group, and diclofenac sodium group and received treatment with saline, TGXTC (368 mg/kg), and diclofenac sodium (10 mg/kg) by gavage, respectively, with another 10 untreated mice as the blank control group. All interventions were administered 6 times a week for 4 weeks. After the treatments, structural changes in the cartilage tissue were observed with morphological staining, and Nav1.7 mRNA expression and the protein expression levels of Nav1.7, MMP-3, ADAMTS-5, and COX-2 were detected using RT-qPCR and Western blotting. Fluorescence in situ hybridization (FISH) was used to detect Nav1.7 expression in the chondrocytes. In cultured KOA chondrocytes, the effect of TGXTC and lentivirus-mediated Nav1.7 knockdown on MMP-3, MMP-13, ADAMTS-4, ADAMTS-5, and COX-2 protein expressions were assessed with Western blotting. Results In KOA mice treatments with TGXTC and diclofenac sodium both significantly alleviated structural damage of the cartilage layer, reduced Nav1.7 protein and mRNA expressions and lowered the expressions of MMP-3, ADAMTS-5, and COX-2 proteins in the cartilage tissues. FISH results indicated that TGXTC treatment significantly reduced IL-1β-induced Nav1.7 expression in the chondrocytes. In Nav1.7 knockdown experiment, Nav1.7 levels were significantly lower in IL-1β+sh-Nav1.7 group than in IL-1β group, and also lower in IL-1β+TGXTC group than in IL-1β+sh-Nav1.7+TGXTC group. TGXTC treatment significantly inhibited IL-1β-induced elevation of MMP-3, MMP-13, ADAMTS-4, ADAMTS-5 and COX-2 protein expressions in the chondrocytes, but its effects were strongly weakened by Nav1.7 knockdown. Conclusion TGXTC alleviates extracellular matrix metabolic disorder in KOA chondrocytes by regulating Nav1.7, thereby mitigating chondrocyte degeneration in KOA mice.

Key words: Tougu Xiaotong Capsule, Nav1.7, chondrocyte degeneration, knee osteoarthritis

Changlong FU, Yanming LIN, Shujie LAN, Yue CHEN, Chao LI, Shiyu LU, Qing LIN. Tougu Xiaotong Capsule alleviates cartilage degeneration in mice with knee osteoarthritis by modulating Nav1.7[J]. Journal of Southern Medical University, 2024, 44(11): 2074-2081.

Figures/Tables 5

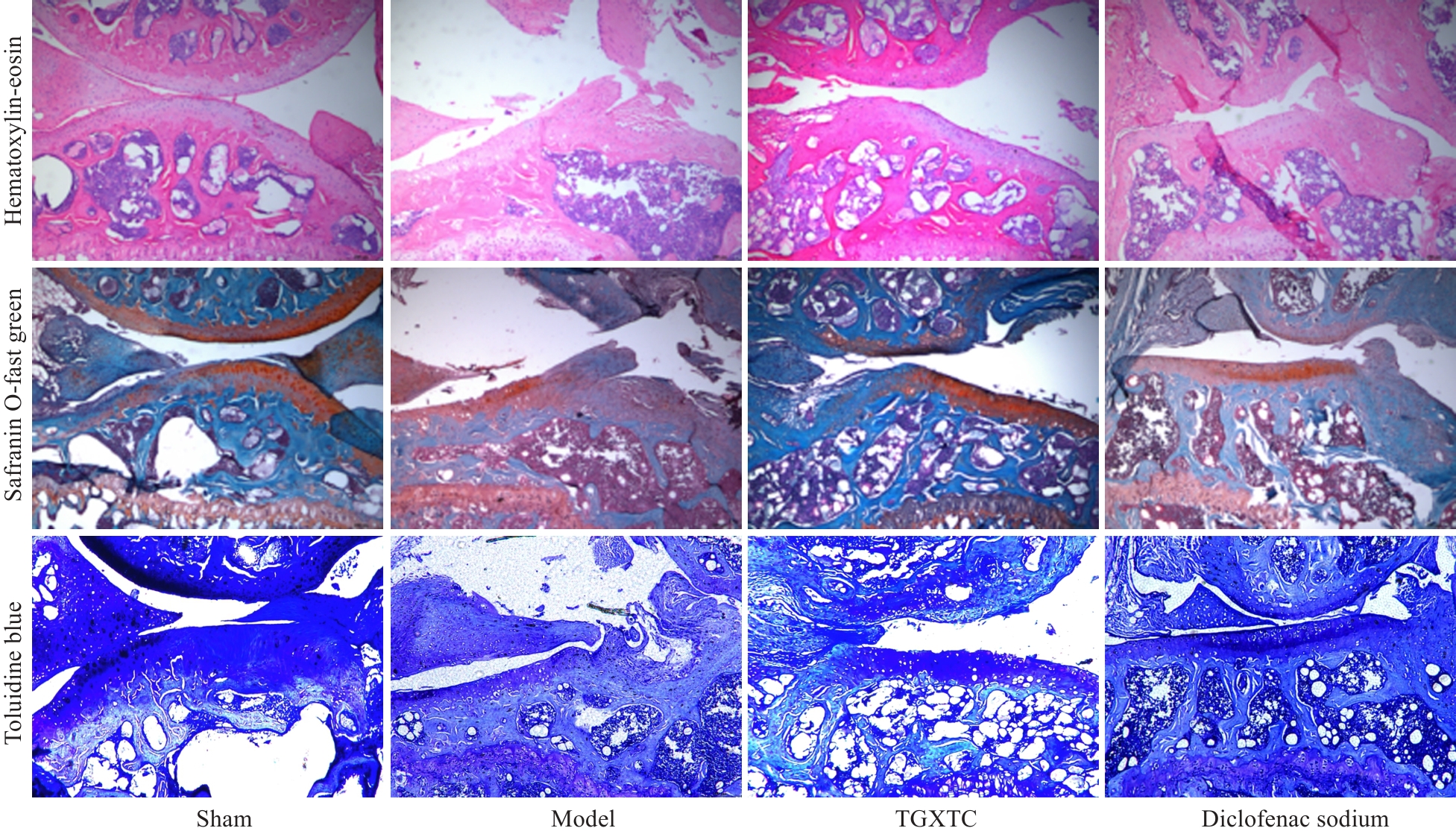

Fig.1 HE, safranin O and toluidine blue staining of the articular cartilage in different groups (Original magnification: ×100).

Fig.2 Nav1.7, MMP-3, ADAMTS-5, and COX-2 protein expressions in the cartilage tissue in different groups. A-E: Western blotting and quantitative data of Nav1.7, MMP-3, ADAMTS-5, and COX-2 expressions in each group (n=3). *P<0.05 vs Sham group, #P<0.05 vs Model group.

Fig.3 Multiplicity of infection conditions of Nav1.7 transfection into the chondrocytes.

Fig.4 Fluorescence in situ hybridization reveals Nav1.7 expression in the cytoplasm of the chondrocytes (×100). *P<0.05 vs Sham group; #P<0.05 vs IL-1β group.

Fig.5 MMP-3, MMP-13, ADAMTS-4, ADAMTS-5, and COX-2 proteins expressions in the chondrocytes with TGXTC treatment and lentivirus-mediated Nav1.7 knockdown. A-F: Western blotting and quantitative data of MMP-3, MMP-13, ADAMTS-4, ADAMTS-5 and COX-2 expressions in each group (n=3). *P<0.05 vs Sham group; #P<0.05 vs IL-1β group; &P<0.05 vs IL-1β+sh-Nav1.7 group; △P<0.05 vs IL-1β+TGXTC group.

References 41

1	Diamond LE, Grant T, Uhlrich SD. Osteoarthritis year in review 2023: Biomechanics[J]. Osteoarthritis Cartilage, 2024, 32(2): 138-47.
2	Gelber AC. Knee osteoarthritis[J]. Ann Intern Med, 2024, 177(9): ITC129-44.
3	Liew JW, King LK, Mahmoudian A, et al. A scoping review of how early-stage knee osteoarthritis has been defined[J]. Osteoarthritis Cartilage, 2023, 31(9): 1234-41.
4	Li XH, Zhang ZL, Liang WN, et al. Tougu Xiaotong capsules may inhibit p38 MAPK pathway-mediated inflammation: in vivo and in vitro verification[J]. J Ethnopharmacol, 2020, 249: 112390.
5	Li X, Zhang Z, Liang W, et al. Data on Tougu Xiaotong capsules may inhibit p38 MAPK pathway-mediated inflammation in vitro [J]. Data Brief, 2019, 28: 105023.
6	Liao JH, Yu XB, Chen JQ, et al. Knowledge mapping of autophagy in osteoarthritis from 2004 to 2022: a bibliometric analysis[J]. Front Immunol, 2023, 14: 1063018.
7	Alles SRA, Smith PA. Peripheral voltage-gated cation channels in neuropathic pain and their potential as therapeutic targets[J]. Front Pain Res, 2021, 2: 750583.
8	Deng L, Dourado M, Reese RM, et al. Nav1.7 is essential for nociceptor action potentials in the mouse in a manner independent of endogenous opioids [J]. Neuron, 2023, 111(17): 2642-59.
9	Loya-López SI, Duran P, Ran DZ, et al. Cell specific regulation of NaV_1.7 activity and trafficking in rat nodose Ganglia neurons[J]. Neurobiol Pain, 2022, 12: 100109.
10	Xue YP, Chidiac C, Herault Y, et al. Pain behavior in SCN9A (Nav1.7) and SCN10A (Nav1.8) mutant rodent models[J]. Neurosci Lett, 2021, 753: 135844.
11	Jami S, Deuis JR, Klasfauseweh T, et al. Pain-causing stinging nettle toxins target TMEM233 to modulate Na_V1.7 function[J]. Nat Commun, 2023, 14(1): 2442.
12	Sun LT, Xia RL, Jiang JW, et al. MicroRNA-96 is required to prevent allodynia by repressing voltage-gated sodium channels in spinal cord[J]. Prog Neurobiol, 2021, 202: 102024.
13	Fu WY, Vasylyev D, Bi YF, et al. Na_v1.7 as a chondrocyte regulator and therapeutic target for osteoarthritis[J]. Nature, 2024, 625(7995): 557-65.
14	Hidaka K, Maruta T, Koshida T, et al. Extracellular signal-regulated kinase phosphorylation enhancement and Na_V1.7 sodium channel upregulation in rat dorsal root Ganglia neurons contribute to resiniferatoxin-induced neuropathic pain: the efficacy and mechanism of pulsed radiofrequency therapy[J]. Mol Pain, 2022, 18: 17448069221089784.
15	Kamei T, Kudo T, Yamane H, et al. Unique electrophysiological property of a novel Nav1.7, Nav1.8, and Nav1.9 sodium channel blocker, ANP-230[J]. Biochem Biophys Res Commun, 2024, 721: 150126.
16	Yin JB, Liu HX, Dong QQ, et al. Correlative increasing expressions of KIF5b and Nav1.7 in DRG neurons of rats under neuropathic pain conditions[J]. Physiol Behav, 2023, 263: 114115.
17	朱海波, 何忠斌. 透骨消痛胶囊治疗骨质疏松性骨关节炎的临床疗效[J]. 内蒙古中医药, 2019, 38(8): 25-6.
18	Shi XQ, Jie LS, Wu P, et al. Calycosin mitigates chondrocyte inflammation and apoptosis by inhibiting the PI3K/AKT and NF-κB pathways[J]. J Ethnopharmacol, 2022, 297: 115536.
19	Liu DR, Mei W, Kang JF, et al. Casticin ameliorates osteoarthritic cartilage damage in rats through PI3K/AKT/HIF-1α signaling[J]. Chem Biol Interact, 2024, 391: 110897.
20	李孝栋, 张丽红, 肖晓金, 等. 透骨消痛胶囊质量标准的研究[J]. 福建中医药, 2012, 43(1): 57-9.
21	廖乃顺, 陈文列, 郑良朴, 等. 透骨消痛胶囊的急性毒性实验[J]. 福建中医药大学学报, 2012, 22(2): 54-7.
22	肖晓金, 包侠萍, 张丽红, 等. 透骨消痛胶囊在大鼠体内药代动力学初步研究[J]. 福建中医药大学学报, 2014, 24(2): 35-7, 42.
23	Li XH, Wu MX, Ye HZ, et al. Experimental study on the suppression of sodium nitroprussiate-induced chondrocyte apoptosis by Tougu Xiaotong Capsule[J]. Chin J Integr Med, 2011, 17(6): 436-43.
24	Sethi V, Qin L, Trocóniz IF, et al. Model-based assessment of the liver safety profile of acetaminophen to support its combination use with topical diclofenac in mild-to-moderate osteoarthritis pain[J]. Pain Ther, 2024, 13(1): 127-43.
25	Li TT, Guo MB, Zhang WL. Comparison of therapeutic effects of topical application of diclofenac sodium nanoparticles and conventional placebo on knee osteoarthritis[J]. Cell Mol Biol, 2022, 68(3): 171-8.
26	Ma YT, Dong YL, Wang B, et al. Dry needling on latent and active myofascial trigger points versus oral diclofenac in patients with knee osteoarthritis: a randomized controlled trial[J]. BMC Musculoskelet Disord, 2023, 24(1): 36.
27	Fu CL, Lin YM, Tu HS, et al. Mechanism of Tougu Xiaotong Capsules in delaying degeneration of osteoarthritis by regulating cholesterol metabolism in chondrocytes through lncRNA MALAT1[J]. China J Chin Mater Med, 2024, 49(7): 1785-92.
28	Wu GW, Zhang JH, Chen WL, et al. Tougu Xiaotong capsule exerts a therapeutic effect on knee osteoarthritis by regulating subchondral bone remodeling[J]. Mol Med Rep, 2019, 19(3): 1858-66.
29	Wu GW, Huang YM, Chen WL, et al. Tougu Xiaotong capsule exerts a therapeutic effect by improving knee meniscus in the early osteoarthritis rat model[J]. Exp Ther Med, 2020, 19(6): 3641-9.
30	Liang WN, Li XH, Hu L, et al. An in vitro validation of the therapeutic effects of Tougu Xiaotong capsule on tunicamycin-treated chondrocytes[J]. J Ethnopharmacol, 2019, 229: 215-21.
31	Hu QC, Williams SL, Palladino A, et al. Screening of MMP-13 inhibitors using a GelMA-alginate interpenetrating network hydrogel-based model mimicking cytokine-induced key features of osteoarthritis in vitro [J]. Polymers, 2024, 16(11): 1572.
32	Zhao QH, Lin LP, Guo YX, et al. Matrix metalloproteinase-13, NF-κB p65 and interleukin-1β are associated with the severity of knee osteoarthritis[J]. Exp Ther Med, 2020, 19(6): 3620-6.
33	Kumar P, Kumar S, Abhilasha A, et al. The role of matrix metalloproteinase 13 and vitamin D in osteoarthritis: a hospital-based observational study[J]. Cureus, 2023, 15(9): e45437.
34	Wang ZY, Shi WM, Wu LH, et al. TMF inhibits extracellular matrix degradation by regulating the C/EBPβ/ADAMTS5 signaling pathway in osteoarthritis[J]. Biomed Pharmacother, 2024, 174: 116501.
35	Wang Z, Efferth T, Hua X, et al. Medicinal plants and their secondary metabolites in alleviating knee osteoarthritis: a systematic review[J]. Phytomedicine, 2022, 105: 154347.
36	Weng KD, Luo MJ, Dong DH. Elucidation of the mechanism by which a ADAMTS5 gene microRNA-binding site single nucleotide polymorphism affects the risk of osteoarthritis[J]. Genet Test Mol Biomarkers, 2020, 24(8): 467-77.
37	Chiang YF, Huang KC, Wang K, et al. Protective Effects of an Oligo-Fucoidan-Based Formula against Osteoarthritis Development via iNOS and COX-2 Suppression following Monosodium Iodoacetate Injection[J]. Mar Drugs, 2024, 22(5): 211.
38	Yu M, Park C, Son YB, et al. Time-dependent effect of eggshell membrane on monosodium-iodoacetate-induced osteoarthritis: early-stage inflammation control and late-stage cartilage protection[J]. Nutrients, 2024, 16(12): 1885.
39	Wang YH, Zhu LL, Li TL, et al. Imrecoxib: advances in pharmacology and therapeutics[J]. Drug Des Devel Ther, 2024, 18: 1711-25.
40	Hestehave S, Allen HN, Gomez K, et al. Small molecule targeting NaV_1.7 via inhibition of CRMP2-Ubc9 interaction reduces pain-related outcomes in a rodent osteoarthritic model[J]. Pain, 2024. doi: 10.1097/j.pain.0000000000003357 .
41	Rahman W, Dickenson AH. Osteoarthritis-dependent changes in antinociceptive action of Nav1.7 and Nav1.8 sodium channel blockers: an in vivo electrophysiological study in the rat[J]. Neuroscience, 2015, 295: 103-16.
