Intrinsic steady-state pattern of mouse cardiac electrophysiology: analysis using a characterized quantitative electrocardiogram strategy

doi:10.12122/j.issn.1673-4254.2024.10.17

Abstract

Abstract:

Objective To explore the intrinsic steady-state electrophysiological properties of mouse heart under physiological conditions by high-resolution quantitative analysis. Methods Twenty-two young adult C57BL/6 mice with a 1:1 male-to-female ratio were used. The limbs of the mice were fixed without anesthesia, and electrocardiographic waveforms, including characteristic P-waves, R-waves, and ST-waves, were recorded using a sensitive 12-lead electrophysiological recorder (ECG_sqa) under spontaneous breathing. LabScribe software was used to extract and quantify high-resolution time course and amplitude parameters within a single cardiac cycle from the V3 precordial lead. Pearson correlation test combined with simple linear regression was used to generate a scatter plot of ECG parameter fitting. The common and unique correlation parameters were separately identified by joint associations for profiling the quantitative association network. Results ECG_sqa analysis identified and quantified 14 characteristic ECG parameters, 28.6% of which showed statistical differences between the groups. Compared to male mice, female mice exhibited higher amplitudes and velocities of R and ST waves. Among the 51 association pairs identified in primary association analysis, 47.1% were positively correlated, including shared (29.2%), male-specific (29.2%), and female-specific (41.7%) association groups. Second-order clustering of the association pairs revealed that the amplitude-rate association pairs of each waveform voltage in both male and female mouse hearts were strongly correlated. The male mice showed an atrioventricular interconnection pattern, while the female mice showed a unique atrial conduction system quality dependence. The distribution network characteristics of the association groups showed that sex-specific and common correlation sets formed a certain series pattern. Conclusion We discovered a novel intrinsic correlation network of cardiac electrophysiological traits in male and female mice, which reveals the key internal quantitative characteristics and gender difference of both atrial and ventricular conduction systems.

Key words: cardiac electrophysiology, quantitative ECG strategy, P wave, R wave, ST wave

Siyi CHENG, Zerui CHEN, Changjiang YU, Tucheng SUN, Shuoji ZHU, Nanbo LIU, Ping ZHU. Intrinsic steady-state pattern of mouse cardiac electrophysiology: analysis using a characterized quantitative electrocardiogram strategy[J]. Journal of Southern Medical University, 2024, 44(10): 1985-1994.

Figures/Tables 10

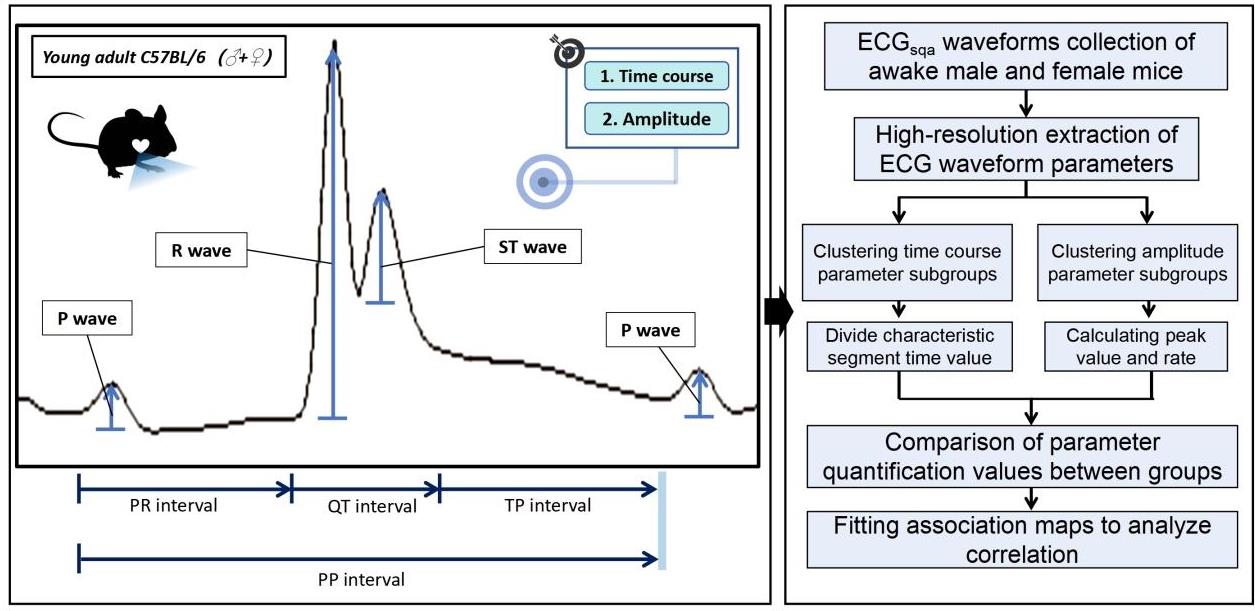

Fig.1 Characteristic parameters and mathematical application pathway of ECGsqa parameters within one single cardiac cycle.

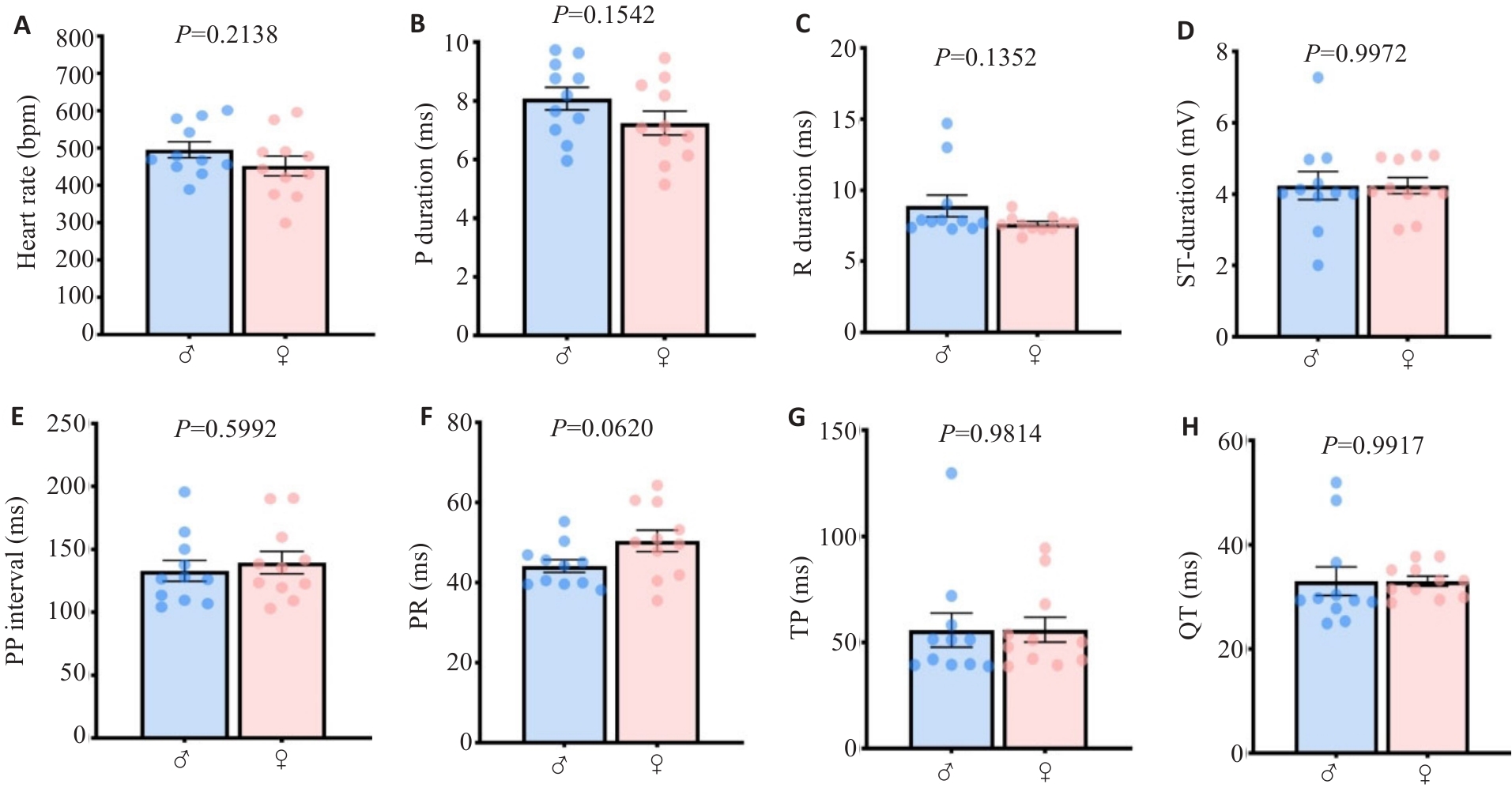

Fig. 2 The main quantified ECGsqa time course parameters in mice are conserved between genders. A: Heart rate. B: P wave rising segment duration. C: R wave rising segment duration. D: ST rising segment duration. E: PP interval. F: PR interval. G: P interval. H: QT interval.

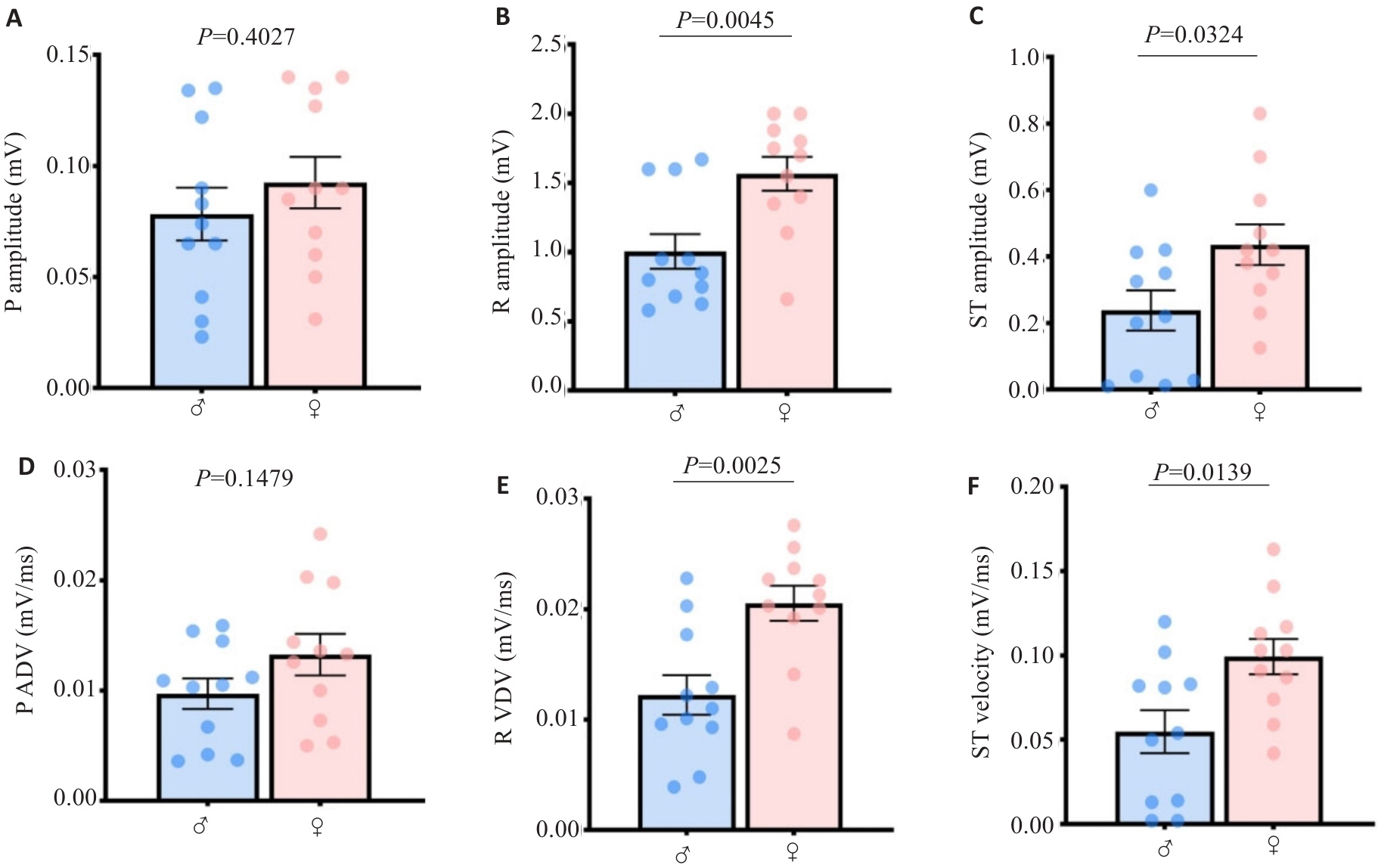

Fig.3 Quantitative values of atrioventricular ECGsqa amplitude and velocity in mice harbor mathematical characteristics of gender differences. A: P wave amplitude. B: R wave amplitude. C: ST segment amplitude. D: P wave velocity. E: R wave velocity. F: ST segment velocity.

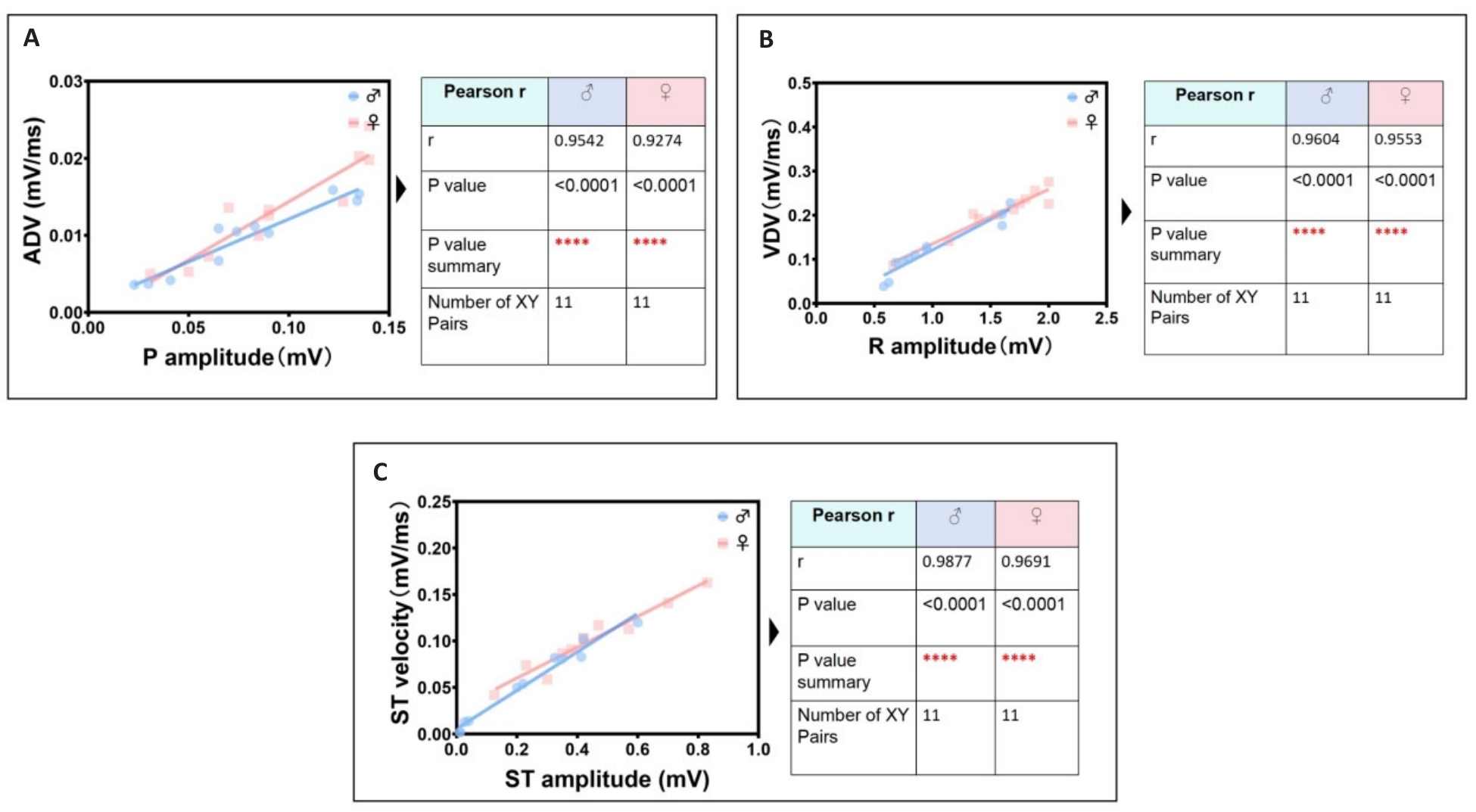

Fig.4 Identification group of the most significant linear correlation parameters in ECGsqa of both male and female mice. A: P wave amplitude is positively correlated with atrial depolarization rate (ADV). B: R wave amplitude is positively correlated with ventricular depolarization rate (VDV). C: ST segment amplitude is positively correlated with ventricular ST segment velocity.

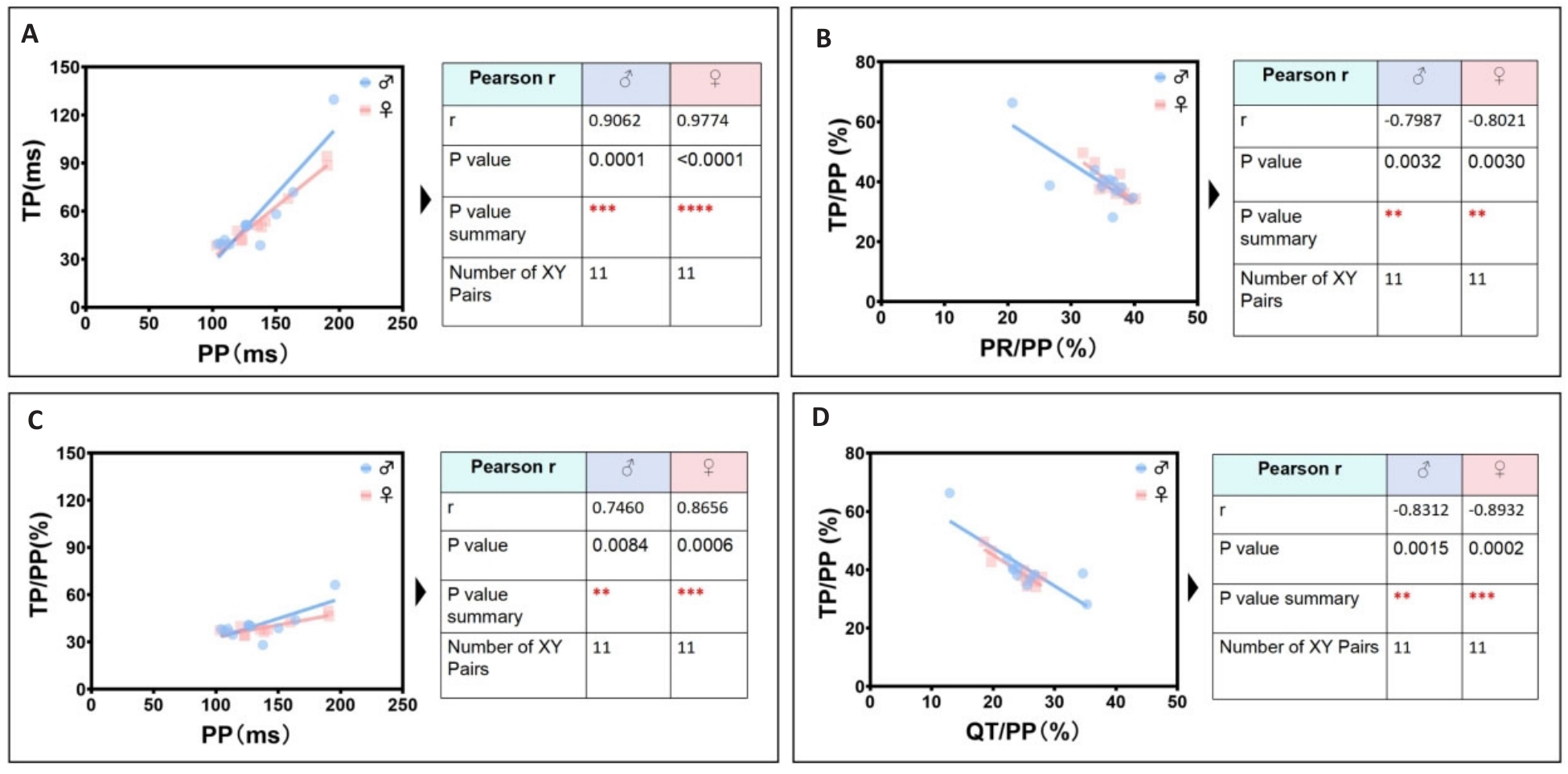

Fig.5 Identification group of secondary significant linear correlation parameters in ECGsqa of both male and female mice. A: PP interval is positively correlated with TP interval. B: PR/PP ratio is negatively correlated with TP/PP ratio. C: PP interval is positively correlated with TP/PP ratio. D: QT/PP ratio is negatively correlated with TP/ PP ratio.

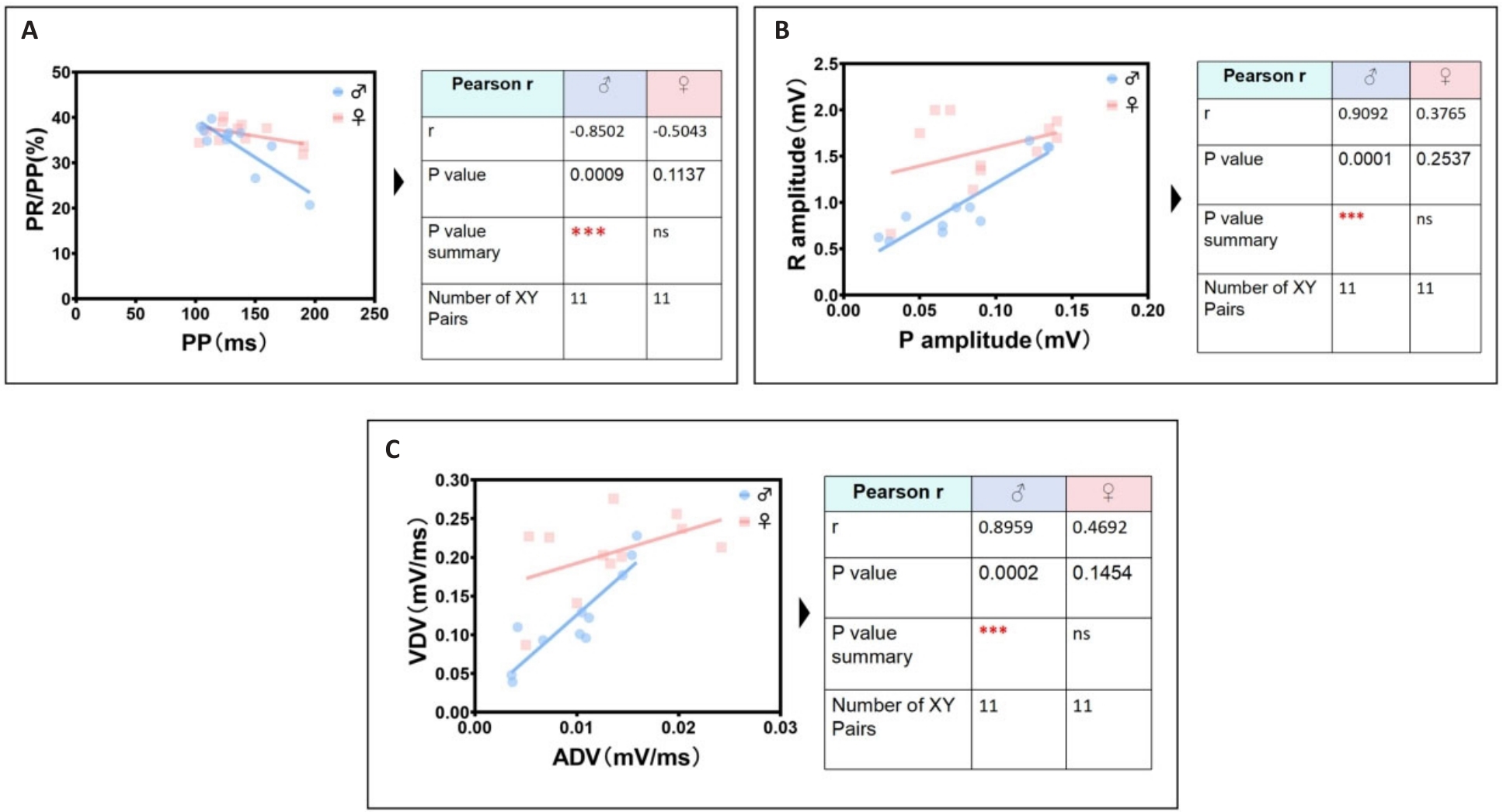

Fig.6 The most significant unique identification group of ECG linear parameters related to male mice. A: Male PP interval is negatively correlated with male PR/PP ratio. B: Male P wave amplitude is positively correlated with male R wave amplitude. C: Male ADV is positively correlated with male VDV.

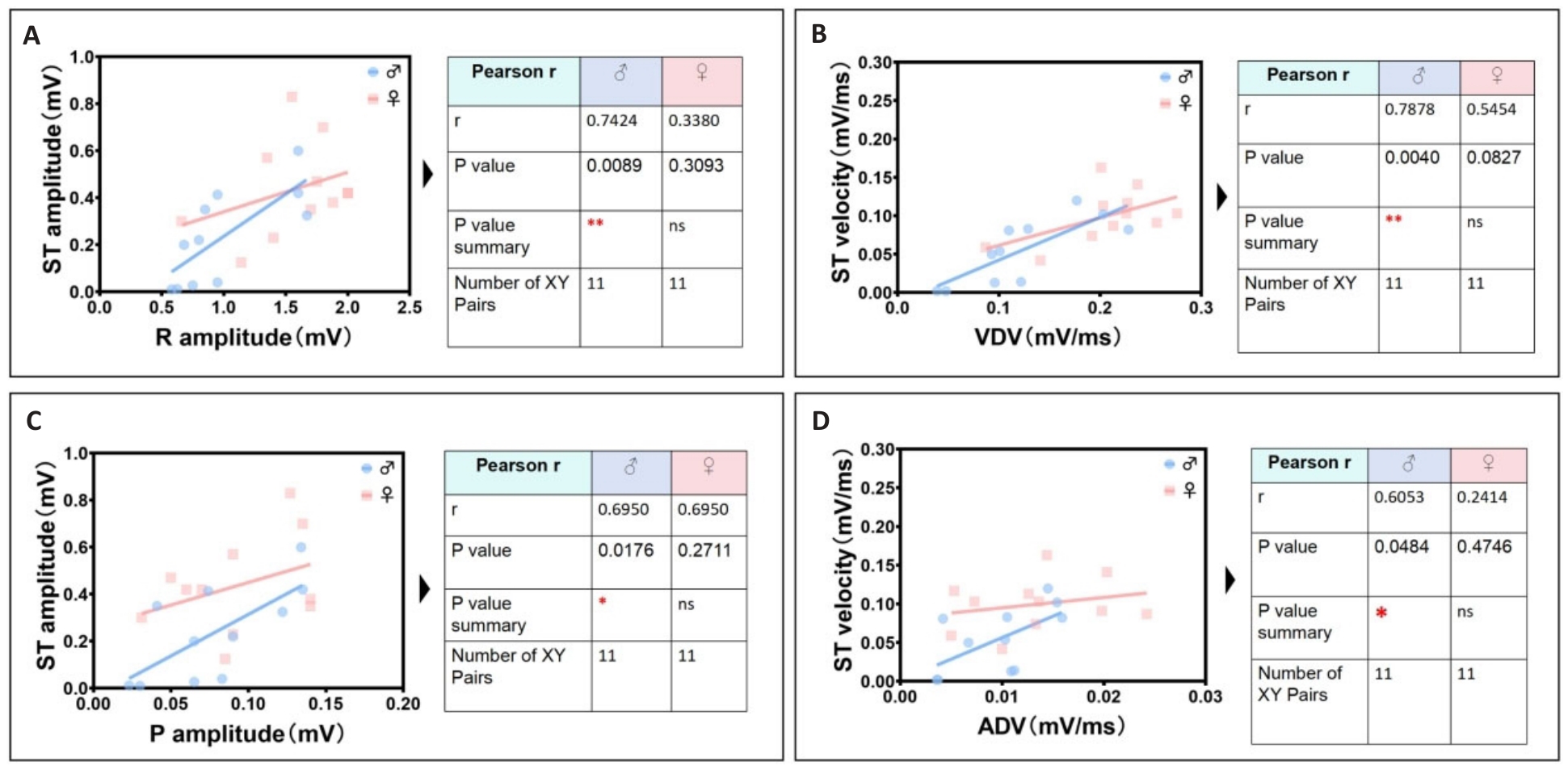

Fig.7 Identification group of unique cardiac electrical linearity-related parameters in male mice. A: Male R wave amplitude is positively correlated with male ST segment amplitude. B: Male VDV is positively correlated with male ST segment velocity. C: Male P wave amplitude is positively correlated with male ST segment amplitude. D: Male ADV is positively correlated with male ST segment velocity.

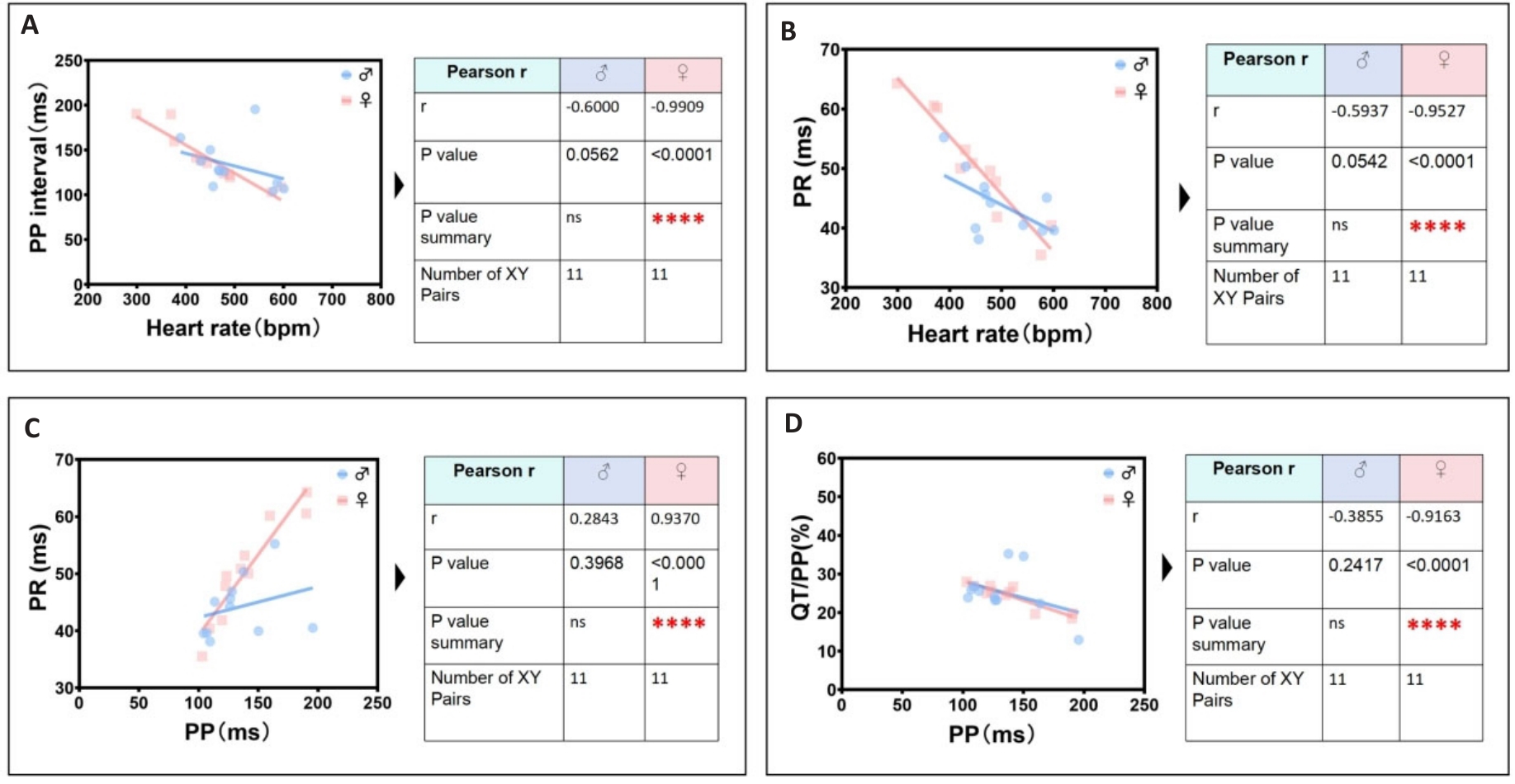

Fig.8 The most significant unique identification group of ECG linearity-related parameters in female mice. A: Female heart rate is negatively correlated with female PP interval. B: Female heart rate is negatively correlated with female PR interval. C: Female PP interval is positively correlated with female PR interval. D: Female PP interval is negatively correlated with female QT/PP ratio.

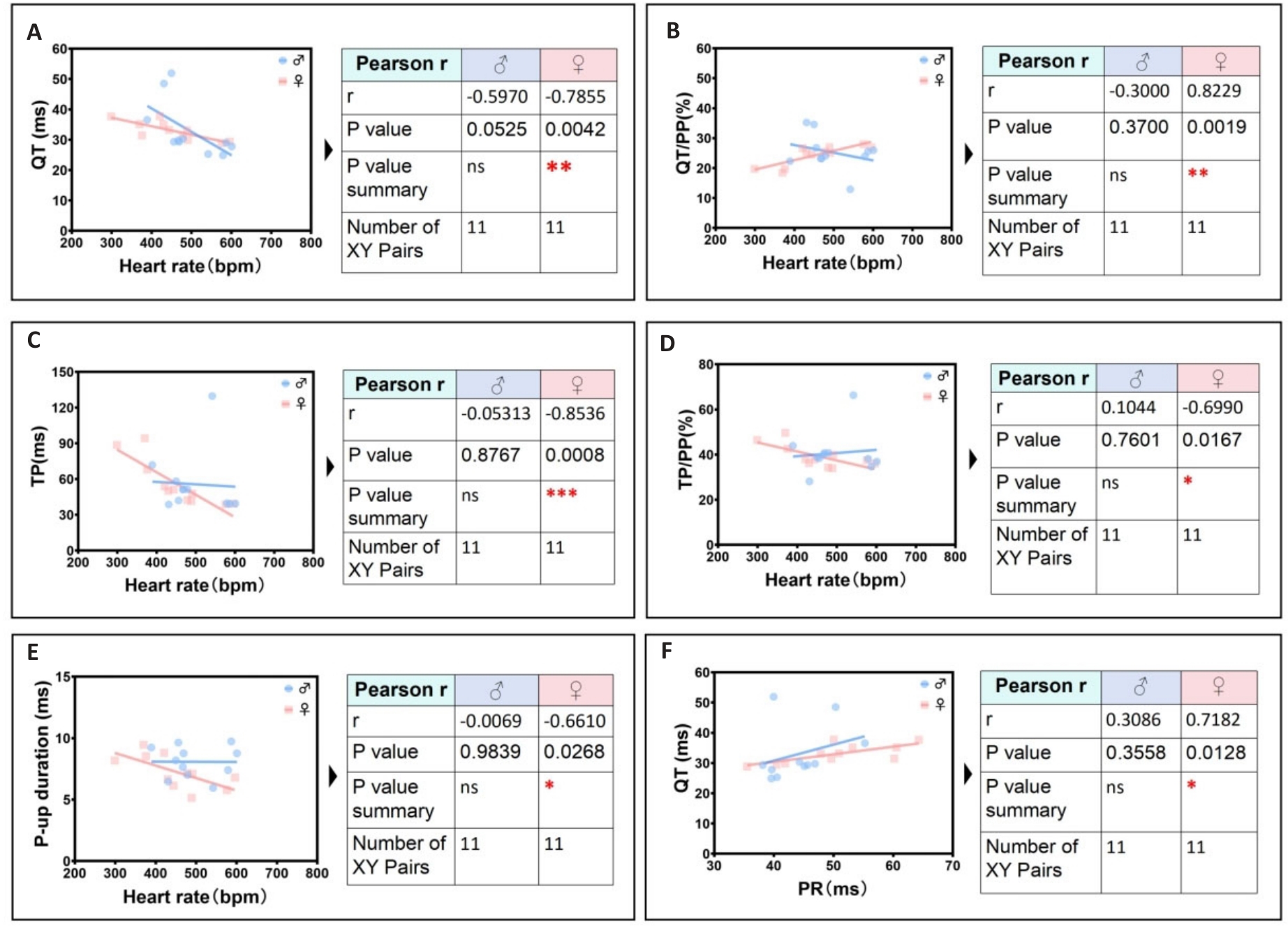

Fig.9 Secondary significant unique identification group of ECG linearity-related parameters in female mice. A: Female heart rate is negatively correlated with female QT interval. B: Female heart rate is positively correlated with female QT/PP ratio. C: Female heart rate is negatively correlated with female TP ratio. D: Female heart rate is negatively correlated with female TP/PP ratio. E: Heart rate is negatively correlated the peak time of rising P wave in female. F: Female PR interval is positively correlated with female QT interval.

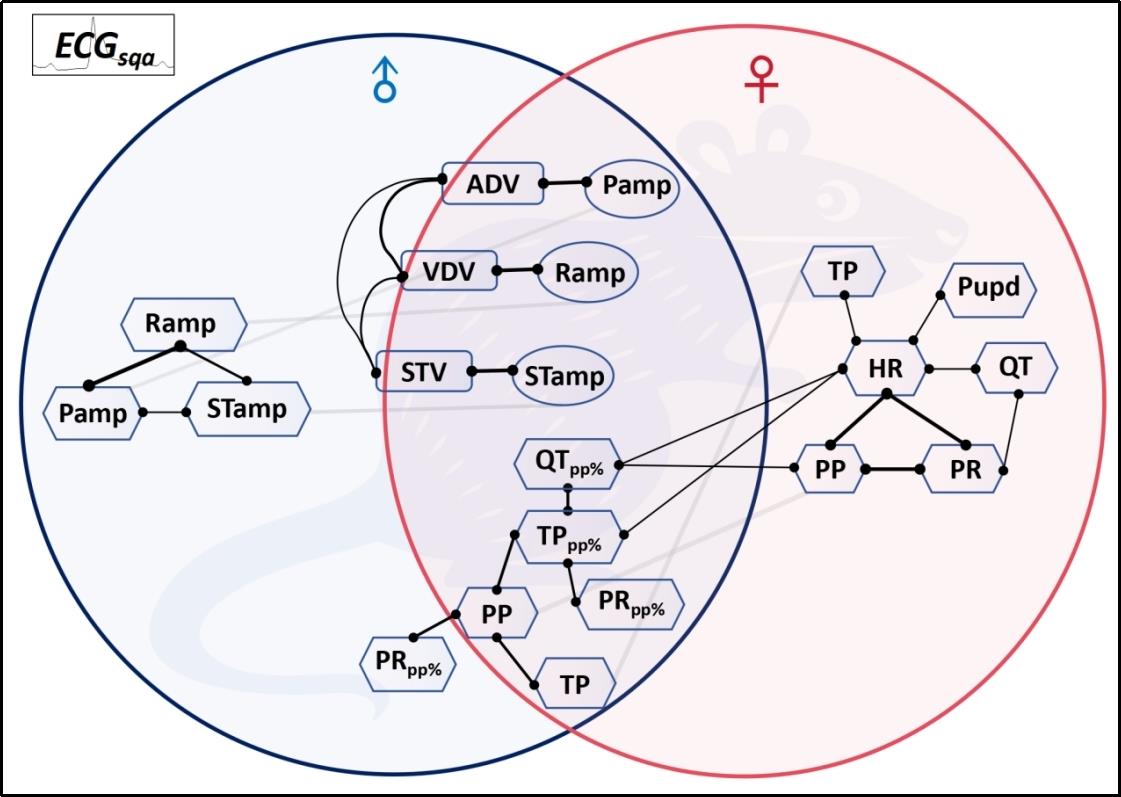

Fig.10 Quantitative ECG correlation parameter network characterizes the intrinsic physiological homeostasis pattern of the mouse cardiac electrical conduction system.
