Expert consensus on standardized clinical applications of minimally invasive tooth extraction techniques

doi:10.12122/j.issn.1673-4254.2024.05.24

Abstract

Abstract:

Tooth extraction is a common and widely employed therapeutic procedure in oral and maxillofacial surgery. Minimally invasive tooth extraction can reduce both physical and psychological trauma to the patients, and is widely recommended as a first-line clinical treatment. But currently no guidelines or consensus has been available to provide a systematic introduction of minimally invasive tooth extraction to guide the clinical practices. To address this issue, this consensus, based on a comprehensive literature review and clinical experiences of experts, systematically summarizes the indications, target patients, and contraindications of minimally invasive tooth extraction, the overall workflow of this procedure (preoperative preparation, surgical steps, postoperative management, postoperative instructions, medications, and follow-up), and its common postoperative complications to provide a comprehensive guidance for clinical application of this technique.

Key words: minimally invasive tooth extraction, standardization, operation procedure, expert consensus

Bo JIA, Qin WANG, Jun CHEN, Guangsen ZHENG, Song FAN, Qingsong YE, Yan HE, Fugui ZHANG, Yadong WU, Feng LIU, Kexiong OUYANG, Leitao ZHANG, Xiaozhi LV, Jianjiang ZHAO. Expert consensus on standardized clinical applications of minimally invasive tooth extraction techniques[J]. Journal of Southern Medical University, 2024, 44(5): 1004-1014.

Figures/Tables 9

Tab.1 Comparison of minimally invasive tooth extraction and conventional tooth extraction

Item	Minimally invasive tooth extraction	Conventional tooth extraction
Surgical approach	Surgical extraction, Orthodontic traction, Coronectomy	Chisel osteotomy
Surgical instruments	Diverse range of instruments and equipment (minimally invasive dental forceps, elevators, 45-degree inclined impact air handpiece, surgical burs, piezosurgery, medical laser, implantological surgical unit, minimally invasive orthodontic traction extraction devices, minimally invasive tooth extraction auxiliary instruments, etc.)	Uniform variety (standard dental elevators, forceps, bone chisels, etc.)
Postoperative suturing technique	Tightly suture, drainage suture, retension suture	Non-suture
Postoperative filling material	Hemostatic agents and site preservation materials	No additional filling
Integrity of socket	Relatively intact	Injured
Root fracture rate	Low	High
Post-operative complications	Less	More
Post-extraction socket healing status	Good	Poor
Preservation of socket site	Good	Poor

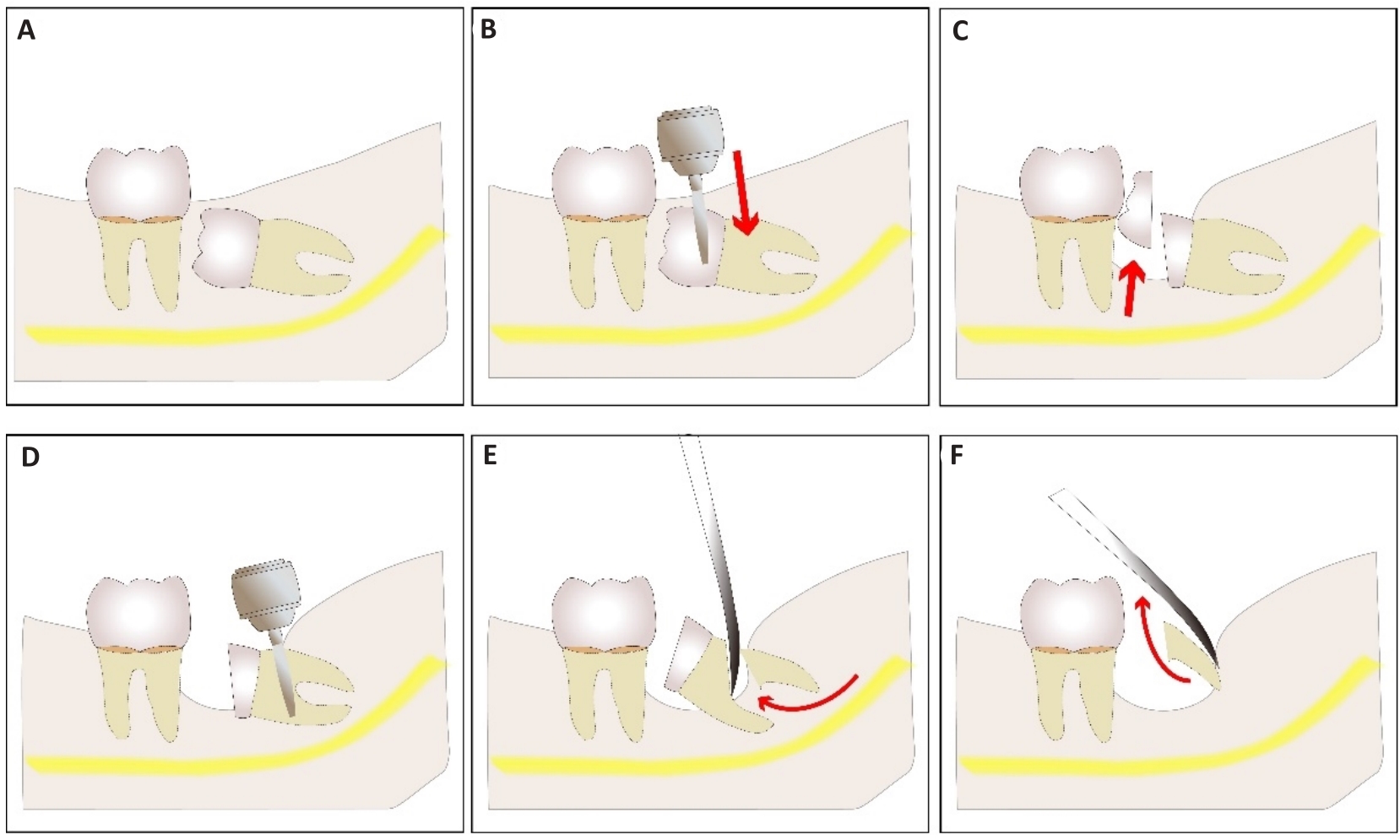

Fig.1 Tooth extraction by sectioning technique. A: Mandibular wisdom teeth with proximal-medial obstruction and complete osseous impact. B: Bone removal and crown splitting in sequence. C: Removal of the crown after splitting. D: Root splitting should start from the distal-medial root to avoid damages of the mandibular neural tube. E: After root splitting, a tooth extractor is inserted along the splitting line from the upper part of the tooth, and the proximal-medial root is removed first. F: Removal of the remaining distal-medial root.

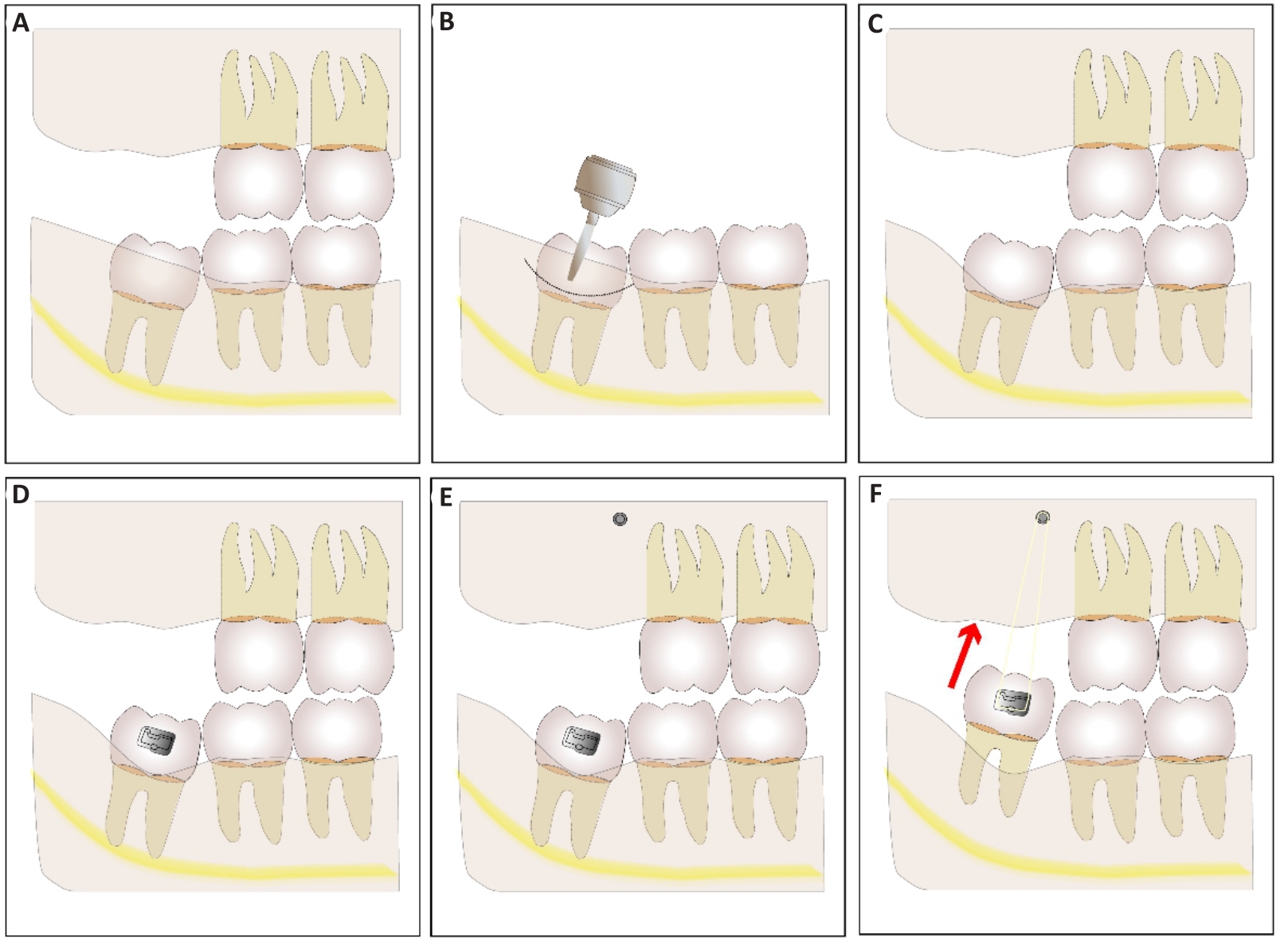

Fig.2 Tooth extraction by traction technique. A: Mandibular wisdom tooth impacted in a low position with no maxillary opposing teeth. B: Removal of the bone tissues around the mandibular wisdom tooth. C: Exposure of the crown of the mandibular wisdom tooth. D: Bonding orthodontic brackets on the buccal surface of the dental tissues. E: Implanting micro-implant anchorage screws between the mandibular second and third molars or in the distal alveolar bone of the mandibular third molar. F: Extraction of the tooth bonded with brackets using elastic traction.

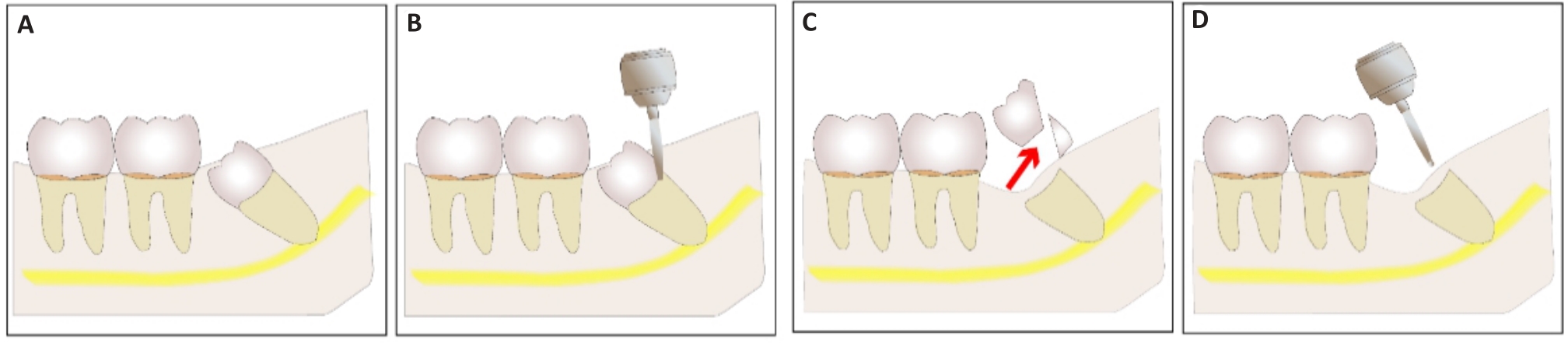

Fig.3 Coronectomy. A: The mandibular wisdom tooth root is close to the mandibular neural tube. B: Bone removal and crown splitting. C: Removal of the split crowns sequentially. D: Root surface trimming to 3-4 mm below the alveolar ridge.

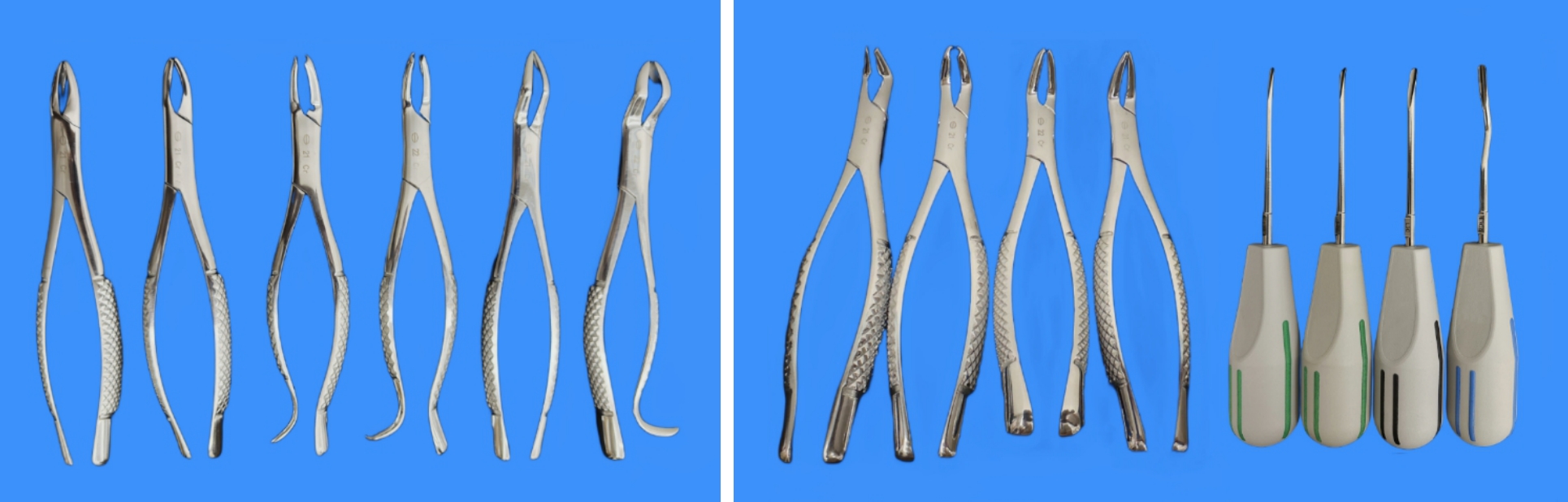

Fig.4 Minimally invasive dental forceps and elevators.

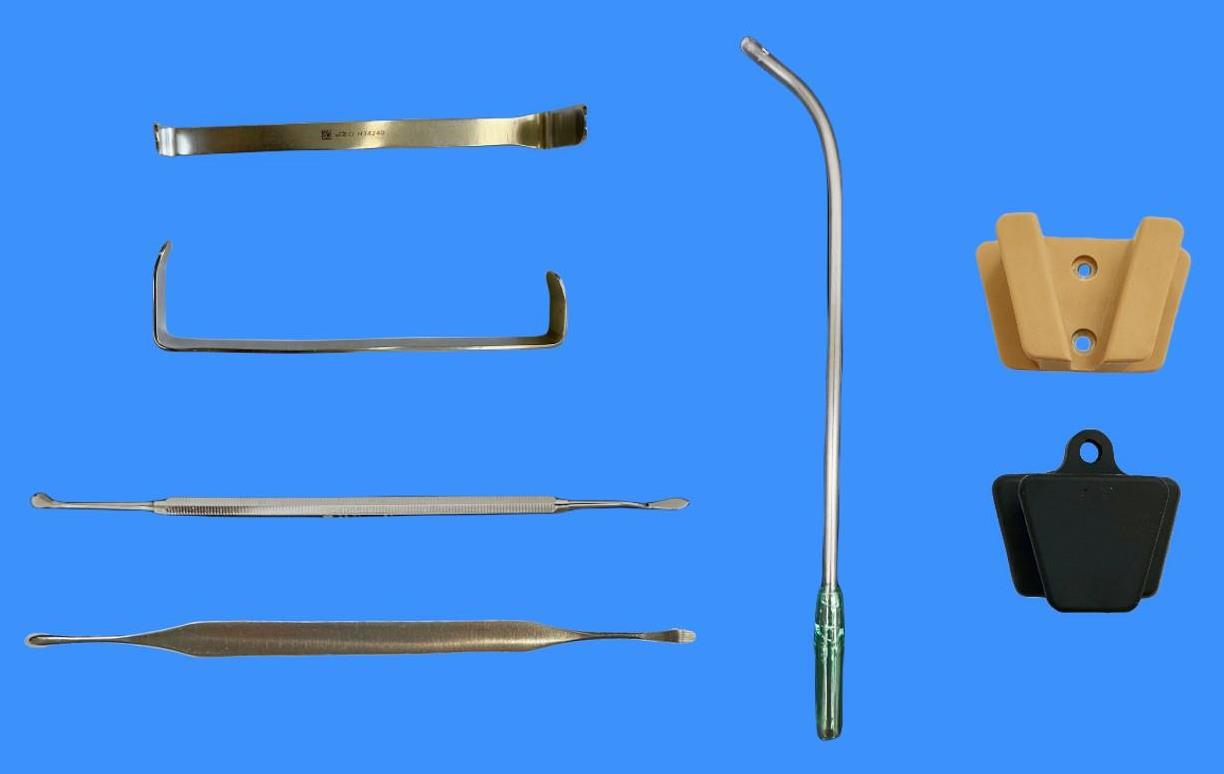

Fig.5 Minnesota retractor, gingival margin trimmers, periosteal elevator, suction and bite block.

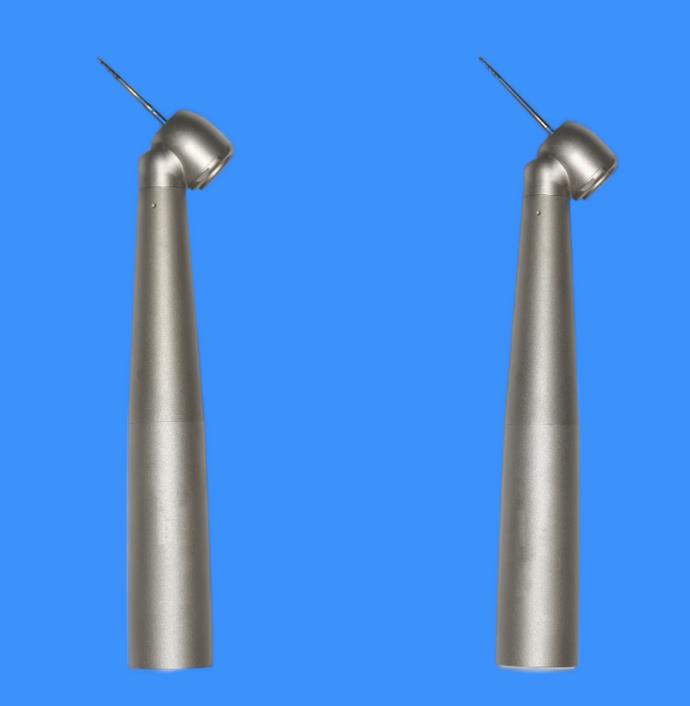

Fig.6 45-degree inclined impact air handpiece and surgical burs.

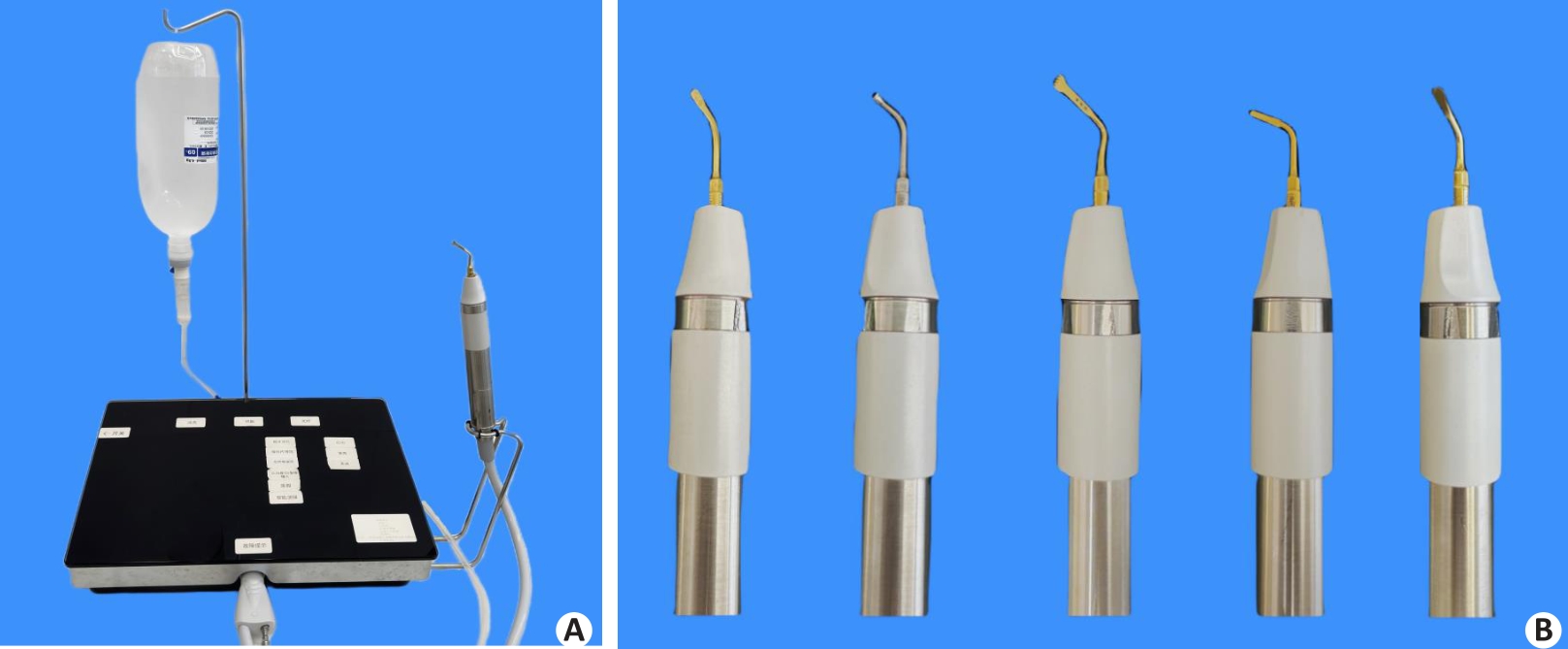

Fig.7 Piezosurgery. A: Overview of the piezosurgery apparatus. B: Different types of piezosurgery working tips.

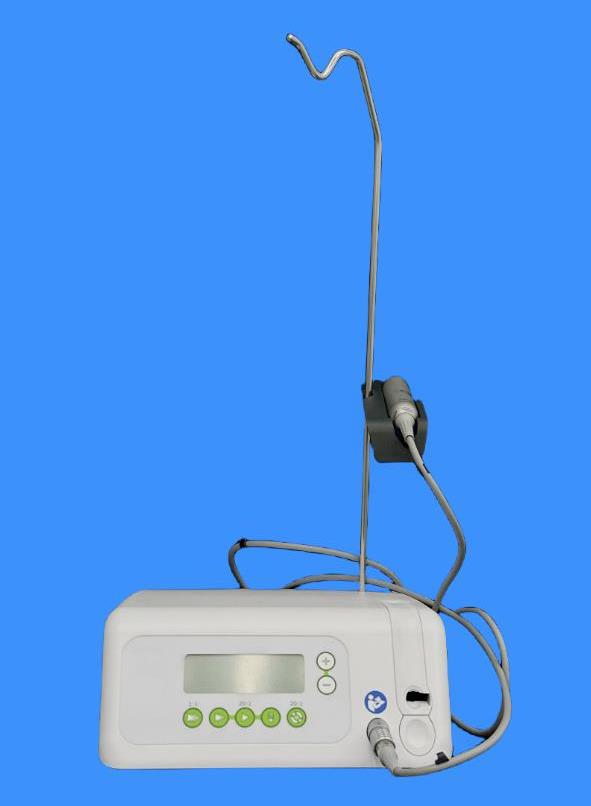

Fig.8 Implantological surgical unit.
