KLF10 overexpression alleviates neuroinflammation and anxiety-depressive disorder in rats by downregulating the NF-κB/NLRP3 pathway

doi:10.12122/j.issn.1673-4254.2026.05.03

Abstract

Abstract:

Objective To elucidate the neuroimmune regulatory mechanism of the circadian rhythm gene KLF10 as a biomarker for anxiety depressive disorder (ADD). Methods The differentially expressed circadian rhythm genes were screened using human peripheral blood gene chip data from the GEO database (including 64 healthy individuals, 62 patients with major depressive disorder [MDD], and 59 with ADD) in conjunction with the MSigDB database. Weighted gene co-expression network analysis and machine learning models were employed to identify the core genes, followed by KEGG pathway enrichment analysis and evaluation of their diagnostic efficacy using ROC curves. In a male SD rat model of ADD induced by chronic restraint and corticosterone stress, the changes in depressive-like behaviors, hippocampal and amygdala pathologies, levels of inflammatory and pro-inflammatory cytokines, co-localization of KLF10 and p-p65 expression, and expression levels of NF‑κB/NLRP3 pathway molecules were examined following stereotactic AAV virus injection into the lateral ventricle for KLF10 overexpression. Results Compared with healthy individuals, the depressive patients showed differential expressions of 9 circadian rhythm genes. Compared with the MDD patients, the patients with ADD had significantly higher immune infiltration scores with upregulated NOD-like receptor and NF‑κB signaling pathways. The specific biomarker KLF10 demonstrated a diagnostic efficacy of 0.885. In the rat models of AOD, KLF10 overexpression significantly ameliorated depression- and anxiety-like behaviors, restored the balance between the pro- and anti-inflammatory cytokines, and improved hippocampal and amygdala pathologies. KLF10 overexpression also markedly upregulated NFKBIA mRNA, downregulated NLRP3 and RELA mRNAs, and reduced protein expressions of p-IκB‑α, p-p65, and NLRP3 in the brain tissues of the rats. Conclusion KLF10 overexpression ameliorates ADD behaviors in rats by inhibiting hippocampal-amygdala inflammation via downregulating the NF‑κB/NLRP3 pathway, suggesting the potential of KLF10 as a diagnostic biomarker and therapeutic target for AOD.

Key words: anxiety-depressive disorder, neuro-inflammation, NF?κB/NLRP3 pathway, circadian rhythm genes

Anlan LIU, Weifeng GUO, Jianxiang LI, Tiange ZHANG, Dan XU. KLF10 overexpression alleviates neuroinflammation and anxiety-depressive disorder in rats by downregulating the NF-κB/NLRP3 pathway[J]. Journal of Southern Medical University, 2026, 46(5): 994-1005.

Figures/Tables 7

Tab.1 Primer sequencs for qRT-PCR

Primer	Sequence (5'→3')	Length (bp)	Tm (℃)
m-β-actin-F	TGCTATGTTGCCCTAGACTTCG	22	61.4
m-β-actin-R	GTTGGCATAGAGGTCTTTACGG	22	60.8
m-NFKBIA-F	CTCCGAGACTTTCGAGGAAATAC	23	60.2
m-NFKBIA-R	GCCATTGTAGTTGGTAGCCTTCA	23	61.4
m-RELA-F	ATGTGGAGATCATTGAGCAGC	21	60.2
m-RELA-R	CCTGGTCCTGTGTAGCCATT	20	60.3
m-NLRP3-F	ATCAACAGGCGAGACCTCTG	20	61.3
m-NLRP3-R	GTCCTCCTGGCATACCATAGA	21	60.2
m-CASP1-F	TTTCCGCAAGGTTCGATTTTCA	22	61.0
m-CASP1-R	GGCATCTGCGCTCTACCATC	20	61.8
m-IL1B-F	GAAATGCCACCTTTTGACAGTG	22	60.2
m-IL1B-R	TGGATGCTCTCATCAGGACAG	21	61.0

Tab.2 Demographic data of the healthy individuals and patients with depression included in this study ［n (%)］

Item	Control	MDD	ADD
Gender
Male	33 (51.56)	24 (37.50)	19 (29.69)
Female	31 (48.44)	40 (62.50)	45 (70.31)
Age (year)
18-30	20 (31.25)	26 (40.63)	28 (43.75)
30-45	23 (35.94)	19 (29.69)	21 (32.81)
45-60	21 (32.81)	17 (26.56)	10 (15.63)
Unknown	0 (0.00)	2 (3.13)	5 (7.81)
Disease duration (month)
<6	-	41 (64.06)	36 (56.25)
6-12	-	10 (15.63)	22 (34.38)
13-24	-	9 (14.06)	5 (7.81)
>24	-	4 (6.25)	1 (1.56)

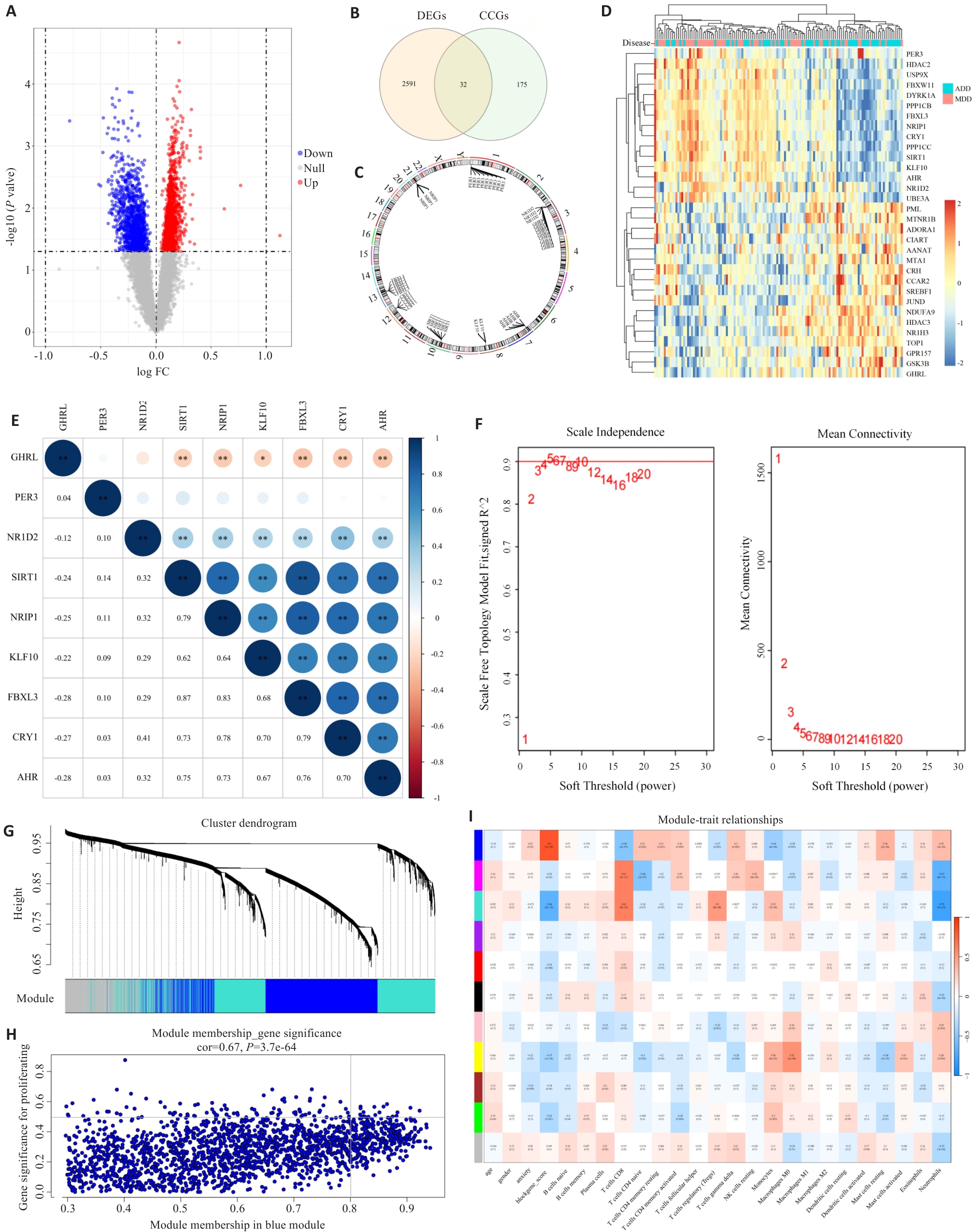

Fig.1 Differences in expressions of circadian genes between ADD and MDD patients, and WGCNA of ADD. A: Volcano map of the differential genes (DEGs) between ADD and MDD patients. B: Venn diagram of CCGs and the DEGS between ADD and MDD patients. C: Circos plot showing DE-CCGs expression patterns and the distribution of their chromosomal locations. D: Heat map of CCG expression levels. E: Heat map of correlation analysis of DE-CCGs. F: Analysis of the scale-free fit index (left) and the mean connectivity (right) for selecting various soft-thresholding powers (β). G: Clustering dendrogram for genes in burn traits; each color below represents one co-expression gene module. H: Scatter plot of the key module. Each point in the scatter plot represents one gene. I: Heat map depicting correlations between modules, phenotypes and immune cells. *P<0.05, **P<0.01. Control group (n=64), MDD group (n=62), ADD group (n=59).

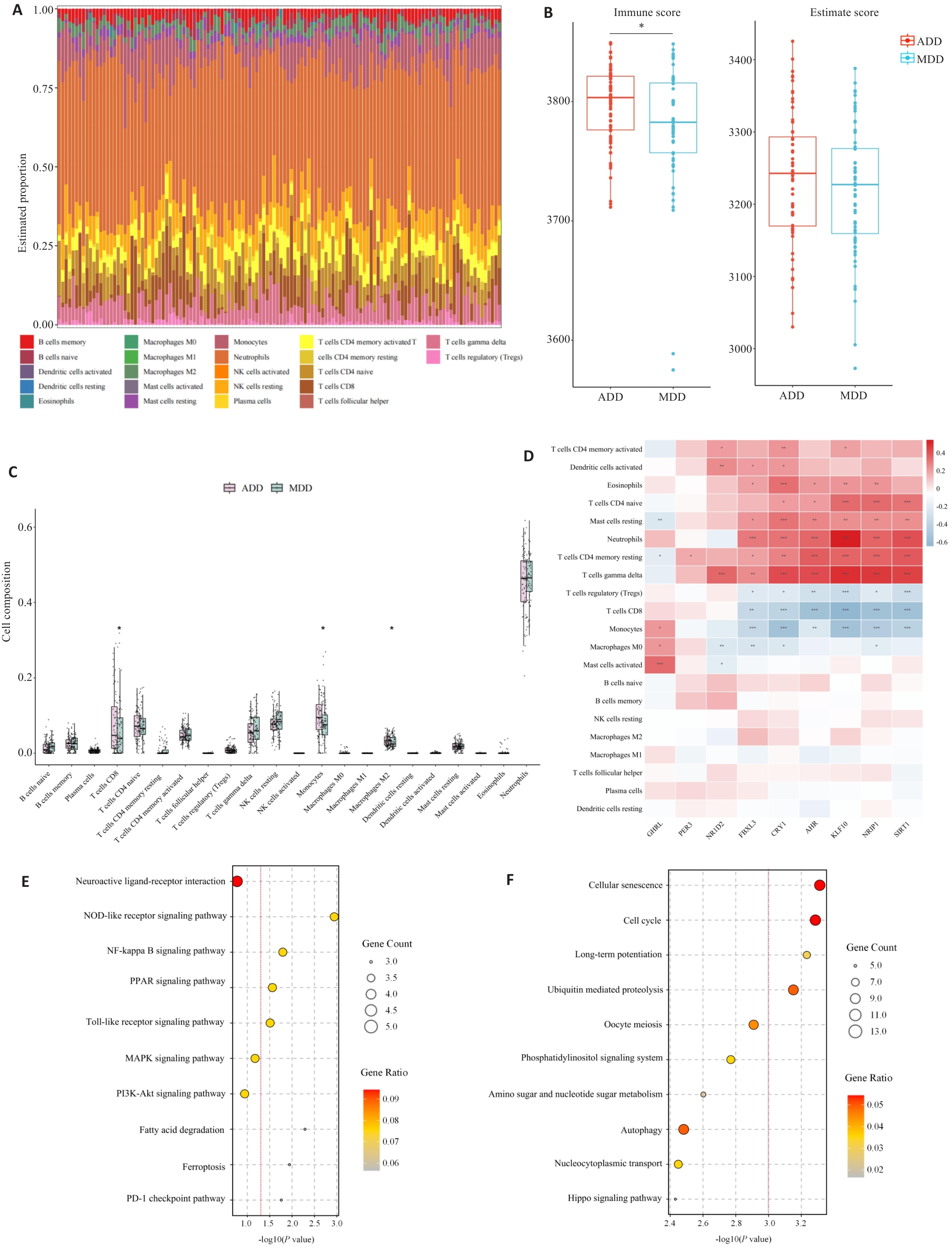

Fig.2 Relationship between circadian genes and immunity and functional enrichment pathways. A: Bar plot of the proportion of 22 types of immune cells in ADD patients. Column names are sample ID. B: Box plot of ImmuneScore and ESTIMATEScore in ADD and MDD patients. C: Box plot for the composition of immune cells in ADD and MDD patients. D: Heat map for correlation between crucial CCGs and 22 immune cells. E,F: KEGG pathway enrichment analysis of the up (E)/down (F) intersection genes in ADD patients compared with the healthy control (the red lines show the significance). *P<0.05, **P<0.01, ***P<0.001. MDD group (n=62), ADD group (n=59).

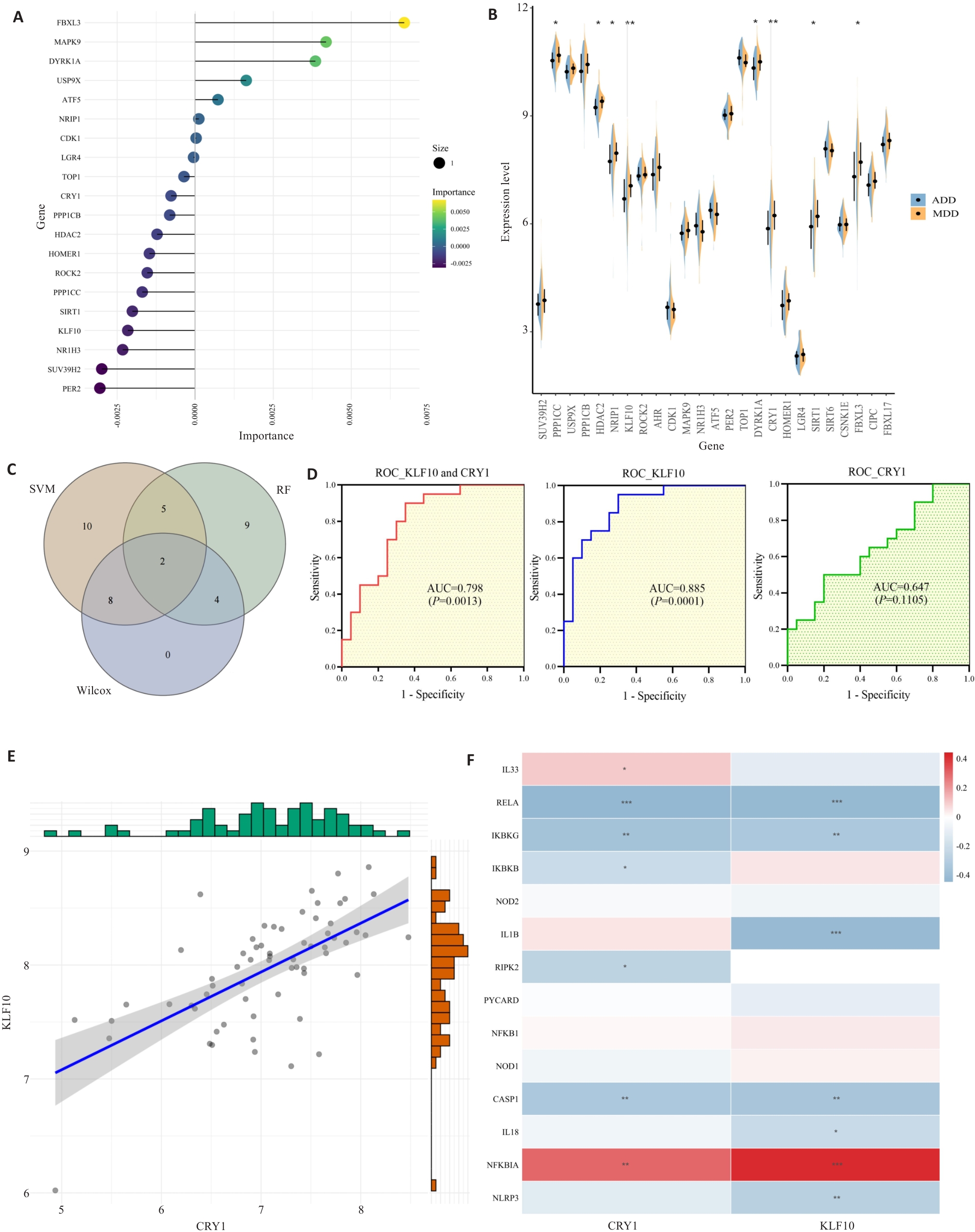

Fig.3 ADD-specific biomarkers and their diagnostic efficacy. A: Top key genes random forest importance sorting lollipop chart. B: Violin plots showing expression levels of the 25 key module genes in different groups. C: Venn diagram showing the intersection of diagnostic markers obtained using 3 algorithms (Wilcox-test was used to compare the differences). D: Validation of the prognostic model: ROC curve of two risk genes and their combination in ADD. E: Expression correlation of two key genes in ADD patients (P=8.06e-09, rpearson=0.65, 95% CI : 0.48-0.77). F: Relationship between two key CCGs and gene ontology of the key nodes in the core pathways. *P<0.05, **P<0.01, ***P<0.001. MDD group (n=62), ADD group (n=59).

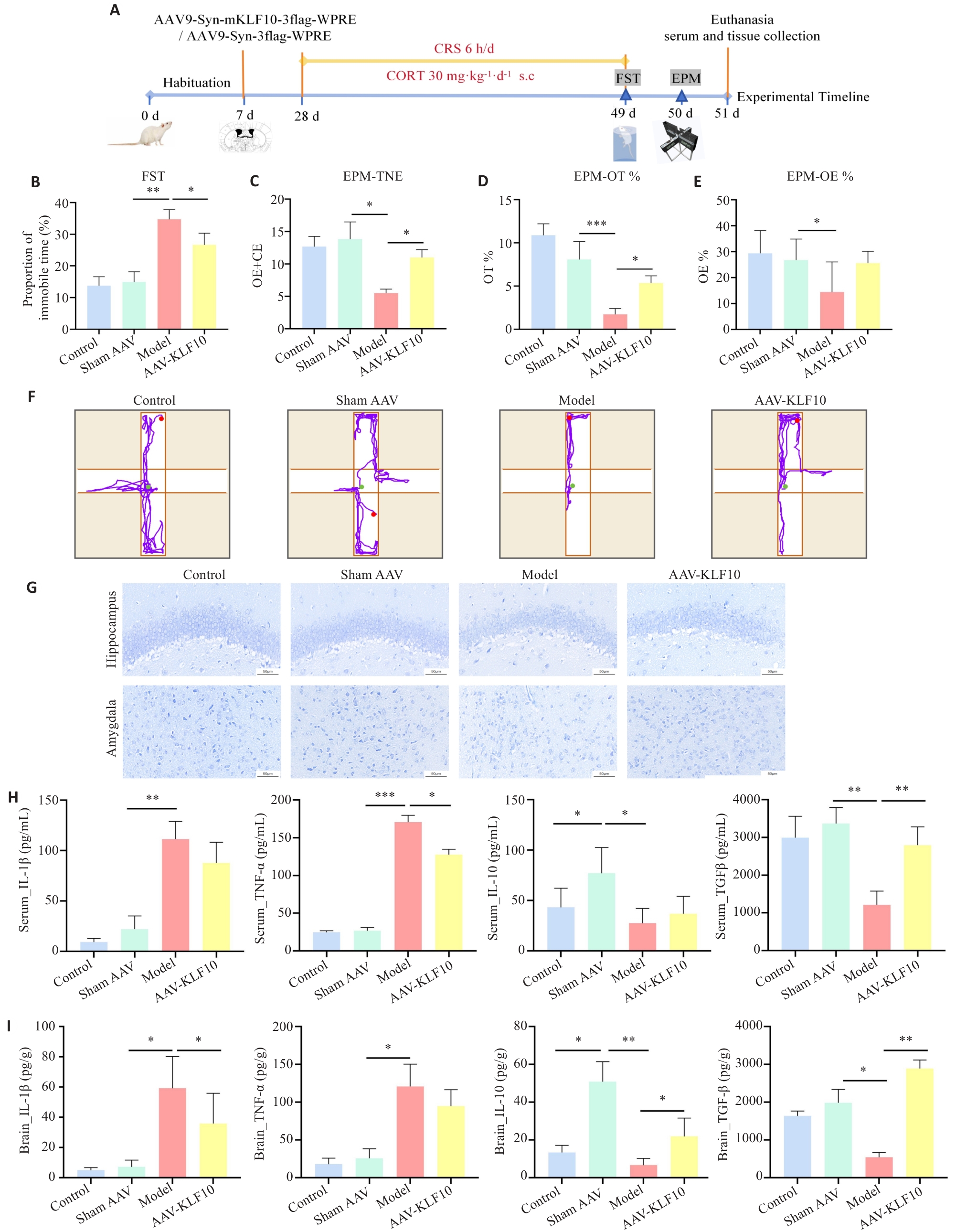

Fig.4 Overexpression of KLF10 improves ADD behaviors and restors neuronal function and the pro-inflammatory/anti-inflammatory balance of the rat models. A: Timeline of SD rat modeling, brain stereotactic injection of AVV, and behavioral tests. B: Proportion of immobility time in forced swimming test. C: Total number of entries in the elevated plus maze test. D: Proportion of open arm activity time in elevated plus maze test. E: Percentage of open arm entries in the elevated plus maze test. F: Representative images of rat activity in the elevated plus maze. G: Representative images of Nissl staining in different groups (Scale bar=50 μm). H: ELISA of pro-inflammatory/anti-inflammatory cytokines in the serum. I: ELISA of pro-inflammatory/anti-inflammatory cytokines in the brain tissue. *P<0.05, **P<0.01, ***P<0.001 (n=10).

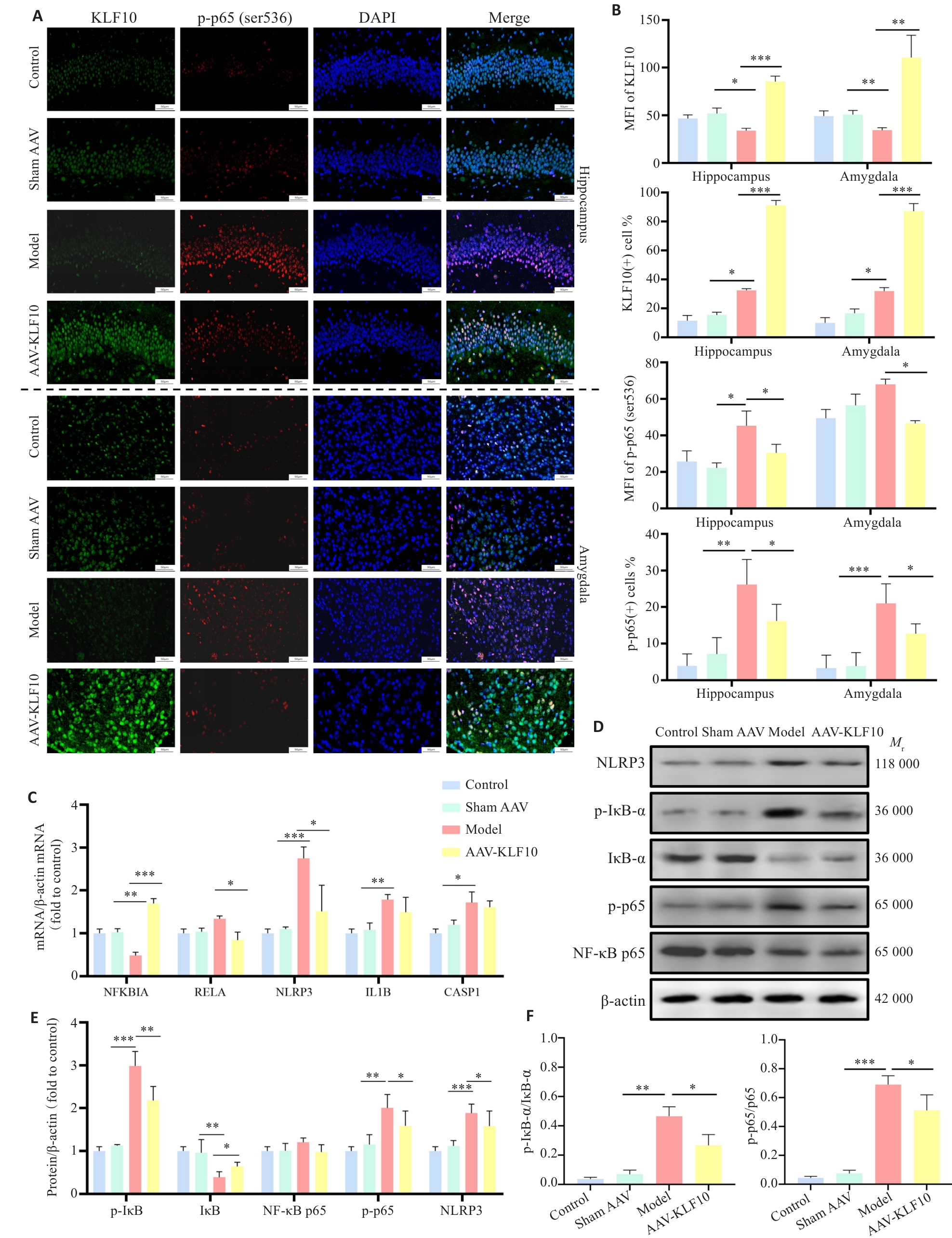

Fig.5 Effect of KLF10 overexpression on expressions of NF-κB/NLRP3 pathway signaling molecules in the hippocampus and amygdala of the rats. A: Immunofluorescence staining showing the expressions of KLF10 and p-p65 in the hippocampus and amygdala of the rats (Scale bar=50 μm). B: Average fluorescence intensity and proportions of KLF10- and p-p65-positive cells in the hippocampus and amygdala. C: mRNA expressions of key node molecules of the NF-κB/NLRP3 pathway. D: Western blotting of NF-κB/NLRP3 pathway key proteins. E: p-IκB, IκB, NF-κB p65, p-p65, NLRP3 protein expression levels. F: Relative quantification of p-IκB and IκB ontology, p-p65 and NF-κB p65 ontology. *P<0.05, **P<0.01, ***P<0.001, n=6.

References 43

[1]	APA. Diagnostic statistical manual of mental disorder DSM-5 [S]. American Psychiatric Publishing, 2013: 155-167.
[2]	赵洪庆, 黄会珍, 金狮, 等. 百合疏肝安神汤对焦虑性抑郁模型大鼠海马-杏仁核神经营养因子的调控作用[J]. 中国新药杂志, 2019, 28(18): 2206-12. doi：10.3969/j.issn.1003-3734.2019.18.007
[3]	Seo HJ, Jung YE, Kim TS, et al. Distinctive clinical characteristics and suicidal tendencies of patients with anxious depression[J]. J Nerv Ment Dis, 2011, 199(1): 42-8. doi：10.1097/NMD.0b013e3182043b60
[4]	Han K, Chapman SB, Krawczyk DC. Altered amygdala connectivity in individuals with chronic traumatic brain injury and comorbid depressive symptoms[J]. Front Neurol, 2015, 6: 231. doi：10.3389/fneur.2015.00231
[5]	Stratmann M, Konrad C, Kugel H, et al. Insular and hippocampal gray matter volume reductions in patients with major depressive disorder[J]. PLoS One, 2014, 9(7): e102692. doi：10.1371/journal.pone.0102692
[6]	Tian XH, Wang GY, Teng F, et al. Zhi Zi Chi decoction (Gardeniae fructus and semen Sojae Praeparatum) attenuates anxious depression via modulating microbiota-gut-brain axis in corticosterone combined with chronic restraint stress-induced mice[J]. CNS Neurosci Ther, 2024, 30(4): e14519. doi：10.1111/cns.14519
[7]	赵洪庆, 韩远山, 柳卓, 等. 焦虑性抑郁模型大鼠脑区单胺递质含量与神经因子表达的变化[J]. 中国实验动物学报, 2017, 25(4): 373-9.
[8]	常海霞, 崔林雨, 李云峰, 等. 盐酸羟哌吡酮对脂多糖诱导小鼠抑郁样和焦虑样行为的改善作用及对BV2细胞抗炎作用相关机制[J]. 中国药理学与毒理学杂志, 2023, 37(10): 725-32. doi：10.3867/j.issn.1000-3002.2023.10.001
[9]	Golombek DA, Rosenstein RE. Physiology of circadian entrainment[J]. Physiol Rev, 2010, 90(3): 1063-102. doi：10.1152/physrev.00009.2009
[10]	Gao L, Li P, Gaykova N, et al. Circadian rest-activity rhythms, delirium risk, and progression to dementia[J]. Ann Neurol, 2023, 93(6): 1145-57. doi：10.1002/ana.26617
[11]	Walker WH, Walton JC, DeVries AC, et al. Circadian rhythm disruption and mental health[J]. Transl Psychiatry, 2020, 10: 28. doi：10.1038/s41398-020-0694-0
[12]	Takayama F, Zhang XW, Hayashi Y, et al. Dysfunction in diurnal synaptic responses and social behavior abnormalities in cathepsin S-deficient mice[J]. Biochem Biophys Res Commun, 2017, 490(2): 447-52. doi：10.1016/j.bbrc.2017.06.061
[13]	Tao L, Jiang R, Zhang K, et al. Light therapy in non-seasonal depression: an update meta-analysis[J]. Psychiatry Res, 2020, 291: 113247. doi：10.1016/j.psychres.2020.113247
[14]	Lyall LM, Wyse CA, Graham N, et al. Association of disrupted circadian rhythmicity with mood disorders, subjective wellbeing, and cognitive function: a cross-sectional study of 91 105 participants from the UK Biobank[J]. Lancet Psychiatry, 2018, 5(6): 507-14. doi：10.1016/s2215-0366(18)30139-1
[15]	Albrecht U. Molecular mechanisms in mood regulation involving the circadian clock[J]. Front Neurol, 2017, 8: 30. doi：10.3389/fneur.2017.00030
[16]	Choi KW, Kim YK, Jeon HJ. Comorbid anxiety and depression: clinical and conceptual consideration and transdiagnostic treatment[J]. Adv Exp Med Biol, 2020, 1191: 219-35. doi：10.1007/978-981-32-9705-0_14
[17]	文可奕, 张云妍, 王芳易, 等. 生物钟基因调控昼夜节律影响抑郁症研究进展[J]. 中国神经精神疾病杂志, 2025, 51(9): 565-70.
[18]	张成宇, 孙洪艺, 骆思宏, 等. 生物钟节律紊乱介导抑郁-失眠共病的研究进展[J]. 神经损伤与功能重建, 2026, 21(1): 29-33, 62.
[19]	Leday GGR, Vértes PE, Richardson S, et al. Replicable and coupled changes in innate and adaptive immune gene expression in two case-control studies of blood microarrays in major depressive disorder[J]. Biol Psychiatry, 2018, 83(1): 70-80. doi：10.1016/j.biopsych.2017.01.021
[20]	Langfelder P, Horvath S. WGCNA: an R package for weighted correlation network analysis[J]. BMC Bioinform, 2008, 9(1): 559. doi：10.1186/1471-2105-9-559
[21]	Sanz H, Valim C, Vegas E, et al. SVM-RFE: selection and visualization of the most relevant features through non-linear kernels[J]. BMC Bioinform, 2018, 19(1): 432. doi：10.1186/s12859-018-2451-4
[22]	Chen BB, Khodadoust MS, Liu CL, et al. Profiling tumor infiltrating immune cells with CIBERSORT[J]. Methods Mol Biol, 2018, 1711: 243-59. doi：10.1007/978-1-4939-7493-1_12
[23]	李亚灿, 尹梅. 医学研究中实验动物福利管理的现状与思考[J]. 卫生法学, 2025, 33(6): 183-91.
[24]	Yang PF, Wang ZZ, Zhang Z, et al. The extended application of The Rat Brain in Stereotaxic Coordinates in rats of various body weight[J]. J Neurosci Methods, 2018, 307: 60-9. doi：10.1016/j.jneumeth.2018.06.026
[25]	雷雨, 刘伟, 包黎. 橙皮苷对慢性应激抑郁模型大鼠海马组织Akt/mTOR信号通路调节机制的研究[J]. 中国免疫学杂志, 2024, 40(12): 2548-53. doi：10.3969/j.issn.1000-484X.2024.12.015
[26]	贝雪怡, 姜宁, 姚彩虹, 等. 人参皂苷Rg1和Rb1改善慢性不可预测应激致大鼠抑郁、焦虑样行为的作用比较[J]. 中国比较医学杂志, 2024, 34(7): 68-78.
[27]	Liu HT, Zhang JJ, Xu XX, et al. SARM1 promotes neuroin-flammation and inhibits neural regeneration after spinal cord injury through NF-κB signaling[J]. Theranostics, 2021, 11(9): 4187-206. doi：10.7150/thno.49054
[28]	Im K, Mareninov S, Diaz MFP, et al. An introduction to performing immunofluorescence staining[J]. Methods Mol Biol, 2019, 1897: 299-311. doi：10.1007/978-1-4939-8935-5_26
[29]	Harshitha R, Arunraj DR. Real-time quantitative PCR: a tool for absolute and relative quantification[J]. Biochem Mol Biol Educ, 2021, 49(5): 800-12. doi：10.1002/bmb.21552
[30]	孙浚源, 罗微微, 杨金凤, 等. 用蛋白质印迹评价GAPDH与β-actin作为Skp2内参蛋白的研究[J]. 中国临床药理学杂志, 2024, 40(6): 844-8. doi：10.13699/j.cnki.1001-6821.2024.06.013
[31]	Zou HW, Zhou HL, Yan R, et al. Chronotype, circadian rhythm, and psychiatric disorders: Recent evidence and potential mechanisms[J]. Front Neurosci, 2022, 16: 811771. doi：10.3389/fnins.2022.811771
[32]	谢光璟, 徐波, 黄攀攀, 等. 安寐丹对睡眠剥夺大鼠自发活动昼夜节律的调节及对生物钟蛋白的影响[J]. 中国实验方剂学杂志, 2022, 28(7): 33-9.
[33]	Wang XP, Guo YF, Lin P, et al. Nuclear receptor E75/NR1D2 promotes tumor malignant transformation by integrating Hippo and Notch pathways[J]. EMBO J, 2024, 43(24): 6336-63. doi：10.1038/s44318-024-00290-3
[34]	Luo HY, Mu WJ, Chen M, et al. Hepatic Klf10-Fh1 axis promotes exercise-mediated amelioration of NASH in mice[J]. Metabolism, 2024, 155: 155916. doi：10.1016/j.metabol.2024.155916
[35]	Memon A, Lee WK. KLF10 as a tumor suppressor gene and its TGF-β signaling[J]. Cancers, 2018, 10(6): 161. doi：10.3390/cancers10060161
[36]	Luo HY, Zhu JY, Chen M, et al. Krüppel-like factor 10 (KLF10) as a critical signaling mediator: Versatile functions in physiological and pathophysiological processes[J]. Genes Dis, 2023, 10(3): 915-30. doi：10.1016/j.gendis.2022.06.005
[37]	Garduño-Tamayo NA, Almazán JL, Romo-Rodríguez R, et al. Klf10 regulates the emergence of glial phenotypes during hypothalamic development[J]. J Neurosci Res, 2025, 103(2): e70020. doi：10.1002/jnr.70020
[38]	Miller AH, Raison CL. The role of inflammation in depression: from evolutionary imperative to modern treatment target[J]. Nat Rev Immunol, 2016, 16(1): 22-34. doi：10.1038/nri.2015.5
[39]	Liu FJ, Jia YX, Zhao LW, et al. Escin ameliorates CUMS-induced depressive-like behavior via BDNF/TrkB/CREB and TLR4/MyD88/NF-κB signaling pathways in rats[J]. Eur J Pharmacol, 2024, 984: 177063. doi：10.1016/j.ejphar.2024.177063
[40]	Wang CY, Jiang SY, Liao SM, et al. Dimethyl fumarate ameliorates chronic stress-induced anxiety-like behaviors by decreasing neuroinflammation and neuronal activity in the amygdala[J]. Int Immunopharmacol, 2024, 137: 112414. doi：10.1016/j.intimp.2024.112414
[41]	Schouten M, Aschrafi A, Bielefeld P, et al. microRNAs and the regulation of neuronal plasticity under stress conditions[J]. Neuroscience, 2013, 241: 188-205. doi：10.1016/j.neuroscience.2013.02.065
[42]	Verhoeven JE, Han LKM, Lever-van Milligen BA, et al. Antidepressants or running therapy: Comparing effects on mental and physical health in patients with depression and anxiety disorders[J]. J Affect Disord, 2023, 329: 19-29. doi：10.1016/j.jad.2023.02.064
[43]	Chat IK, Mac Giollabhui N, Bart CP, et al. Concurrent and prospective associations of inflammatory signaling, specific depressive symptoms, and substance use in adolescence[J]. Brain Behav Immun, 2023, 110: 85-94. doi：10.1016/j.bbi.2023.02.016
